Autonomous DEM
Monitored Remote Sites Dashboard
Table of Contents
Monitored Remote Sites Dashboard
Monitor the digital experience of for your remote sites
and troubleshoot performance issues from this dashboard. The Remote Sites dashboard
provides an experience score of all the remote sites in the Prisma
Access Locations and shows how the experience trend during the selected Time
Range. You can also see detailed experience information for
each remote site. This is often where you will want to start if
you have remote sites reporting performance issues.
From here you get an overall view of the experience trends for
all your ADEM remote sites. You can view
- The overall experience score for all the remote sites. This helps to determine how all sites are working with a breakdown view of the remote sites that are performing good, fair, or poor
- The experience score for each site
- The connected Prisma Access location sites
- Information on the Internet and private WAN circuits that the remote site is connected to
Select or define a custom Time Range to
view the data for only the time window selected.
Filter (click
![]()
) the data shown
in the widgets in this dashboard.

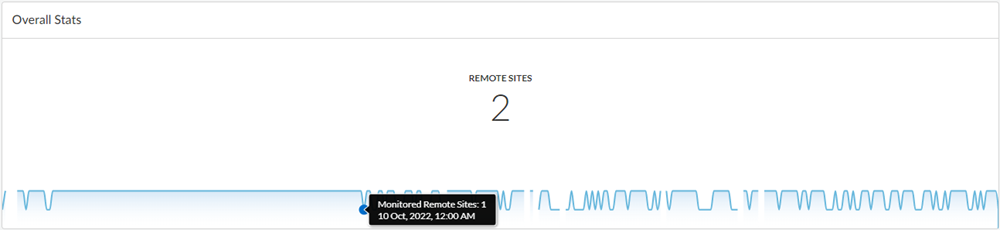

Overall Stats
View the statistics for all the remote sites across the Prisma
Access Locations to see how their performance is trending.

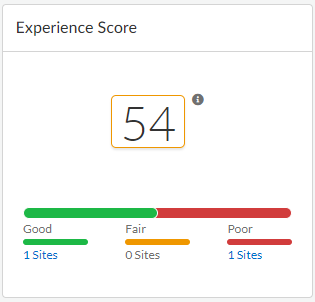

Experience Score
This widget shows the consolidated experience score with a breakdown
of Good, Fair, and Poor experiences by number of sites. It is the
overall experience score of the remote site or branch, which is
an average of experience scores from all the test samples collected
on active paths of all the applications monitored for that site.
Although the experience score of each backup path will be individually calculated
and available for each remote site and application, the experience
score for backup paths are not taken into consideration when calculating
the Experience Score of a remote site.You can drill down into sites
experiencing fair or poor performance by clicking on the Sites link
below Fair or Poor.
Monitored Remote Sites
Review the list of Monitored Remote Sites to see details
about the digital experience of your sites, including their average
experience score from all monitored applications on active path
and trend line, location, service provider, and the Prisma Access
Location that the site belongs to. This will help you identify issues that
might be affecting the sites.
To investigate issues reported by a specific remote site, click
on the corresponding Remote Site Name. This
opens the Remote Site Details page.
| Column Name | Description |
|---|---|
| Remote Site Name | Name of the Remote site |
| Avg. Experience Score | the average experience score for the specific remote site |
| Peak Device Count | The number of unique users that connect to the SD-WAN device. |
| Internet Service Provider | Name of the Internet Service Provider |
| Private WAN Service Provider | Name of the WAN Service Provider for the remote site |
| Prisma Access Locations | The Prisma Access Location to which the site belongs |
