    Monitor Remote Browser Isolation

    Table of Contents

    Monitor
    Remote Browser Isolation

    View and monitor
    Remote Browser Isolation
     users using
    Strata Cloud Manager
    .
    Where Can I Use This?
    What Do I Need?
    • Prisma Access (Managed by Strata Cloud Manager)
    • Prisma Access (Managed by Panorama)
    You can use
    Strata Cloud Manager
     to get comprehensive visibility across your network traffic and for
    Remote Browser Isolation (RBI)
     by using the Monitor and Workflows sections of
    Strata Cloud Manager
    . Gain visibility into your
    RBI
     deployment by viewing metrics such as the number of active
    RBI
     users, trends, connectivity status,
    RBI
     location status, traffic measurements, and license consumption. By viewing data about your users, you can get an overall picture of the health and connectivity of your deployment.

    SASE Health Dashboard

    Select
    Dashboards
    SASE Health
     to monitor the overall health of your Mobile Users who are currently connected to
    Prisma Access
    .
    Select
    Remote Browser Isolation Users
     to show the overall health of
    RBI
     users who are currently connected to
    Prisma Access
    . The numbers in the circles represent the number of users or sites that are currently connected from the
    Prisma Access
     Location where they appear. A dot represents a single user or site. The areas on the map that have a blue background indicate that the numbers shown in that region are a prediction or forecast.
    You can filter the data shown in this dashboard with one or more of the following filters:
    • Time Range
    • Prisma Access
       Location
    • Source Location

    Monitor
    RBI
     Users

    Select
    Monitor
    Users
     to view
    Remote Browser Isolation (RBI)
     users who connect to
    Prisma Access
     security services through
    Prisma Access
     connection methods such as GlobalProtect and Explicit Proxy.
    You can view the following connectivity data:
    • Connection Method
      —Select
      Remote Browser Isolation
       to view data about your
      RBI
       users.
    • Filters
      —You can filter users by:
      • Time Range
      • Connected Method
      • User Name
      • Prisma Access
         Location

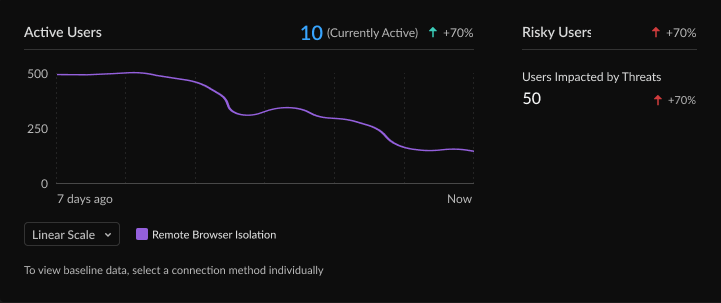

    • Active Users
      —Shows the number of
      RBI
       users connected to
      Prisma Access
       locations in the
      Time Range
       that you selected. Hover your cursor over a point on the chart to view the number of users at a specific time. Knowing the user trends over a specific period of time can help you monitor usage, and investigate any unusual patterns. For example, if there is a decline in usage, you might check to see if your users are experiencing browser performance issues.
    • Risky Users
      —Shows the number of
      Active Users
       impacted by threats. The up or down or arrow compares this time range with a previous time range to determine the difference, in percentage, of the number of connected devices. For example, you can monitor the change in percentage or risky users to determine if it's time to alert your users about risky browsing habits, or to adjust the isolation settings for certain website categories.

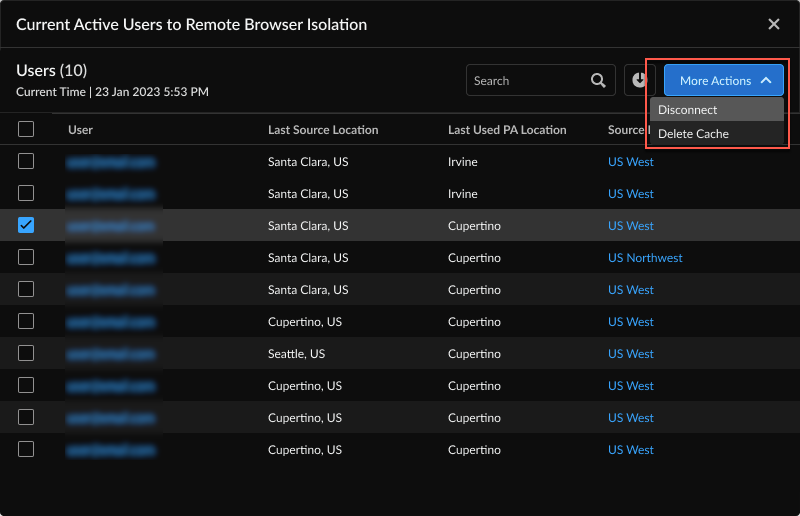

    • Currently Active
      —Shows the number of
      RBI
       users who are currently in isolated browsing sessions. Click the number to open a pop-up window that shows the list of currently active users in more detail, including the
      User
      ,
      Last Source Location
      ,
      Last Used PA Location
      , and
      Source IP
      .
      From this window, you can perform the following actions:
      • Select
        More Actions
        Disconnect
         to disconnect a user from
        Remote Browser Isolation
      • Select
        More Actions
        Delete Cache
         to delete the browser cache on the user's remote isolation browser

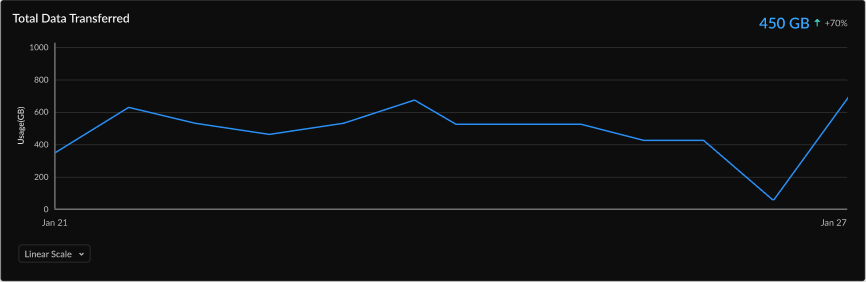

    • Total Data Transferred
      —Shows the amount of data transferred during browsing sessions for all
      RBI
       users.
      • Select
        Count
         from the drop-down to show the aggregate data usage over a period of one year.

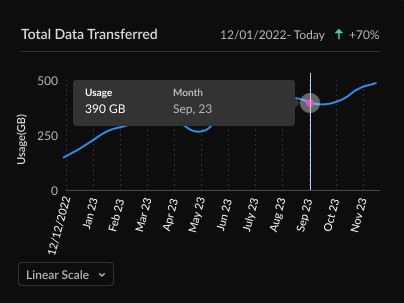

      • Select
        Linear Scale
         from the drop-down to show the trend for the amount of data transferred during isolated browsing sessions by all connected
        RBI
         users over a period of one year. Hover your cursor over a point on the chart to view the data usage for a specific month.

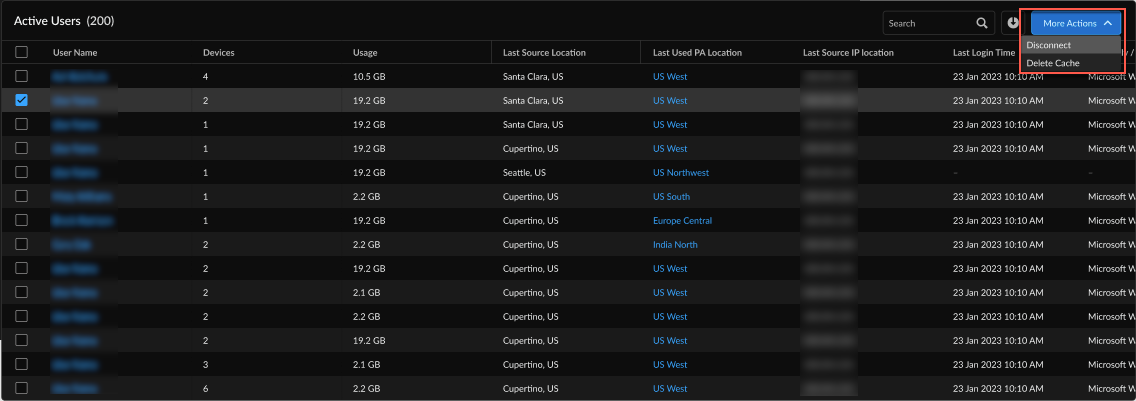

    • Active Users
       table—Shows the list of users who were logged in during the selected
      Time Range
      . For each user, you can view:
      • The number of devices used for isolated browsing
      • The amount of data used
      • The last source location
      • The last used
        Prisma Access
         location
      • The last source IP address
      • The last login time
      • The operating system and OS version they are running
      Using
      More Actions
      , you can also
      Disconnect
       a user from
      Remote Browser Isolation
       or
      Delete Cache
       to delete the user's isolation browser cache.
      To view more details about a user, select any
      Active User
       from the table.

    Monitor
    Prisma Access
     Locations with
    RBI

    Select
    Monitor
    Prisma Access
     Locations
     to view the overall health of all your
    Prisma Access
     locations.
    You can view the following data:
    • Top 5
      Prisma Access
       Locations
      —Select
      Remote Browser Isolation
       from the drop-down to show a bar graph with data about the top five
      Prisma Access
       locations used for
      RBI
       based on the total bandwidth consumed during the selected
      Time Range
      .
    • Prisma Access
       Location Status
      —Depending on your license, this widget shows the number of connected
      Remote Network
       sites,
      Service Connection
       sites, unique
      GlobalProtect Users
      , unique
      Explicit Proxy Users
      , and unique
      Remote Browser Isolation
       users logged in to
      Prisma Access
      . The
      Time Range
       selection filter does not apply to this widget.
      The widget's color code is based on how many users in each category are in the following status:
      • Connected
         (green): All
        Prisma Access
         Locations are connected.
      • Disconnected
         (red): All
        Prisma Access
         Locations are connected.
      • Partially Connected
         (orange): One or more
        Prisma Access
         Locations are disconnected.
    • Strata Logging Service
       Connectivity
      —This widget gives you visibility into the
      Strata Logging Service
       connectivity health status from all your
      Prisma Access
       instances for the
      Strata Logging Service
       region that you selected during your
      Prisma Access
       license activation. It helps you determine if firewalls have disconnected from
      Strata Logging Service
       and you are no longer obtaining firewall logs. Each tenant can connect to only one
      Strata Logging Service
       in any region of its choice.
      Prisma Access
       polls the
      Strata Logging Service
       database every 5 minutes to check for connectivity between the nodes (Remote Networks, Service Connections, GlobalProtect Users, Explicit Proxy Users, and
      RBI
      ) and the
      Strata Logging Service
       database.
    • Prisma Access
       Location Status
      —Shows the status of the
      Prisma Access
       locations in real time. Within a specific location, if a user logs in from multiple hosts, the user is counted as a single user. However, if any user logs in from two different
      Prisma Access
       locations by disconnecting from one and logging in from another within the time period, the user is counted as two users. Select a location to view details, such as bandwidth consumed, status,
      Strata Logging Service
       Connectivity, and user ID and group mappings.

    RBI
     User Details

    In addition to an aggregate view of users, you can view detailed information about individual
    RBI
     users by selecting
    Monitor
    Users
    Connection Method
    Remote Browser Isolation
     and selecting a user from the
    Active Users
     table.
    Threats
    In the user details page, you can select
    Threats
     to view a summary of the user's URL category browsing, including:
    • URL Category Browsing Summary - Data Transfer
      —Shows a summary of URL categories the user accessed and the data transferred during those isolated browsing sessions. You can view this summary
      By Data Transfer
       or
      By Session Count
      .
    • TOP 10 URL CATEGORIES
      —Shows the top 10 URL categories that the user accessed, sorted by the amount of data transferred.
    • Total Data Transferred
      —Shows the total data transferred during isolated browsing for a user.

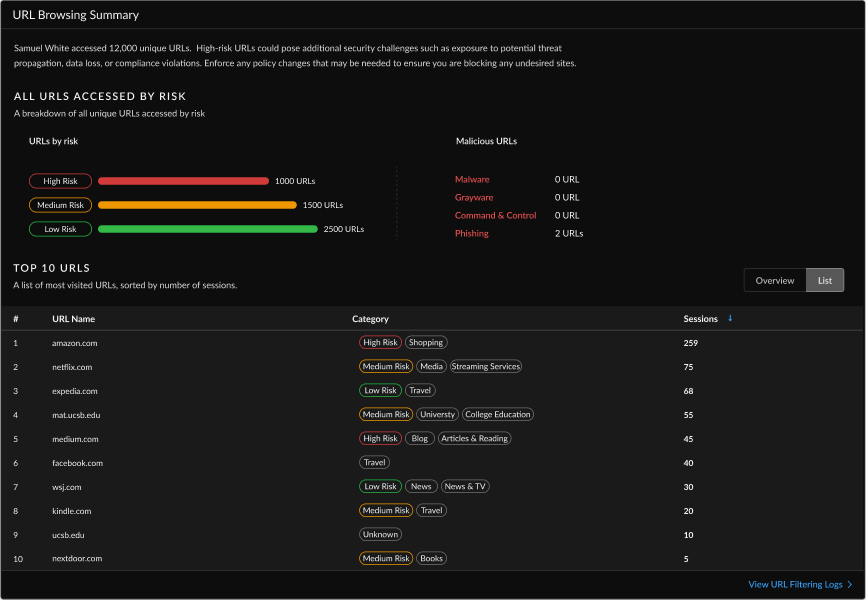

    • URL Browsing Summary
      —Shows a summary of the user's URL browsing history that includes the number of URLs visited sorted by risk, and the top 10 most visited URLs sorted by the number of sessions visiting those URLs.
    Connectivity
    In the user details page, select
    Connectivity
     to view a table listing the
    User Sessions
     for the user. You can sort on the source IP address of the user's device, the user location, the login time, the logout time, session duration, and the last
    RBI
     location used. You can also select
    More Actions
    Delete Cache
     to clear the cache on the user's isolated browser. A green dot indicates an active
    RBI
     session.

    Monitor
    RBI
     License Consumption

    You can monitor the
    RBI
     license consumption by selecting
    Monitor
    Subscription Usage
    . On the Subscription Usage page, scroll to the section for
    Remote Browser Isolation
    .
    The usage for
    RBI
     is a measure of the total unique users and traffic consumed by
    RBI
     over a period of time. You can select
    View Usage Details
     to go to the Users summary page.
    You can monitor license consumption data, such as:
    • The number of available licenses consumed by
      RBI
       users.
    • The total number of unique users seen over the last 30 days. A unique user is a user with a unique username who has logged in to
      Prisma Access
       at least once over a period of time.
    • The total amount of data traffic consumed by all users.
    • The amount of data usage that exceeded the capacity allocated by your
      RBI
       license.
