GlobalProtect Multiple Gateway Configuration

In the GlobalProtect Multiple Gateway Topology below, a second external gateway is added to the configuration. In this topology, you must configure an additional firewall to host the second GlobalProtect gateway. When you add the client configurations to be deployed by the portal, you can also specify different gateways for different client configurations or allow access to all gateways.

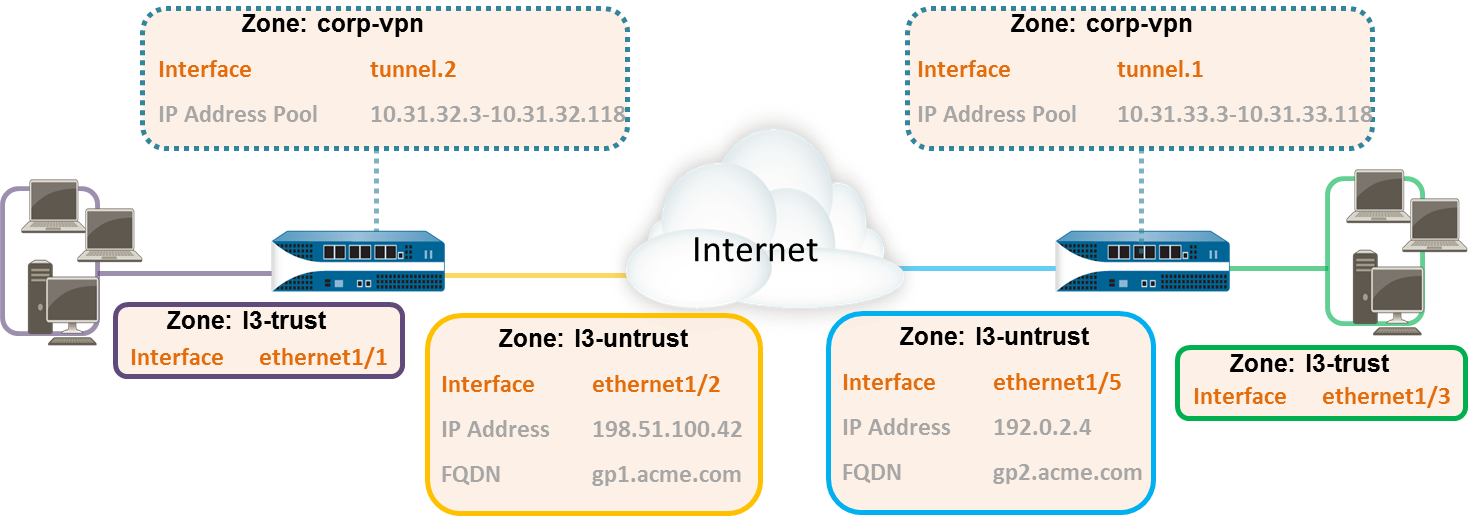

GlobalProtect Multiple Gateway Topology
If a client configuration contains more than one gateway, the app attempts to connect to all gateways listed in its client configuration. The app uses priority and response time to determine the gateway to which it will connect. The app only connects to a lower priority gateway if the response time for the higher priority gateway is greater than the average response time across all gateways. For more information, see Gateway Priority in a Multiple Gateway Configuration.
  1. In this configuration, you must set up interfaces on each firewall hosting a gateway.
    Use the
    default
    virtual router for all interface configurations to avoid having to create inter-zone routing.
    On the firewall hosting the portal/gateway (gw1):
    • Select
      Network
      Interfaces
      Ethernet
      , and then select
      ethernet1/2
      .
    • Configure
      ethernet1/2
      as a Layer 3 interface with an IP address of
      198.51.100.42
      , and then assign it to the
      l3-untrust
      Security Zone
      and the
      default
      Virtual Router
      .
    • Create a DNS “A” record that maps IP address
      198.51.100.42
      to
      gp1.acme.com
      .
    • Select
      Network
      Interfaces
      Tunnel
      , and then
      Add
      the
      tunnel.2
      interface. Add the interface to a new
      Security Zone
      called
      corp-vpn
      . Assign it to the
      default
      Virtual Router
      .
    • Enable User Identification on the
      corp-vpn
      zone.
    On the firewall hosting the second gateway (gw2):
    • Select
      Network
      Interfaces
      Ethernet
      , and then select
      ethernet1/5
      .
    • Configure
      ethernet1/5
      as a Layer 3 interface with an IP address of
      192.0.2.4
      , and then assign it to the
      l3-untrust
      Security Zone
      and the
      default
      Virtual Router
      .
    • Create a DNS “A” record that maps IP address
      192.0.2.4
      to
      gp2.acme.com
      .
    • Select
      Network
      Interfaces
      Tunnel
      , and then
      Add
      the
      tunnel.1
      interface. Add the interface to a new
      Security Zone
      called
      corp-vpn
      . Assign it to the default
      Virtual Router
      .
    • Enable User Identification on the
      corp-vpn
      zone.
  2. Purchase and install a GlobalProtect subscription on each gateway if your end-users will be using the GlobalProtect app on their mobile endpoints or if you plan on using the HIP-enabled security policy.
    After you purchase the GlobalProtect subscription and receive your activation code, install the license on the firewall hosting the portal, as follows:
    1. Select
      Device
      Licenses
      .
    2. Select
      Activate feature using authorization code
      .
    3. When prompted, enter the
      Authorization Code
      , and then click
      OK
      .
    4. Verify that the license was activated successfully:
  3. On each firewall hosting a GlobalProtect gateway, create security policies.
    This configuration requires policy rules to enable traffic flow between the
    corp-vpn
    zone and the
    l3-trust
    zone to provide access to your internal resources (
    Policies
    Security
    ).
  4. Use the following recommendations to obtain server certificates for each interface hosting your GlobalProtect portal and GlobalProtect gateways:
    On each firewall hosting a portal/gateway or gateway, select
    Device
    Certificate Management
    Certificates
    to manage certificates as follows:
    • Obtain a server certificate for the interface hosting portal/gw1. Because the portal and the gateway are on the same interface, you must use the same server certificate. The CN of the certificate must match the FQDN,
      gp1.acme.com
      . To enable endpoints to connect to the portal without receiving certificate errors, use a server certificate from a public CA.
    • Obtain a server certificate for the interface hosting gw2. Because this interface hosts only a gateway, you can use a self-signed certificate. The CN of the certificate must match the FQDN,
      gp2.acme.com
      .
  5. Define how you will authenticate users to the portal and the gateways.
    You can use any combination of certificate profiles and/or authentication profiles as necessary to ensure the security of your portal and gateways. Portals and individual gateways can also use different authentication schemes. See the following sections for step-by-step instructions:
    You must then reference the certificate profile and/or authentication profiles that you define in the portal and gateway configurations.
  6. The following example shows the configuration for gp1 and gp2, as seen in GlobalProtect Multiple Gateway Topology.
    On the firewall hosting gp1, select
    Network
    GlobalProtect
    Gateways
    . Configure the gateway settings as follows:
    Interface
    ethernet1/2
    IP Address
    198.51.100.42
    Server Certificate
    GP1-server-cert.pem issued by GoDaddy
    Tunnel Interface
    tunnel.2
    IP Pool
    10.31.32.3 - 10.31.32.118
    On the firewall hosting gp2, select
    Network
    GlobalProtect
    Gateways
    . Configure the gateway settings as follows:
    Interface
    ethernet1/2
    IP Address
    192.0.2.4
    Server Certificate
    self-signed certificate, GP2-server-cert.pem
    Tunnel Interface
    tunnel.1
    IP Pool
    10.31.33.3 - 10.31.33.118
  7. Configure the GlobalProtect Portals.
    Select
    Network
    GlobalProtect
    Portals
    . Configure the portal settings as follow:
    1. Interface
      ethernet1/2
      IP Address
      198.51.100.42
      Server Certificate
      GP1-server-cert.pem issued by GoDaddy
    2. The number of client configurations you create depends on your specific access requirements, including whether you require user/group-based policy and/or HIP-enabled policy enforcement.
  8. Select
    Device
    GlobalProtect Client
    .
    In this example, follow the procedure to Host App Updates on the Portal.
  9. Save the GlobalProtect configuration.
    Commit
    the configuration on the firewall hosting the portal and gateway(s).
