    Rack Mount the ION 1000

    Rack mount the Prisma SD-WAN ION 1000 on a standard 19 inch rack using the rack mount kit provided.
    Rack mount the ION 1000 on a standard 19 inch rack. The optional rack-mount kit includes two identical L-shaped brackets that you can attach to either side of the ION 1000 using screws.

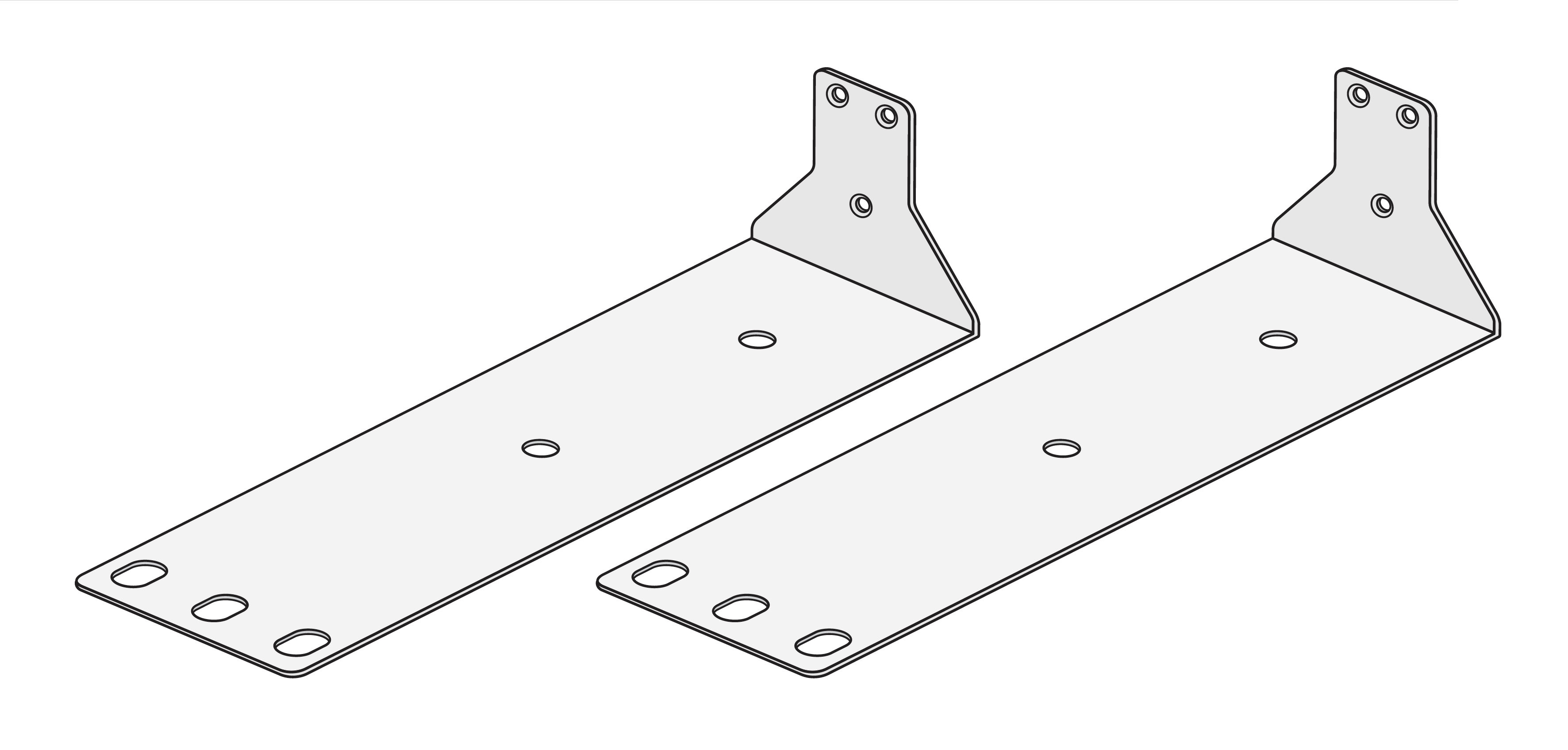

    1. Gather the L-shaped rack-mounting brackets.

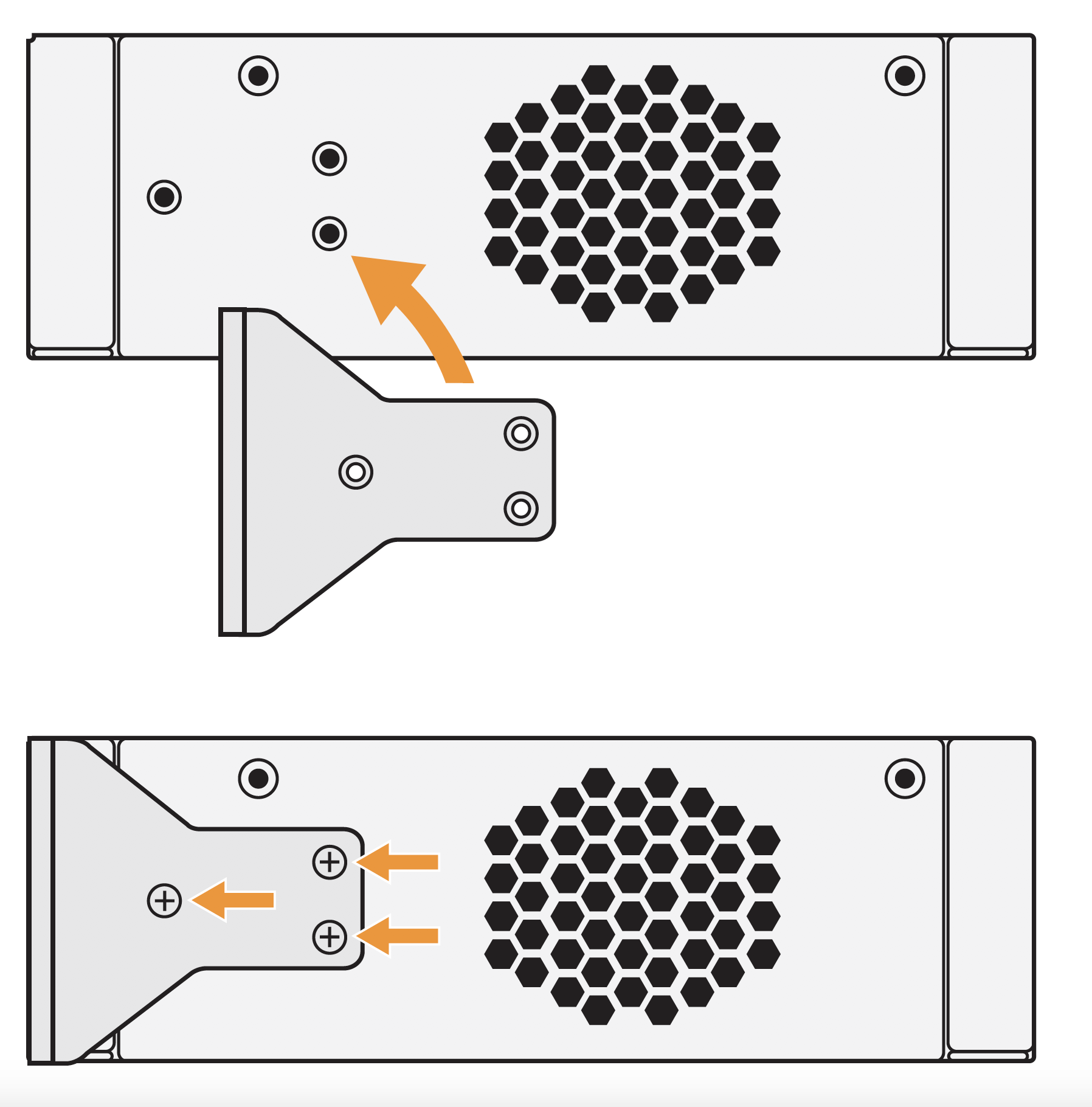

    2. Locate the three (3) screw holes on each side of the device
    3. Attach the L-shaped brackets to the screw holes on the front of the device.
    4. Fasten the screws securely into the brackets.

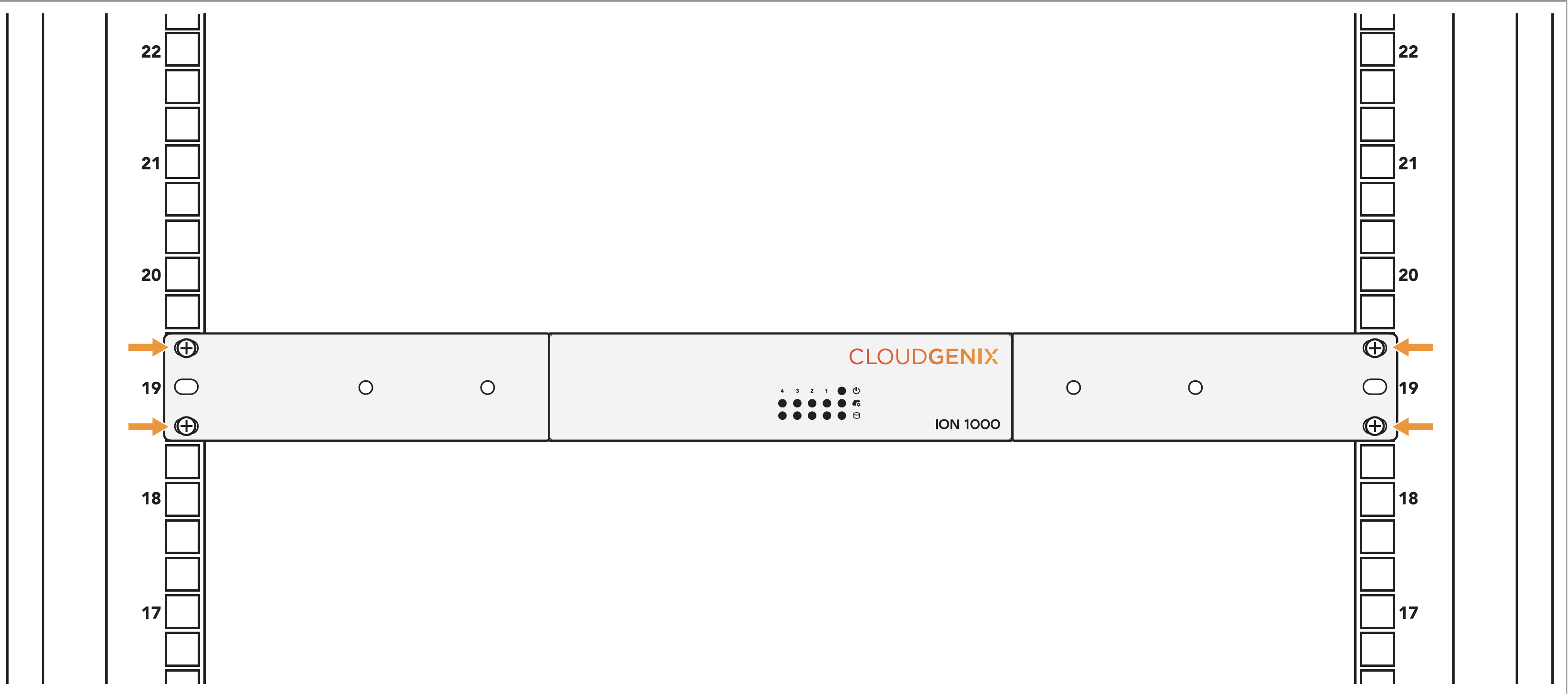

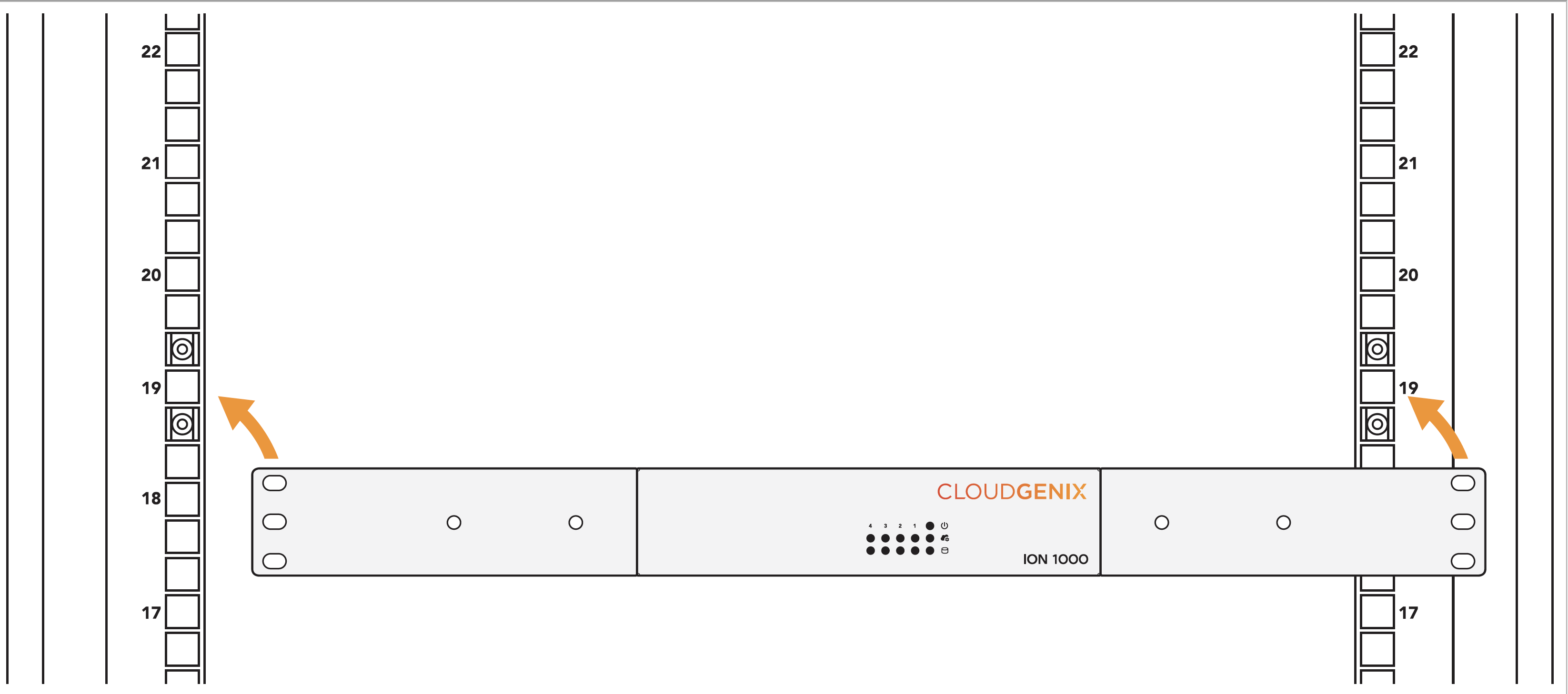

    5. Attach the L-shaped rack-mounting brackets to a standard 19 inch rack with the cage screws.

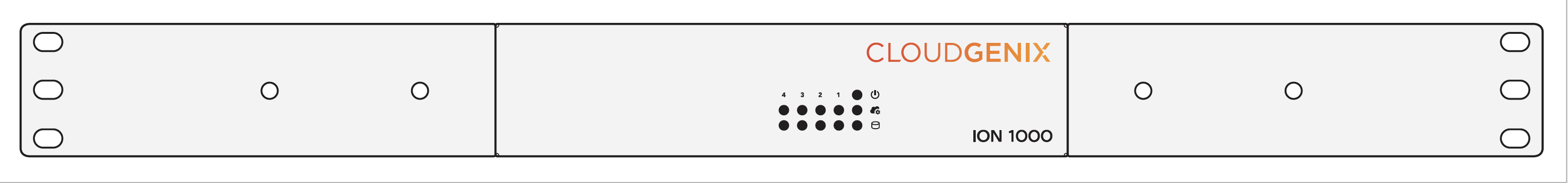

    6. Verify that the device is securely mounted on the rack.
