ION
1200-C-NA/ROW Front Panel
The front panel of the
ION
1200-C-NA and
ION

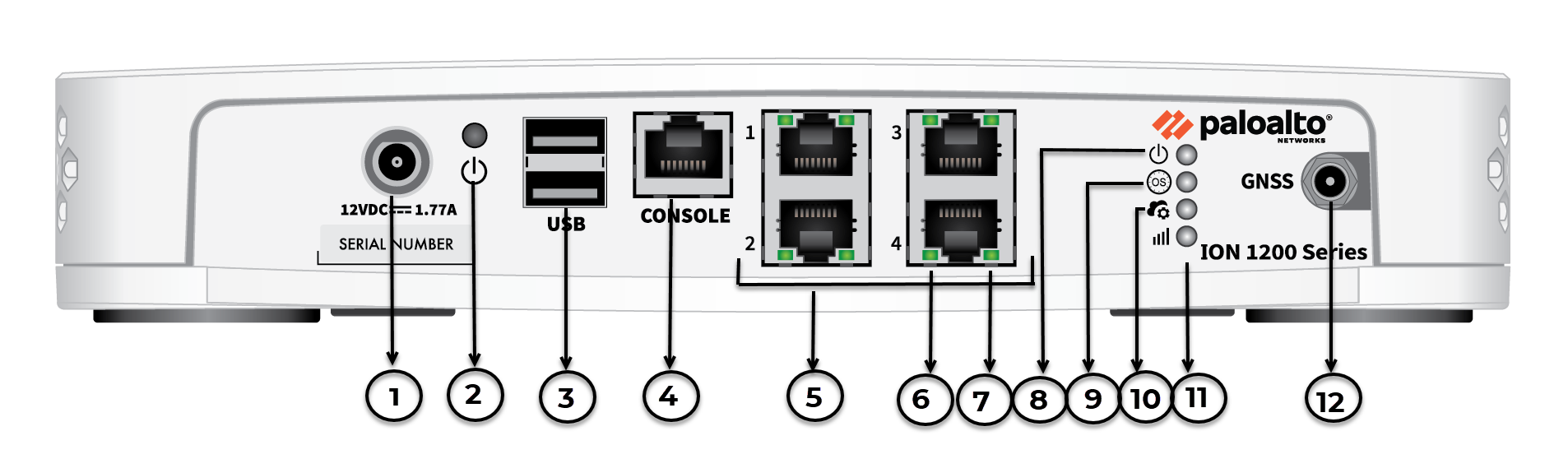

1200-C-ROW are identical. The following image shows the front panel of the
ION
1200-C-NA/ROW and the table describes the front panel components.
Item
Component
Description
1
Power
Power input.
2
Restart Button
Restart button.
3
USB Port
USB 3.0 (reserved for future use).
4
Console Port
RJ-45 Serial console port.
5
Ethernet Ports
RJ-45 WAN/LAN ports.
6
Link Speed LED
On ethernet ports 1-4, the left LED indicates the link speed.
7
Activity LED
On ethernet ports 1-4, the right LED indicates the activity on the port.
8
Power LED
Power LED; the LED turns green when powered on.
9
OS LED
Operating System status LED.
10
Controller LED
Controller LED; the LED turns green on successful connection with the
Prisma SD-WAN
controller.
11
Cellular LED
Cellular LED; the LED indicates signal strength. Refer
ION 1200 LEDs
to know more.
12
Antenna Connector
Antenna SMA (F) Connectors.
ION
1200-C-NA/ROW has three antenna connectors—Main (TX/RX1), Aux (RX2), GNSS.
