ION 3000 Common Insertion Topologies
Table of Contents
ION 3000 Common Insertion Topologies
Deploy the ION 3000 in various possible topologies in
analytics or control mode.
You can install the ION 3000 in three
possible insertion scenarios in analytics or control mode with an
existing router:

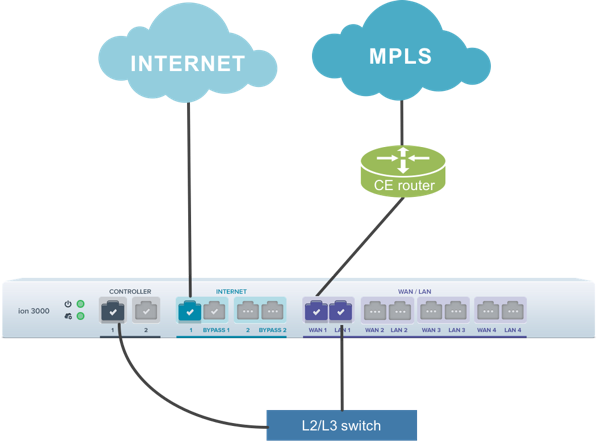

- Single Router or Single Switch—The following image illustrates the deployment architecture of an ION 3000 as single router or single switch.
![]()

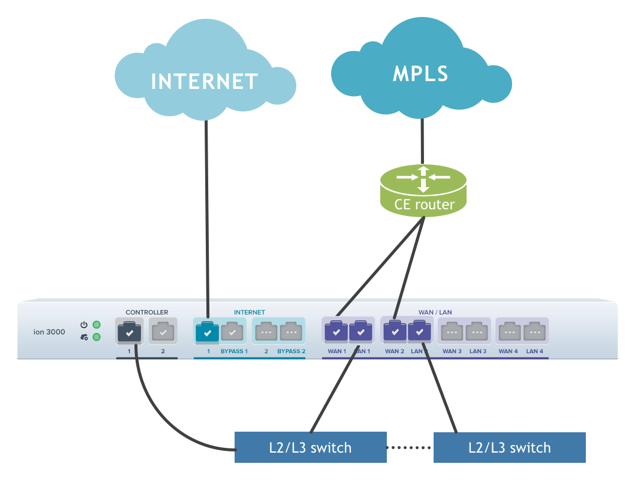

- Single Router or Dual Switch—The following image illustrates the deployment architecture of an ION 3000 as single router or dual switch.
![]()

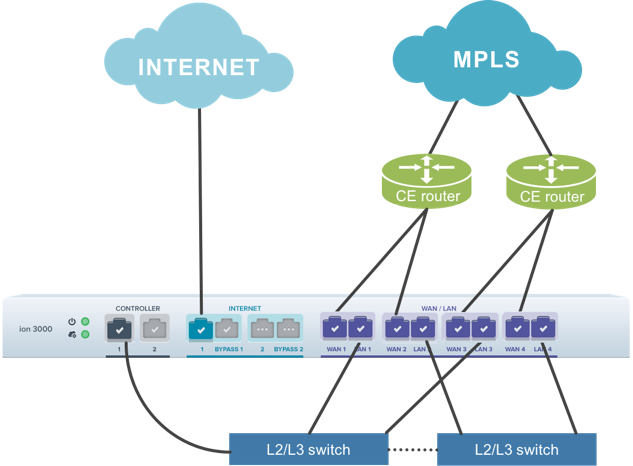

- Dual Router or Dual Switch—The following image illustrates the deployment architecture of an ION 3000 as dual router or dual switch.
![]()
