Install the PA-3200 Series Firewall Using the Four-Post Rack
Learn how to install a PA-3200 Series firewall on a wall
using the provided DIN rail kit.
The following procedure describes how to install
the PA-3200 Series firewall in a 19” four-post equipment rack using
the optional four-post rack kit (PAN-PA-2RU-RACK4). This kit is
designed to provide additional support for the back of the firewall.

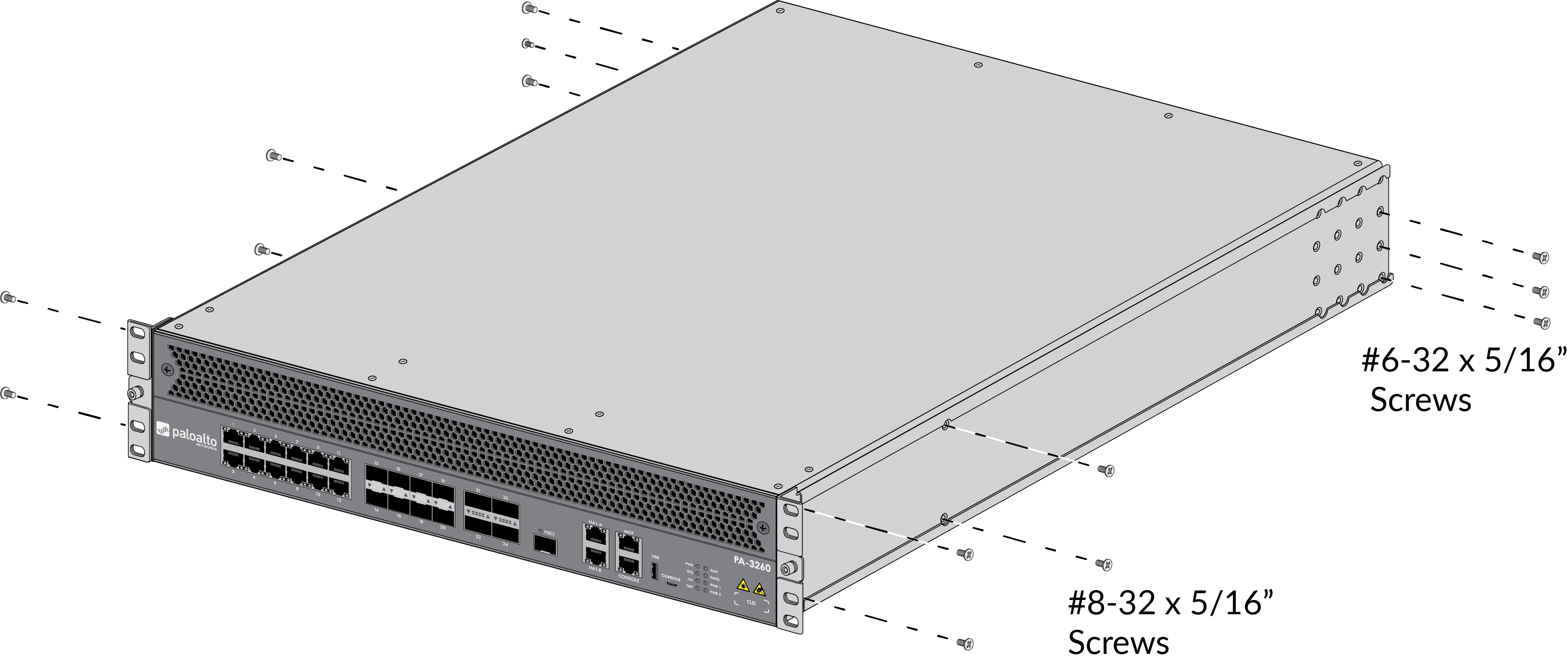

Attach one four-post side rack-mount rail to each side
of the firewall. Use four #8-32 x 5/16” screws for the front four
screw holes in each side rail and three #6-32 x 5/16” screws for
the back three screw holes and torque each screw to 15 in-lbs.

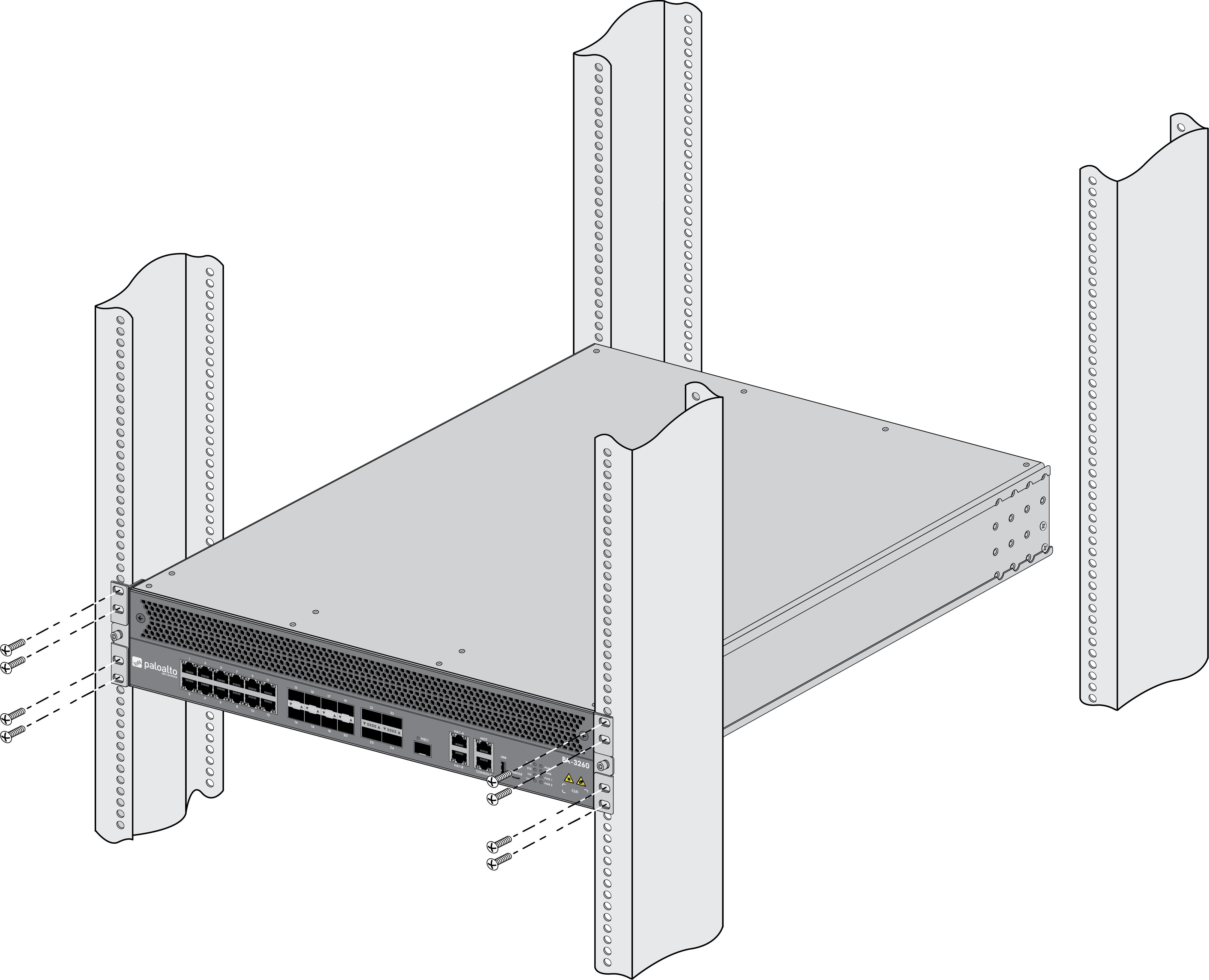

With help from another person, hold the firewall in the
rack and secure the side rails to the front rack-posts using four screws
for each rail. Use the appropriate screws (#10-32 x 3/4” or #12-24 x
1/2”) for your rack and torque each screw to 25 in-lbs. Use cage
nuts (not provided) to secure the screws if the rack has square

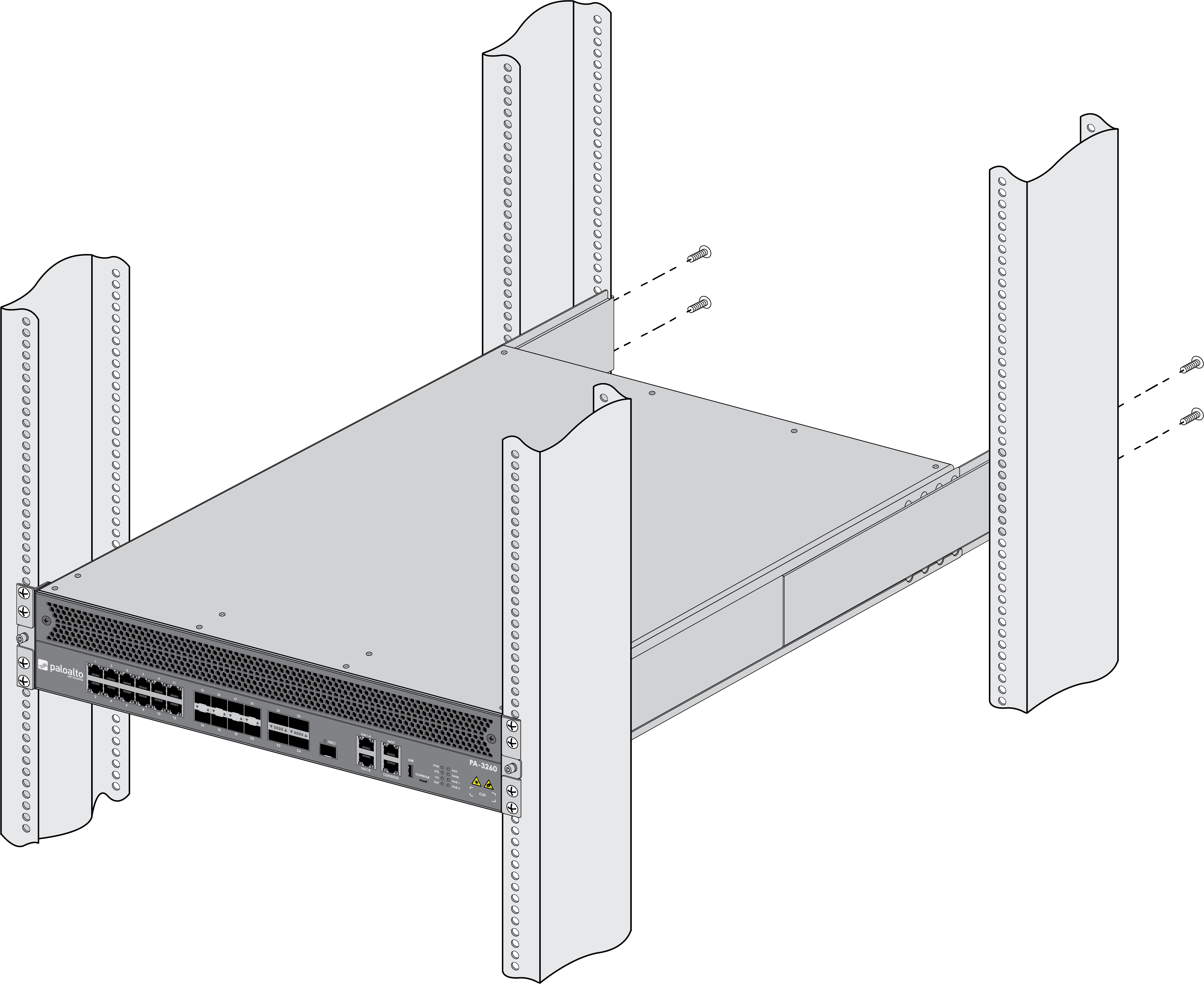

Slide one four-post back rack-mount rail into each of the
two previously installed side rack-mount rails, and secure the back rails
to the back rack-posts using two screws for each bracket (#10-32
x 3/4” or #12-24 x 1/2” screws) and torque each screw to 25 in-lbs.
