Monitor Impacted Rules and Applications
Use the ACC to isolate and audit traffic based on legacy App-ID classifications,
helping administrators refine security policies during App-ID Safeguard
transitions.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
This is a core Network Security feature for NGFWs and Prisma
Access; no prerequisites needed.
|
To manage transitions when using App-ID Safeguard, the ACC (Application
Command Center) includes two dedicated widgets: Applications Allowed by Previous
App-ID and Rules Allowing Apps based on Previous App-ID. These
widgets function as a diagnostic lens, filtering out the noise of standard traffic
to show you exactly where your policy might be overly permissive or relying on
legacy classifications. This provides a specialized view within the ACC to initiate
an audit of your rulebase.
Similar to the standard Application Usage widget, it displays a breakdown of
applications and session counts. However, it specifically isolates sessions where
the security rule match was triggered by the pre-transition App-ID.

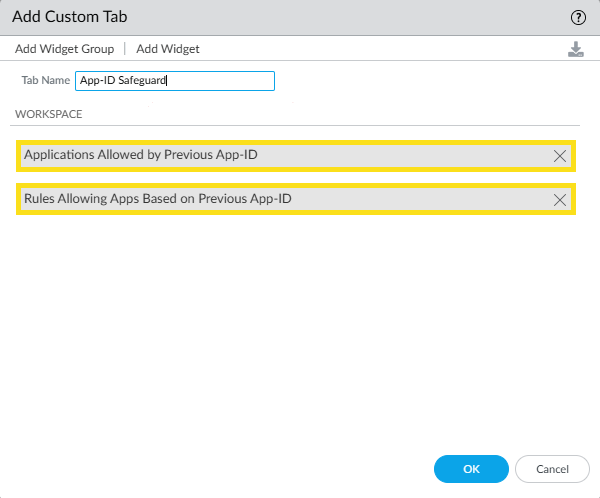

- Access the NGFW Application Command Center.Create a dedicated ACC custom tab to monitor Previous App-IDs or select and edit an existing tab to add App-ID Safeguard widgets.Add the Applications Allowed by Previous App-ID and Rules Allowing Apps Based on Previous App-ID to the custom (or previously existing) ACC tab and click OK. If you are creating a new Custom Tab, you must also provide a Tab Name.
![]()

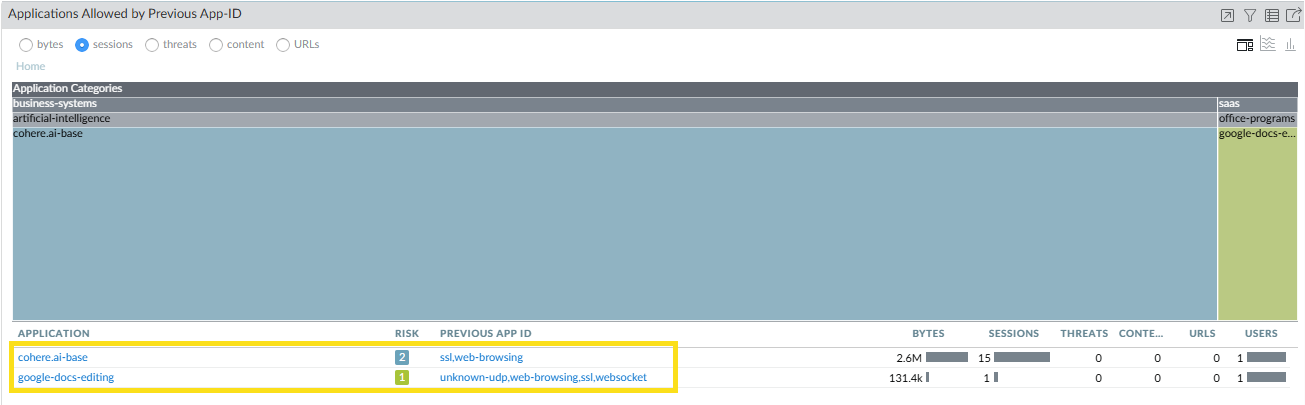

If the App-ID Safeguard feature is disabled in your Content-ID settings, these widgets will remain empty.Review the App-ID Safeguard widget to investigate the applications that are allowed by the Previous App-ID functionality.- Applications Allowed by Previous App-ID
![]()
- Generates a list of new and modified applications (App-IDs) that are allowed as a result of the Previous App-IDs that are allowed in the current security policy rule.

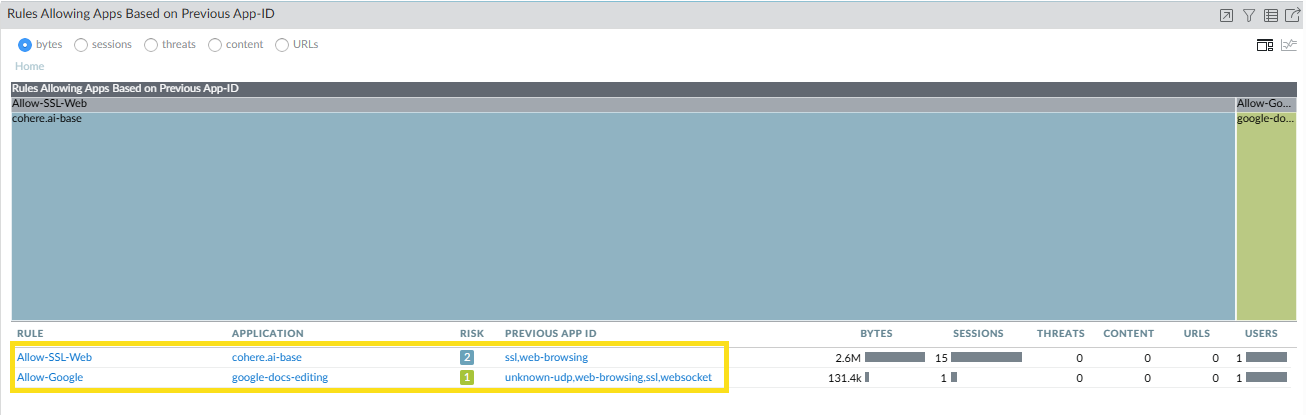

- Rules Allowing Apps Based on Previous App-ID
![]()
- Displays the security policy rules that allowed the traffic to pass by leveraging new and modified applications (App-IDs).
- Each Rule entry includes a Previous App-ID that is currently specified in the security policy rule.
- The Previous App-ID corresponds to an Application that has been allowed due to the Previous App-IDs that are specified in the security policy rule.
