Learn about LSVPN and its infrastructure. LSVPN enables quick and secure network
interconnections across enterprise branches with minimal configuration.
Where Can I Use This?
What Do I Need?
NGFW
No separate license required for LSVPN when using NGFWs
The GlobalProtect Large Scale VPN (LSVPN) feature on the Palo Alto Networks
Next-Generation Firewall simplifies the deployment of traditional hub and spoke VPNs,
enabling you to deploy enterprise networks with several branch offices quickly with a
minimum amount of configuration required on the remote satellites. This
solution uses certificates for firewall authentication and IPSec to secure data.
LSVPN enables site-to-site VPNs between Palo Alto Networks firewalls. To set up a
site-to-site VPN between a Palo Alto Networks firewall and another device, see VPNs. The LSVPN doesn’t require a
GlobalProtect subscription.
LSVPN Overview
GlobalProtect provides a complete infrastructure for managing secure access to
corporate resources from your remote sites. This infrastructure includes the
following components:
GlobalProtect Portal—Provides the management functions for your
GlobalProtect LSVPN infrastructure. Every satellite that participates in the
GlobalProtect LSVPN receives configuration information from the portal,
including configuration information to enable the satellites (the spokes) to
connect to the gateways (the hubs). You configure the portal on an interface
on any Palo Alto Networks Next-Generation Firewall.
GlobalProtect Gateways—A Palo Alto Networks firewall that provides the
tunnel endpoint for satellite connections. The Satellites access resources
that you protect using Security policy rules on the gateway. It isn’t
required to have a separate portal and gateway; a single firewall can
function both as portal and gateway.
GlobalProtect Satellite—A Palo Alto Networks firewall at a remote site
that establishes IPSec tunnels with one or more gateways at your corporate
office(s) for secure access to centralized resources. Configuration on the
satellite firewall is minimal, enabling you to scale your VPN quickly and
easily as you add new sites.

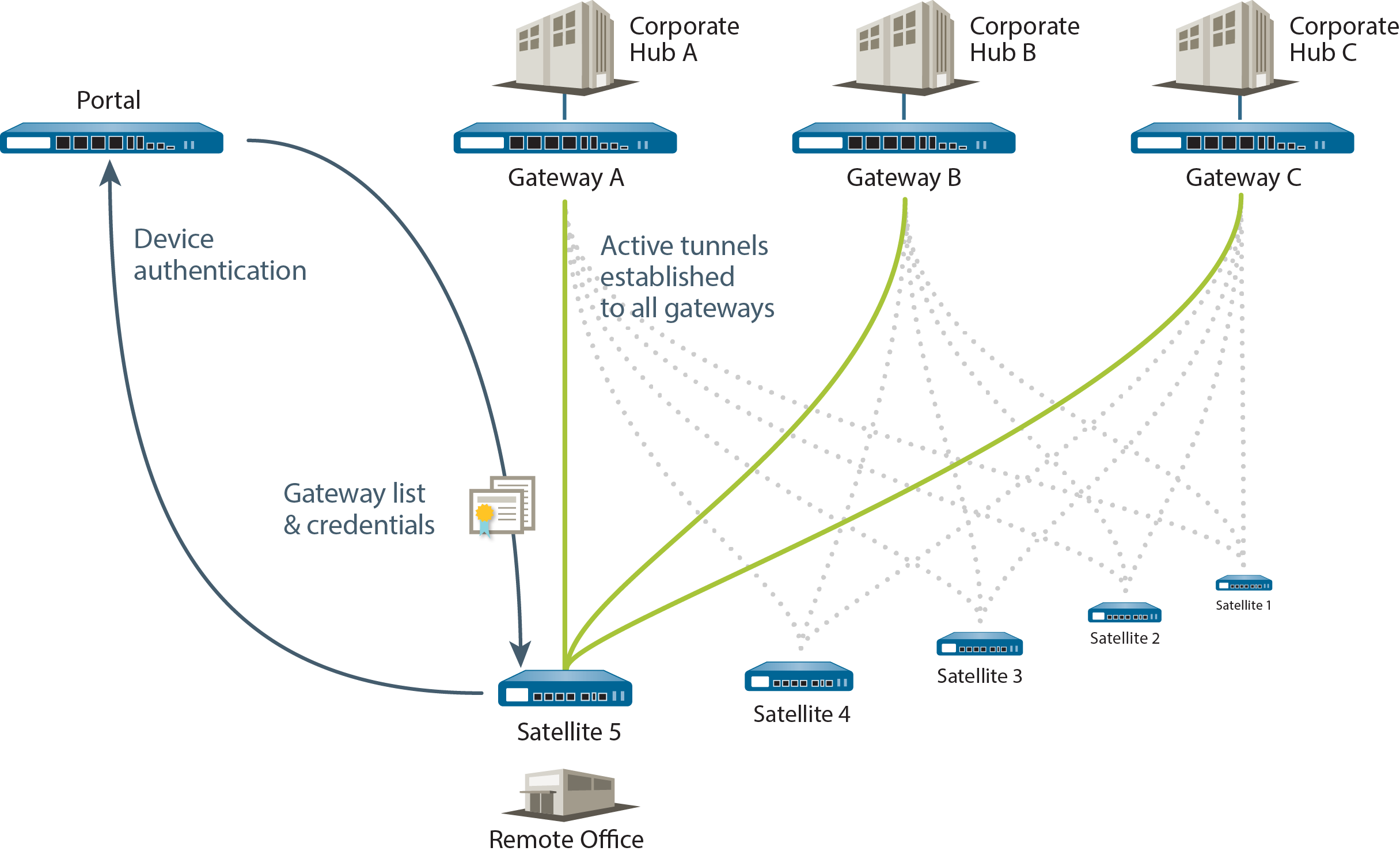

The following diagram illustrates how the GlobalProtect LSVPN components work
together.
