Configure an SSH Service Profile

Create a profile to disable weak SSH ciphers and algorithms and define rekey thresholds, hardening SSH connections to your management and HA appliances.
SSH service profiles enable you to customize SSH parameters to enhance the security and integrity of SSH connections to your Palo Alto Networks management and high availability (HA) appliances. By default, SSH supports all ciphers, key exchange algorithms, and message authentication codes, which leaves your connection vulnerable to attack. With an SSH service profile, you can restrict the algorithms your SSH server supports. You can also generate a new host key and specify data volume, time, and packet-based thresholds for SSH session key regeneration and exchange.
Depending on the SSH server instance, configure either a management or HA SSH service profile. You can configure profiles from the firewall or Panorama™ web interface (if applying settings across multiple firewalls or appliances) or the CLI.
You can configure a maximum of four management and four HA server profiles.
To use the same SSH connection settings for each Dedicated Log Collector (M-series or Panorama virtual appliance in Log Collector mode) in a Collector Group, configure an SSH service profile from the Panorama management server,
Commit
the changes to Panorama, and then
Push
the configuration to the Log Collectors. You can also perform these steps from the CLI using
set log-collector-group <name> general-setting management ssh
commands.

Create an SSH Management Profile

You must create an SSH management profile to customize SSH settings for management connections.

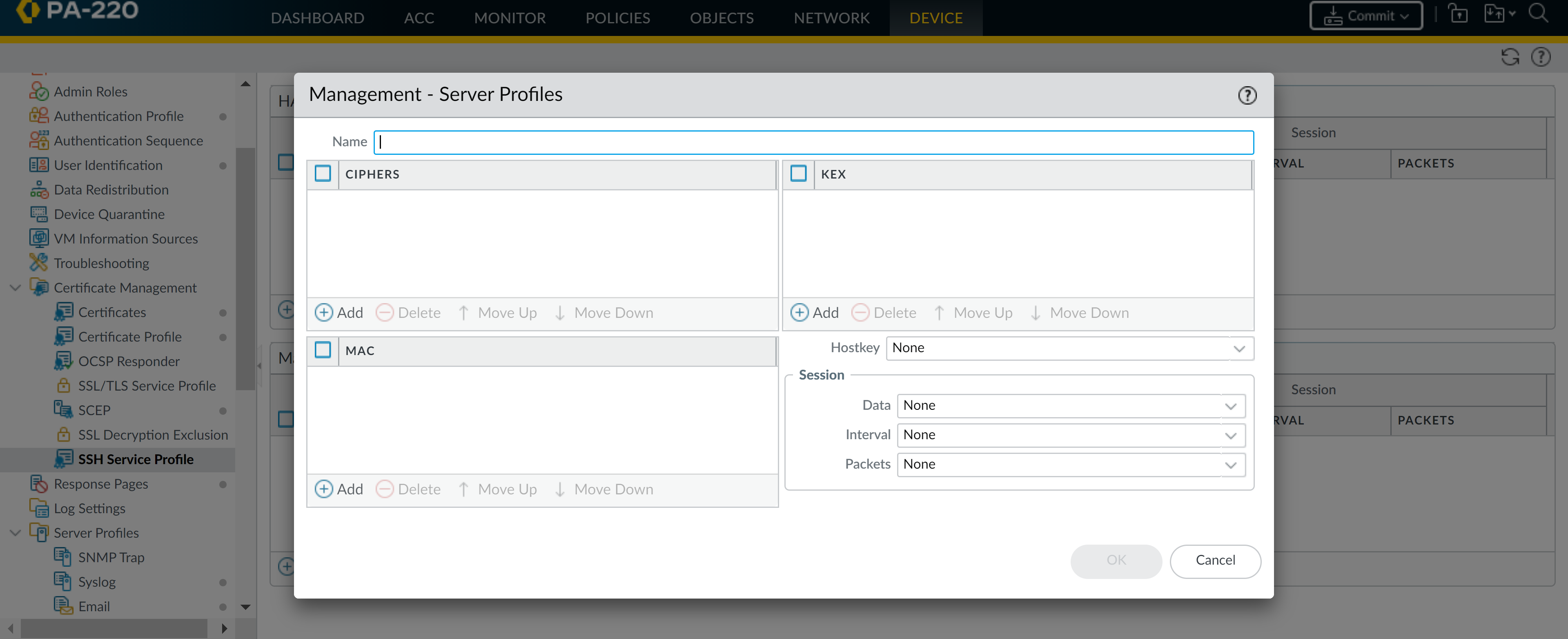

  1. Create a Management - Server Profile.
    1. Select
      Device
      Certification Management
      SSH Service Profile
      .
    2. Add
      a Management - Server Profile.
    3. Enter a
      Name
      to identify the profile.
    4. (
      Optional
      )
      Add
      the ciphers, message authentication codes, or key exchange algorithms the profile will support.
    5. (
      Optional
      ) Select a
      Hostkey
      and key length.
    6. (
      Optional
      ) Enter values for the SSH session rekey parameters:
      Data
      ,
      Interval
      , and
      Packets
      .
    7. Click
      OK
      and
      Commit
      .

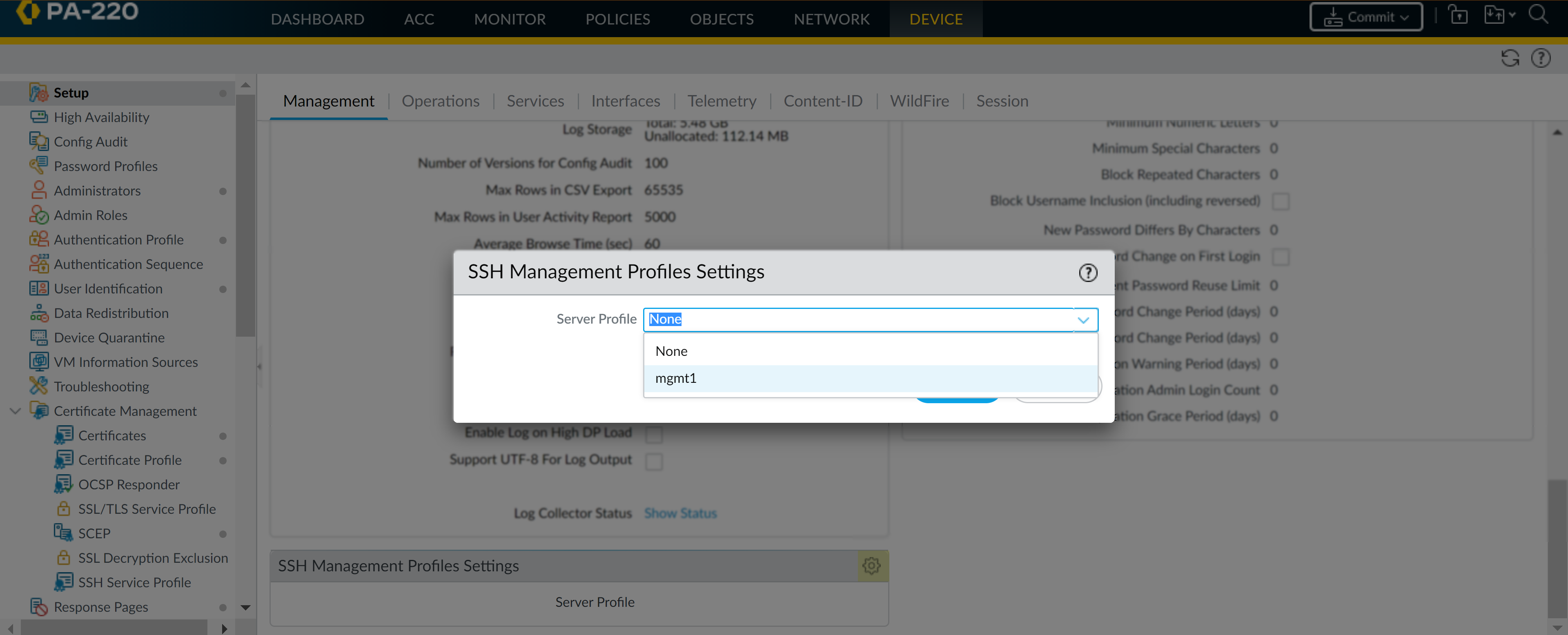

  2. Select a management profile to apply.
    1. Select
      Device
      Setup
      Management
      . Under SSH Management Profiles Settings, select an existing profile.
    2. Click
      OK
      and
      Commit
      the changes.
  3. Restart management SSH service from the CLI to apply the profile.
    You must restart the connection each time you apply a new profile or make changes to a profile in use; this reboots the appliance. The new configurations will not affect active sessions. The profile will apply to subsequent connections (or sessions).
    1. admin@PA-3260>
      set ssh service-restart mgmt

Create an SSH HA Profile

To secure SSH communications between appliances in an HA pair, you should create an SSH HA profile. Before you can create a profile, you must establish an HA connection between the appliances. If an HA connection has not been established, you must enable encryption on the control link connection, export the HA key to a network location, and import the HA key on the peer. (See Configure Active/Passive HA or Configure Active/Active HA.)

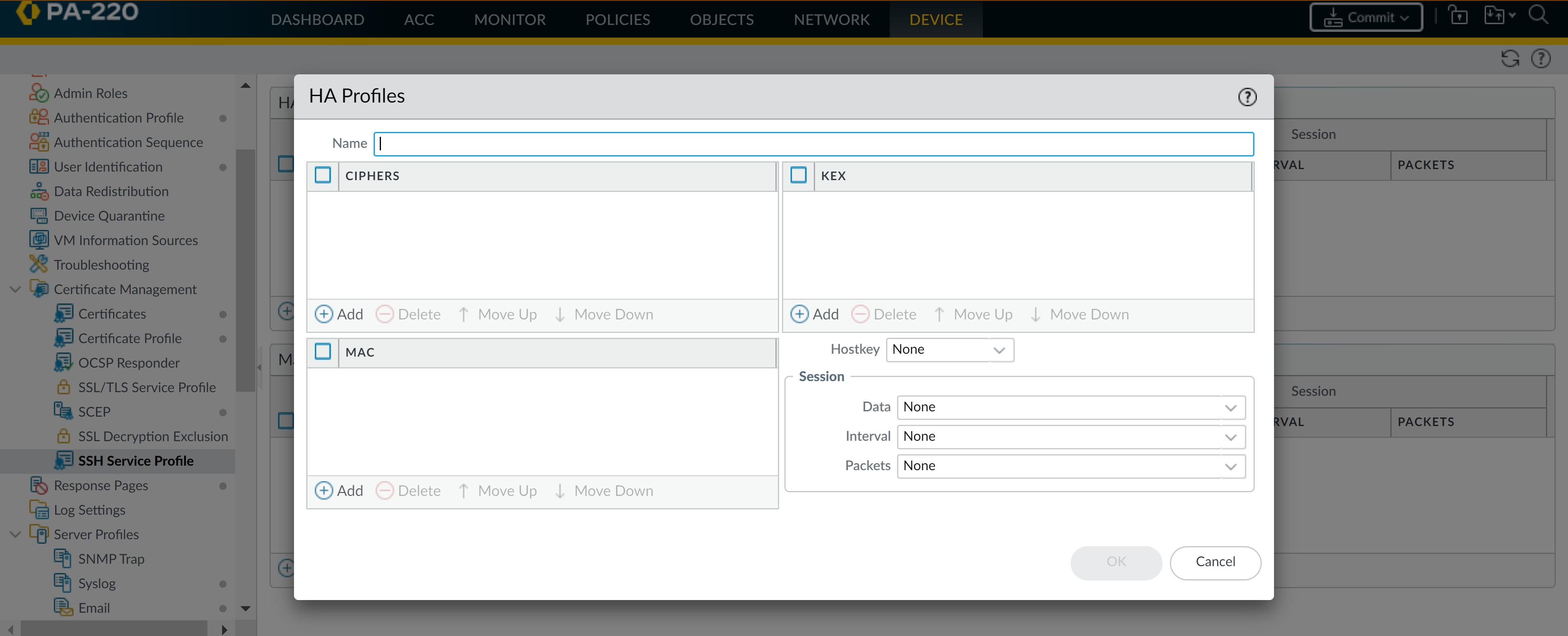

  1. Create an HA Profile.
    1. Select
      Device
      Certification Management
      SSH Service Profile
      .
    2. Add
      an HA Profile.
    3. Enter a
      Name
      to identify the profile.
    4. (
      Optional
      )
      Add
      the ciphers, message authentication codes, or key exchange algorithms the profile will support.
    5. (
      Optional
      ) Select a
      Hostkey
      and key length.
    6. (
      Optional
      ) Enter values for the SSH session rekey parameters:
      Data
      ,
      Interval
      , and
      Packets
      .
    7. Click
      OK
      and
      Commit
      .

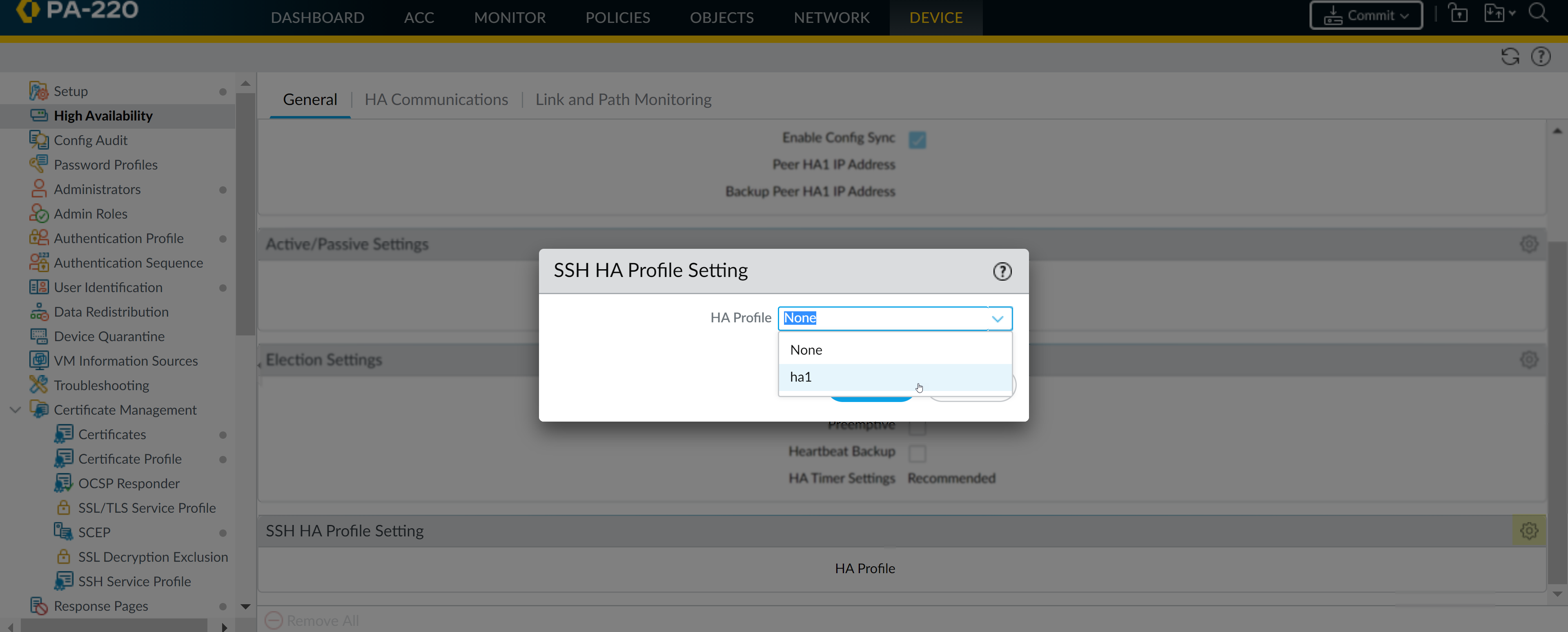

  2. Select an HA Profile to apply.
    1. Select
      Device
      High Availability
      General
      . Under SSH HA Profile Setting, select an existing profile.
    2. Click
      OK
      and
      Commit
      the changes.
  3. Restart HA1 SSH service from the CLI to apply the profile.
    You must restart the connection each time you apply a new profile or make changes to a profile in use; this reboots the appliance. The new configuration will not affect active sessions. The profile will apply to subsequent connections (or sessions).
    1. admin@PA-3260>
      set ssh service-restart ha
      You can use the following commands if connection between the HA pair has been established and you’d like to minimize the downtime that accompanies an SSH service restart. If no HA connection has been established, you must restart SSH service.
      • (
        HA1 Backup is configured
        ) admin@PA-3260>
        request high-availability session-reestablish
      • (
        No HA1 Backup is configured or HA1 Backup link is down
        ) admin@PA-3260>
        request high-availability session-reestablish force
        You can force the firewall to reestablish HA1 sessions if there is no HA1 backup, which causes a brief split-brain condition between the HA peers. (Using the
        force
        option when an HA1 backup is configured has no effect.)
