    Create Filters for the Advanced Routing Engine

    Create filters for an Advanced Routing Engine to filter and redistribute routes.
    The Advanced Routing Engine supports the filters described in this topic. Access lists, prefix lists, and redistribution route maps can apply to BGP, OSPFv2, OSPFv3 and RIPv2. Access lists and prefix lists can also apply to IPv4 multicast. Multicast route maps apply to IPv4 multicast. AS path access lists, community lists, and BGP route maps apply to BGP only.
    Create a filter and reference the filter in a profile or other appropriate location to easily and consistently apply settings that control such things as route acceptance from peers into the local RIB, route advertisements to peers, conditional advertisements, setting attributes, exporting and importing routes to and from other routers, route aggregation, and route redistribution.
    • Access Lists
      —Use an access list:
      • To filter network routes based on IPv4/IPv6 source addresses and IPv4 destination addresses. For IPv4 access lists, source and destination addresses can be specified by an address and wildcard mask to express a range of addresses. IPv6 access lists can specify source addresses and subnet.
      • In a BGP Filtering profile, specify an Inbound Distribute List (access list) to control which routes BGP will accept from a peer group or peer (neighbor). This means that routes matching a deny access list rule are not placed in the local BGP RIB; routes matching a permit access list rule are placed in the local BGP RIB. You apply the BGP Filtering profile to a BGP peer group or peer in the Filtering IPv4 Unicast or Filtering IPv6 Unicast field. (To do this for a peer, select
        Inherit No
        ). Peer settings take precedence over peer group settings.
      • In a BGP Filtering profile, specify an Outbound Distribute List (access list) to control which routes the firewall advertises to its peer group or peer, based on your network and BGP deployment. Then apply the BGP Filtering profile to a BGP peer group or peer in the Filtering IPv4 Unicast or Filtering IPv6 Unicast field. (To do this for a peer, select
        Inherit No
        ). Peer settings take precedence over peer group settings.
      • As match criteria in a Redistribution route map to specify IPv4 or IPv6 destination Addresses, Next Hop, or Route Source.
      • In a BGP route map as match criteria for an IPv4 Address, Next Hop, or Route Source, and also for an IPv6 Address.
      • In OSPFv2 and OSPFv3 Import Lists and Export Lists for an Area Border Router (ABR).
      • To specify PIM group permissions for IPv4 multicast.
      An access list is not for filtering user traffic or for providing security.
      An access list can have multiple rules; routes are evaluated against the rules in sequential order. When a route matches a rule, the deny or permit action occurs and the route is not evaluated against subsequent rules.
      The aggregated view displays all configured access lists; you can highlight an access list to then modify or delete it.
    • Prefix Lists
      —Use a prefix list:
      • To filter network routes that are added to a local RIB based on route prefix and prefix length.
      • In a BGP Filtering Profile, specify an Inbound Prefix List to control which routes BGP will accept from a peer group or peer (neighbor). This means that routes matching a deny prefix list rule are not placed in the local BGP RIB; routes matching a permit prefix list rule are placed in the local BGP RIB. Then apply the BGP Filtering profile to a BGP peer group in the Filtering IPv4 Unicast or Filtering IPv6 Unicast field. (To do this for a peer, select Inherit No). Peer settings take precedence over peer group settings.
      • In a BGP Filtering profile, specify an Outbound Prefix List to control which routes the firewall advertises to its peer group or peer, based on your network and BGP deployment. Then apply the BGP Filtering profile to a BGP peer group or peer in the Filtering IPv4 Unicast or Filtering IPv6 Unicast field. (To do this for a peer, select Inherit No). Peer settings take precedence over peer group settings.
      • As match criteria in a Redistribution route map to specify IPv4 or IPv6 destination Addresses, Next Hop, or Route Source.
      • In a BGP route map as match criteria for an IPv4 Address, Next Hop, or Route Source, and also for an IPv6 Address.
      • For an OSPFv2 or OSPFv3 ABR of an area, in an Inbound Filter List or Outbound Filter List.
      • In an IPv4 Multicast PIM general configuration to specify an SPT threshold.
      • In an IPv4 Multicast route map.
      A prefix list can have multiple rules; routes are evaluated against the rules in sequential order. When a route matches a rule, the deny or permit action occurs and the route is not evaluated against subsequent rules. A prefix list is flexible in that it allows you to configure a prefix with a prefix length (that together identify the prefix), and also have a range by specifying that the prefix length be greater than, less than, or equal to a value. The firewall evaluates prefix lists more efficiently than access lists.

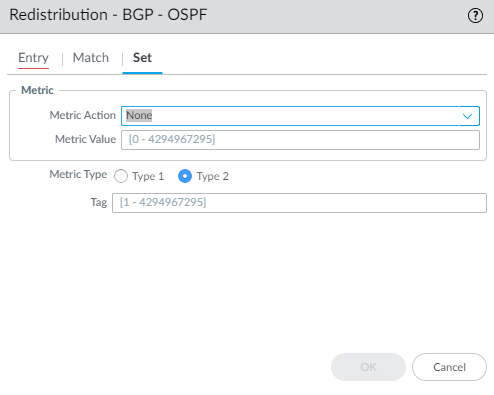

    • Redistribution Route Maps
      —Use a Redistribution Route Map in a Redistribution Profile to specify which BGP, OSPFv2, OSPFv3, RIP, connected or static routes (the source protocol) to redistribute to BGP, OSPFv2, OSPFv3, RIP, or the local RIB (the destination protocol). You can also redistribute BGP host routes to BGP peers. The match criteria can include IPv4 and IPv6 addresses specified by an access list and prefix list.
      A Redistribution route map can have multiple entries; routes are evaluated against the entries in sequential order. When a route matches an entry, it is permitted or denied and the route is not evaluated against subsequent entries. If the action of the matching entry is Permit, the firewall also sets the configured attributes from the route map to the redistributed route.
    • Multicast Route Maps
      —Create a multicast route map to filter sources for a dynamic IGMP interface.
    The following filters apply to BGP only.
    • AS Path Access Lists
      —Create an AS Path access list:
      • To control importing of BGP routes (into the local BGP RIB) that came from another router, use in a BGP Filtering Profile, in the Inbound Filter List. For example, you want to import only routes that came through specific autonomous systems.
      • To control exporting of BGP routes to another router, use in a BGP Filtering Profile, in the Outbound Filter List.
      • To do anything a BGP route map can do, use in a BGP route map as a match criterion.
      • To redistribute BGP routes, use in a BGP Redistribution route map (AS Path) as a match criterion.
      An AS Path access list can have a maximum of 64 rules and ends with an implicit
      Permit Any
       rule. Use an AS Path access list to deny autonomous systems. Routes are evaluated against the rules in sequential order. When a route matches a rule, the deny or permit action occurs and the route is not evaluated against subsequent rules.
    • Community Lists
      —Create a community list:
      • To reference in a BGP route map to match on BGP community attributes of routes that you want to control in some way. For example, you can set a group of routes (that share a community attribute) to have a specific metric or local preference.
      • To reference in the set actions of a BGP route map to remove communities from routes that meet the match criteria.
      • To match BGP communities in routes that you want to redistribute using a Redistribution route map.
      A community list can have multiple rules; routes are evaluated against the rules in sequential order. When a route matches a rule, the deny or permit action occurs and the route is not evaluated against subsequent rules.
    • BGP Route Maps
      —Create a BGP route map:
      • For the
        Default Originate Route-Map
         field of a BGP AFI Profile; the match criteria define when to generate the default route (0.0.0.0). Apply the BGP AFI profile to a BGP peer group or peer. The Match criteria can be any parameter and if there is a match to an existing BGP route, the default route is created; the Set portion of the route map is not used. Instead, you can use an outbound route-map to set properties for the generated default route.
      • To set (override) BGP attributes that BGP is sending to a peer.
      • For NAT, to set Source Address and IPv4 Next Hop for a certain group of prefixes you are advertising, enter a public IP address from the NAT pool to replace a private IP address.
      • To redistribute static, connected, or OSPF routes into BGP; then reference the BGP route map in a BGP Redistribution profile.
      • In a BGP Filtering Profile, use a BGP route map in
        Inbound Route Map
         or
        Outbound Route Map
         to filter routes that are accepted (learned) from BGP peers into the local BGP RIB (inbound) or advertised to BGP peers (outbound).
      • To conditionally advertise BGP routes, in a BGP Filtering Profile, create an
        Exist Map
        , which specifies that if these conditions in the route exist, advertise the route based on an Advertise Map. Alternatively, specify that if these conditions do not exist, advertise the route based on a
        Non-Exist Advertise Map
        .
      • In a BGP Filtering Profile, set an IPv4 Next Hop to use a public NAT address rather than a private address.
      • In a BGP Filtering Profile, use a BGP route map to unsuppress routes that were suppressed due to route dampening or aggregation.
      • To conditionally filter more specific routes, for a logical router, configure BGP
        Aggregate Routes
         and provide the
        Suppress Map
        .
      • To set attributes for an aggregate route, for a logical router, configure BGP
        Aggregate Routes
         and provide the
        Attribute Map
        .
    A filter can have multiple rules; the firewall evaluates packets or routes against the rules in a filter in order by sequence number (
    Seq
    ) of the rule. When a packet or route matches a rule, the deny or permit action occurs and the packet or route is not evaluated against subsequent rules.
    All filters except AS Path access lists end with an implicit
    Deny Any
     rule. All filters except for AS Path access lists must have at least one
    Permit
     rule; otherwise, all examined routes/packets are denied. AS Path access lists end with an implicit
    Permit Any
     rule.
    Select a configured
    Seq
     number to open a rule and modify it. Select an
    Action
     field in a configured rule to modify only the Permit or Deny action.
    When adding a rule, leave enough unused sequence numbers between rules to allow future rules to be inserted in the filter. For example, use Seq numbers 10, 20, 30, etc.

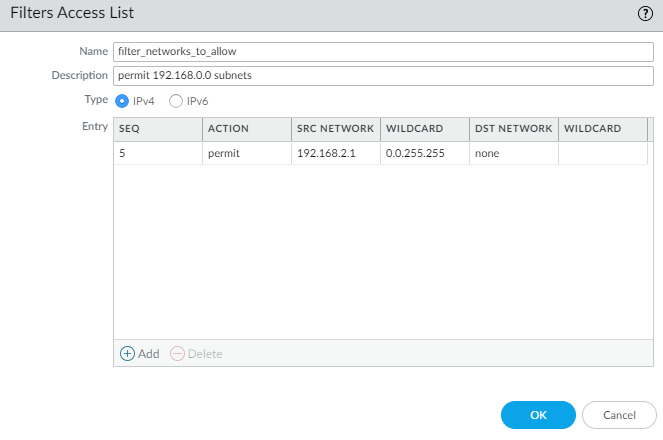

    1. Create an access list to permit or deny IPv4 or IPv6 addresses where this filter is applied.
      1. Select
        Network
        Routing
        Filters
        .
      2. Add
         a
        Filters Access List
         by
        Name
         (maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), or hyphen (-), and can contain a combination of alphanumeric characters, underscore, or hyphen. No dot (.) or space is allowed.
      3. Enter a helpful
        Description
        .
      4. Select the
        Type
         of access list:
        IPv4
         or
        IPv6
        .
        1. For IPv4,
          Add
           an
          IPv4 Entry
           and enter the
          Seq
           number for the rule (range is 1 to 65,535).
        2. Select the
          Action
          :
          Deny
           (the default) or
          Permit
          .
        3. For
          Source Address
          , there are three options: select
          Address
           and in the subsequent
          Address
           field, enter an IPv4 address. Enter a
          Wildcard
           mask to indicate a range. A zero (0) in the mask indicates that bit must match the corresponding bit in the address; a one (1) in the mask indicates a “don’t care” bit. The other options are
          Any
           or
          None
          .
        4. For
          Destination Address
          , select
          Address
           and in the subsequent
          Address
           field, enter an IPv4 address. Enter a
          Wildcard
          . A zero (0) in the mask indicates a bit that must match; a one (1) in the mask indicates a “don’t care’ bit. The other options are
          Any
           or
          None
          .
        5. Click
          OK
           to save the entry.
      5. Alternatively, select the
        Type
         to be
        IPv6
        .
        1. For IPv6,
          Add
           an
          IPv6 Entry
           and enter the
          Seq
           number (range is 1 to 65,535).
        2. Select the
          Action
          :
          Deny
           (the default) or
          Permit
          .
        3. For
          Source Address
          , there are three options: select
          Address
           and in the subsequent
          Address
           field, enter an IPv6
          Address
          . Optionally select
          Exact Match of this address
           to have the firewall perform a comparison of both the prefix and prefix length and they must match exactly; otherwise, the firewall determines the match comparison based on whether the route is in the same subnet as the configured prefix. (If the Source Address is
          Any
           or
          None
          , you cannot select
          Exact Match of this address
          .) The other options are
          Any
           or
          None
          .
        4. Click
          OK
           to save the entry. Optionally add more entries.
      6. Click
        OK
         to save the access list.
    2. Create a prefix list.
      1. Select
        Network
        Routing
        Filters
        .
      2. Add
         a
        Filters Prefix List
         by
        Name
         (maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), or hyphen (-), and can contain a combination of alphanumeric characters, underscore, or hyphen. No dot (.) or space is allowed.
      3. Enter a helpful
        Description
        .
      4. Select the
        Type
         of prefix for this rule to filter:
        IPv4
         or
        IPv6
        .

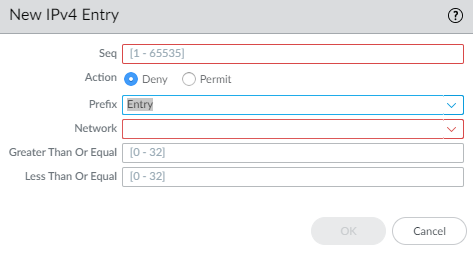

        1. For IPv4,
          Add
           an
          IPv4 Entry
          , and enter the
          Seq
           number for the rule; range is 1 to 65,535.
        2. Select the
          Action
          :
          Deny
           (the default) or
          Permit
          .
        3. For
          Prefix
          , there are three options; default is
          None
          . Another option is to select
          Network any
          . The third option is to select
          Entry
           and enter an IPv4
          Network
           prefix with slash and a base prefix length that together specify a network, for example, 192.168.2.0/24. Optionally specify that the prefix length be
          Greater Than Or Equal
           to a number (that is at least as large as the base length you specified; range is 0 to 32). Optionally specify a top limit to the range by specifying
          Less Than Or Equal
           to a number (that is at least as high as the base length and at least as high as the
          Greater Than Or Equal
           length if configured; range is 0 to 32).
        Comparing a route to the prefix rule (IPv4 or IPv6) is a two-step process: 1) Match the prefix with the network first. 2) Match the prefix length to the mask range (Greater Than or Equal to Less Than Or Equal). For example, consider the preflix list rule with Network 192.168.3.0/24, and a prefix length Greater Than or Equal to 26 and Less Than or Equal to 30. The following table shows routes that are tested and whether they pass or fail the rule. Routes that pass the rule are subject to the configured action (Deny or Permit).
        Sample Route
        Result
        192.168.3.0/28
        Pass: the network and prefix length match the rule.
        192.168.2.0/30
        Fail: network does not match the rule.
        192.168.3.0/32
        Fail: prefix length does not match the rule.
        In the output summary of the rule, LOU is Logical Operator Unit (equal, greater or equal, less or equal). >= indicates a prefix length greater than or equal to the value; it is the lowest value of a range of the prefix length. <= indicates a prefix length less than or equal to the value; it is the highest value of a range of the prefix length.
      5. Alternatively,
        Add
         an
        IPv6 Entry
         and follow the steps similar to those for an IPv4 prefix rule. The range of the IPv6 prefix length is
        Greater Than or Equal
         to 0 to 128 and
        Less Than Or Equal
         to 0 to 128.
        For example, consider the prefix list rule with Network 2001:db8:1/48, and a prefix length Greater Than or Equal to 56 and Less Than or Equal to 64. The following table shows routes that are tested and whether they pass or fail the rule. Routes that pass the rule are subject to the configured action (Deny or Permit).
        Sample Route
        Result
        2001:db8:1/64
        Pass: the network and prefix length match the rule.
        2001:db8:2/48
        Fail: network does not match the rule.
        2001:db8:1/65
        Fail: prefix length does not match the rule.
      6. Click
        OK
         to save the prefix entry. Optionally add more entries.
      7. Click
        OK
         to save the Prefix List.
    3. Create an AS Path Access List for BGP.
      1. Select
        Network
        Routing
        Filters
        .
      2. Add
         an
        AS Path Acess List
         by
        Name
         (maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), or hyphen (-), and can contain a combination of alphanumeric characters, underscore, or hyphen. No dot (.) or space is allowed.
      3. Enter a helpful
        Description
        .
      4. Add
         an
        Entry
         and enter a
        Seq
         number; range is 1 to 65,535.
      5. Select the
        Action
        :
        Deny
         (the default) or
        Permit
        .
        Each AS Path access list ends with an implicit
        Permit Any
         rule. Use an AS Path access list to deny autonomous systems.
      6. Enter the
        Aspath Regex
         (regular expression) in the format
        regex1:regex2:regex3
        , where a colon (:) separates three AS values. Characters allowed are 1234567890_^|[,{}()]$*+.?-\. For example, .*65000 in a Deny statement excludes prefixes originating from AS 65000.
      7. Click
        OK
         to save the entry. Optionally add more entries; a maximum of 64 entries are allowed in an AS Path access list.
      8. Click
        OK
         to save the AS Path access list.

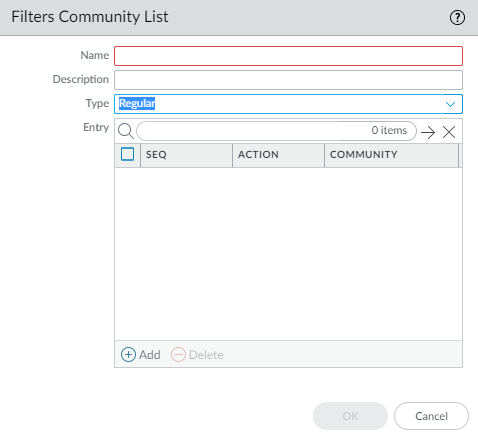

    4. Create a Community List.
      1. Select
        Network
        Routing
        Filters
        .
      2. Add
         a
        Filters Community List
         by
        Name
         (maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), or hyphen (-), and can contain a combination of alphanumeric characters, underscore, or hyphen. No dot (.) or space is allowed.
      3. Enter a helpful
        Description
        .

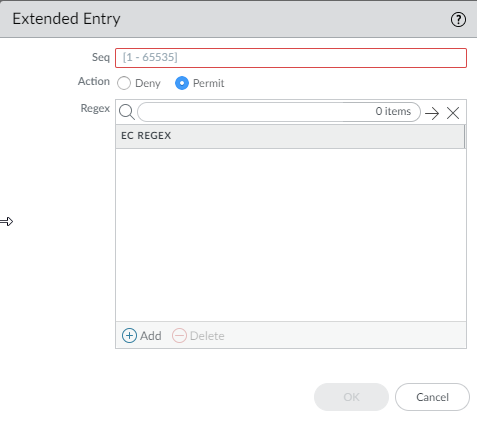

      4. Select the
        Type
        :
        • Regular
          —
          Add
           a
          Seq
           number (range is 1 to 65,535), select the
          Action
          :
          Deny
           (the default) or
          Permit
          , and
          Add
           one or more community values, select one or more well-known communities, or enter a combination of community values and well-known communities. Separate multiple communities with a vertical bar (|), for example,
          6409:10|6520:13|internet
          . Enter a maximum of 16 communities in a
          Regular
           entry (rule).
          • A regular community value in the format AA:NN where AA is an AS number and NN is a network number (each with a range of 0 to 65,535).
          • accept-own
            —Represents well-known community value ACCEPT-OWN (0xFFFF0001)
          • blackhole
            —Represents well-known community value BLACKHOLE (0xFFFF029A). The neighboring network should discard traffic destined for the prefix.
          • graceful-shutdown
            —Represents well-known community value GRACEFUL_SHUTDOWN (0xFFFF0000)
          • internet
            —Represents well-known community value 0 (0x00). Advertise a prefix to all BGP neighbors.
          • local-as
            —Represents well-known community value NO_EXPORT_SUBCONFED (0xFFFFFF03). The effect is to not advertise the prefix outside of the sub-AS in a confederation.
          • no-advertise
            —Represents well-known community value NO_ADVERTISE (0xFFFFFF02). Adding this community to a prefix means the receiving BGP peer will place the prefix in its BGP route table, but won’t advertise the prefix to other neighbors.
          • no-export
            —Represents well-known community value NO_EXPORT (0xFFFFFF01).Adding this community to a prefix means the receiving BGP peer will advertise the prefix only to iBGP neighbors, not neighbors outside the AS.
          • no-peer
            —Represents well-known community value NOPEER (0xFFFFFF04).
