Dataplane NAT Memory Statistics

The
show running global-ippool
command displays statistics related to NAT memory consumption for a pool. The Size column displays the number of bytes of memory that the resource pool is using. The Ratio column displays the oversubscription ratio (for DIPP pools only). The lines of pool and memory statistics are explained in the following sample output:

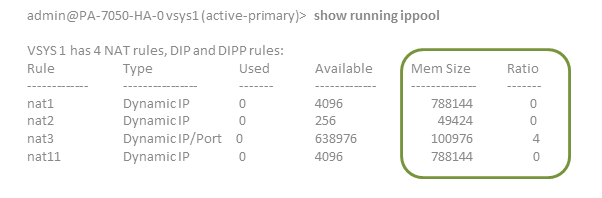

For NAT pool statistics for a virtual system, the
show running ippool
command has columns indicating the memory size used per NAT rule and the oversubscription ratio used (for DIPP rules). The following is sample output for the command.
A field in the output of the
show running nat-rule-ippool rule
command shows the memory (bytes) used per NAT rule. The following is sample output for the command, with the memory usage for the rule encircled.
