Syslog

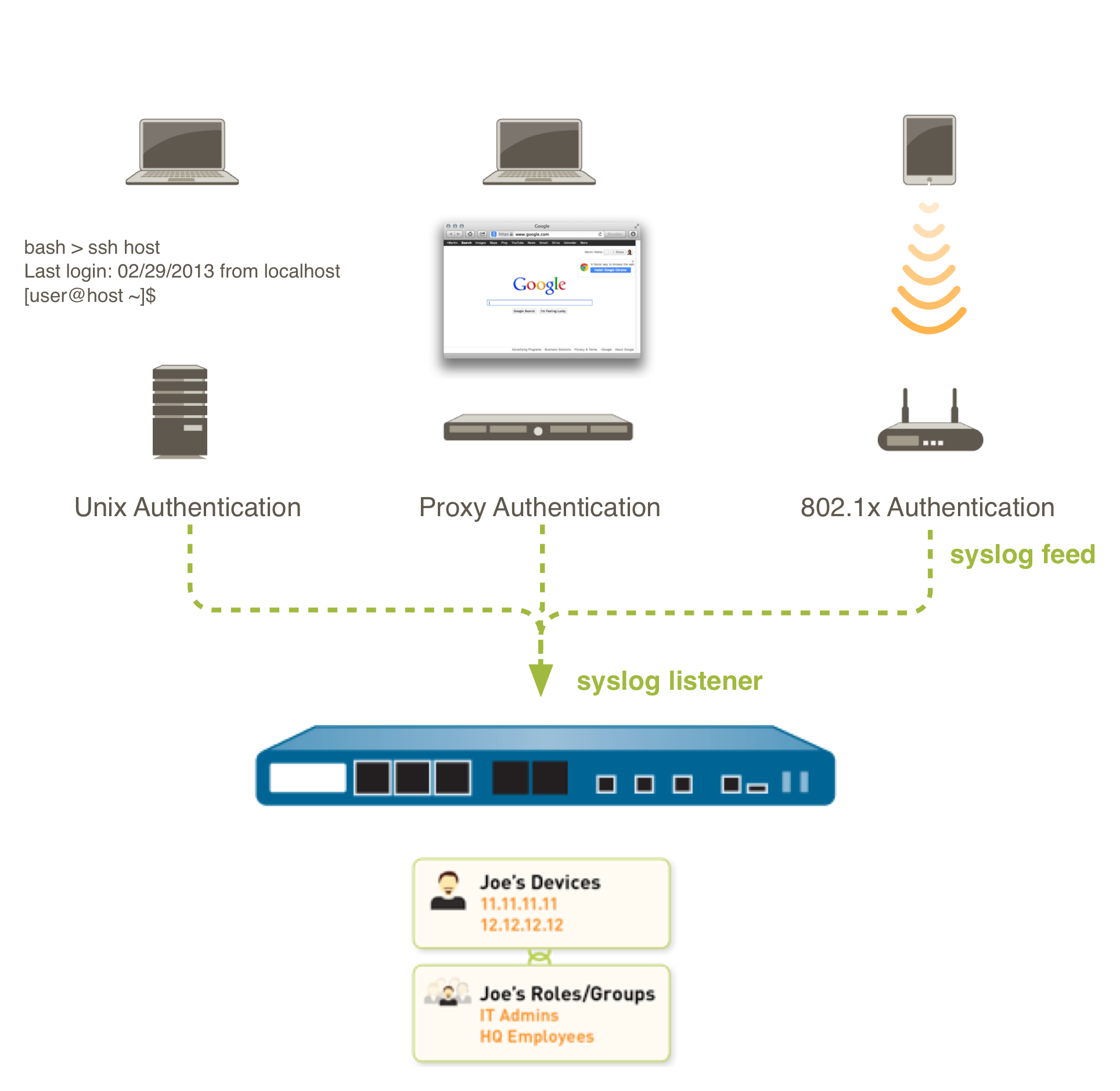

Your environment might have existing network services that authenticate users. These services include wireless controllers, 802.1x devices, Apple Open Directory servers, proxy servers, and other Network Access Control (NAC) mechanisms. You can configure these services to send syslog messages that contain information about login and logout events and configure the User-ID agent to parse those messages. The User-ID agent parses for login events to map IP addresses to usernames and parses for logout events to delete outdated mappings. Deleting outdated mappings is particularly useful in environments where IP address assignments change often.
Both the PAN-OS integrated User-ID agent and Windows-based User-ID agent use Syslog Parse profiles to parse syslog messages. In environments where services send the messages in different formats, you can create a custom profile for each format and associate multiple profiles with each syslog sender. If you use the PAN-OS integrated User-ID agent, you can also use predefined Syslog Parse profiles that Palo Alto Networks provides through Applications content updates.
Syslog messages must meet the following criteria for a User-ID agent to parse them:
  • Each message must be a single-line text string. The allowed delimiters for line breaks are a new line (\n) or a carriage return plus a new line (\r\n).
  • The maximum size for individual messages is 2,048 bytes.
  • Messages sent over UDP must be contained in a single packet; messages sent over SSL can span multiple packets. A single packet might contain multiple messages.
User-ID Integration with Syslog
