External Zones and Security Policies For Traffic Within a
In the following example, an enterprise has two separate administrative groups: the departmentA and departmentB virtual systems. The following figure shows the external zone associated with each virtual system, and traffic flowing from one trust zone, out an external zone, into an external zone of another virtual system, and into its trust zone.
To create external zones, the firewall administrator must configure the virtual systems so that they are
visibleto each other. External zones do not have security policies between them because their virtual systems are visible to each other.
To communicate between virtual systems, the ingress and egress interfaces on the firewall are either assigned to a single virtual router or else they are connected using inter-virtual router static routes. The simpler of these two approaches is to assign all virtual systems that must communicate with each other to a single virtual router.
There might be a reason that the virtual systems need to have their own virtual router, for example, if the virtual systems use overlapping IP address ranges. Traffic can be routed between the virtual systems, but each virtual router must have static routes that point to the other virtual router(s) as the next hop.
Referring to the scenario in the figure above, we have an enterprise with two administrative groups: departmentA and departmentB. The departmentA group manages the local network and the DMZ resources. The departmentB group manages traffic in and out of the sales segment of the network. All traffic is on a local network, so a single virtual router is used. There are two external zones configured for communication between the two virtual systems. The departmentA virtual system has three zones used in security policies: deptA-DMZ, deptA-trust, and deptA-External. The departmentB virtual system also has three zones: deptB-DMZ, deptB-trust, and deptB-External. Both groups can control the traffic passing through their virtual systems.

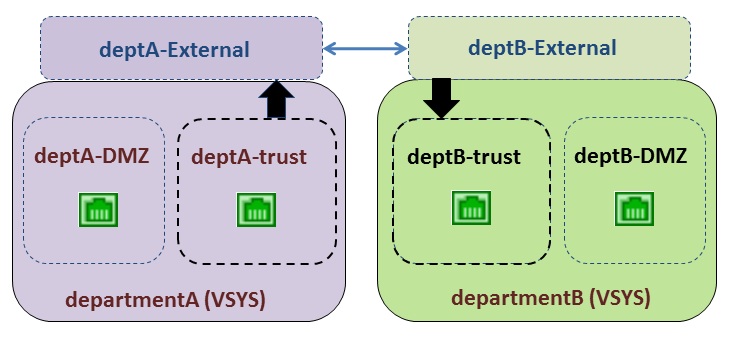

In order to allow traffic from deptA-trust to deptB-trust, two security policies are required. In the following figure, the two vertical arrows indicate where the security policies (described below the figure) are controlling traffic.
- Security Policy 1: In the preceding figure, traffic is destined for the deptB-trust zone. Traffic leaves the deptA-trust zone and goes to the deptA-External zone. A security policy must allow traffic from the source zone (deptA-trust) to the destination zone (deptA-External). A virtual system allows any policy type to be used for this traffic, including NAT.No policy is needed between external zones because traffic sent to an external zone appears in and has automatic access to the other external zones that are visible to the original external zone.
- Security Policy 2: In the preceding figure, the traffic from deptB-External is still destined to the deptB-trust zone, and a security policy must be configured to allow it. The policy must allow traffic from the source zone (deptB-External) to the destination zone (deptB-trust).
The departmentB virtual system could be configured to block traffic from the departmentA virtual system, and vice versa. Like traffic from any other zone, traffic from external zones must be explicitly allowed by policy to reach other zones in a virtual system.
In addition to external zones being required for inter-virtual system traffic that does not leave the firewall, external zones are also required if you configure a Shared Gateway, in which case the traffic is intended to leave the firewall.
