VM-Series Firewall on Google Cloud Platform
Deploy the VM-Series firewall from Google Cloud Platform
Marketplace, enable Google Stackdriver monitoring, and enable VM-Series
firewalls to monitoring Google Compute Engine instances.
You can now deploy the VM-Series firewall
on a Google Compute Engine instance within
a Google Cloud Platform project to secure
your applications and workloads.
The VM-Series firewall on
Google Cloud Platform can publish custom PAN-OS metrics to Google
Stackdriver. With Stackdriver Monitoring, you can monitor the firewall,
and set up alerts based on firewall health and performance.
You
can also enable any firewall that runs PAN-OS 8.1 (virtual or physical)
to monitor application workloads deployed on Google Compute Engine
instances. With an awareness of virtual machine adds, moves, or
deletes within a Google VPC, you can create security policy rules
that automatically adapt to changes in your application environment.
Deploy the VM-Series Firewall from Google Cloud Platform Marketplace

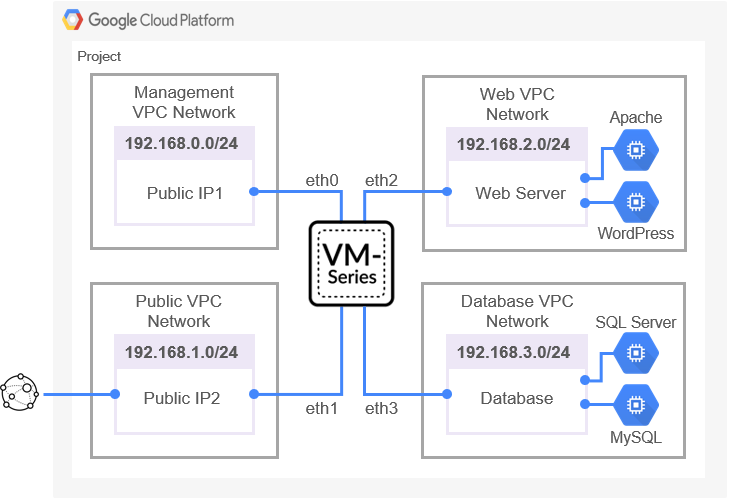

The VM-series firewall is part of your Google
project, using the VPC networks to communicate with other compute
engine instances. In addition to serving as an internet gateway,
the VM-series firewall can secure east-west traffic between VPCs to
ensure data protection compliance and application access.
Google
Marketplace provides templates based on license types. The templates deploy
an instance of the VM-Series firewall with a management interface
and two dataplane interfaces.
Before you deploy the VM-Series
firewall, you must choose a project in your organization, and create
a minimum of three networks and subnetworks that the firewall requires
at launch.
- Locate the VM-Series firewall listing in Google
Marketplace.
- Log in to the Google Cloud Console.
- From the Products and Services menu, choose Marketplace.
- Search for “VM-Series”.
- Select one of the VM-Series licensing options.
- Click Launch on Compute Engine.
- Deploy the VM-Series Firewall from Google Cloud Platform Marketplace.
Enable Google Stackdriver Monitoring
You can enable any firewall that runs PAN-OS
8.1 (virtual or physical) to monitor application workloads deployed
on Google Compute Engine instances. With an awareness of virtual
machine adds, moves, or deletes within a Google VPC, you can create
security policy rules that automatically adapt to changes in your
application environment.
When Stackdriver is enabled, the firewall
can retrieve metadata on eight predefined attributes—hostname of
the VM, machine type, status (running or not), source (OS type),
VPC Network, subnetwork, zone, and Project ID. In addition to these
attributes, you can retrieve up to 24 user-defined attributes such
as labels, tags, and other key-value pairs defined using metadata
or startup scripts on the Google Compute Engine instances.- Select , and Add a new source to monitor.
- Enter a unique Name for the source.
- Select the Service Authentication Type.
- VM-Series running in GCE—Use this option if a VM-Series firewall deployed on GCE is monitoring the virtual machines on GCE. You do not need to provide account credentials if the service account that you used to provision the firewall has the permissions required to authenticate to the Google Cloud Project you want to monitor.
- Service Account—Use this option on any hardware-based firewall or VM-Series firewall that is not running on GCE. You must the provide the Service Account Credential as a JSON file so that the firewall can authenticate to the GCP infrastructure and retrieve the attributes.
- Enter the Project ID and the Zone in which the resources are deployed.
- Click OK and Commit your changes.
- Verify the connection Status is successful and that the firewall is able to connect to the GCE project you want to monitor.
- Use the attributes as match criteria in dynamic address groups.
Enable VM-Series Firewall to Track Changes on Google Cloud Platform VMs
- Push PAN-OS metrics from a VM-Series firewall
on a Google Compute Engine instance to Stackdriver.
- Log in to the web interface on the VM-Series firewall.
- Select . On the Google Cloud
Stackdriver Monitoring Setup panel, click Edit
.- Check Publish PAN-OS metrics to Stackdriver.
- Set Update Interval to a value between 1- 60 minutes. This is the frequency at which the firewall publishes the metrics to Stackdriver. The default is 5 minutes.
- Click OK.
- Commit the changes.Wait until the firewall starts to publish metrics to Stackdriver before you configure alarms for PAN-OS metrics.
- Verify that you can see the metrics on Stackdriver.
- In the Google Cloud Console, select .
- In Stackdriver, choose .
- Under “Find resource type and metric”, click in the
search field and type custom to filter the
PAN-OS metrics.
- Configure alerts and actions for PAN-OS metrics on Stackdriver. See Monitoring Quickstart for Google Compute Engine, and Stackdriver Introduction to Alerting.
