Create a Custom Application

Gather information about the application that you will be able to use to write custom signatures.
To do this, you must have an understanding of the application and how you want to control access to it. For example, you may want to limit what operations users can perform within the application (such as uploading, downloading, or live streaming). Or you may want to allow the application, but enforce QoS policing.
Capture application packets so that you can find unique characteristics about the application on which to base your custom application signature. One way to do this is to run a protocol analyzer, such as Wireshark, on the client system to capture the packets between the client and the server. Perform different actions in the application, such as uploading and downloading, so that you will be able to locate each type of session in the resulting packet captures (PCAPs).
Because the firewall by default takes packet captures for all unknown traffic, if the firewall is between the client and the server you can view the packet capture for the unknown traffic directly from the Traffic log.
Use the packet captures to find patterns or values in the packet contexts that you can use to create signatures that will uniquely match the application traffic. For example, look for string patterns in HTTP response or request headers, URI paths, or hostnames. For information on the different string contexts you can use to create application signatures and where you can find the corresponding values in the packet, refer to Creating Custom Threat Signatures.
Add the custom application.
Select

Objects

Applications

and click

Add

.

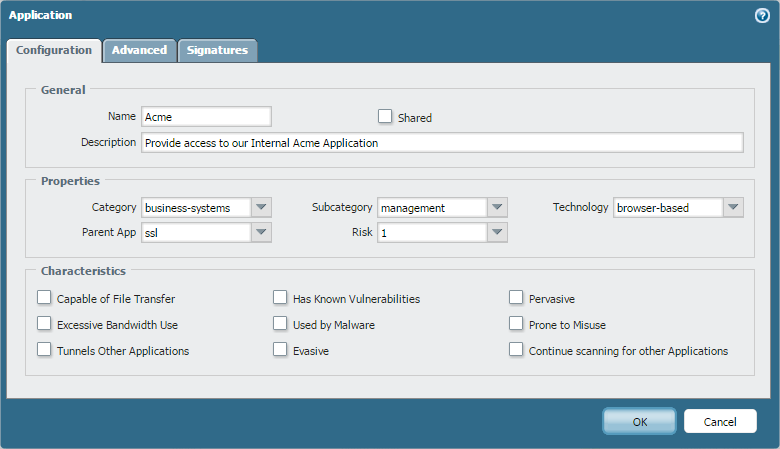

On the

Configuration

tab, enter a

Name

and a

Description

for the custom application that will help other administrators understand why you created the application.

(

Optional

) Select

Shared

to create the object in a shared location for access as a shared object in Panorama or for use across all virtual systems in a multiple virtual system firewall.

Define the application Properties and Characteristics.


Define details about the application, such as the underlying protocol, the port number the application runs on, the timeout values, and any types of scanning you want to be able to perform on the traffic.
On the
Advanced
tab, define settings that will allow the firewall to identify the application protocol:
Specify the default ports or protocol that the application uses.
Specify the session timeout values. If you don’t specify timeout values, the default timeout values will be used.
Indicate any type of additional scanning you plan to perform on the application traffic.
For example, to create a custom TCP-based application that runs over SSL, but uses port 4443 (instead of the default port for SSL, 443), you would specify the port number. By adding the port number for a custom application, you can create policy rules that use the default port for the application rather than opening up additional ports on the firewall. This improves your security posture.

Define the criteria that the firewall will use to match the traffic to the new application.
You will use the information you gathered from the packet captures to specify unique string context values that the firewall can use to match patterns in the application traffic.
On the
Signatures
tab, click
Add
and define a
Signature Name
and optionally a
Comment
to provide information about how you intend to use this signature.
Specify the
Scope
of the signature: whether it matches to a full
Session
or a single
Transaction
.
Specify conditions to define signatures by clicking
Add And Condition
or
Add Or Condition
.
Select an
Operator
to define the type of match conditions you will use:
Pattern Match
or
Equal To
.
If you selected
Pattern Match
, select the
Context
and then use a regular expression to define the
Pattern
to match the selected context. Optionally, click
Add
to define a qualifier/value pair. The
Qualifier
list is specific to the
Context
you chose.
If you selected
Equal To
, select the
Context
and then use a regular expression to define the
Position
of the bytes in the packet header to use match the selected context. Choose from
first-4bytes
or
second-4bytes
. Define the 4-byte hex value for the
Mask
(for example, 0xffffff00) and
Value
(for example, 0xaabbccdd).

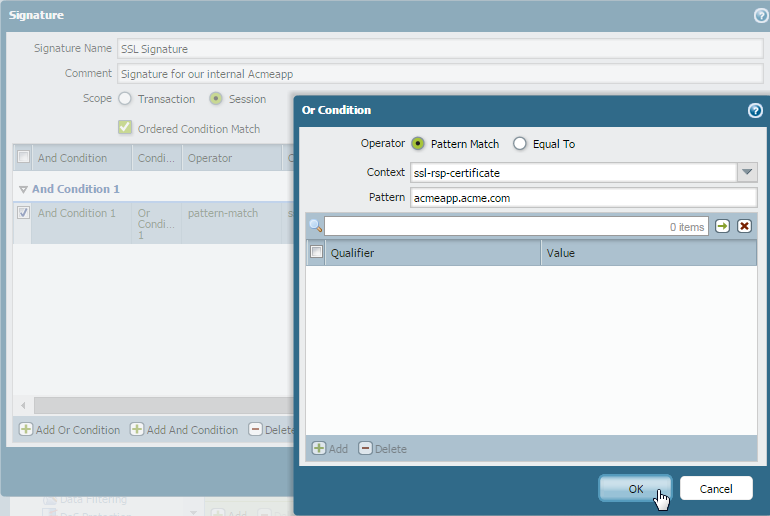

For example, if you are creating a custom application for one of your internal applications, you could use the
ssl-rsp-certificate Context
to define a pattern match for the certificate response message of a SSL negotiation from the server and create a
Pattern
to match the commonName of the server in the message as shown here:

Repeat steps 4.c and 4.d for each matching condition.
If the order in which the firewall attempts to match the signature definitions is important, make sure the
Ordered Condition Match
check box is selected and then order the conditions so that they are evaluated in the appropriate order. Select a condition or a group and click
Move Up
or
Move Down
. You cannot move conditions from one group to another.
Click
OK
to save the signature definition.
Save the application.
Click
OK
to save the custom application definition.
Click
Commit
.
Validate that traffic matches the custom application as expected.
Select
Policies
Security
and
Add
a security policy rule to allow the new application.
Run the application from a client system that is between the firewall and the application and then check the Traffic logs (
Monitor
Traffic
) to make sure that you see traffic matching the new application (and that it is being handled per your policy rule).
