Navigate the CLI
Table of Contents
Navigate the CLI

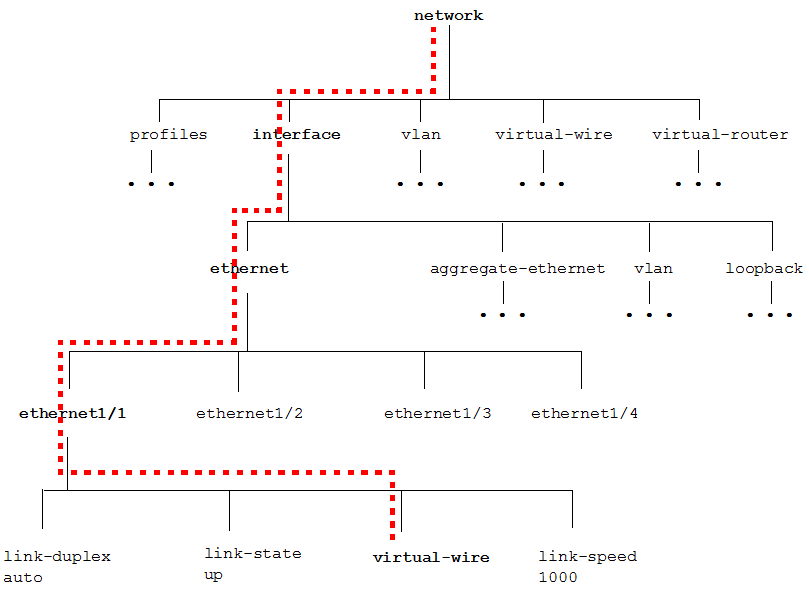

CLI commands are organized in a hierarchical structure.
To display a segment of the current hierarchy, use the
show
command.
Entering show
displays the complete hierarchy,
while entering show
with keywords displays
a segment of the hierarchy. For example, the following command displays the configuration
hierarchy for the Ethernet interface segment of the hierarchy:
username@hostname>configureEntering configuration mode [edit] username@hostname#show network interface ethernetethernet { ethernet1/1 { virtual-wire; } ethernet1/2 { virtual-wire; } ethernet1/3 { layer2 { units { ethernet1/3.1; } } } ethernet1/4; } [edit] username@hostname#
