Install the Device Certificate for a Managed Firewall
Install the device certificate for selected managed firewalls from the Panorama™
management server.
Where Can I Use This? | What Do I Need? |
---|---|
|
|
Select and install the device certificate for managed firewalls from the Panorama
management server to use one or more cloud services. You only need to install a
device certificate once. The device certificate has a 90-day lifetime. The firewall
reinstalls the device certificate 15 days before the certificate expires. In the
event the firewall is unable to reinstall the device certificate on its own, you may
need to manually restore an expired device certificate.
To successfully install the device certificate on a firewall, the firewall must have
outbound internet access and the following Fully Qualified Domain Names (FQDN) and
ports must be allowed on your network in order to reach to the CSP. Additionally,
the managed firewall must belong to the same CSP account as Panorama in order to
generate the One Time Password (OTP) used to install the device certificate.
FQDN | Ports |
---|---|
| TCP 80 |
| TCP 443 |
| TCP 444 and TCP 443 |
The following Palo Alto Networks Next-Generation firewall models install the
device certificate when they first connect to the Palo Alto Networks CSP during
the initial registration process. You do not need to manually install the device
certificate for these firewall models.
- PA-400 Series firewalls
- PA-1400 Series firewalls
- PA-3400 Series firewalls
- PA-5400 Series firewalls
- PA-5450 firewall
- Log in to the Panorama Web Interface as a Superuser.A Panorama admin with Superuser access privileges is required to generate OTP Request Token and apply the OTP used to install the device certificate on a managed firewall.
- (Best Practices) Configure the Network Time Protocol (NTP) server for Panorama.An NTP server is required to validate the device certification expiration date, ensure the device certificate does not expire early or become invalid.
- Select.PanoramaSetupServices
- SelectNTPand enter the hostname or IP address of thePrimary NTP Server.
- (Optional) Enter a the hostname or IP address of theSecondary NTP Server.
- (Optional) To authenticate time updates from the NTP server(s), forAuthentication Type, select one of the following for each server.
- None(default)—Disables NTP authentication.
- Symmetric Key—Firewall uses symmetric key exchange (shared secrets) to authenticate time updates.
- Key ID—Enter the Key ID (1-65534)
- Algorithm—Select the algorithm to use in NTP authentication (MDSorSHA1)
- ClickOKto save your configuration changes.
- SelectCommitandCommit to Panorama.
- Configure the Network Time Protocol (NTP) server for your firewalls.An NTP server is required to validate the device certification expiration date, ensure the device certificate does not expire early or become invalid.
- Selectand select theDeviceSetupServicesTemplate.
- Select one of the following depending on your platform:
- For multi-virtual system platforms, selectGlobaland edit the Services section.
- For single virtual system platforms, edit the Services section.
- SelectNTPand enter the hostname or IP address of thePrimary NTP Server.
- (Optional) Enter a the hostname or IP address of theSecondary NTP Server.
- (Optional) To authenticate time updates from the NTP server(s), forAuthentication Type, select one of the following for each server.
- None(default)—Disables NTP authentication.
- Symmetric Key—Firewall uses symmetric key exchange (shared secrets) to authenticate time updates.
- Key ID—Enter the Key ID (1-65534)
- Algorithm—Select the algorithm to use in NTP authentication (MDSorSHA1)
- ClickOKto save your configuration changes.
- SelectCommitandCommit and Pushyour configuration changes to your managed firewalls.
- Generate the OTP Request Token on Panorama.The OTP Request Token generated on Panorama is used to generate the OTP required to install the device certificate on a managed firewall.
- Select.PanoramaManaged DevicesSummary
- Select one or more managed firewalls that do not have a device certificate installed.
- Select.Request OTP From CSPCustom selected devices
- Copythe entire output in the OTP Request Token field.
- Generate the One Time Password (OTP) for managed firewalls.An OTP lifetime is 60 minutes and expires if not used within the 60 minute lifetime.Firewall may only attempt to retrieve the OTP from the CSP one time. If the firewall fails for any reason to fetch the OTP, the OTP expires and you must generate a new OTP.
- Log in to the Customer Support Portal with a user role that has permission to generate an OTP.
- SelectandProductsDevice CertificatesGenerate OTP.
- For theDevice Type, selectGenerate OTP for Panorama managed firewallsand clickNext.
- Paste the OTP request you copied in the previous step andGenerate OTP.
- ClickDoneand wait a few minutes for the OTP to successfully generate.

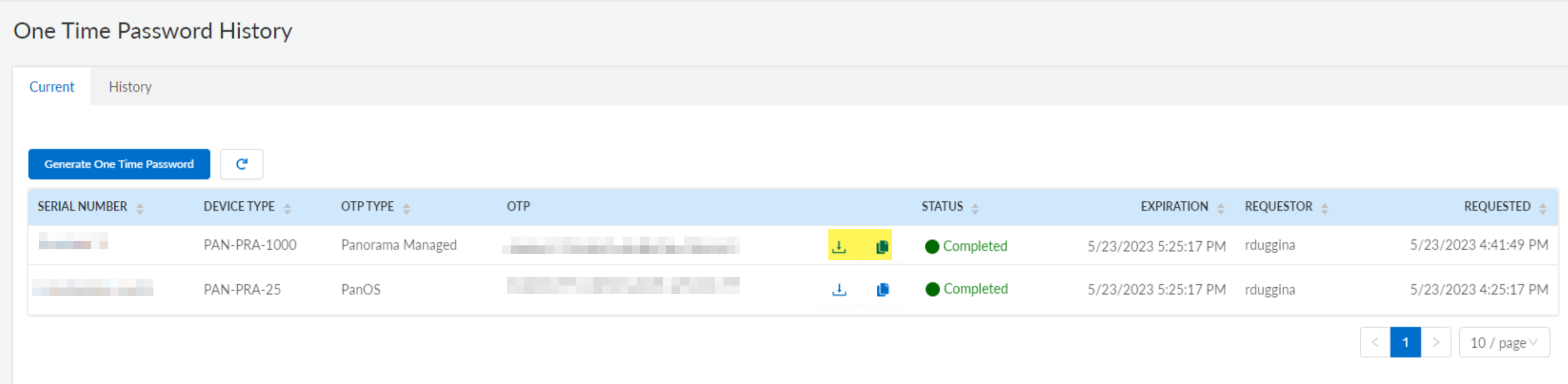

- View OTP History.
- In theCurrentOne Time Password History, copy or download the OTP
- Copy to ClipboardorDownloadthe OTP.

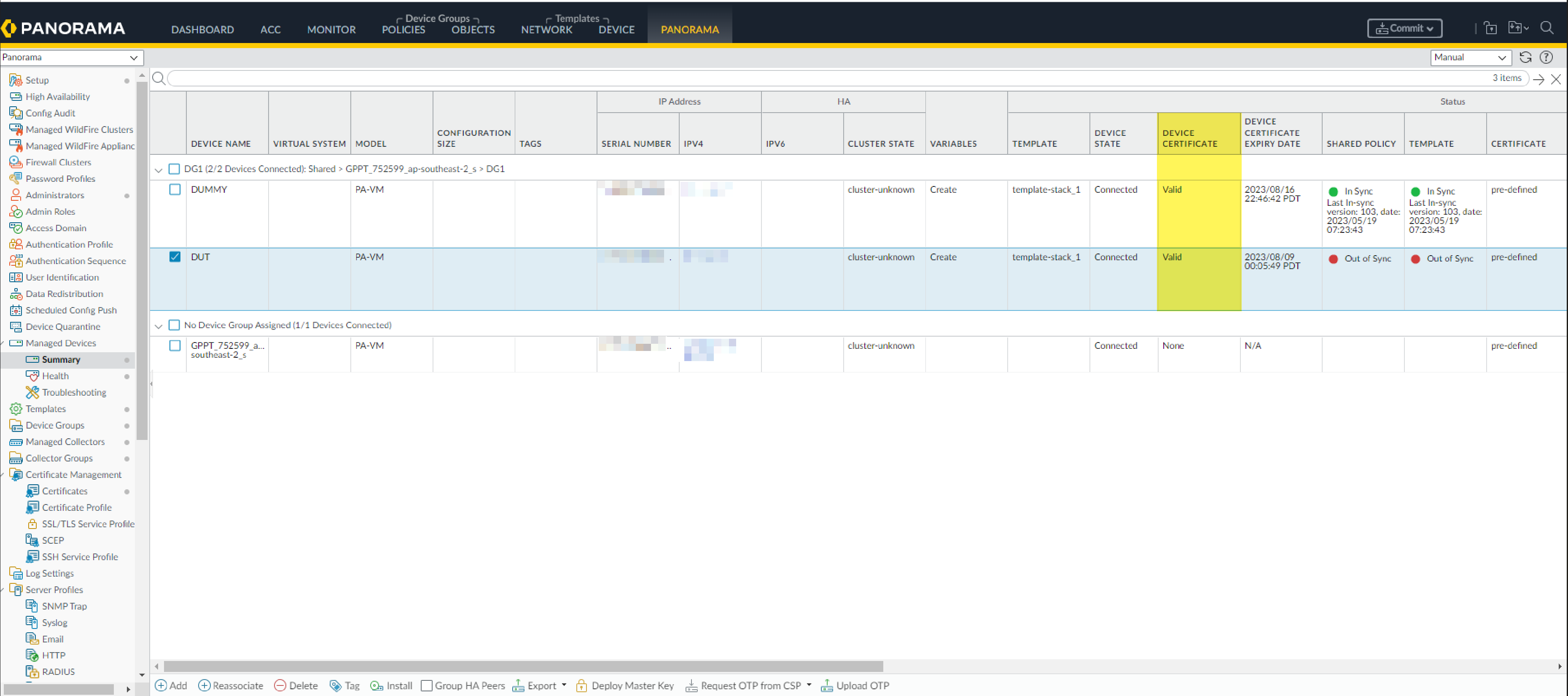

- Install the device certificate on managed firewalls.The managed firewall must have an outbound internet connection to successfully install the device certificate. After you upload the OTP from Panorama, the managed firewall connects to the Palo Alto Networks CSP to install the device certificate.
- Log in to the Panorama web interface as a Superuser user.
- SelectandPanoramaManaged DevicesSummaryUpload OTP.
- Paste the OTP you generated andUpload.You must still copy and paste the OTP generated from the Palo Alto Networks CSP even if you downloaded the OTP in the previous step. Uploading the file containing the OTP is not supported.
- (WildFire and Advanced WildFire) Log in to the firewall CLI and refresh the firewall settings to establish a connection to the Advanced WildFire cloud with the updated device certificate.Repeat this step for each managed firewall with an activate WildFire or Advanced WildFire subscription that is actively communicating with the Advanced WildFire cloud service.admin>request wildfire registration channel publicVerify that theDevice Certificatecolumn displays asValidand that theDevice Certificate Expiry Datedisplays an expiration date.
