Manually Create Configuration Profiles (V3) for Prisma Access Agent

Where Can I Use This?	What Do I Need?
Prisma Access (Managed by Strata Cloud Manager) Prisma Access (Managed by Panorama) NGFW (Managed by Panorama)	Check the prerequisites for the deployment you're using macOS 14 and later desktop devices Contact your Palo Alto Networks account representative to activate the Prisma Access Agent feature

Create and deploy configuration profiles for Prisma Access Agents that define how the Prisma Access Agent is configured on managed macOS devices. For example, you can set up the configuration profile to automatically load system extensions to provide a seamless experience for users running the Prisma Access Agent to access the internet, SaaS applications, and private applications and resources in your organization.

(Recommended) As an alternative to manually creating a configuration profile, use the unified configuration profiles provided by Palo Alto Networks.

You will need to create two configuration profiles: one for Prisma Access Agent, and the other for Endpoint DLP. Both configuration files must be installed for Prisma Access Agent to work properly on your endpoints, regardless of whether you use Endpoint DLP with Prisma Access Agent.

This configuration profiles will automatically load the following extensions on a managed endpoint:

• PAA Network Extension (com.paloaltonetworks.pang.networkextension)
• PAA Security Extension (com.paloaltonetworks.pang.securityextension)
• Endpoint DLP enforcer extension (com.paloaltonetworks.pangdlp.enforcer)
• Endpoint DLP network filter extension (com.paloaltonetworks.pangdlp.netfilterdlp)

After you deploy the agent, you can run the systemextensionsctl list command on an endpoint to verify that the extensions have been loaded. For example:

If you previously deployed other Palo Alto Networks apps such as GlobalProtect™ and Cortex® XDR® to your endpoints, when deploying the system extensions via mobile device management (MDM) software, the configuration profiles for Prisma Access Agent and the other Palo Alto Networks apps must include the Allowed System Extension and Removable System Extension settings. If only one of the profiles has the removable system extension, the uninstallation of Prisma Access Agent won’t complete.

The following procedure is based on the Prisma Access Agent unified configuration profiles (V3).

1. Create a Jamf Smart Computer Group to target specific managed macOS devices for the installation of the Prisma Access Agent.
2. Create the configuration profile for Prisma Access Agent.

   1. In Jamf Pro, select ComputersConfiguration ProfilesNew.

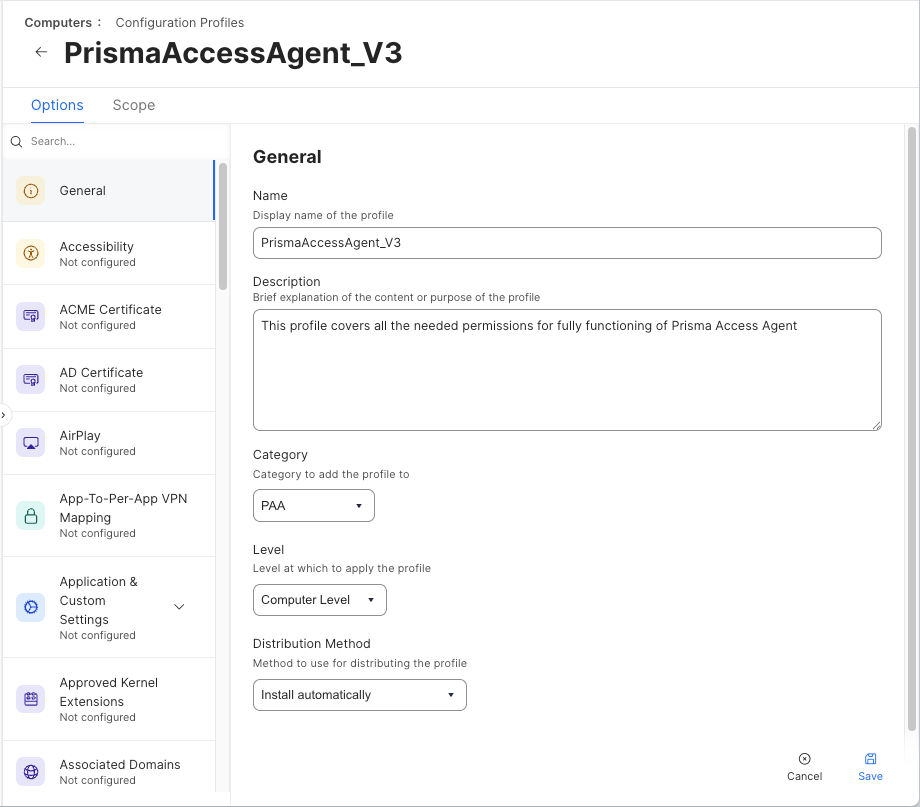

   2. Configure the General tab as follows. You can use any meaningful display name for the profile.

   3. Configure the Content Filter. The Prisma Access Agent content filter suppresses the following prompts on the endpoints:

      Configure the content filter settings as shown:

      • Filter Name = A meaningful name such as PAA Content Filter
      • Identifier = com.paloaltonetworks.pang
      • Password = Enter the password for authenticating to the service
      • Filter Order = Firewall
      • Socket Filter = Enabled
      • Socket Filter Bundle Identifier = com.paloaltonetworks.pang.networkextension
      • Socket Filter Designated Requirement =

        identifier "com.paloaltonetworks.pang.networkextension" and anchor apple generic and certificate leaf[subject.OU] = PXPZ95SK77

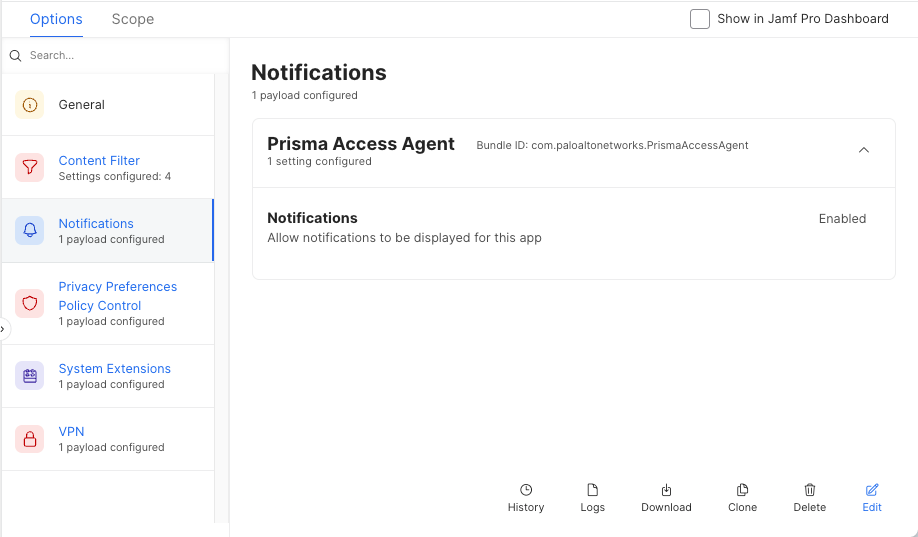

   4. Configure the Notifications tab to set up how Prisma Access Agent notifications are displayed on your end users' devices.

      • App Name = Prisma Access Agent
      • Bundle ID = com.paloaltonetworks.PrismaAccessAgent
      • Notifications = Enabled

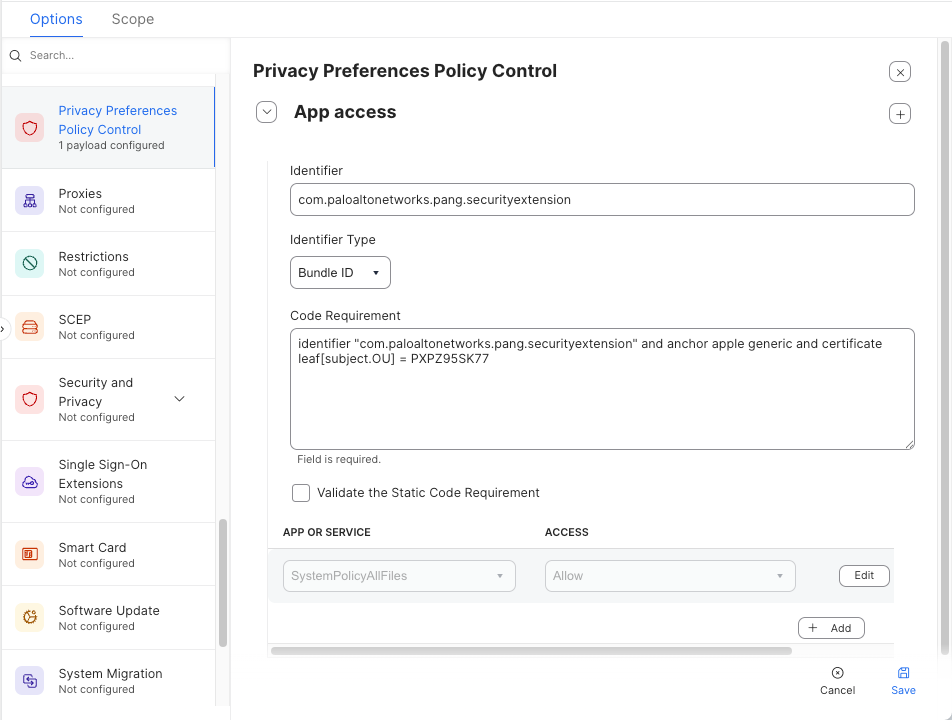

   5. Configure the Privacy Preferences Policy Control tab to specify access settings for Prisma Access Agent. This will provide Full Disk Access permissions for Prisma Access Agent processes.

      • Identifier = com.paloaltonetworks.pang.securityextension
      • Identifier Type = Bundle ID
      • Code Requirement =

        identifier "com.paloaltonetworks.pang.securityextension" and anchor apple generic and certificate leaf[subject.OU] = PXPZ95SK77

      • APP OR SERVICE = SystemPolicyAllFiles
      • ACCESS = Allow

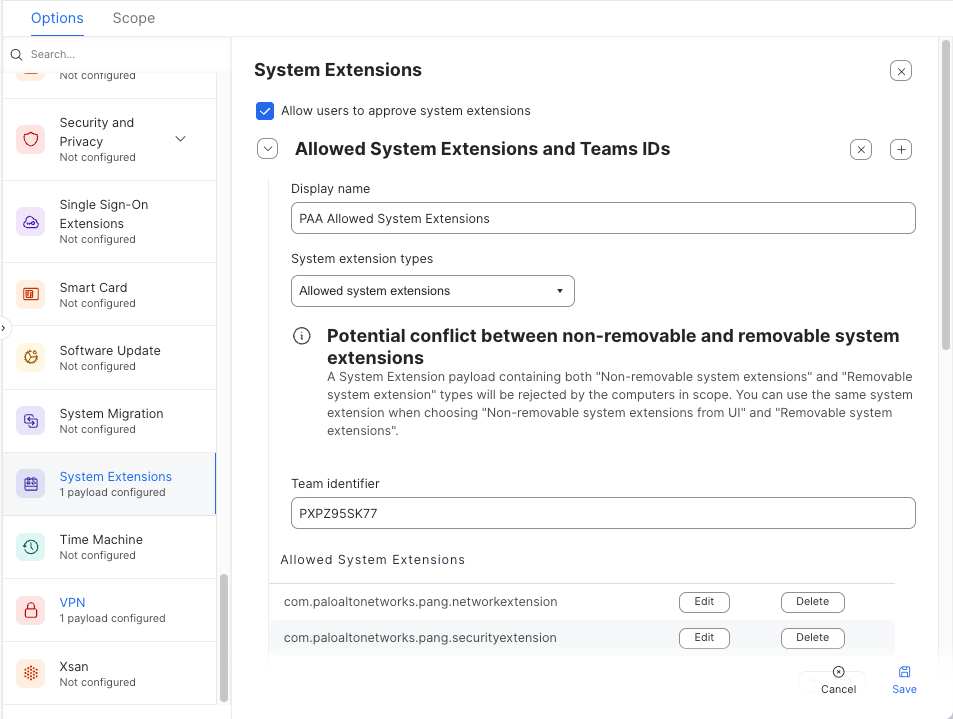

   6. Configure the System Extensions tab to automatically load Prisma Access Agent system extensions on the end users' devices and suppress notifications such as the following:

      Configure the system extensions as follows:

      • Display name = A meaningful name such as PAA Allowed System Extensions
      • System Extension Types = Allowed system extensions
      • Team Identifier = PXPZ95SK77
      • In Allowed System Extensions =
        • com.paloaltonetworks.pang.networkextension
        • com.paloaltonetworks.pang.securityextension

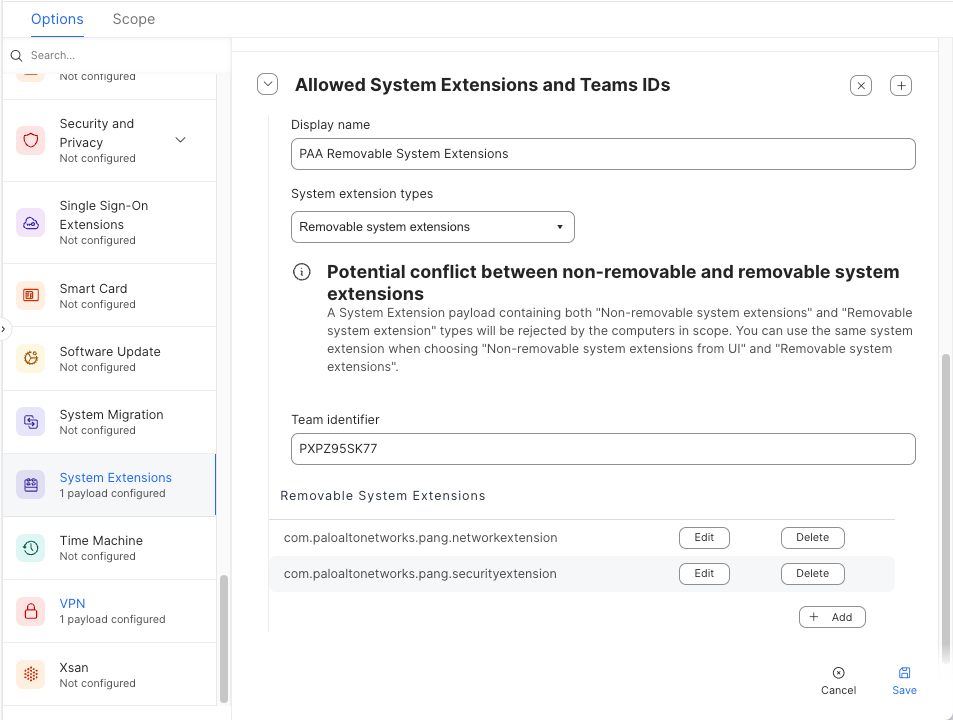

      To avoid potential conflict between nonremovable and removable system extensions, configure removable system extensions for Prisma Access Agent by adding a second Allowed System Extensions and Team IDs section.

      • Display name = A meaningful name such as PAA Removable System Extensions
      • System Extension Types = Removable system extensions
      • Team Identifier = PXPZ95SK77
      • Removable System Extensions =
        • com.paloaltonetworks.pang.networkextension
        • com.paloaltonetworks.pang.securityextension

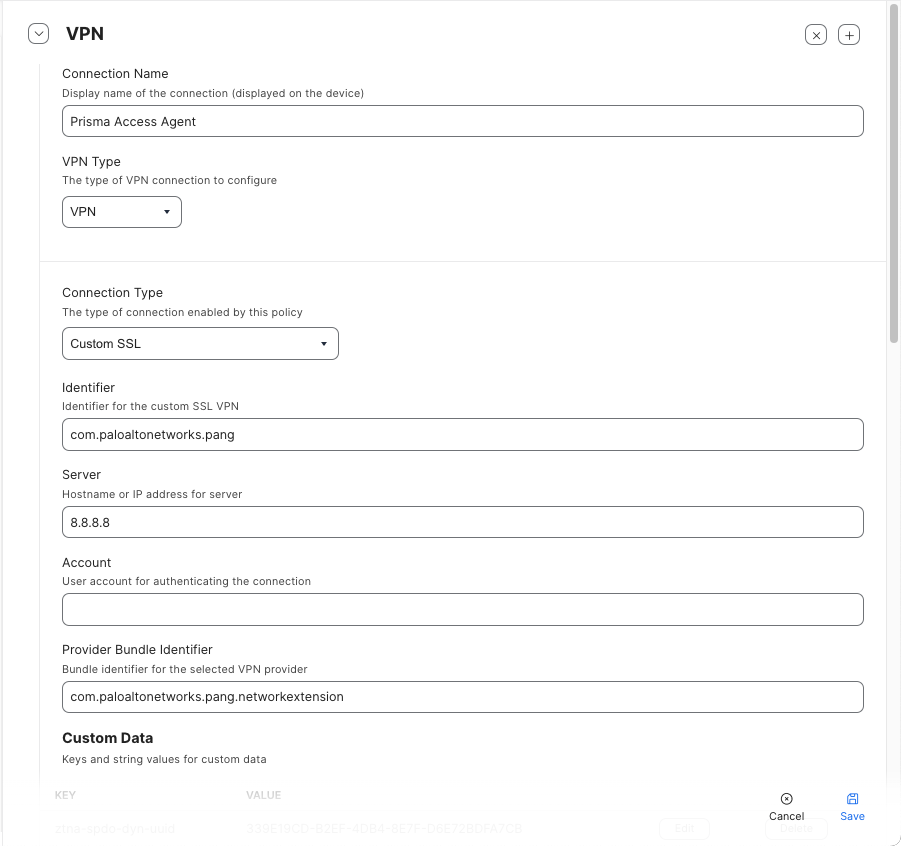

   7. Configure the VPN tab to specify how the device connects to your wireless network via the tunnel.

      • Connection Name = Enter the display name of the connection
      • VPN Type = VPN
      • Connection Type = Custom SSL
      • Identifier = com.paloaltonetworks.pang.
      • Server = A placeholder IP address such as 8.8.8.8
      • Provider Bundle Identifier = com.paloaltonetworks.pang.networkextension

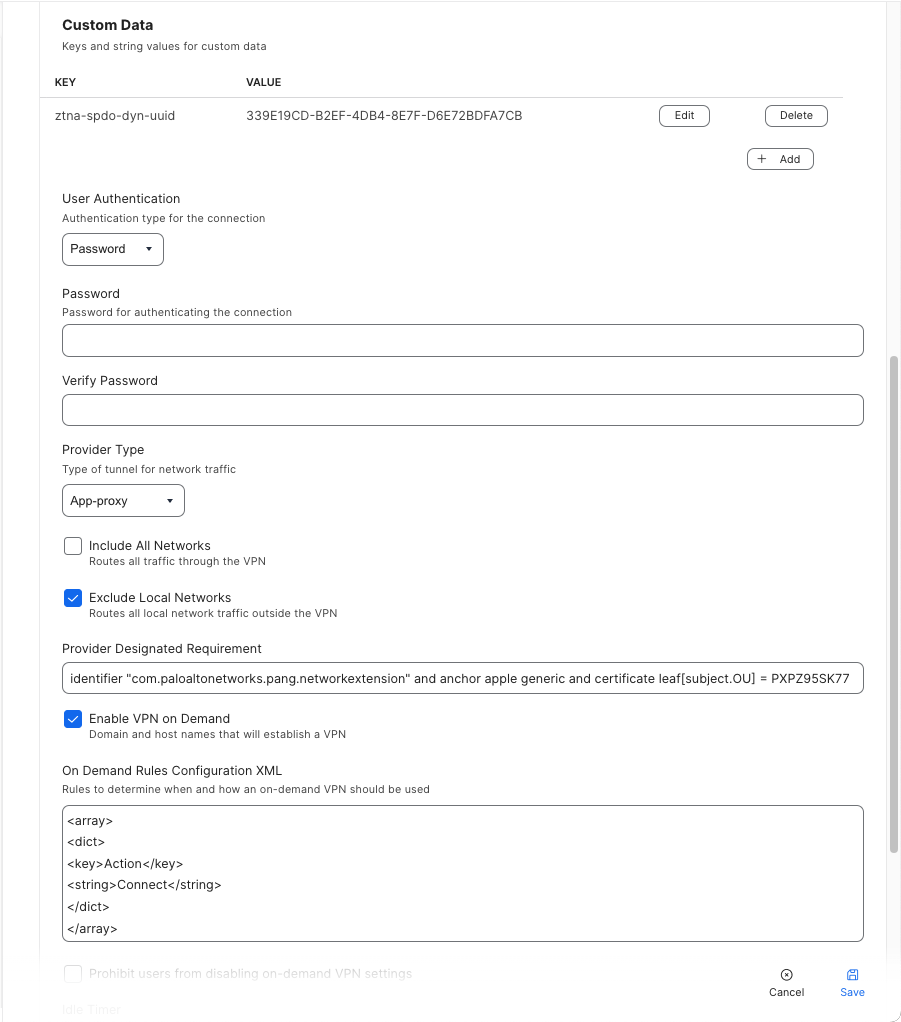

      • Custom Data:
        • Key = ztna-spdo-dyn-uuid
        • Value = 339E19CD-B2EF-4DB4-8E7F-D6E72BDFA7CB
      • Provider Type = App-proxy
      • Exclude Local Networks = Selected
      • Provider Designated Requirement =

        identifier "com.paloaltonetworks.pang.networkextension" and anchor apple generic and certificate leaf[subject.OU] = PXPZ95SK77

      • Enable VPN on Demand = Selected
      • On Demand Rules Configuration XML =

        <array>
        <dict>
        <key>Action</key>
        <string>Connect</string>
        </dict>
        </array>

   8. Save the Prisma Access Agent configuration profile.
   9. Set the scope for the Prisma Access Agent configuration profile.

      1. Edit the configuration profile.
      2. Select Scope and Add the Smart Computer Group that you created to target the specific managed macOS devices for the installation of the Prisma Access Agent configuration profile. You can also select specific computers as deployment targets. For example:

      3. Save the scope of the profile. Jamf will target the selected computers and computer groups for the distribution of the Prisma Access Agent configuration profile.
3. Create the configuration profile with Endpoint DLP settings. You must configure and install this profile for Prisma Access Agent to work properly on your endpoints, regardless of whether you use Endpoint DLP.

   1. In Jamf Pro, select ComputersConfiguration ProfilesNew.

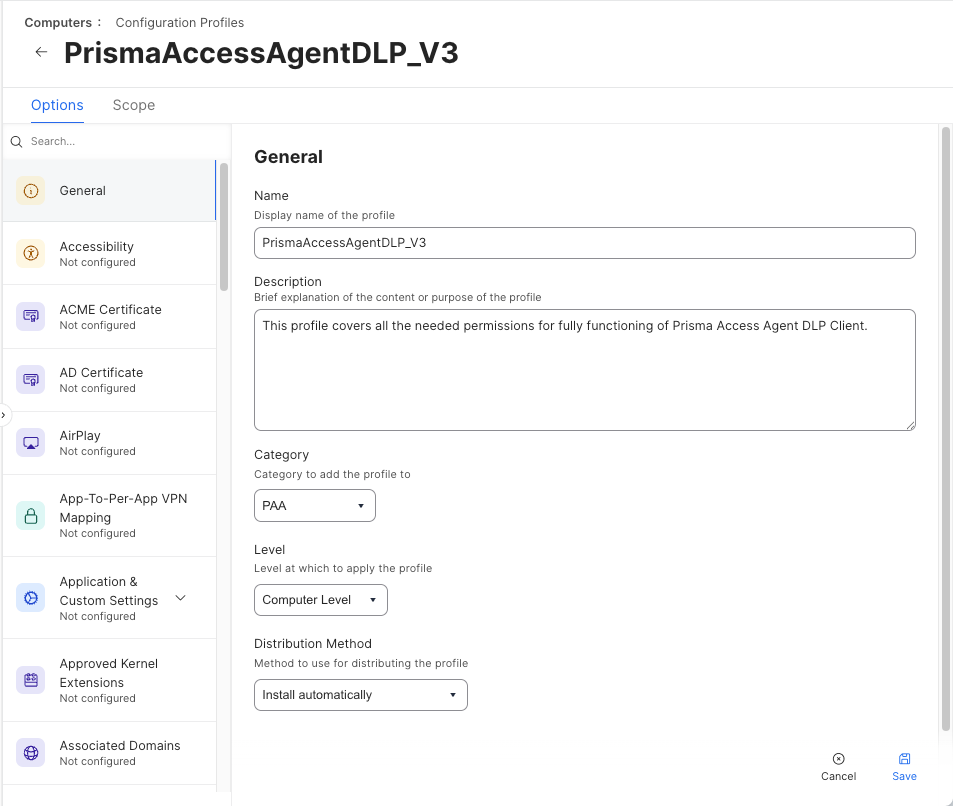

   2. Configure the General tab as follows. You can use any meaningful display name for the profile.

   3. Configure the Content Filter tab for Endpoint DLP:

      • Filter Name = A meaningful name such as PAA DLP Content Filter
      • Identifier = com.paloaltonetworks.pangdlp
      • Password = Enter the password for authenticating to the service
      • Filter Order = Firewall
      • Socket Filter = Enabled
      • Socket Filter Bundle Identifier = com.paloaltonetworks.pangdlp.netfilterdlp
      • Socket Filter Designated Requirement =

        identifier "com.paloaltonetworks.pangdlp.netfilterdlp" and anchor apple generic and certificate leaf[subject.OU] = PXPZ95SK77

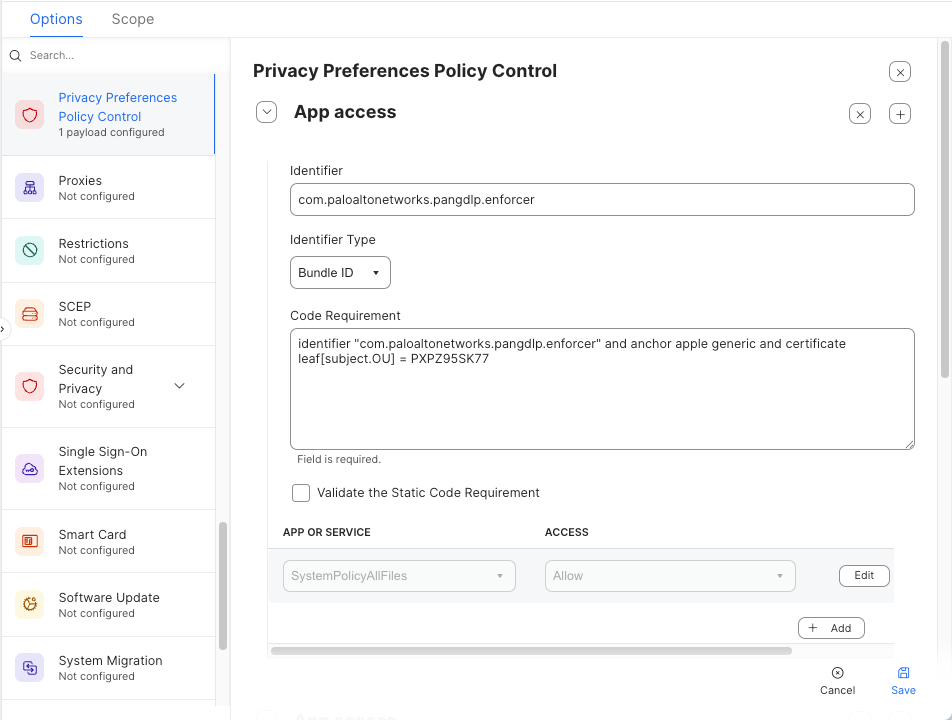

   4. Configure the Privacy Preferences Policy Control tab for Endpoint DLP:

      Configure the App Access section for the com.paloaltonetworks.pangdlp.enforcer extension.

      • Identifier = com.paloaltonetworks.pangdlp.enforcer
      • Identifier Type = Bundle ID
      • Code Requirement =

        identifier "com.paloaltonetworks.pangdlp.enforcer" and anchor apple generic and certificate leaf[subject.OU] = PXPZ95SK77

      • APP OR SERVICE = SystemPolicyAllFiles
      • ACCESS = Allow

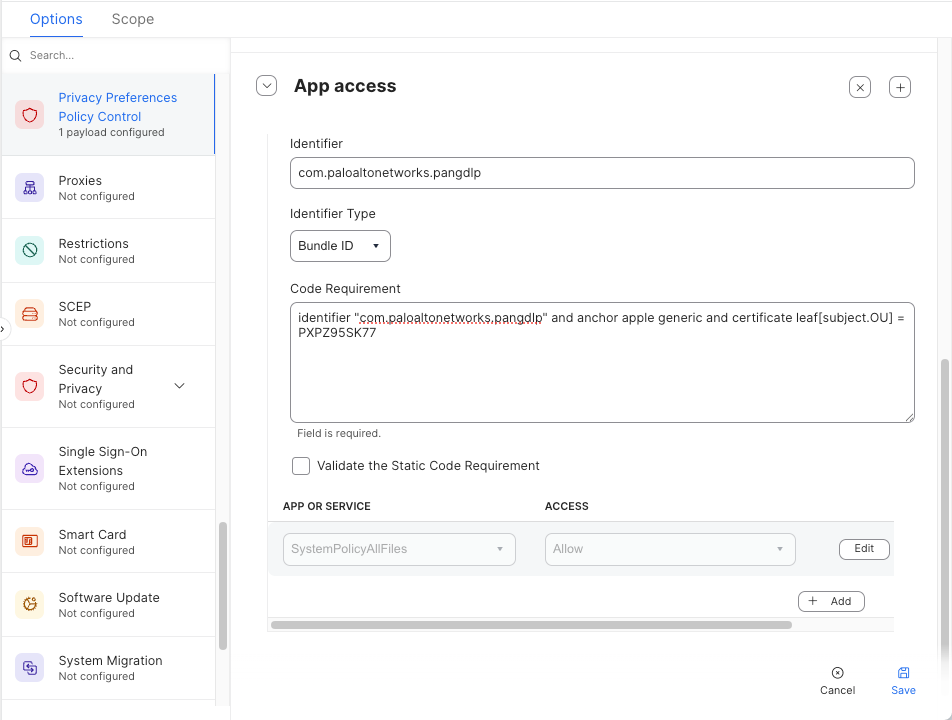

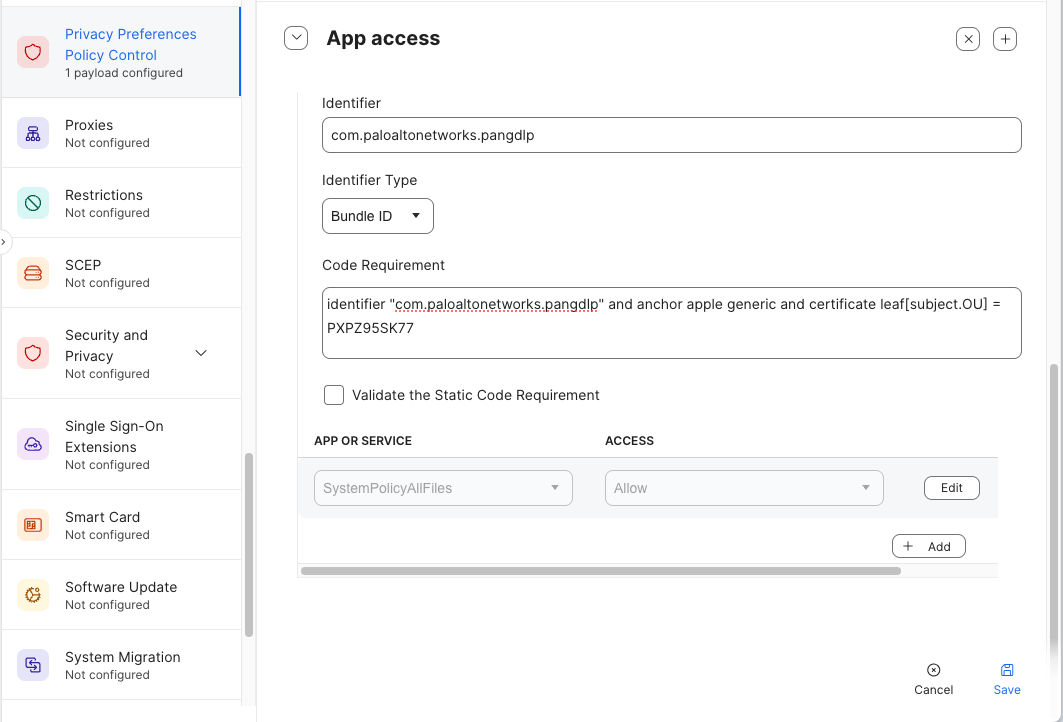

      Add a second App Access section for the com.paloaltonetworks.pangdlp extension.

      • Identifier = com.paloaltonetworks.pangdlp
      • Identifier Type = Bundle ID
      • Code Requirement =

        identifier "com.paloaltonetworks.pangdlp" and anchor apple generic and certificate leaf[subject.OU] = PXPZ95SK77

      • APP OR SERVICE = SystemPolicyAllFiles
      • ACCESS = Allow

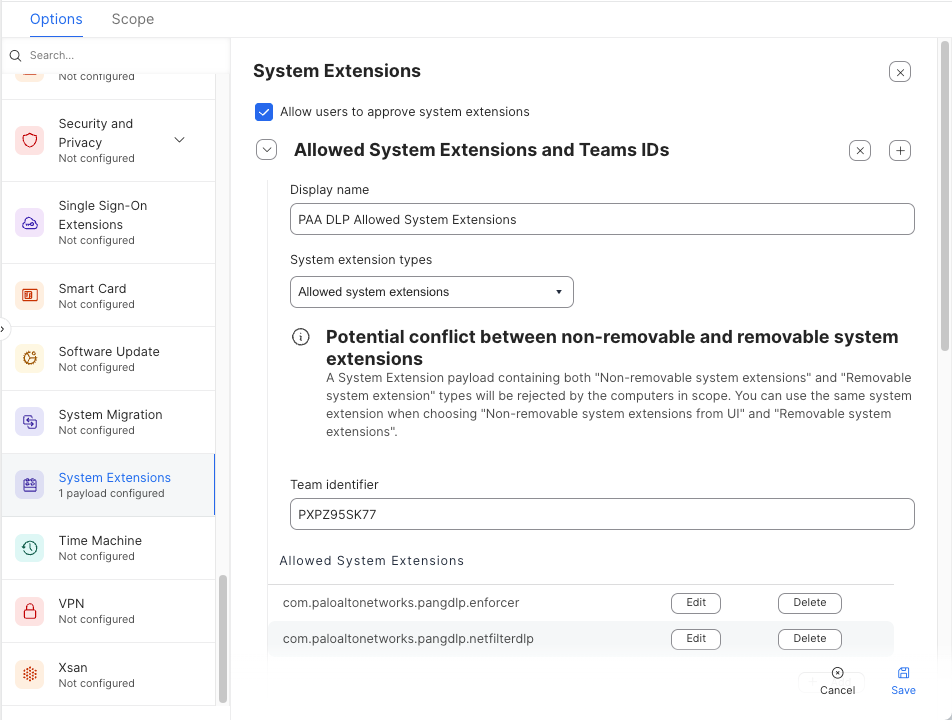

   5. Configure the System Extensions tab for Endpoint DLP.

      • Display name = A meaningful name such as PAA DLP Allowable System Extensions
      • System Extension Types = Allowed system extensions
      • Team Identifier = PXPZ95SK77
      • In Allowed System Extensions =
        • com.paloaltonetworks.pangdlp.enforcer
        • com.paloaltonetworks.pangdlp.netfilterdlp

      To avoid potential conflict between nonremovable and removable system extensions, configure removable system extensions for Endpoint DLP by adding a second Allowed System Extensions and Team IDs section.

      • Display name = A meaningful name such as PAA DLP Removable System Extensions
      • System Extension Types = Removable system extensions
      • Team Identifier = PXPZ95SK77
      • Removable System Extensions =
        • com.paloaltonetworks.pangdlp.enforcer
        • com.paloaltonetworks.pangdlp.netfilterdlp

   6. Save the configuration profile for Endpoint DLP.
   7. Set the scope for the Endpoint DLP configuration profile.

      1. Edit the configuration profile.
      2. Select Scope and Add the Smart Computer Group that you created to target the specific managed macOS devices for the installation of the Endpoint DLP configuration profile. You can also select specific computers as deployment targets.
      3. Save the scope of the profile. Jamf will target the selected computers and computer groups for the distribution of the Endpoint DLP configuration profile.
4. To verify the status of the configuration profile installation:

   1. In Jamf Pro, select ComputersConfiguration Profiles.
   2. Find the configuration profile that you set up and select View.
   3. Select the log that you want to view:

5. After the profiles have been deployed, verify the status of the profile installation on a macOS endpoint:

   1. In System Settings, search for Profiles and select Device Management.
   2. Double-click the Prisma Access Agent and Endpoint DLP profiles that you deployed.

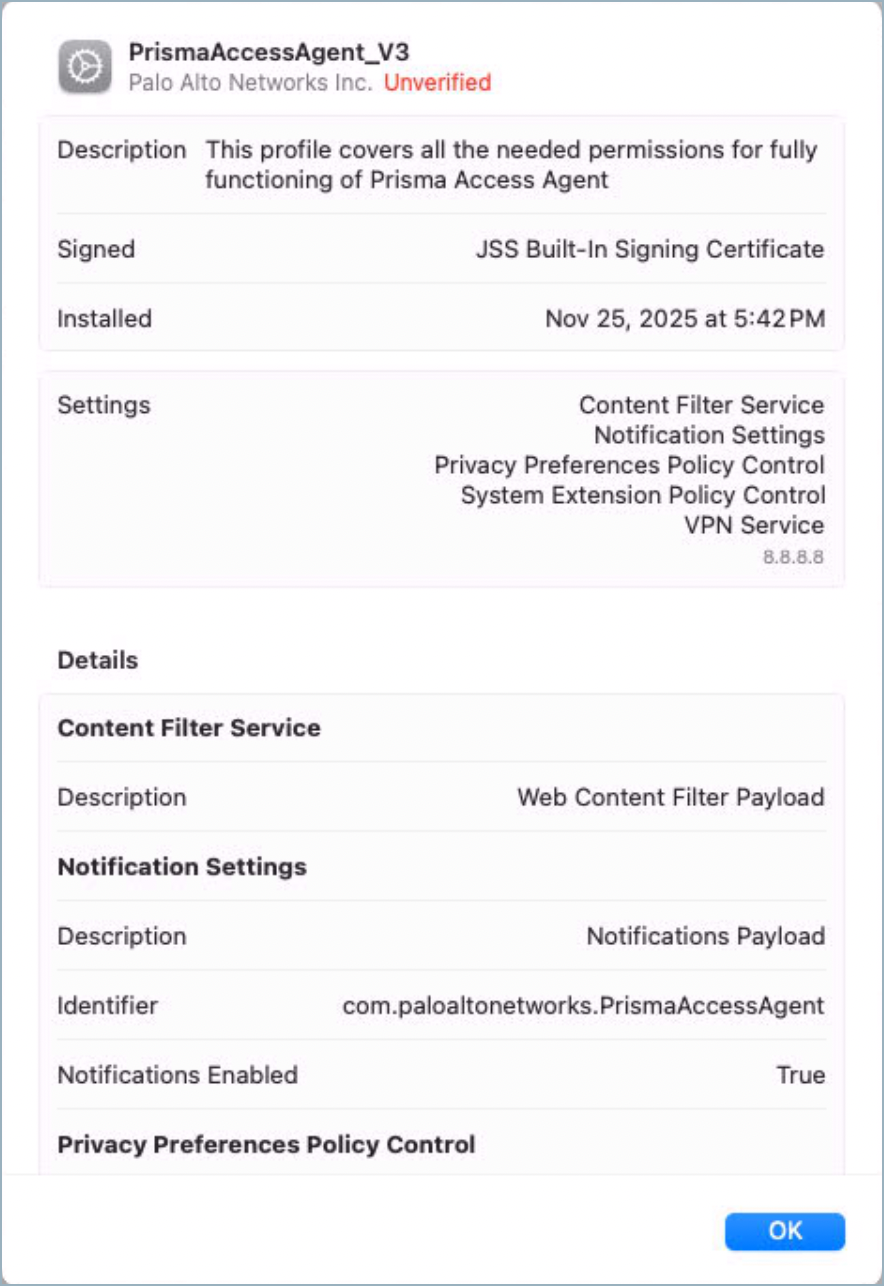

   3. Review the profile settings to ensure that the correct settings have been deployed. For example:

      For Prisma Access Agent:

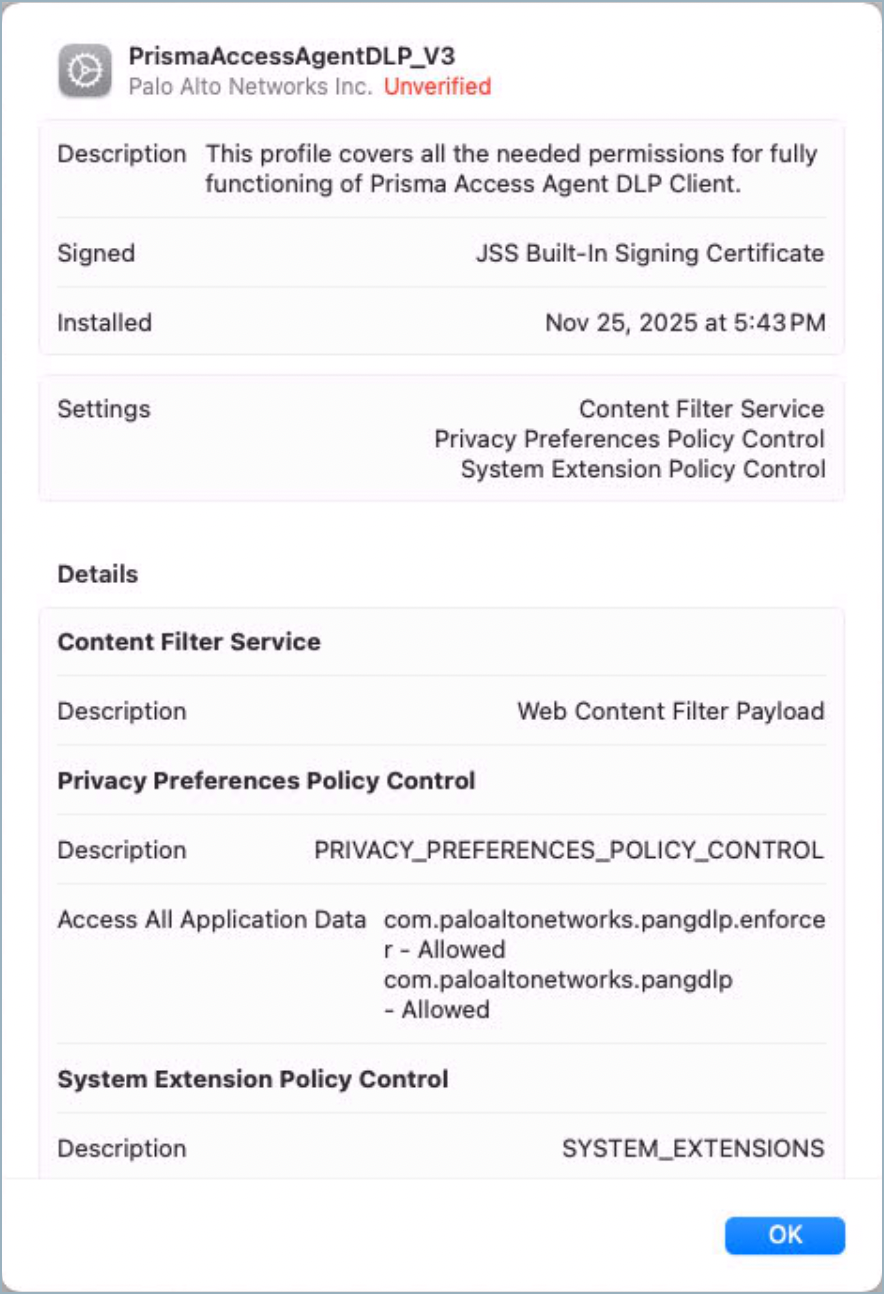

      For Endpoint DLP:
   4. Click OK when you have finished reviewing the profile.
