DNS Resolution for Agent-Based Deployments
Learn about DNS resolution for Mobile Users—GlobalProtect or Prisma Access Agent
deployments.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
|
The following section provides examples of how Prisma Access
processes the source IP address of the DNS requests after you configure
DNS resolution for mobile users and for remote networks.
The following figure shows a deployment where you have assigned an internal DNS server to resolve
both internal and external domains. In this case, Prisma Access does not proxy the
DNS requests, and the DNS request is from Mobile User 1’s agent IP address. The agent
(for example, GlobalProtect app or Prisma Access Agent) assigns this IP address to the
mobile user IP address pool.

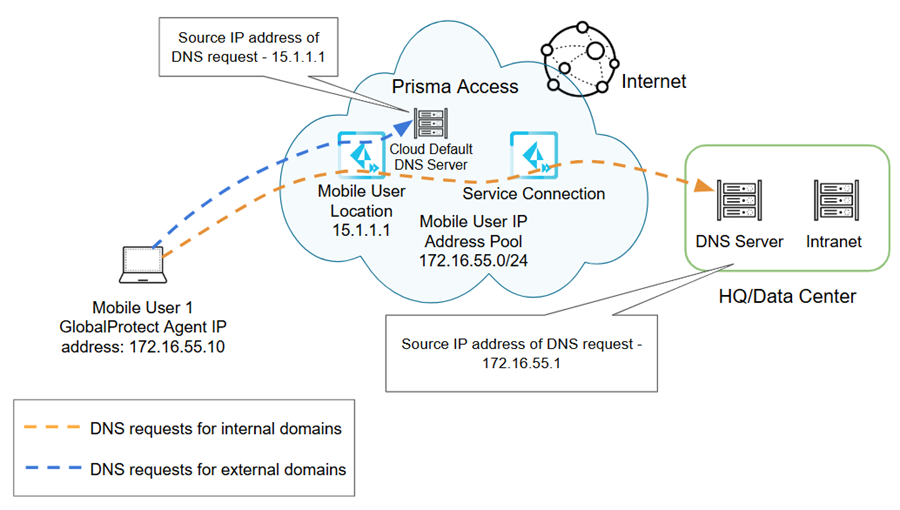

The following figure shows the DNS requests for internal domains being resolved by the DNS server
in the headquarters or data center location, while requests for external domains are
resolved by Prisma Access’ Cloud Default DNS server. In this case, Prisma Access
proxies the requests for both the internal and external requests.
- For DNS requests for internal domains, the source IP address is the gateway IP address used for the mobile user IP address pool. For example, given a mobile user IP address pool of 172.16.55.0/24, Prisma Access uses the IP source address of 172.16.55.1.
- For DNS requests for external domains, the source IP address is 15.1.1.1 after Prisma Access performs NAT.
The following figure shows the DNS requests for internal domains being resolved by the DNS server
in the headquarters or data center location, while requests for external domains are
resolved using a third-party or public DNS server accessible through the internet. Prisma Access proxies for both the internal and external requests.The DNS proxy
behavior is the same as the previous use case:
- For DNS requests for internal domains, the source IP address is the gateway IP address used for the mobile user IP address pool. For example, given a mobile user IP address pool of 172.16.55.0/24, Prisma Access uses the IP source address of 172.16.55.1.
- For DNS requests for external domains, the source IP address is 15.1.1.1 after Prisma Access performs NAT.
