Enable IPv6 Networking for Remote Networks (Strata Cloud Manager)

1. Select ConfigurationNGFW and Prisma AccessConfiguration ScopePrisma AccessRemote Networks and Add Remote Networks.
2. Enable IPv6.

3. Add a new remote network connection or select an existing remote network connection to edit it.
4. Set up IPv6 routing for your remote network.

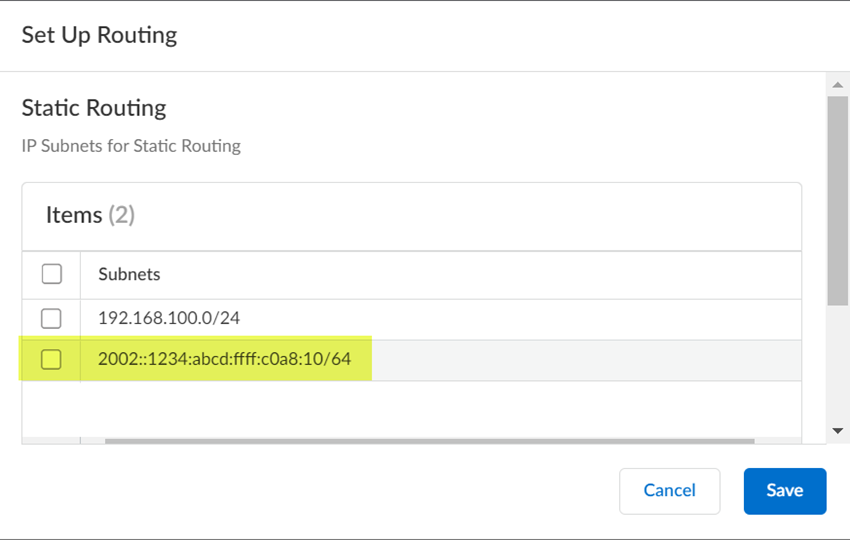

   1. (Static Routing Deployments Only) Enter one or more Corporate Subnets in the Static Routes tab.

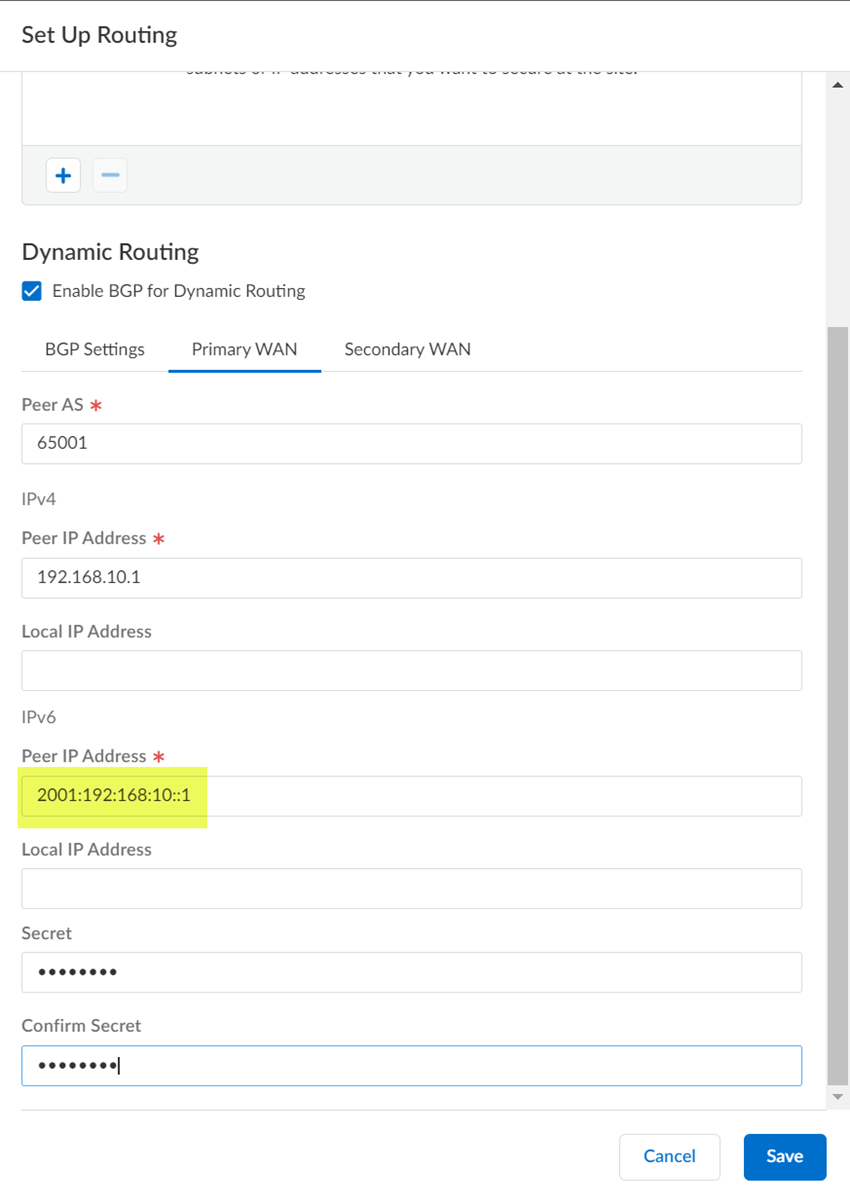

   2. (BGP Routing Deployments Only) Specify the method to exchange IPv4 and IPv6 BGP routes; then, enter an IPv6 Peer Address and Local Address.

      • To use a single IPv4 BGP session to exchange both IPv4 and IPv6 BGP peering information, select Exchange both IPv4 and IPv6 routes over IPv4 peering.
      • To an IPv4 BGP session to exchange IPv4 BGP peering information and an IPv6 session to exchange IPv6 BGP peering information, select Exchange IPv4 routes over IPv4 peering and IPv6 routes over IPv6 peering.
      • To use a single IPv6 BGP session to exchange IPv6 BGP peering information, select Exchange IPv6 routes over IPv6 peering.
   3. If your secondary WAN uses a different peer or local address, deselect Same as Primary WAN and enter the IPv6 Peer Address and Local Address for the secondary WAN.

5. (Optional) If your internal DNS servers use are reachable by IPv6 addresses, select ConfigurationNGFW and Prisma AccessConfiguration ScopePrisma AccessRemote NetworksAdvanced Settings, find DNS Proxy, Add a rule or specify the default rule, and specify Custom DNS Server IPv6 addresses for the Primary DNS and Secondary DNS server.

   Prisma Access allows you to specify DNS servers to resolve both domains that are internal to your organization and external domains. If you do not specify any settings, Prisma Access does not proxy DNS requests for remote networks. You also need to select a Region.

   You can enter any combination of IPv4 or IPv6 addresses for primary and secondary DNS servers.

   • IPv4 addresses use A records, while IPv6 addresses use AAAA records. Some DNS servers can perform AAAA DNS lookups over IPv4 transport; therefore, you might not need a server with an IPv6 IP address.
6. If you have not yet completed the remote network connection setup, complete it now.

   IPv6 internet access for remote network connections is enabled by an underlay connection, in which IPv6 traffic is passed through an IPv4 tunnel.
7. Push Config to deploy your changes to you network.
