Enable IPv6 Networking for Service Connections (Panorama)
Panorama
)Enable IPv6 networking for service connections in a Prisma Access
deployment.
- Select.PanoramaCloud ServicesConfigurationService Connection
- Adda new service connection or select an existing service connection to edit it.
- Set up IPv6 routing for the service connection.

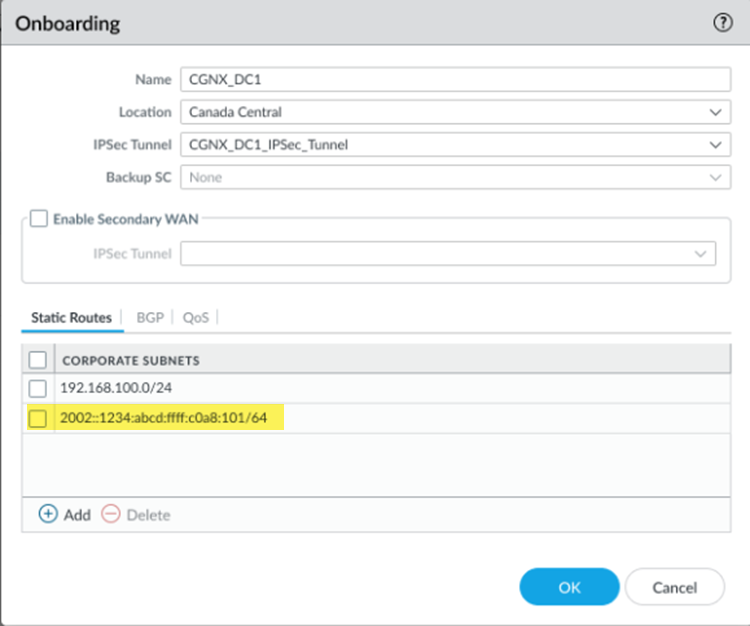

- (Static Routing Deployments Only) Enter one or moreCorporate Subnetsin theStatic Routestab.
- (BGP Routing Deployments Only) Specify the method to exchange IPv4 and IPv6 BGP routes; then, enter an IPv6Peer AddressandLocal Address.
- To use a single IPv4 BGP session to exchange both IPv4 and IPv6 BGP peering information, selectExchange both IPv4 and IPv6 routes over IPv4 peering.
- To an IPv4 BGP session to exchange IPv4 BGP peering information and an IPv6 session to exchange IPv6 BGP peering information, selectExchange IPv4 routes over IPv4 peering and IPv6 routes over IPv6 peering.
- To use a single IPv6 BGP session to exchange IPv6 BGP peering information, selectExchange IPv6 routes over IPv6 peering.
- If your secondary WAN uses a different peer or local address, deselectSame as Primary WANand enter the IPv6Peer AddressandLocal Addressfor the secondary WAN.
- If you have not yet completed the your service connection setup, complete it now. See Configure a Service Connection in Prisma Access for details.
- Commit and Pushyour changes.
- Selectand make a note of the IPv6PanoramaCloud ServicesStatusNetwork DetailsService ConnectionUser-ID Agent AddressandEBGP Routeraddresses.After you commit your changes, you will have an IPv6User-ID Agent Address(used for User-ID retrieval and distribution) andEBGP Routeraddresses for service connections.Because the IPSec tunnel used for the service connection uses IPv4 addressing, theis an IPv4 address.Service IP AddressIPv6 internet access for service connections is enabled by an underlay connection, in which IPv6 traffic is passed through an IPv4 tunnel.
- If you have not yet completed the mobile users configuration, complete it now.
