The following section describes some common Prisma Access deployments
where quarantine list redistribution is useful for consistent policy
enforcement for compromised devices.

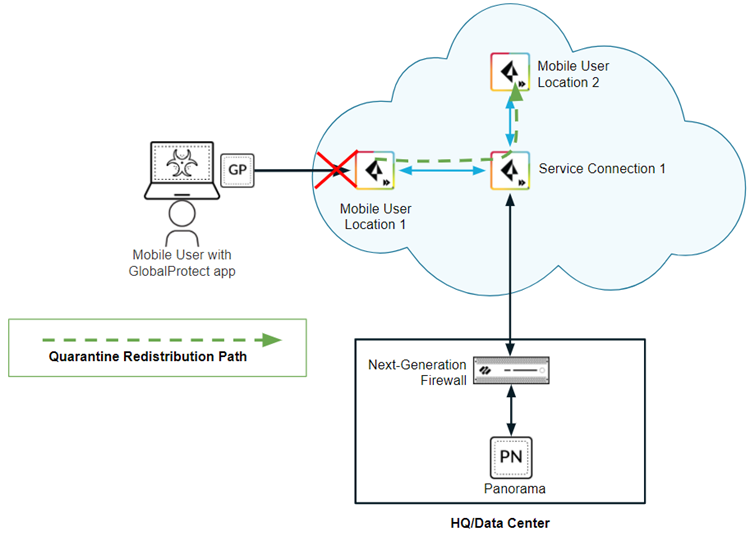

Quarantine List Redistribution between Mobile User
Locations Connected to Same Service Connection—In the following
example, a GlobalProtect Mobile User who is connected to Mobile
User Location 1 becomes compromised and is auto-quarantined. Prisma
Access blocks or restricts the quarantined device per policy.
A service
connection (Service Connection 1 in this example) redistributes
the quarantine list information between all mobile user locations

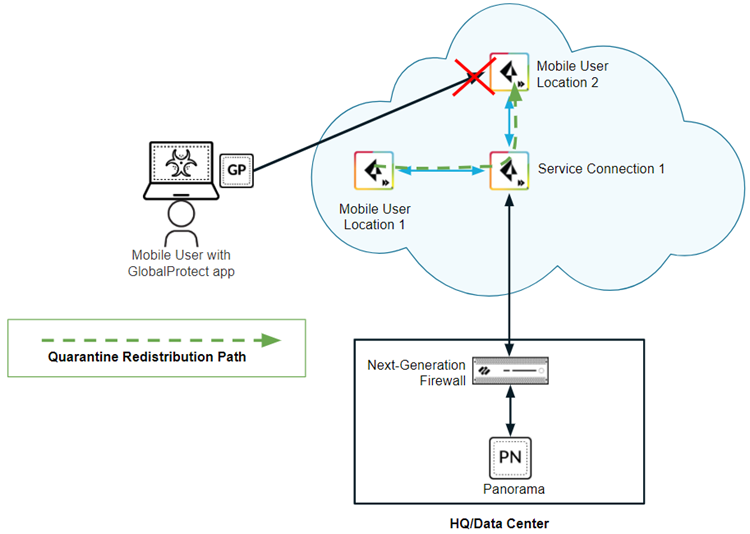

to which it is connected. Since Mobile User Location 2 receives
the redistributed quarantine list information by way of Service
Connection 1, the GlobalProtect mobile user attempt to connect to
Mobile User Location 2 is also blocked.

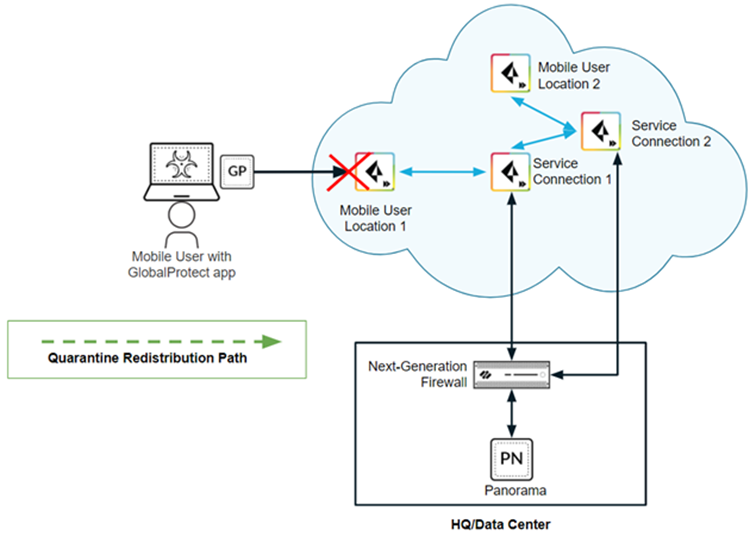

Quarantine List Redistribution between Mobile User Locations
Connected to Different Service Connections—In the following
example, there are two mobile user locations, but they connect to
two different service connections. A GlobalProtect user attempted
to connect to Mobile User Location 1. Mobile User Location 1 detects
the GlobalProtect user endpoint as compromised and quarantines it.

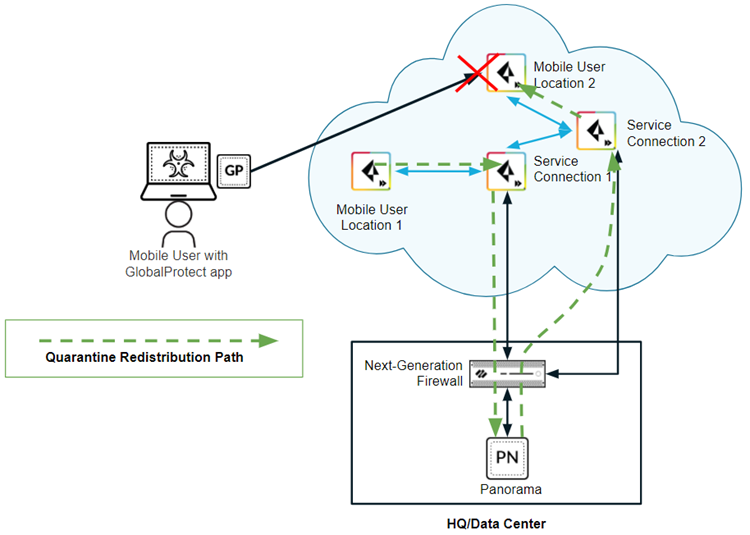

To redistribute
the quarantine list information from Mobile User Location 1 to Mobile
User Location 2, perform the following actions:
Redistribute
the quarantine list information from Service Connection 1 to Panorama.
Redistribute the quarantine list information from Panorama
to Service Connection 2.
With this configuration,
when the GlobalProtect user connects to Mobile User Location 1 and
is quarantined, then the quarantine list information redistributes
from Mobile User Location 1 to Mobile User Location 2 and any connection
attempts to Mobile User Location 2 are blocked.
This
configuration is also valid if the GlobalProtect user connects to
Mobile User Location 2 and is quarantined; the quarantine list information
redistributes from Mobile User Location 2 to Mobile User Location
1.

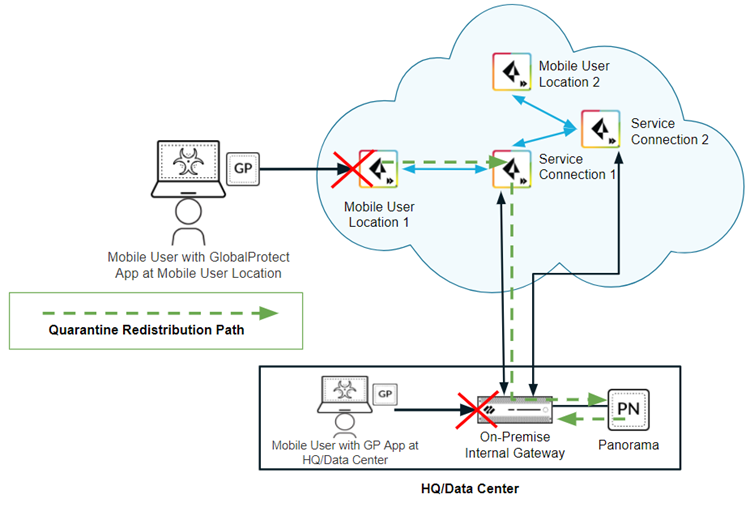

Quarantine List Redistribution Between Prisma Access and
a Next-Generation Firewall or Gateway—In the following example,
A GlobalProtect user attempted to connect to Mobile User Location
1. Mobile User Location 1 detects the GlobalProtect user endpoint
as compromised and quarantines it. The mobile user then goes to
the company’s headquarters and attempts to log in again. The headquarters
is protected with a next-generation firewall configured as a GlobalProtect
gateway using Internal Host Detection.
Mobile User Location 1 redistributes the quarantine list information to Panorama through Service
Connection 1, and Panorama redistributes the quarantine list information to the
on-premises internal gateway. When the user attempts to log in from the
headquarters location, GlobalProtect detects that the on-premises gateway is
configured as an internal gateway and connects to the gateway without a
tunnel.
Since
the quarantine list information has been redistributed to the on-premises
gateway, the user is blocked at the gateway based on the configured
user policies.
If you
use a next-generation firewall or gateway with Prisma Access, you
should configure Panorama to redistribute quarantine list information
to the firewall or gateway, all service connections, and Panorama.

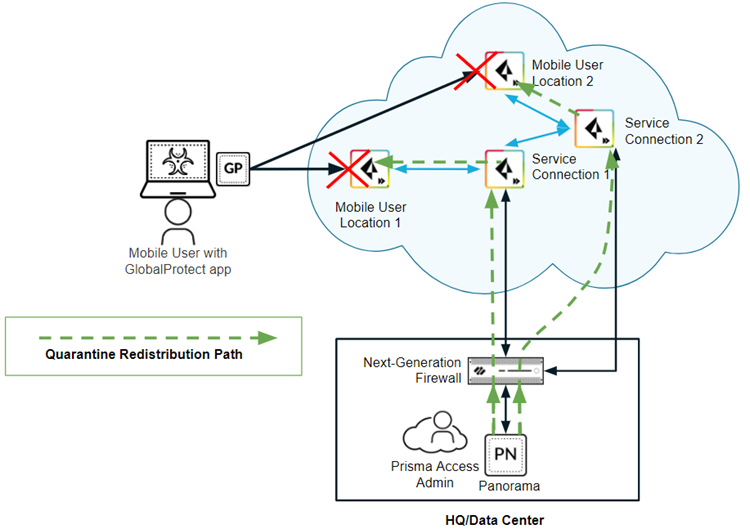

Administrator Manually Quarantines Mobile User at Panorama—In
this example, the Prisma Access administrator has manually added
a mobile user to the quarantine list at the Panorama appliance that
manages Prisma Access. The administrator has set up redistribution
between Panorama, the next-generation firewall, and the service
connections. Panorama redistributes the updated quarantine list
information to the firewall and the service connections. The service
connections then redistribute the quarantine list information to
the mobile user locations.
The mobile user was connected to
Mobile User Location 1. After Mobile User Location 1 receives the
updated quarantine list information, the user is disconnected. If
the user attempts to connect to Mobile User Location 2, the connection
is blocked and the mobile user receives a quarantine notification.

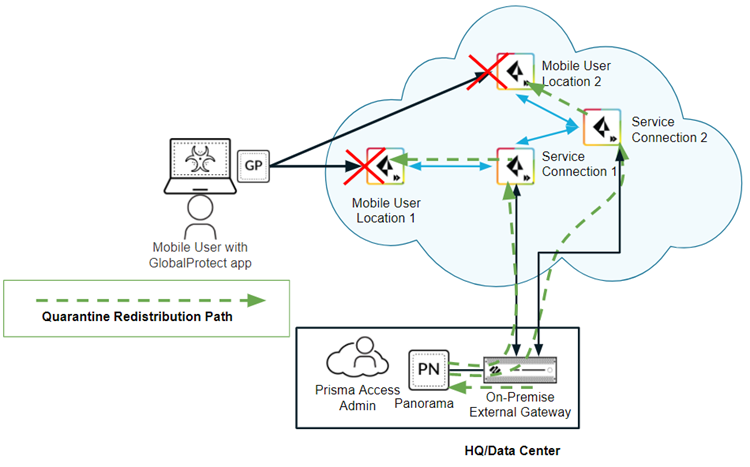

Mobile User is Auto or Manually Quarantined at the On-Premises
Gateway—In this example, there is a next-generation firewall
that has been configured as an external gateway at the headquarters
or data center location. The administrator has manually quarantined
a mobile user at the external gateway. The external gateway redistributes
the quarantine list information from the external gateway to Panorama.
After
Panorama has received the updated quarantine list information from
the external gateway, it redistributes that information to Service
Connections 1 and 2, which then redistributes it to Mobile User
Locations 1 and 2. If a mobile user attempts to connect to either
Mobile User Location 1 or 2, Prisma Access blocks the connection
and the user receives a a quarantine notification.
