Panorama

1. Access the VM-Series Plugin to configure DPU steering.

   1. From the Panorama web interface, select PanoramaPlugins.
   2. Locate the VM-Series Plugin and ensure it is installed and enabled.
2. Define a new traffic steering rule.

   This rule instructs the DPU's OVS-DOCA to direct traffic matching the defined 5-tuple criteria to the Prisma AIRS firewall for inspection.

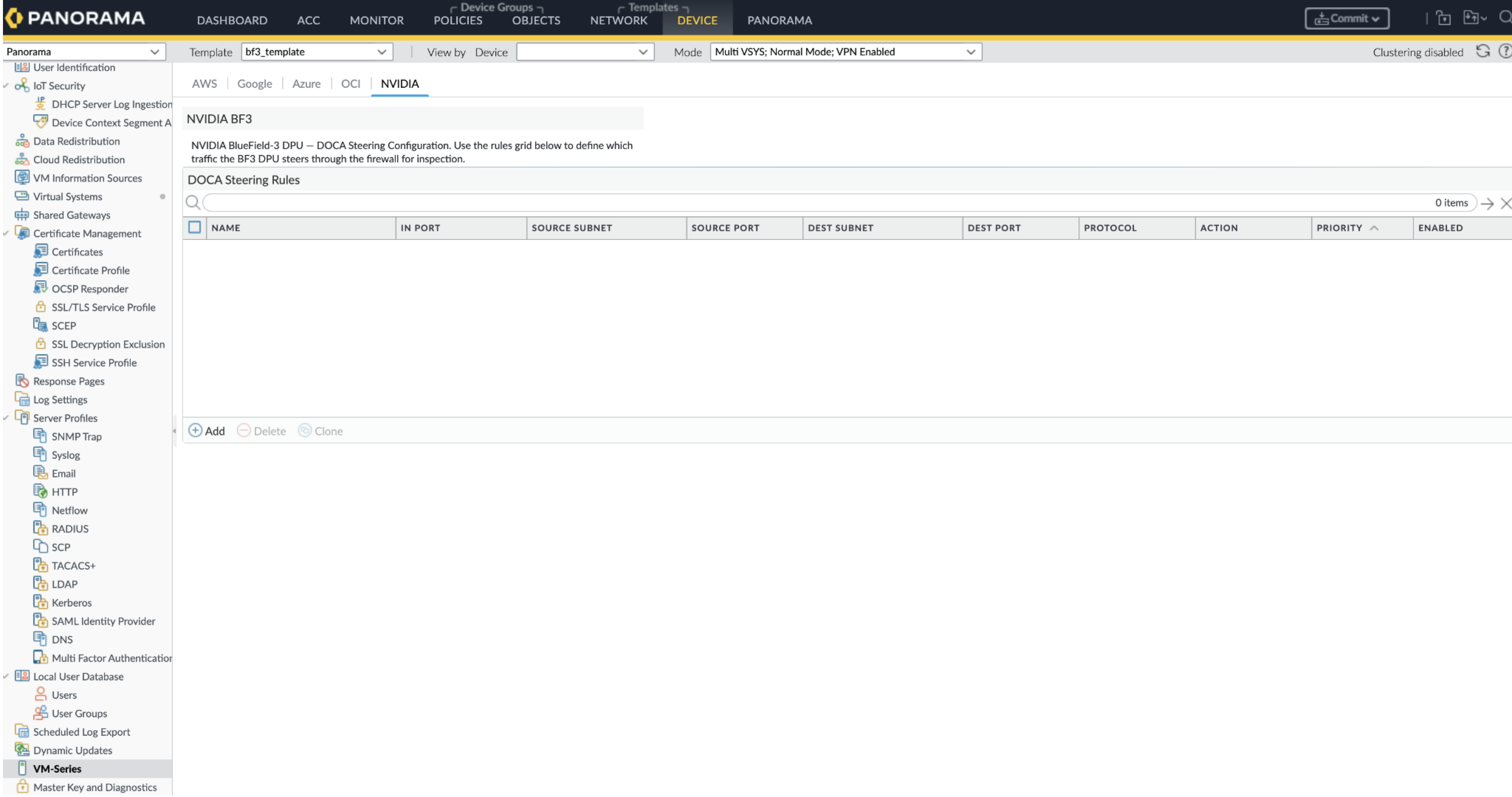

   1. Select DeviceTemplateVM-Series PluginNvidia.
   2. On the DPU Steering page, select Add Rule.

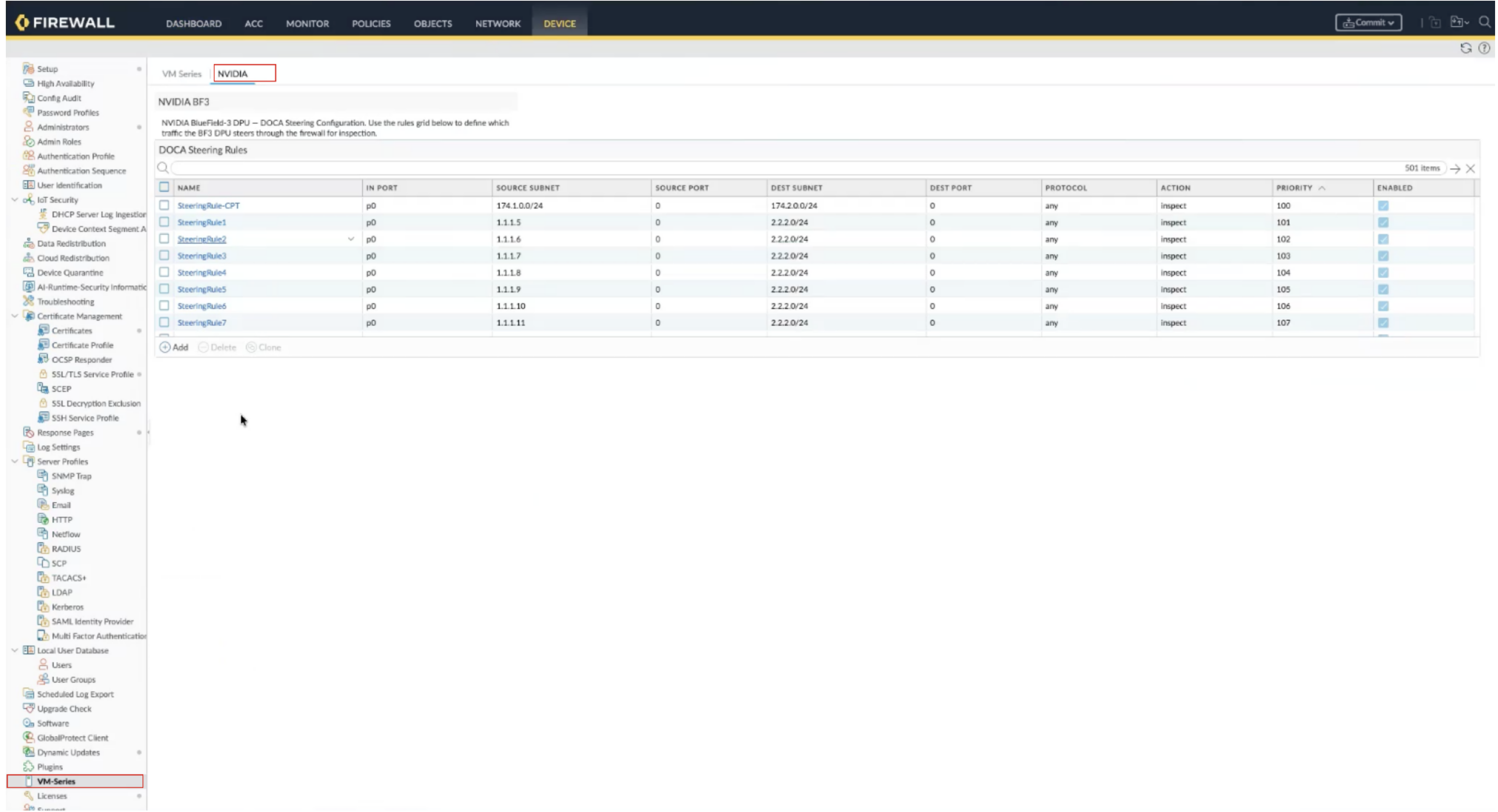

   3. For Standalone firewall Select VM-Series Plugin > Nvidia.
   4. On the DPU Steering page, select Add Rule.

   5. Enter a descriptive Name, such as Inspect_AI_Traffic.
   6. Set the Priority.
   7. For Action, select Inspect.
   8. Specify the traffic criteria:

      • For Protocol, select tcp.
      • For Source Subnet, enter 10.1.1.0/24.
      • For Destination Subnet, enter 10.2.0.0/24.
      • For Destination Port, enter 443.
   9. Select OK to save the rule.

      You can configure up to 1,000 rules.
3. Commit the changes to the DPU-embedded firewalls.

   Committing the configuration applies the defined steering rules and failure mode settings from Panorama to your managed DPU-embedded firewalls.

   1. Select Commit at the top right of the Panorama interface.
   2. Review the changes and select Commit again in the confirmation dialog.
