Configure a Sub-interface for HA Connectivity

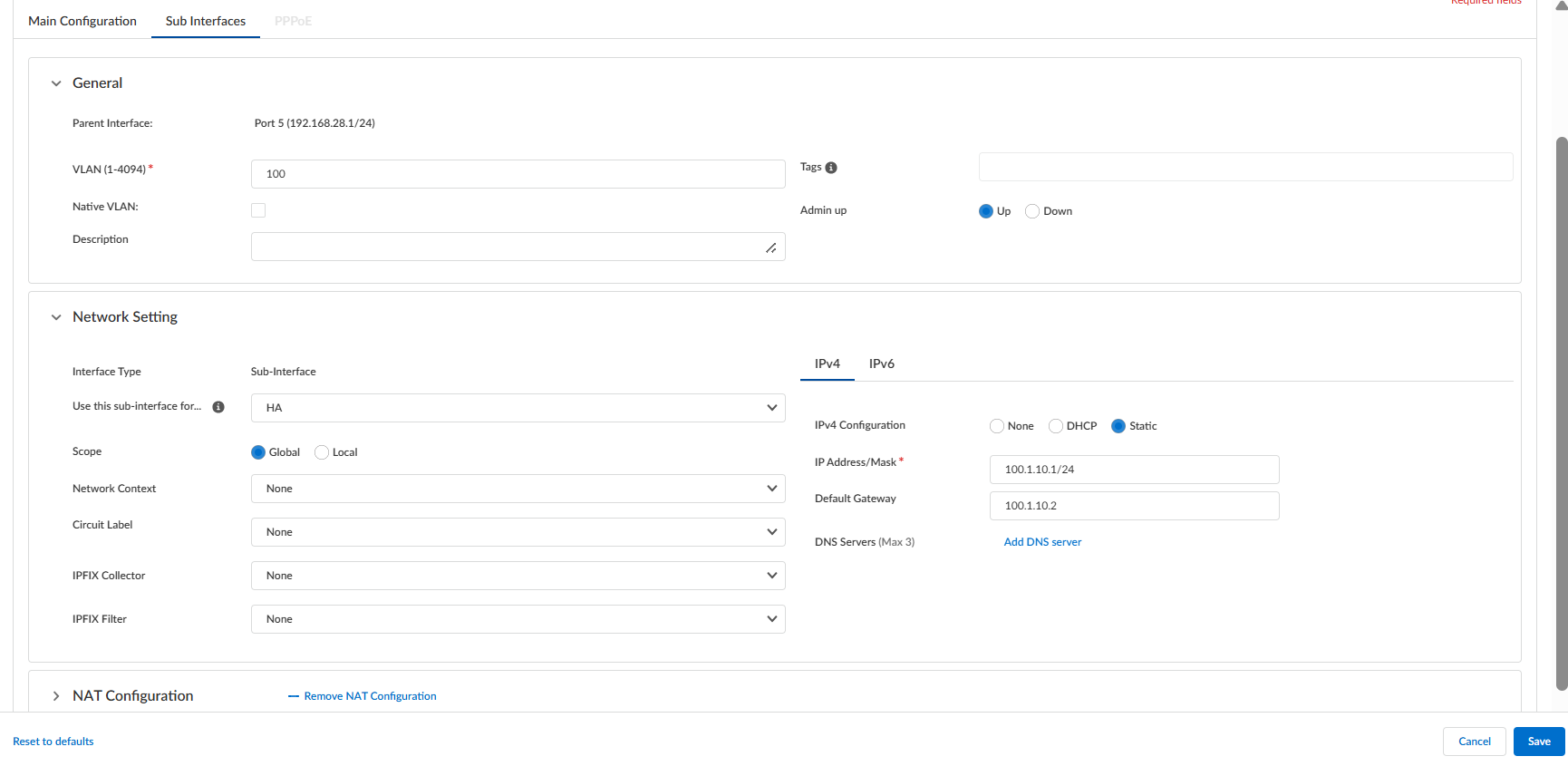

1. Select an interface on a device.
2. Select the Sub-interfaces tab and Add a sub-interface.
3. Enter a VLAN ID and Name.
4. (Optional) Enter a Description.
5. For Admin Up, select Yes.
6. From Use this sub-interface for, select HA.

   Prior to release 6.3.1, Used for HA was referred to as Used-for-Control.
7. Select Static IP Configuration for the interface.

   Provide IP Address, Default Gateway, and DNS Server. The IP address should be same as the peer IP address. Example of the IP address on the active and backup devices is shown below:

   Active device:

   • IP Address/Mask—100.1.10.1/24
   • Default Gateway—100.1.10.2
   • Use this sub-interface for—HA

   Backup device:

   • IP Address/Mask—100.1.10.2/24
   • Default Gateway—100.1.10.1
   • Use this sub-interface for—HA
8. Enter Global Scope of the interface.
9. Save to create the sub-interface.

10. To make the device level configuration, on the Basic Info tab, on the HA Configuration, enable the Spoke Cluster.

    The Redundancy section displays details of devices in the HA group, including the status of the devices and the priorities set for the devices.
11. Set the Priority between 1 to 254.
12. Select Control in the HA Control Interface.
13. Ignore the Track Availability fields.
14. Accept the changes.
