Use Cases
Learn the Prisma SD-WAN NAT policies use cases.
Where Can I Use This? | What Do I Need? |
---|---|
|
|
Prisma SD-WAN provides details and examples
of the following topologies:
These features address common use cases such as:
Sample Use Case | Typical NAT Capabilities |
---|---|
Internal users/devices with private IP addresses need to access to the Internet. | Source NAT |
External entities need to communicate with internal entities with private IP addresses. | Destination NAT |
Specific internal server needs to communicate with external entities. | Static Source NAT |
External entities need to communicate with a specific application hosted on an internal server with a private IP address. | Static Destination NAT |
Internal IP phones with private IP addresses need to communicate with an external UCaaS system over SIP. | ALG Disable |
Source NAT (Default)
By default, Prisma SD-WAN provides an out-of-the-box
configuration that automatically performs Source NAT on traffic destined directly to
public internet interfaces.

Fields | Description |
---|---|
1 |

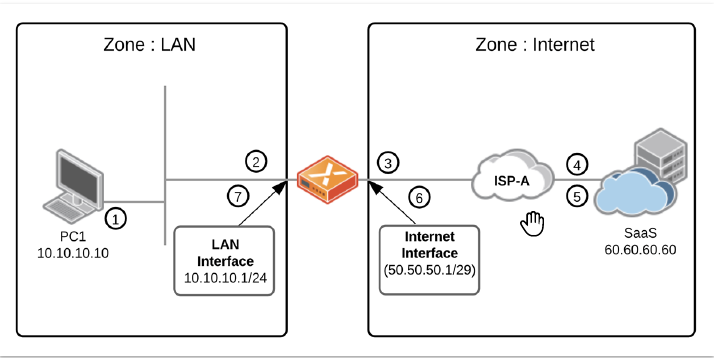

A new flow source is from Host PC1 with a source address of
10.10.10.10 and a destination address of 60.60.60.60.
|
2 |
A packet arrives at the ION device’s LAN Interface. A policy
lookup and a path selection decision perform to put the traffic
on the link to ISP A.
|
3 |
Place the packet onto the internet segment; the
Default-NATPolicySet matches against the
Default-InternetRule.
This rule contains the following configuration:
In this rule:
Apply the packet's policy; the source address of 10.10.10.10
overwrites by the address bound to the Internet Interface
(50.50.50.1). The source port changes to a random port
during this operation. In this example the original packet: (s) 10.10.10.10:12345: (d)
60.60.60.60:443. Is rewritten to: (s) 50.50.50.1:54321: (d)
60.60.60.60:443.
|
4 |
Traffic arrives at the internet-based SaaS application.
|
5 |
Traffic returns to the destination of 50.50.50.1:54321.
|
6 |
Traffic arrives at the ION device's internet interface, where a
translation table check is performed on the flow to ensure that
there is an active connection.
|
7 |
Establish the traffic onto the LAN segment; the destination IP
address returns from 50.50.50.1:54321 to 10.10.10.10:12345.
|
Destination NAT
Prisma SD-WAN destination NAT securely permits inbound
connections from the internet to access internal private IP resources at a branch
site location.
One of the use cases involves physical security monitoring services that
require direct inbound connections from the internet and outbound connections from
the local device, often implemented with a dedicated 1:1 NAT configuration.

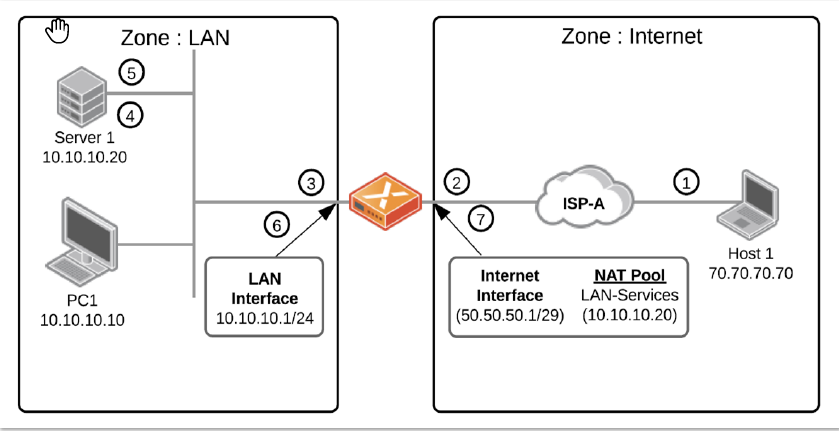

In this example, the external system Host 1 needs to communicate with Server 1 in the
branch location across the internet. For Host 1, the IP address for the branch
service is 50.50.50.2 and port 443.

Fields | Description |
---|---|
1 |
A new flow source from Host 1 with a source address of
70.70.70.70 and a destination address of 50.50.50.2.
|
2 |
The packet arrives at the ION device's internet interface. It
performs the policy lookup and the traffic on the LAN path.
|
3 |
Place the packet onto the LAN segment and match it against the
recently created NAT Policy Rule.
This rule contains the following configuration:
The NAT Pool LAN-Services define as 10.10.10.20 - 10.10.10.20 on
the branch ION device.
NAT Pools are defined in persisting ranges and can be
configured through the NAT Policy UI or directly through the
device-level interface configuration. As the policy applies to the packet, the original destination
address is 50.50.50.2, overwrites by the NAT Pool LAN-Services
address. In this example the original packet (s)
70.70.70.70:12345: (d) 50.50.50.2:443. Is rewritten to: (s)
70.70.70.70:12345: (d) 10.10.10.20:443.
|
4 |
Traffic arrives on the LAN at the server hosting inbound services
from the internet.
|
5 |
Sends the return traffic to the destination of
70.70.70.70:12345.
|
6 |
Traffic arrives at the ION device's LAN interface, where a
translation table check is performed on the flow to ensure that
there is an active connection.
|
7 |
Establish the traffic onto the LAN segment, the source IP address
is rewritten from 10.10.10.10:443 to 50.50.50.2:443.
If traffic that originates from Server 1 (10.10.10.20) also
needs to be translated to 50.50.50.2 and a corresponding
Source NAT Rule is configured. |
Static NAT
Prisma SD-WAN provides scenarios that require a 1:1
mapping of a range of IP addresses to another range of IP addresses.
Scenarios include direct mapping of a publicly routable range of IP addresses to RFC
1918 addresses. For example, they translate 50.50.50.16-31 to 10.10.10.16-31 in a
1:1 manner where traffic would translate to 50.50.50.20 to 10.10.10.20 and vice
versa across the entire IP range.
Another common scenario would be when IP prefix overlap occurs due to a company
merger. In this situation, it would also translate the IP addresses bound to the
hosts in a 1:1 manner from one RFC 1918 range to another RFC 1918m range.
In this example, application requirements specify that each internal server must have
a unique internet IP address. Each server must initiate connections on ephemeral
ports and receive inbound links on the same persistent IP address on port 443. To
enable this most efficiently, use static source NAT and static destination NAT.

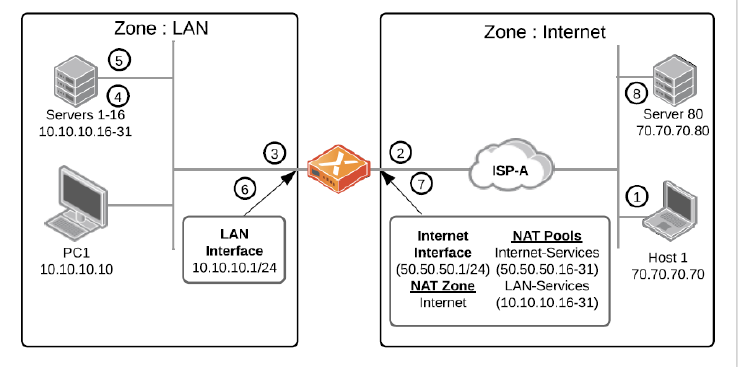

Static Source NAT
Case: Inbound connection from the Internet.
Fields | Description |
---|---|
5 |
A new flow source from Server 1 with a source address of
10.10.10.20 and a destination address of 70.70.70.80.
|
6 |
A packet arrives at the ION device's internet interface.
Perform a policy lookup and the traffic on the LAN
segment.
|
7 |
Place the packet onto the internet segment; it matches
against the recently created NAT Policy Rule.
This rule contains the following configuration:
The NAT Pool Internet-Services is defined as 50.50.50.50.16 -
50.50.50.50.31 on the branch ION device.
The ION device sends GARP messages and responds to ARP
requests for 50.50.50.16/28. NAT Pools can be configured
through the NAT Policy UI or directly on the interface
configuration and defined in contiguous ranges. As the policy applies to the packet, the original source
address of 10.10.10.20 overwrites by the address defined in
the NAT Pool Internet-Services. In this example the original
packet: (s) 10.10.10.20:12345: (d) 70.70.70.80:443. Is
rewritten to: (s) 50.50.50.20:12345: (d)
70.70.70.80:443.
|
8 |
Traffic crosses the internet and arrives at the destination
server 70.70.70.80. Return traffic processes in the reverse
order, and the ION device references the original outbound
connection previously opened with the Static Source NAT
action.
|
Static Destination NAT
Case: Outbound Connection from the Local Server to an Internet Service.
Fields | Description |
---|---|
1 |
A new flow source from Host 1 with a source address of
70.70.70.70 and a destination address of 50.50.50.20.
|
2 |
A packet arrives at the ION device's internet interface.
Perform a policy lookup and the traffic on the LAN
segment.
|
3 |
Place the packet onto the LAN segment; it matches against the
recently created NAT Policy Rule.
This rule contains the following configuration:
The NAT Pool LAN-Services is defined as 10.10.10.16 -
10.10.10.31 on the branch ION device. It can be configured
through the NAT Policy UI or directly on the interface
configuration of the device.
NAT Pools are in contiguous ranges. As the policy applies to the packet, the original destination
address of 50.50.50.20 overwrites by the address defined in
the NAT Pool LAN-Services. In this example the original
packet: (s) 70.70.70.70:12345: (d) 50.50.50.20:443. Is
rewritten to: (s) 70.70.70.70:12345: (d)
10.10.10.20:443.
|
4 |
Traffic arrives on the LAN at the server hosting inbound
services from the internet.
|
5 |
Sends the return traffic to the destination of
70.70.70.70:12345.
|
6 |
Traffic arrives at the ION device's LAN interface, where a
translation table check is performed on the flow to ensure
that there is an active connection.
|
7 |
Establish the traffic onto the LAN segment, the source IP
address is rewritten from 10.10.10.10:443 to
50.50.50.2:443.
|
ALG Disable
Prisma SD-WAN application fabric is a critical enabler of
this transition by emphasizing Voice & Video quality reporting and SLA
assurance. As the consumption of these services has changed, it has driven new
demands of the network. Specifically, many UCaaS systems require that network
solution providers disable the SIP ALG (Application Layer Gateway) for any traffic
that crosses a NAT boundary destined for a SIP provider.

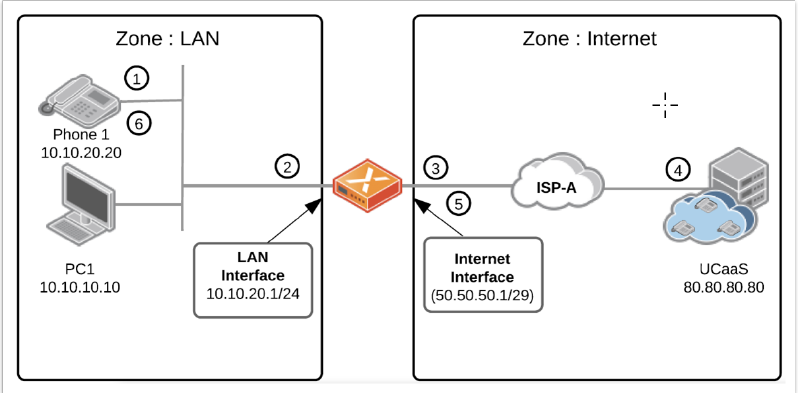

In this example, a phone is configured at the branch to communicate with
a UCaaS system on the internet via SIP (Session Initiation Protocol), a standard
protocol used by collaboration endpoints to register with the intended control
system. The SIP traffic (via Path Policy) configures to be placed directly onto any
available internet link. As such, it uses the default NAT policy. The UCaaS provider
has also specified that any SIP ALG must be disabled. Disabling the SIP ALG prevents
issues from occurring that may affect phone registration and 1-way audio.

Fields | Description |
---|---|
1 |
A new SIP registration source from Phone 1 with a source address
of 10.10.20.20 and a destination address of 80.80.80.80.
|
2 |
A packet arrives at the ION device's LAN interface. Perform a
policy lookup and the traffic on the internet segment.
|
3 |
Place the packet onto the internet segment; the
Default-NATPolicySet it matches against the
Default-InternetRule.
This rule contains the following configuration:
In this rule, the NAT Pool is blank by default, and the system
uses the IP Address bound to the internet interface.
Apply the packet's policy; the source address of 10.10.10.10
overwrites by the address bound to the Internet Interface
(50.50.50.1), and it might change the source port to a
random port during this operation. In this example the original packet: (s) 10.10.20.20:12345: (d)
80.80.80.80:5060. Is rewritten to: (s) 50.50.50.1:54321: (d)
80.80.80.80:5060.
|
4 |
In addition to the default NAT policy, the traffic also matches
the recently created rule to disable the SIP ALG.
|
5 |
Traffic arrives at the SIP server directly on the internet.
|
6 |
Send the return traffic to the destination of 50.50.50.1:54321. A
translation table check is performed on the flow to ensure that
there is an active connection.
|
7 |
Establish the traffic onto the LAN segment; the destination IP
address is rewritten from 50.50.50.1:54321 to
10.10.20.20:12345.
To clone the Default-NATPolicySet, add the appropriate policy
settings and apply this newly created set to the intended
target site(s).When required to change ALG behavior, it is
best practice to create a new Policy Set Stack. Once
created, add the Default-NATPolicySet to the stack, then
create a new NAT Set with a rule that disables ALG. Bind the
new NAT Set to the new NAT Stack. |
