Add Public IP LAN Address to Enterprise Prefixes

Learn to add a public Internet Protocol range of LAN to enterprise prefixes.
Where Can I Use This?What Do I Need?
  • Prisma SD-WAN
  • Prisma SD-WAN license
By default, Prisma SD-WAN includes built-in policies to support forwarding and prioritization of enterprise prefixes. To extend these defaults, you can add additional public IP ranges to the enterprise prefixes list. This ensures that traffic from these ranges are recognized as enterprise-default.

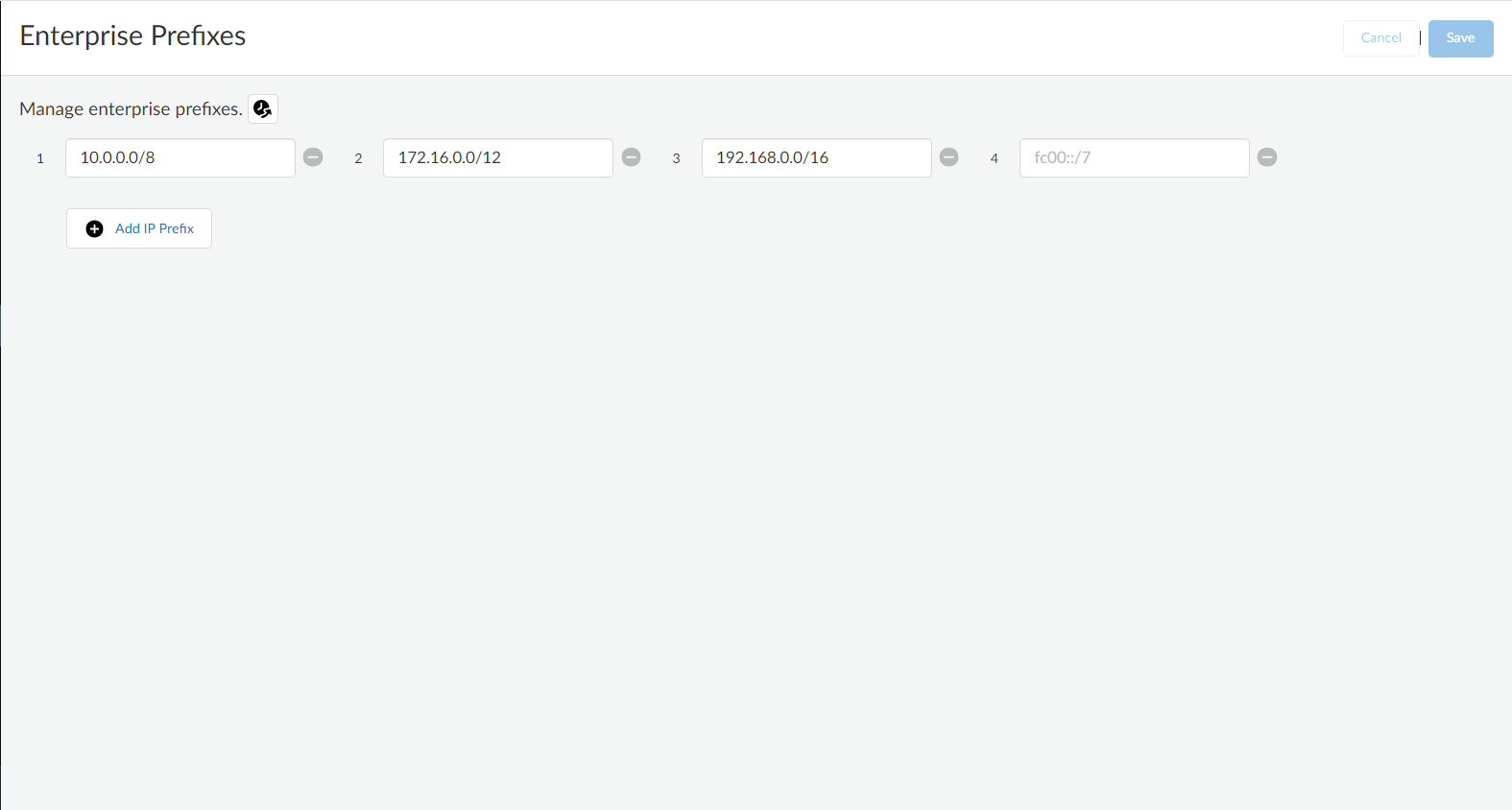

  1. Navigate to ManageSystemEnterprise Prefixes.
  2. Add IP Prefix range, for example, 182.98.0.0/16.
    IPv4 and IPv6 addresses are supported.
    A red Internet Protocol prefix text box indicates an incorrect IP address and you won't be able to save the prefix. A blue Internet Protocol Prefix text box indicates the correct IP address.
  3. Save the enterprise Internet Protocol prefixes.
