Configure a Site Protection Profile
Prisma SD-WAN allows to configure site protection profile where you
can define the flow limit threshold.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
|
The Site Protection Profile (SPP) module for ION devices mitigates risks associated
with unchecked network flow generation. This feature allows you to actively measure
and throttle the number of active flows per source IP address. This prevents a
single entity from degrading network performance for all legitimate users.
This feature is supported on all hardware ION devices and virtual ION devices. When a
SPP key's flow count exceeds a pre-defined threshold (ranging from 1% to 100% of the
total concurrent flow limit), the system generates a FLOW_LIMIT_PER_SOURCE_EXCEEDED
incident.
Scan-app flows, multicast traffic, and ION
device self-generated traffic are exempt from flow throttling.
You configure the SPP on ION devices using Strata Cloud Manager. For High
Availability (HA) configurations, you must configure each device individually.

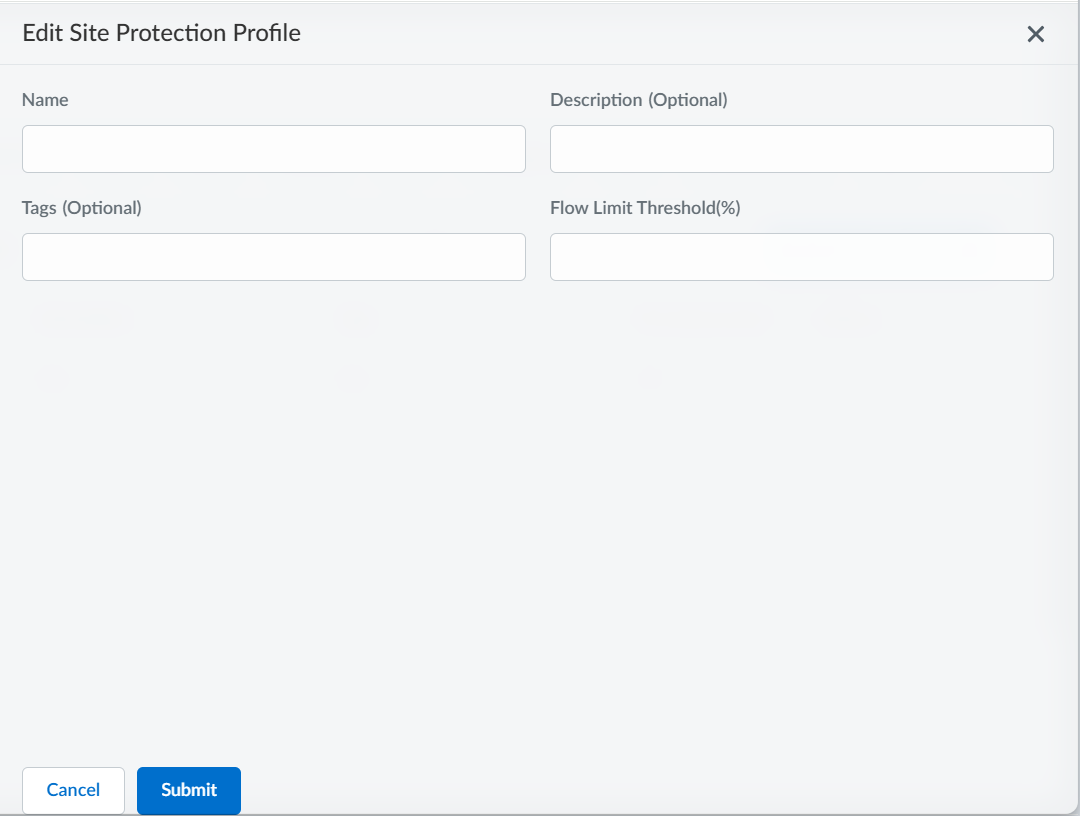

- Log in to Strata Cloud Manager. Select and then select Site Protection.Enter a Name and (Optional) Description, and add Tags. Add Flow Limit Threshold(%), the threshold ranges from 1 to 100 percent of the total flow limit. You can define this threshold based on the ION device concurrent flows.
![]()
Click Submit to save your changes.
