    Attach an IoT Discovery Profile to a Site

    Table of Contents

    Attach an IoT Discovery Profile to a Site

    Learn how to attach an IoT discovery profile to a site in Prisma SD-WAN.
    Where Can I Use This?What Do I Need?
    • Prisma SD-WAN (Managed by Strata Cloud Manager)
    • Prisma SD-WAN
    • Device Security license
    • Prisma Access Remote Networks license
    Attach an IoT discovery profile to a site to enable SNMP discovery for the site. When you attach an IoT discovery profile to a site, and the profile has Automated SNMP Discovery enabled, the SNMP discovery process begins for the site. Removing the profile from the site will stop the SNMP discovery process.
    1. Select ConfigurationPrisma SD-WANProfiles and TemplatesIoT Discovery.
      You can view the profiles attached to all the sites for a tenant.
    2. Click Manage Site to Profile bindings.
    3. Select an IoT Discovery Profile for a site.
    4. Click Save.
      You can assign a profile to multiple sites by selecting Change Profile (Bulk).
      Alternatively, to assign a profile to a site, select a site, click Site Configuration and select an IoT Discovery Profile.

    Configure a Security Policy Rule for SNMP

    Configure a security policy rule which allows SNMP from all sources. Create a new security policy rule, add it to a stacked security policy stack and bind the stack to a site.

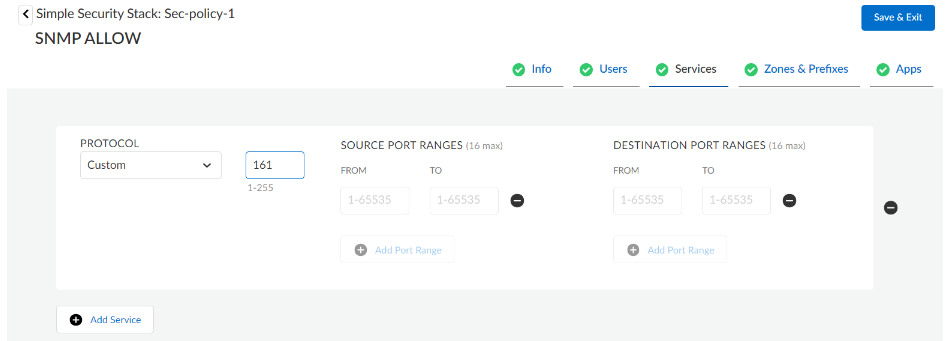

    1. Configure Services for the security policy rule.
      1. Select Custom for Protocol and enter a value of 161.

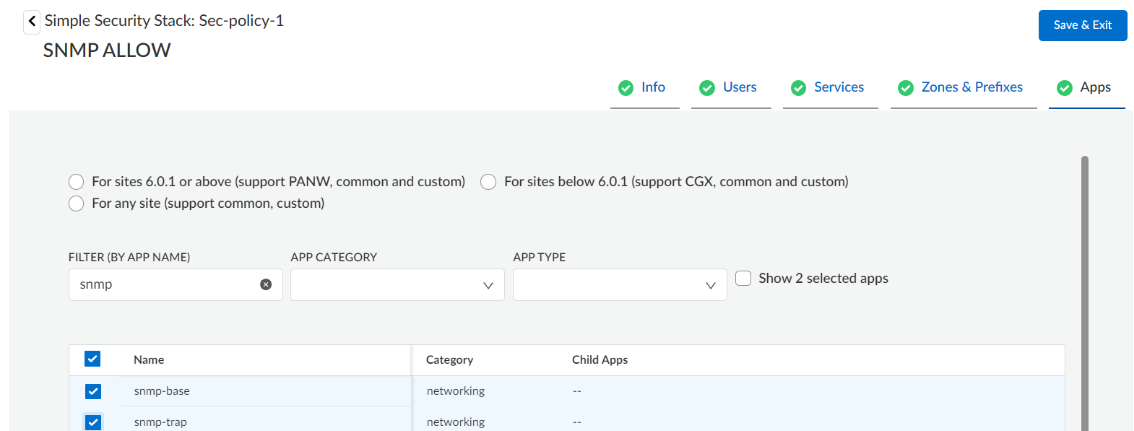

    2. On the Apps screen, select snmp-base and snmp-trap.
    3. Save the rule.
