View Flows Tab

1. Select ConfigurationPrisma SD-WAN Branch Sitesclick on branch Site Summary New Flows or Concurrent Flows widget View All flows and select a site to list all flows for the site.

   For Prisma SASE users, select Insights Prisma SASE Branch Sites Prisma SD-WAN Flows .

   The Flows chart displays the last 1000 flows (pagination with upto 1000 flows per page) for the selected time range, which can be up to one hour. You can filter flows for individual applications, devices, paths, and WANs. Sort the data by any of the columns displayed in the flow table.

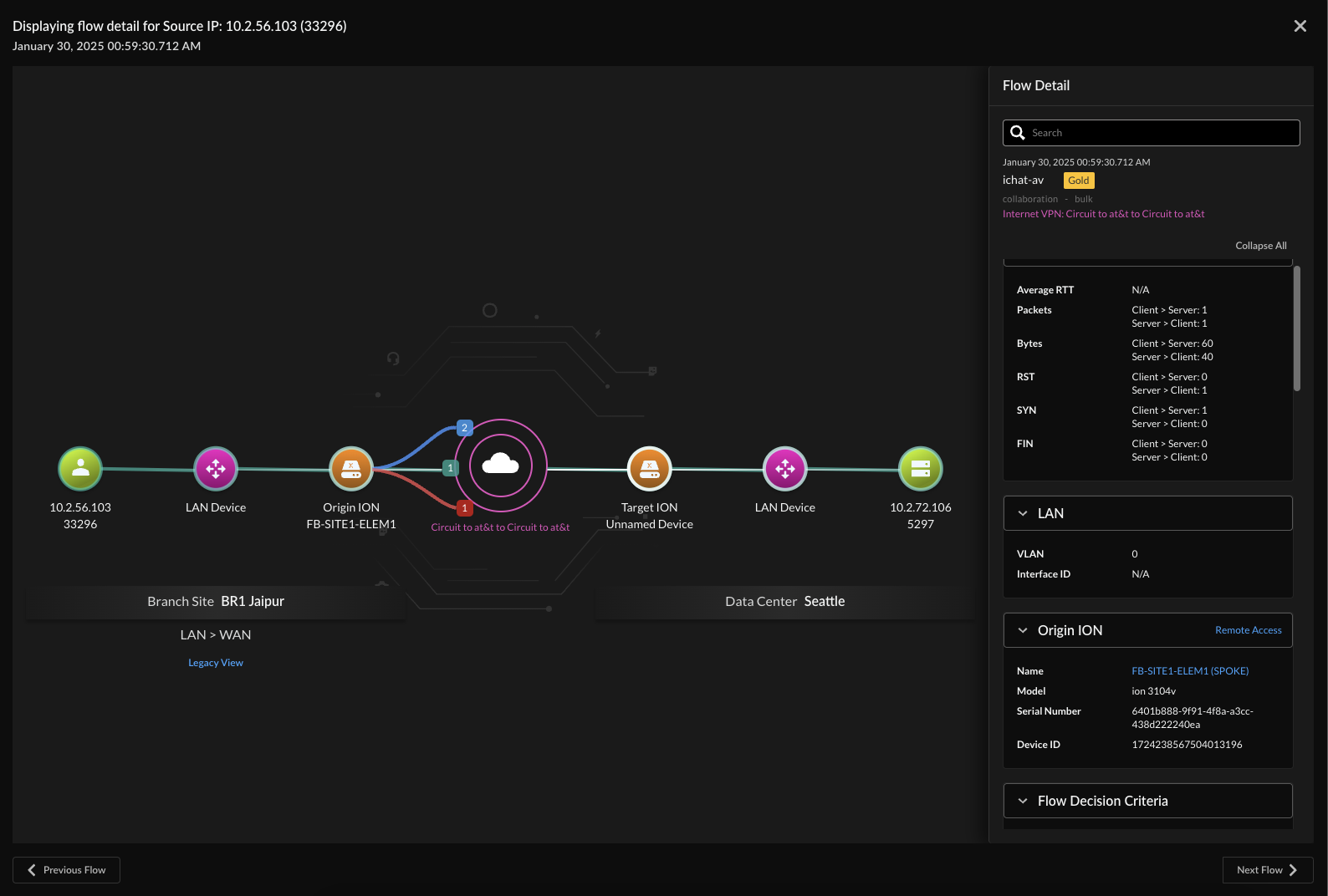

2. Click any flow to view comprehensive end-to-end flow sessions. Detailed information on the attributes of the flow enables you to visualize the entire path of a flow, from its origin site to its destination (target site), across multiple sites and network segments.

   1. On the right panel, displays Summary, LAN Device details, ION Device details, Policies applied or configured (Path, QoS, NAT, Performance, and Security), Application Assurance, and Performance and Statistics for the selected flow such as,

      • Flow Decision Criteria or Bitmap to see the detailed decisions taken for a flow as it was processed.
      • Source and Destination IP and Port.
      • Application Name, category, information on the parent application and the transaction type.
      • Path and Priority policy set-specific information, such as policy set, policy rule, source, destination prefix, network context, and the priority class. The Path and QoS policy rule name lets you navigate to the edit screen of that rule where you can view and edit the rule.
      • Security information like the Security Policy rule applied, zone the flow originated and terminated in, and the action applied.
      • Flow characteristics such as direction, start time, last activity time, and information on a new flow.
      • TCP session metrics like SYN, RST, FIN, transaction-related metrics like SACK, OOO packets, and retransmit bytes and packets.
      • Application Performance metrics like SRT and RTT.
      • Flow displaying the numbers from origin ION to target ION indicates Selected Paths, Available Paths, and Excluded paths.
   2. Displays the device-dependent information such as,

      • Link Health- Exports link health along with flow records. Exports min/max average for bytes/packets fields like RTT, RST, Fin, OOO, etc.
      • Device ID- Exports device ID (e.g., OS info) as it becomes available in the flow record.
      • IoT Device ID & SNMP Info - Exports data collected by ION SNMP for IoT security crawling for topology visualization.
      • SGT Visibility.

      The below table provides the detailed information on the attributes of the flow enables you to visualize the entire path of a flow, from its origin site to its destination (target site), across multiple sites and network segments.

      Colors	Name of the Colors	Indication
      	Speech Magenta	VPN
      	Dogger Blue	PrivateWAN
      	Boston Blue	DirectInternet
      	Slate Blue	PrivateVPN
      	Bahama Blue	ServiceLink

3. Click on the Legacy View under a flow to see the Flow Decision Data in a tabular format. The Flow Decision Data, in addition to Flow Decision Bitmap, provides detailed information on path evaluations made as the flow was processed.
