Options Information Elements

Options Information Elements describes the options available for the IPFIX template flow record in Prisma SD-WAN.

Where Can I Use This?	What Do I Need?
`Strata Cloud Manager`	Prisma SD-WAN license

The table below describes the options available for the IPFIX template flow record. The flow information elements are based on the IANA IP Flow Information Export (IPFIX) entity definitions included at https://www.iana.org/assignments/ipfix/ipfix.xhtml#ipfix-information-elements.

Options	Information Element	ElementId	Description	Data Type	Data Type Semantics
APP_DEF_ID_TABLE	Application Name Option Records: This Options Template Record contains the following Information Elements: Scope = applicationId : IANA 95. applicationName : IANA 96. A more detailed example of this can be found in RFC 6759- Section 6.8
	applicationId	IANA 95	From RFC 5101: The scope, which is only available in the Options Template Set, gives the context of the reported Information Elements in the Data Records.
	applicationName	IANA 96
WAN_PATH_ID_TABLE	The WAN Path Name Option Template Record contains the following Information Elements: Scope = cgnxWanPath. The Prisma SD-WAN ID associated with the WAN Path. cgnxWanPathName - A generated descriptive name to associate with the cgnxWanPath.
WAN_PATH_ID_TABLE	cgnxWanPathName	1100 CGNX	Specifies the name of a WAN Path. The name includes path type, circuit name, and possibly remote endpoint information.	string	default
LINK_QUALITY_METRICS	The LQM Options Template Record contains the following Information Elements: Scope = 'Link' (cgnxLqmPathIdentifier), and 'Time Stamp' (observationTimeSeconds) Information Element(s) for various Link Quality Metrics as described below.
	cgnxLqmPathIdentifier	1060 CGNX	The value of the path identifier is Prisma SD-WAN specific and is generated during configuration of the WAN element.	unsigned64	Identifier
	observationTimeSeconds	IANA 322	This Information Element specifies the absolute time in seconds of an observation.	dateTimeSeconds	default
	cgnxLqmRemoteSiteIdentifier	1061 CGNX	Indicates the value of the remote site identifier generated during configuration of the WAN element. An identifier value of 0 represents the aggregated LQM information for the associated path identifier. Only Private WAN paths will have a non-zero remote site identifier. This is a scope element for the option template.	unsigned64	Identifier
	cgnxRttSumMilliseconds	1011 CGNX	Specifies the sum of round trip times for an application in milliseconds.	unsigned32	default
	cgnxLqmDownLinkJitterMilliseconds	1062 CGNX	The downward jitter associated with the path in milliseconds for the observation period.	float32	quantity
	cgnxLqmDownLinkPacketLoss	1063 CGNX	The downward packet loss associated with the path as a percentage for the observation period.	float32	quantity
	cgnxLqmDownLinkMos	1064 CGNX	The downward packet loss associated with the path as a percentage for the observation period.	float32	quantity
	cgnxLqmUpLinkJitterMilliseconds	1065 CGNX	The upward jitter associated with the path in milliseconds for the observation period.	float32	quantity
	cgnxLqmUpLinkPacketLoss	1063 CGNX	The downward packet loss associated with the path as a percentage for the observation period.	float32	quantity
	cgnxLqmUpLinkMos	1067 CGNX	The upward MOS associated with the path for the observation period. Value 1 - 5.	float32	quantity
	cgnxLqmRttLatencyMilliseconds	1068 CGNX	The RTT latency associated with the path in milliseconds for the observation period.	float32	quantity
	cgnxLqmLinkHealthy	1069 CGNX	The overall health associated with the path for the observation period	float32	quantity

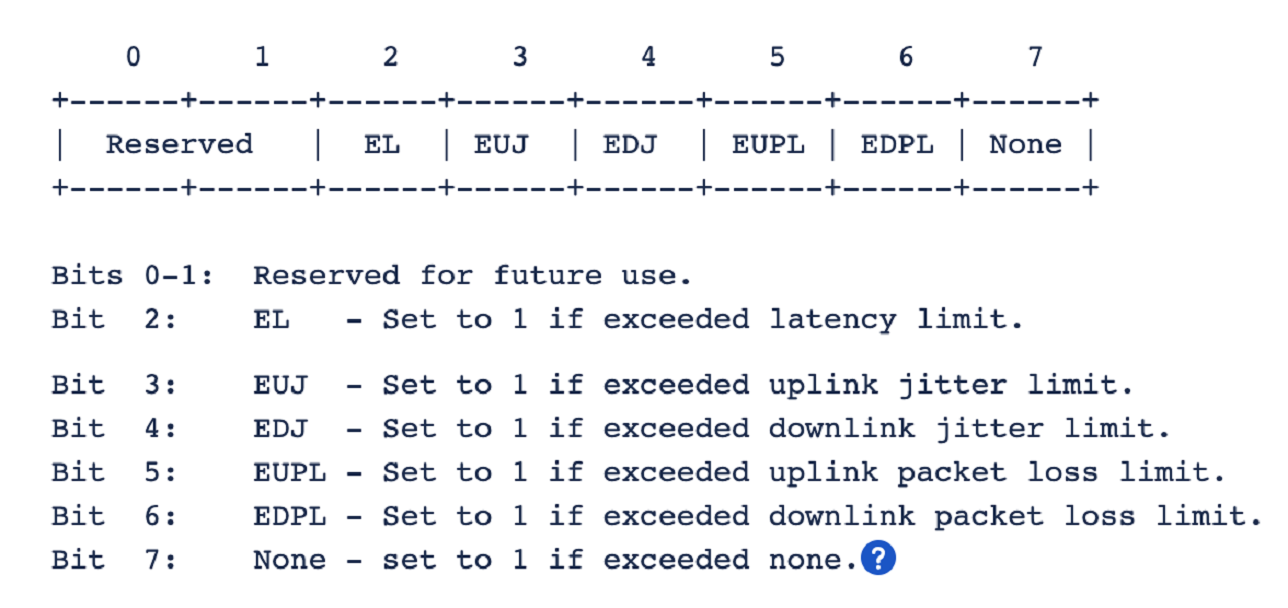

	cgnxLqmBadLinkHealthReasonBitmap		The overall health associated with the path for the observation period.
DEVICE_IDENTIFICATION	Device Identification Information Option Record: The Identification Information Option Template Record contains the following Information Elements: Scope = cgnxElementIdentifier. The Prisma SD-WAN ID associated with the device to uniquely identify it. cgnxSiteIdentifier, cgnxTenantIdentifier - Additional identification information needed to make use of the REST API to interact with the controller to gather detailed information. cgnxElementName - Information that can be useful to present to the user.
	cgnxElementIdentifier	1101 CGNX	Specifies the Prisma SD-WAN ID that is uniquely associated with the device that is exporting the IPFIX records.	unsigned64	identifier
	cgnxSiteIdentifier	1102 CGNX	Specifies the Prisma SD-WAN ID that is uniquely associated with the site that the element resides.	unsigned64	identifier
	cgnxTenantIdentifier	1103 CGNX	Specifies the Prisma SD-WAN ID that is uniquely associated with the tenant that owns the element.	unsigned64	identifier
	cgnxElementName	1104 CGNX	Specifies the Name that has been configured for the device that is exporting the IPFIX records.	string	default
