- Prisma SD-WAN (Managed by Strata Cloud Manager)
|
|
Prisma SD-WAN allows to use the same syslog profile configurations
across multiple devices. Create a Syslog Profile from the Prisma SD-WAN
web interface for forwarding the Log Collector logs as syslog messages to a syslog
server. ION device supports syslog RFC 5424 format for all the protocols.Syslog message
format is structured as follows:
Syslog message format
ION_HOST="hostname" DEVICE_TIME="timestamp" MSG="pam-session-opened by (uid=0)" SEVERITY="minor" PROCESS_NAME="sshd" FACILITY="authpriv" USER="elem-admin" ELEMENT_ID="id"
Select .

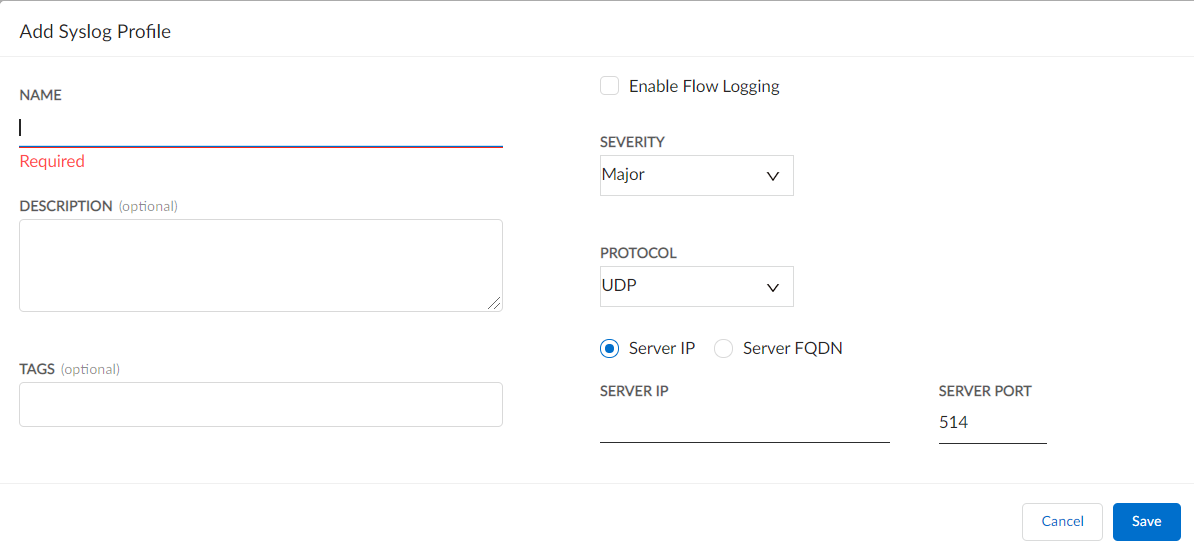

To add a Syslog profile, click
Create Syslog
Profile.
Enter a
Name for
the Syslog profile.
This is a mandatory field.
(Optional) Enter a
Description for
the Syslog profile.
(Optional) Enter
Tags to
enhance the search mechanism while querying common attributes.
Tags are used for reporting purposes and can help search
for Syslog profiles with specific common attributes. For example, you
can use the UDP_EXPORTER tag to search for Syslog profiles using
UDP Protocol.
Select
Enable Flow Logging to
export flow logs to the Syslog profile.
Select the
Severity Level from
a severity level of
Critical,
Major,
or
Minor.
When a severity level is set for a device, logs and events
for the selected severity level and a higher level are exported
to the Syslog profile.
Select the protocol type as
TCP,
or
UDP, or
TLS for
the
Protocol field.
The default protocol is UDP.
If you select TLS as the protocol type, the
Import
Certificate option specifies the
certificate file.
Click View
Certificate to view the selected certificate and Clear to
remove the certificate.
Syslog connection fails
if Self Signed certificate is uploaded.
If the FQDN server selects as a server, FQDN should match
the subject alternate name (SAN) in the peer certificate.
Prisma SD-WAN supports only TLS version1.2.
If you select
Server IP, enter
the Syslog Server IP address. Or, if you choose
Server FQDN (fully
qualified domain name), enter the Syslog Server FQDN domain name.
This field is mandatory. You must provide either a Server
IP address or a Server FQDN address.
Enter the Syslog Server port number in the
Server
Port field.
The default port is 514 for TCP or UDP and 6514 for TLS.
Click
Save to save the Syslog
profile configuration.

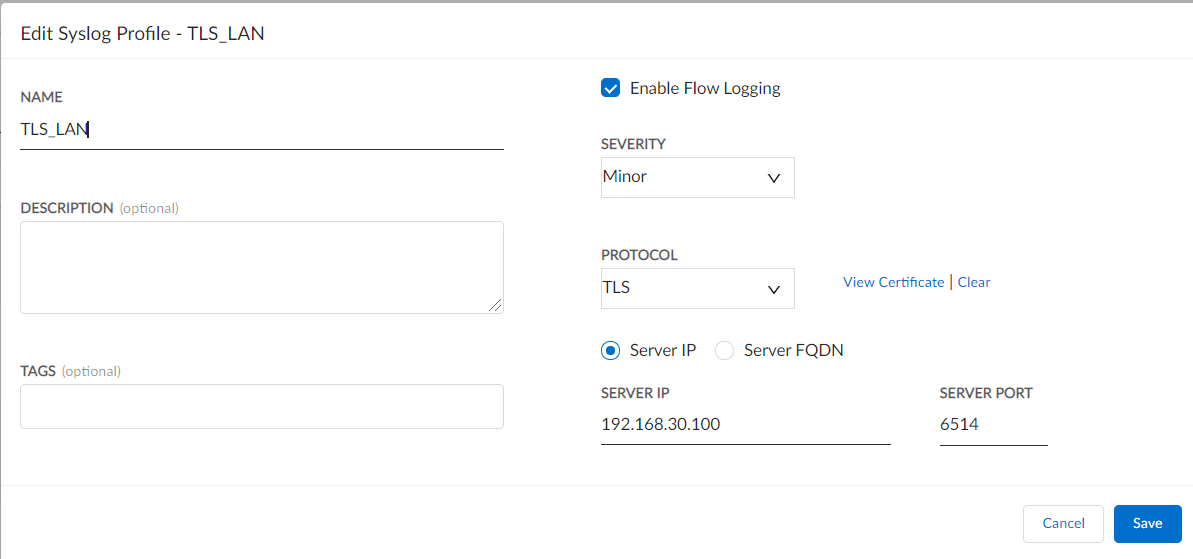

To edit the existing syslog profiles, click the ellipsis
and
Edit.
To clone the existing syslog profile, click Clone to
add a new cloned syslog profile.
To delete a syslog profile, click Delete.
Click Save to save the Syslog
profile configuration.
