Learn how to create and acquire the Azure Information in Prisma SD-WAN when integrating the Azure vWAN CloudBlade.

Where Can I Use This?	What Do I Need?
Strata Cloud Manager	Prisma SD-WAN license Azure Virtual WAN CloudBlade

Before configuring Prisma SD-WAN to integrate with Azure vWAN, perform the following:

Create an application registration object.
Copy the Application Client ID and Directory tenant ID to be used later in Prisma SD-WAN CloudBlade configuration.
Generate and copy a new client secret to be used later in Prisma SD-WAN CloudBlade configuration.
Assign Contributor role to the new Application Registration object created in Step 1.
Locate the Azure subscription ID and copy to be used later in Prisma SD-WAN CloudBlade configuration.

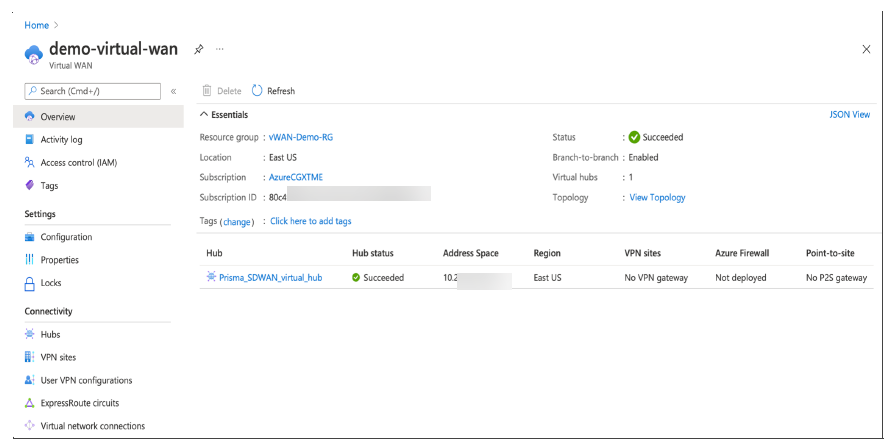

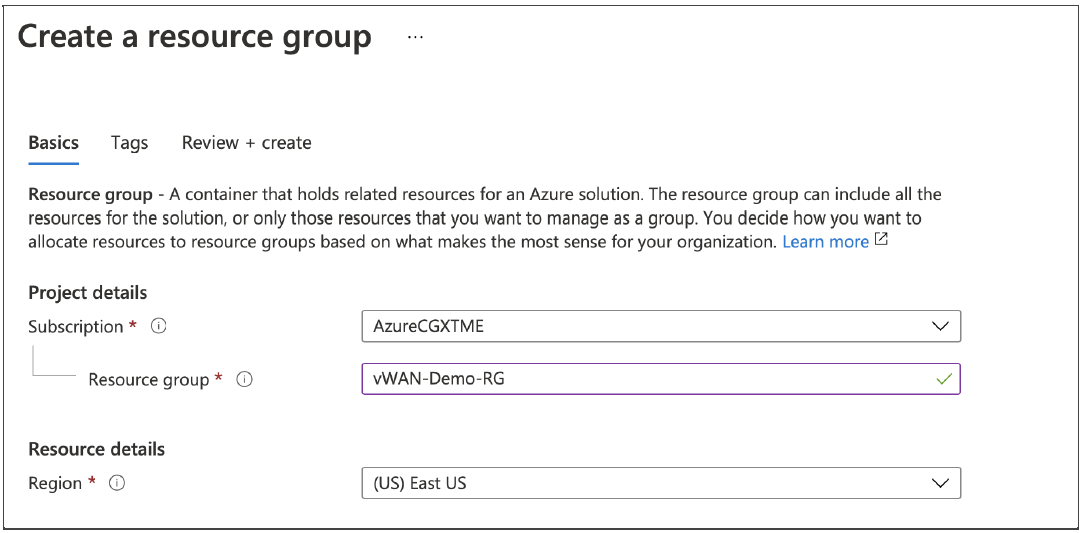

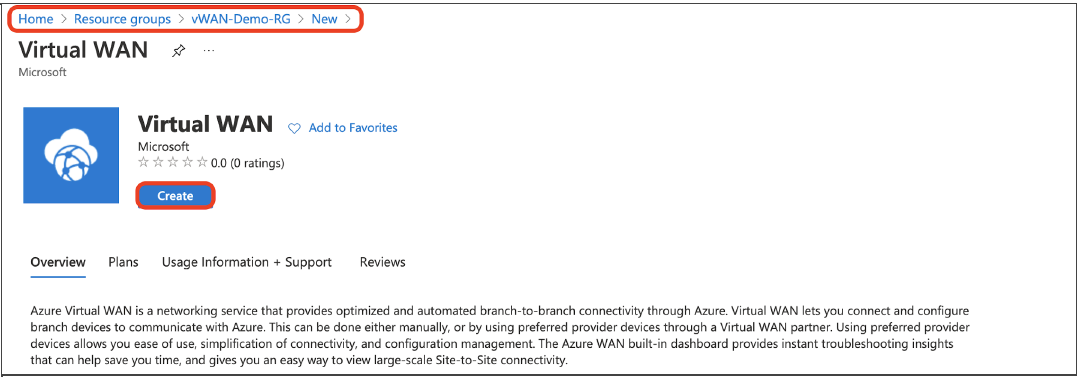

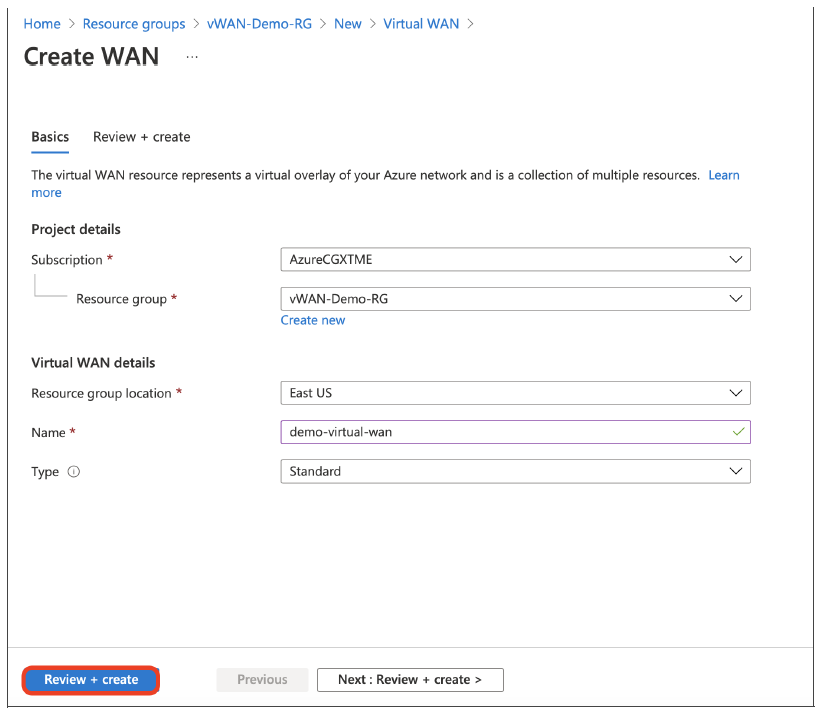

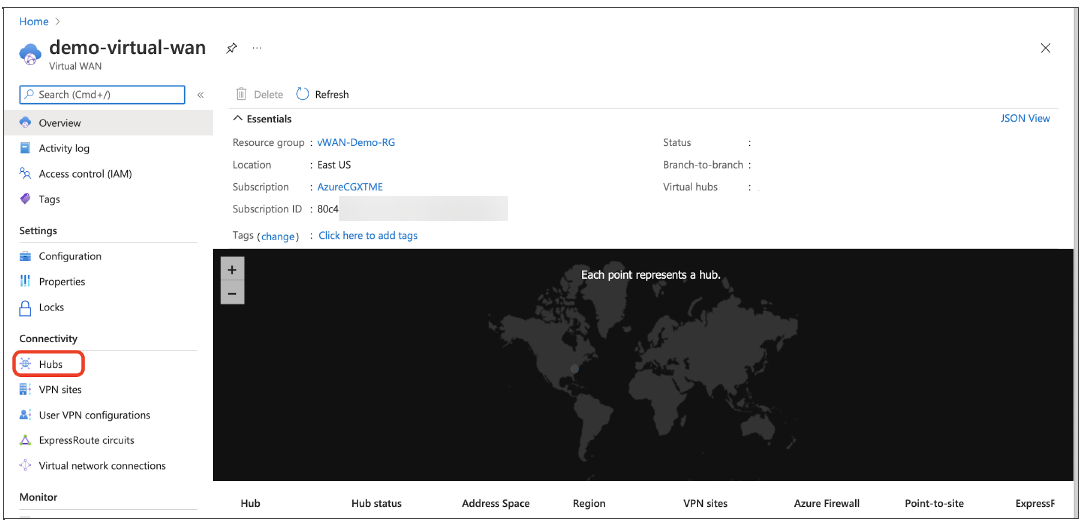

Create a Resource Group, a Virtual WAN object, and at least one Hub. Copy the Resource Group name and Virtual WAN name to be used later on Prisma SD-WAN.

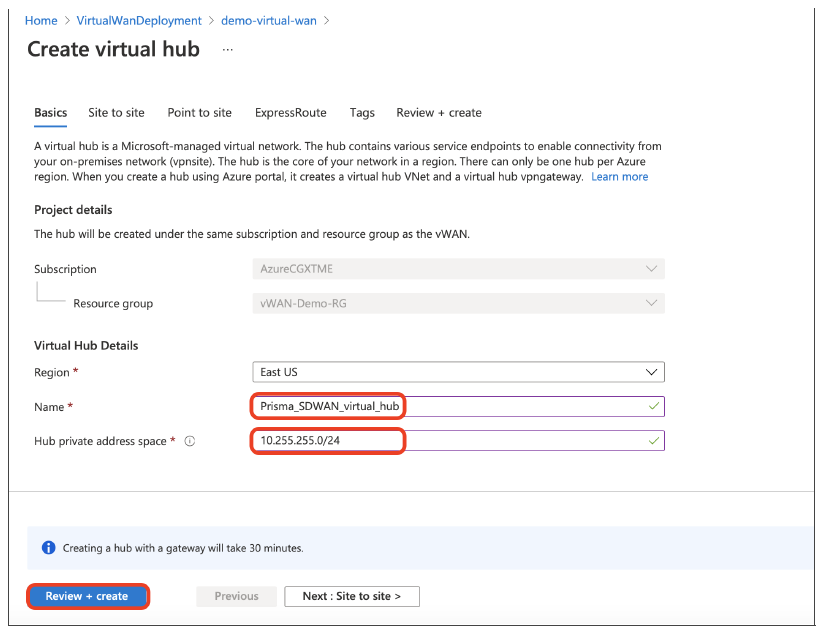

When creating a Hub ensure that the appropriate region is selected for your vWAN use case and the Hub address space does not overlap with any other subnets in your organization.

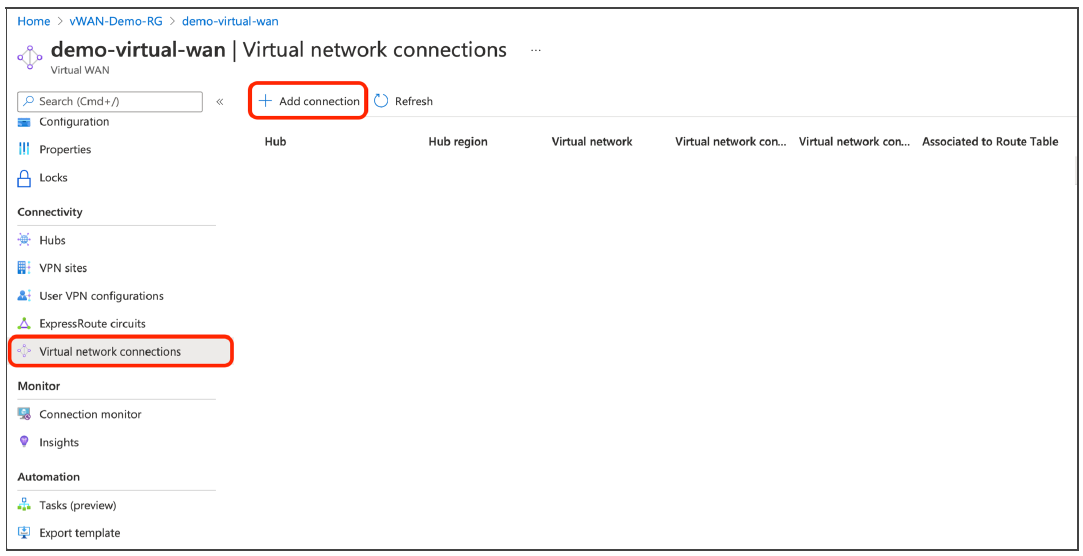

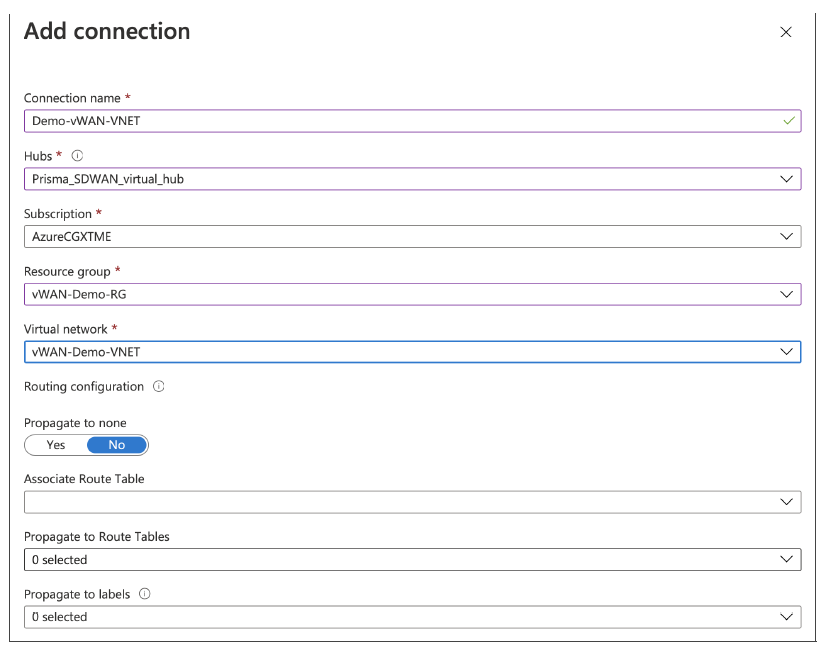

(Optional) Add a virtual network connection to Virtual WAN in order to associate an existing VNET hosting applications and services to a vWAN Hub, such that this network could be reachable via vWAN.
