    Configure Shasta LAN

    Learn to configure the Shasta LAN with Prisma SD-WAN.
    Where Can I Use This?What Do I Need?
    • Prisma SD-WAN (Managed by Strata Cloud Manager)
    • Prisma SD-WAN
    To configure Shasta LAN:

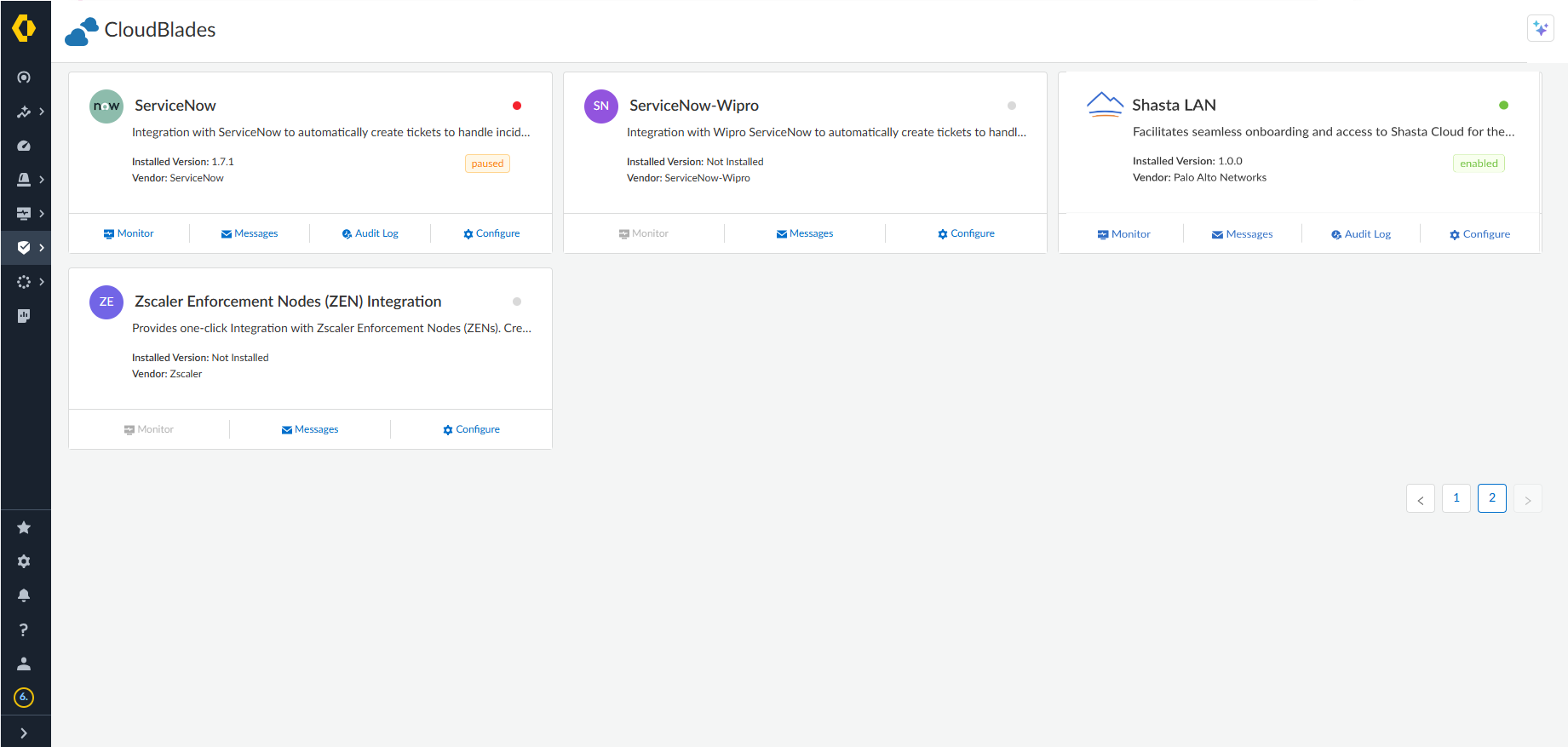

    1. On the CloudBlades page, select Configure on the Shasta LAN tile.

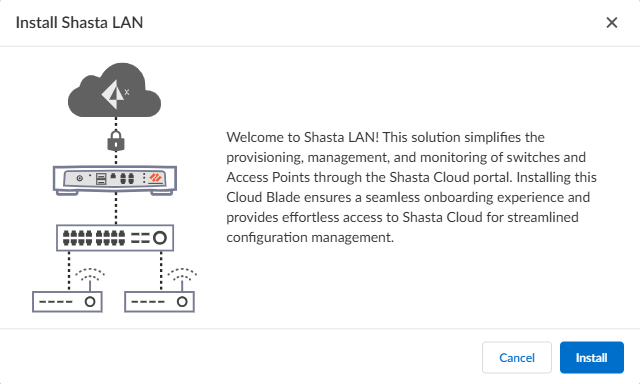

    2. Install the Shasta LAN.

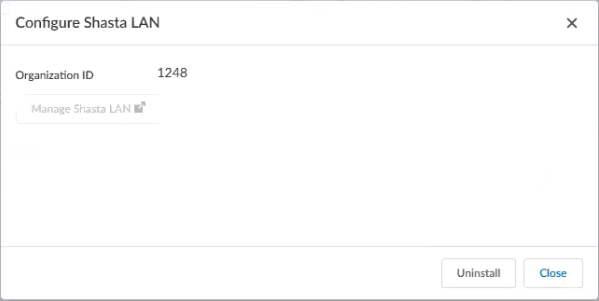

    3. After the installation, configure and manage Shasta LAN on the Shasta Cloud portal.
      As a first-time user, you will need to register on Shasta Cloud. After you register, you will receive an email invitation to log into Shasta Cloud. Complete the registration process to access the Shasta Cloud portal.
      If you have access to Shasta Cloud, you can configure sites on Shasta Cloud.
    4. After saving the configuration, the Shasta LAN tile shows as enabled on the CloudBlade page.

    Onboard Using Zero Touch Provisioning

    ZTP simplifies and automates the onboarding of new branch sites to the Prisma SASE portal. To onboard branch sites:

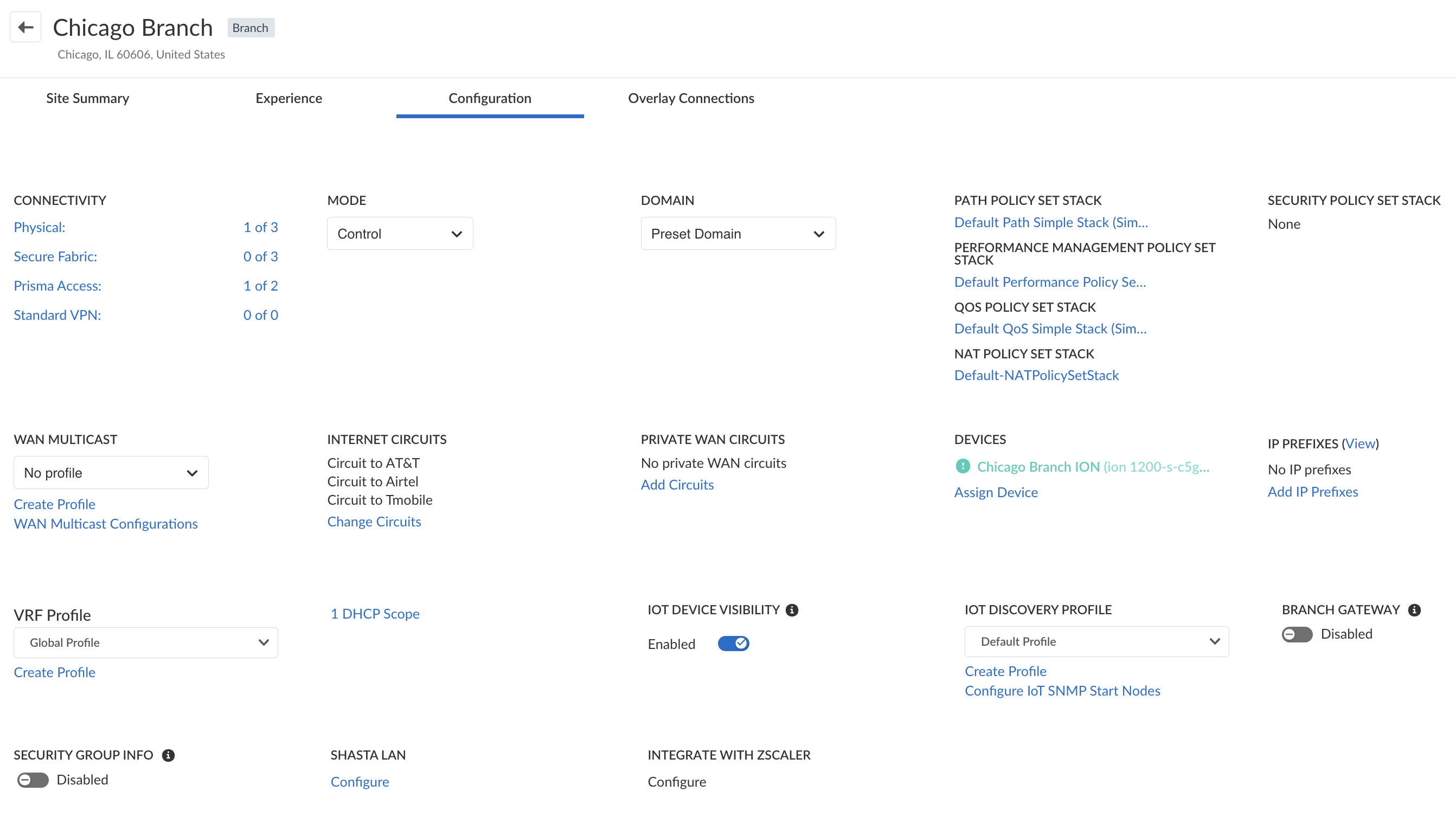

    1. Navigate to Branch Sites and select a site.

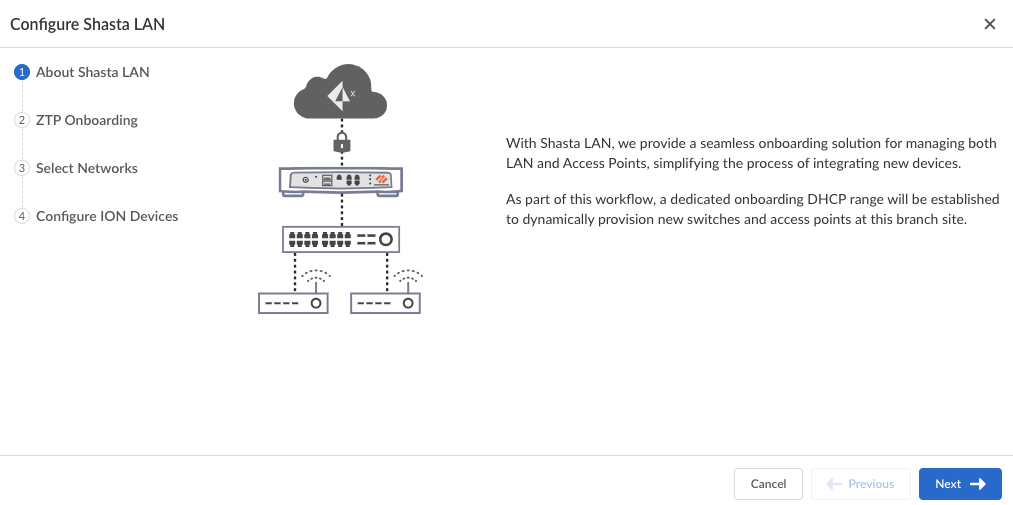

    2. Select to Configure Shasta LAN.
    3. Click Next.

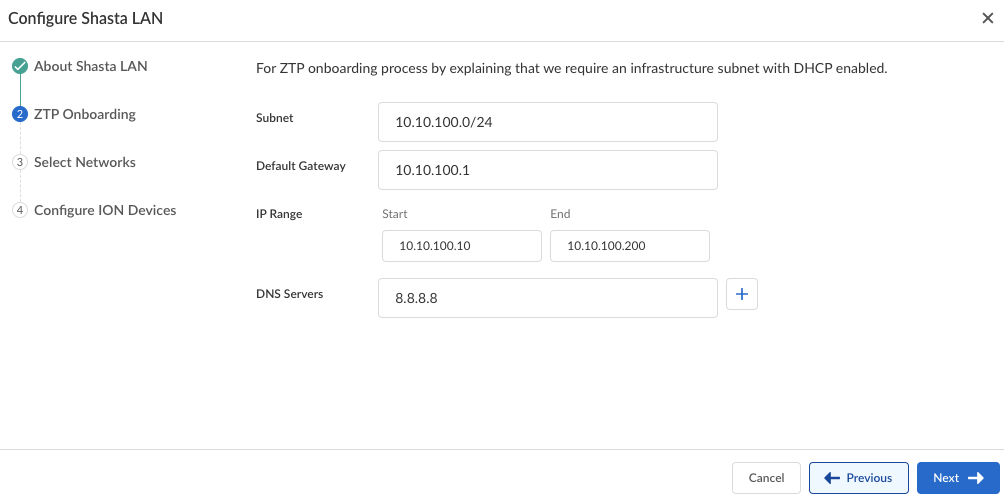

    4. Enter the DHCP information like Subnet, Default Gateway, IP Range, and DNS Servers. You can up to three DNS servers.

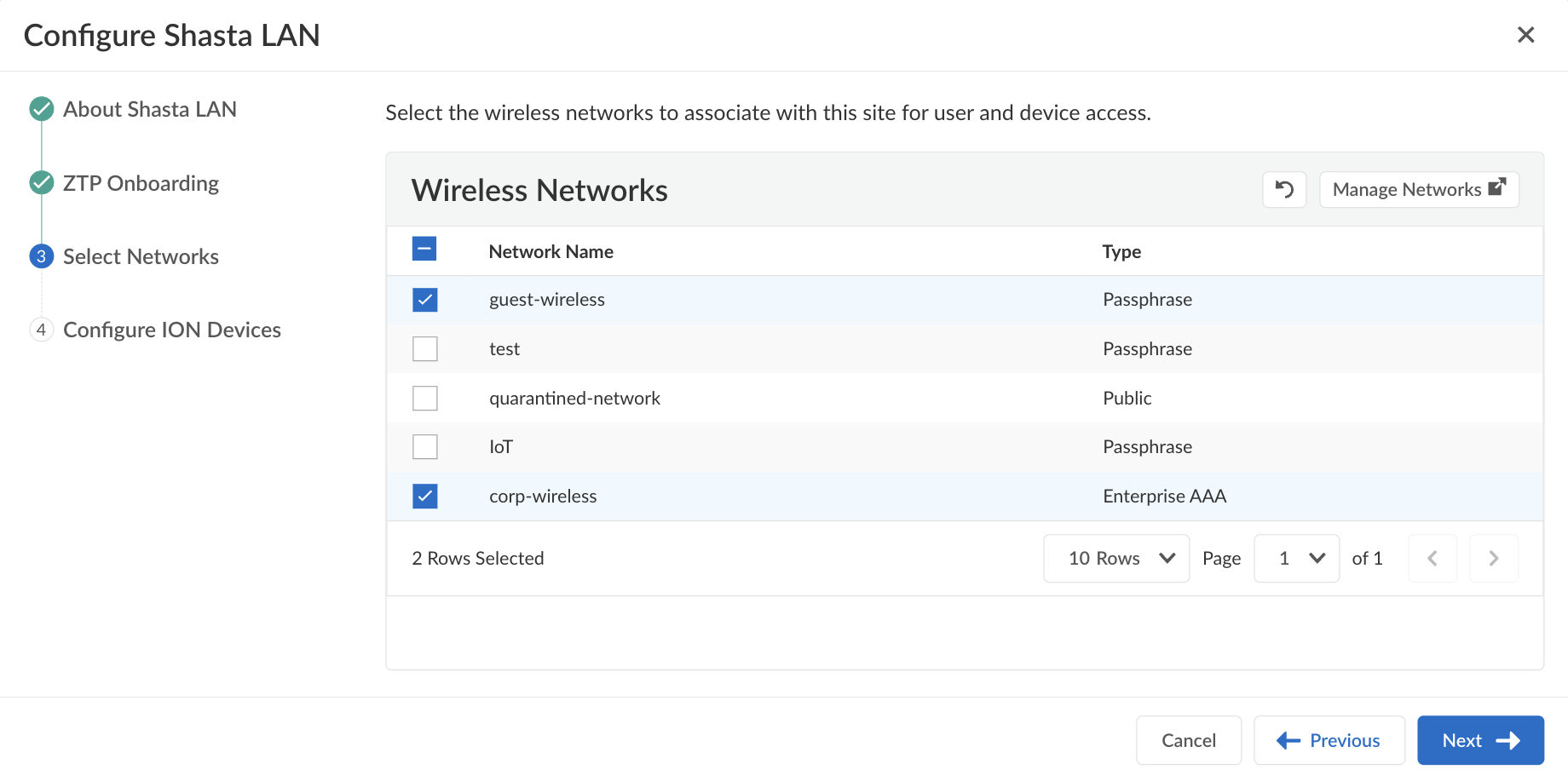

    5. To complete the Shasta LAN onboarding configuration, Select Networks that should be pushed to the access points associated with this site.
      For a first site deployment, define the wireless network parameters such as SSID name, authentication mechanisms, and isolation policy for segmentation.
      You can also configure additional VLANs for the data traffic, supporting both switch and wireless users and devices.

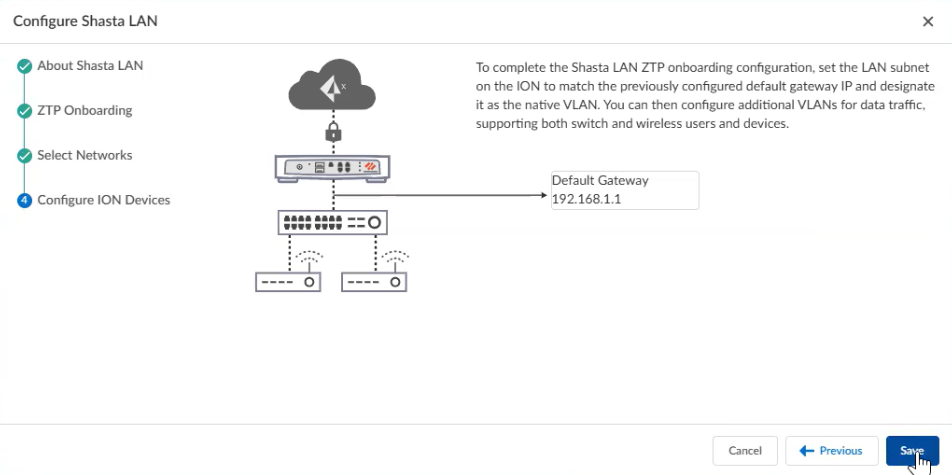

    6. Click Next and Save your changes, and you can see the DHCP and network configured on the Shasta LAN.

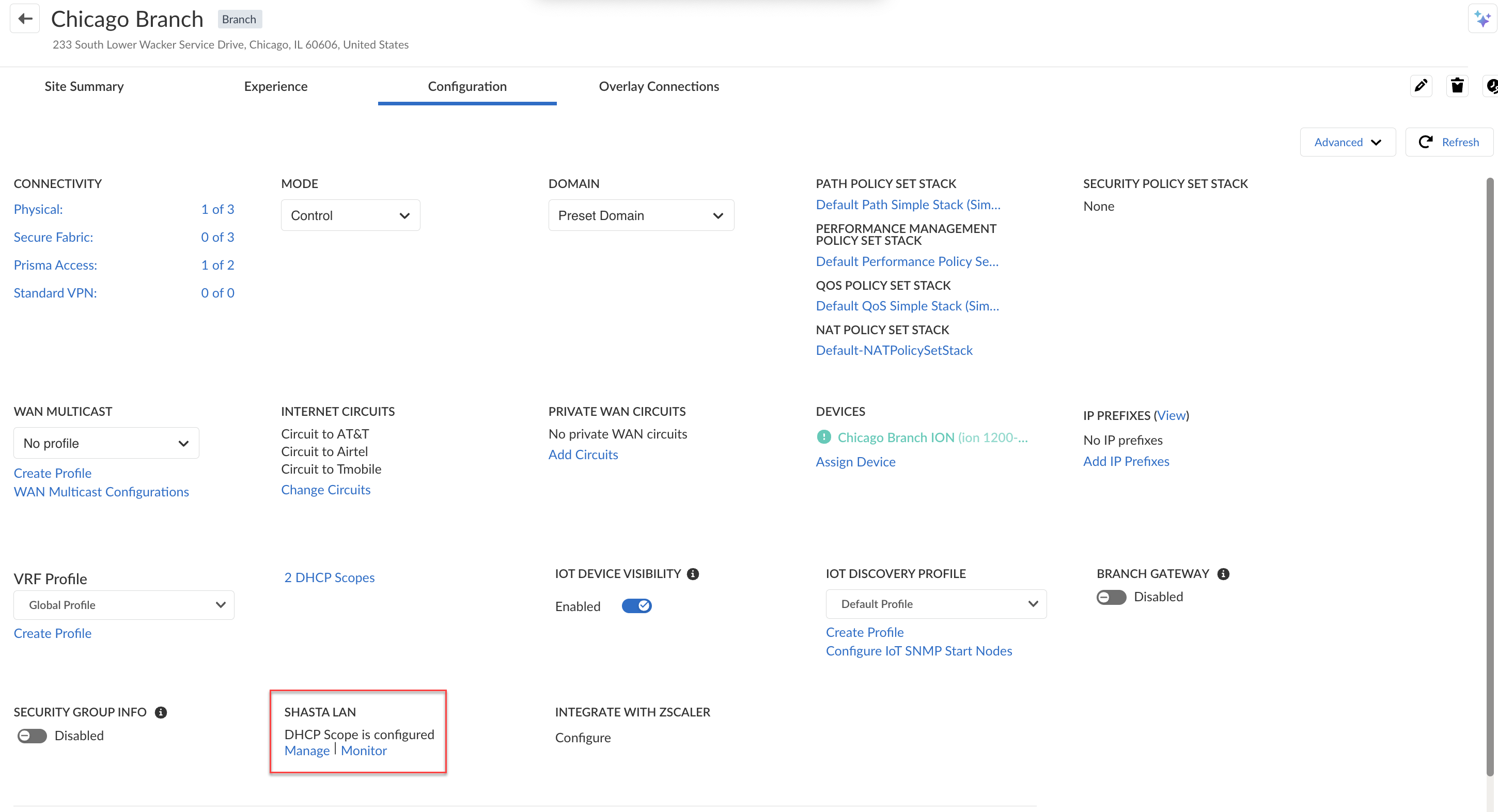

    7. Now, you can update and manage Shasta LAN ZTP network and Wireless network settings by selecting the Manage button. You can also Monitor Shasta LAN by using the link below the Manage button.
      You can monitor the LAN infrastructure at the site along with the clients connected to the LAN infrastructure by clicking the Monitor link. This takes you to the CloudBlade Monitor tab.

    Onboard New Switches and Access Points

    After enabling ZTP provisioning for Shasta LAN at a site, you can now connect Shasta Switches and Access Points to your branch network. Connect your switch uplink ports to the ION device’s LAN interface. After the device receives a DHCP address, it will automatically connect to the Shasta Cloud portal, apply the default switch profile (default profiles can be modified in the Shasta Cloud portal), and be provisioned as part of a Venue (also known as a Prisma SD-WAN site). Any additional switches and access points connected will automatically attach to the Venue moving forward.
    To monitor the status of switches and access points, navigate to the CloudBladeShasta LANMonitor page. Here, you can view real-time connectivity, device health, performance metrics, and event logs, ensuring optimal network operation and troubleshooting capabilities.
    General - The General tab displays the total number of connected access points, switches, and clients to the site.
    Switches - Switches shows the switches connected to the venue and their status.
    Access Points - Access Points shows the access points connected to the venue and their status.
    Wireless Clients - The page lists the wireless clients connected to the site.

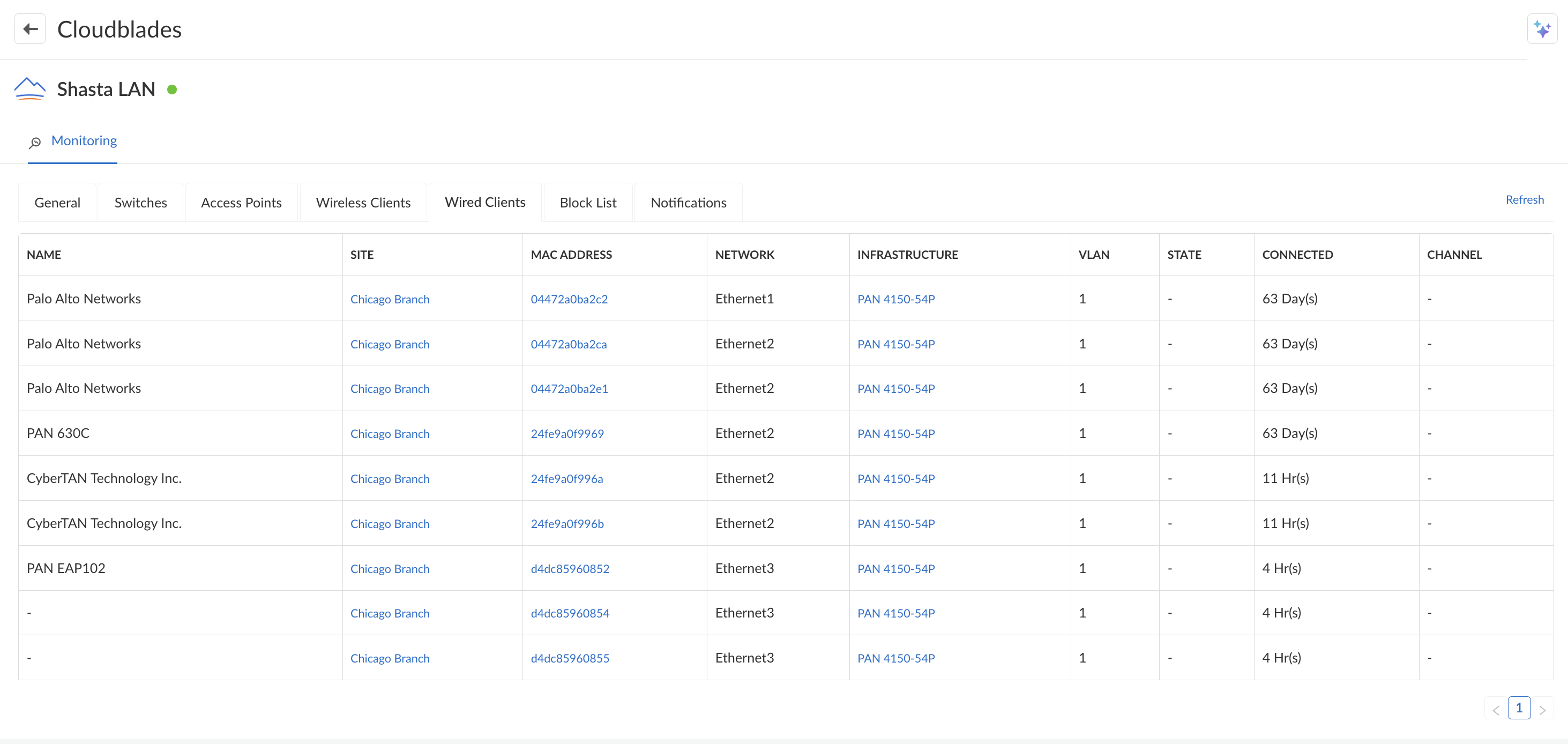

    Wired Clients - The page lists the wired clients connected to the site.
    Block Lists - The Block lists show the list of clients that are banned or quarantined from connecting to the network. This is useful when dealing with a compromised device that you need to quarantine from the rest of the network to prevent lateral threats from moving throughout your LAN and WAN.
    To add a device to the list, click Add to specify the Mac address and click Apply.
    You can unblock clients that were banned earlier by using the Delete button.
    Notifications - The Notifications shows any incidents and alarms for the switching and wireless infrastructure.
