Generate Your OAuth Client Credentials
Learn how generate your API OAuth credentials.
Palo Alto Networks uses OAuth 2.0 to limit access to the Software NGFW
Credit AP. To use Software NGFW Credit API to manage your deployment profiles, you
must first generate OAuth credentials–client ID and secret key–on the Palo Alto
Networks CSP. The client ID and secret key are required to make API calls to the
Palo Alto Networks licensing server.
If the option to generate the client credentials does not appear in the CSP, contact
your sales representative.

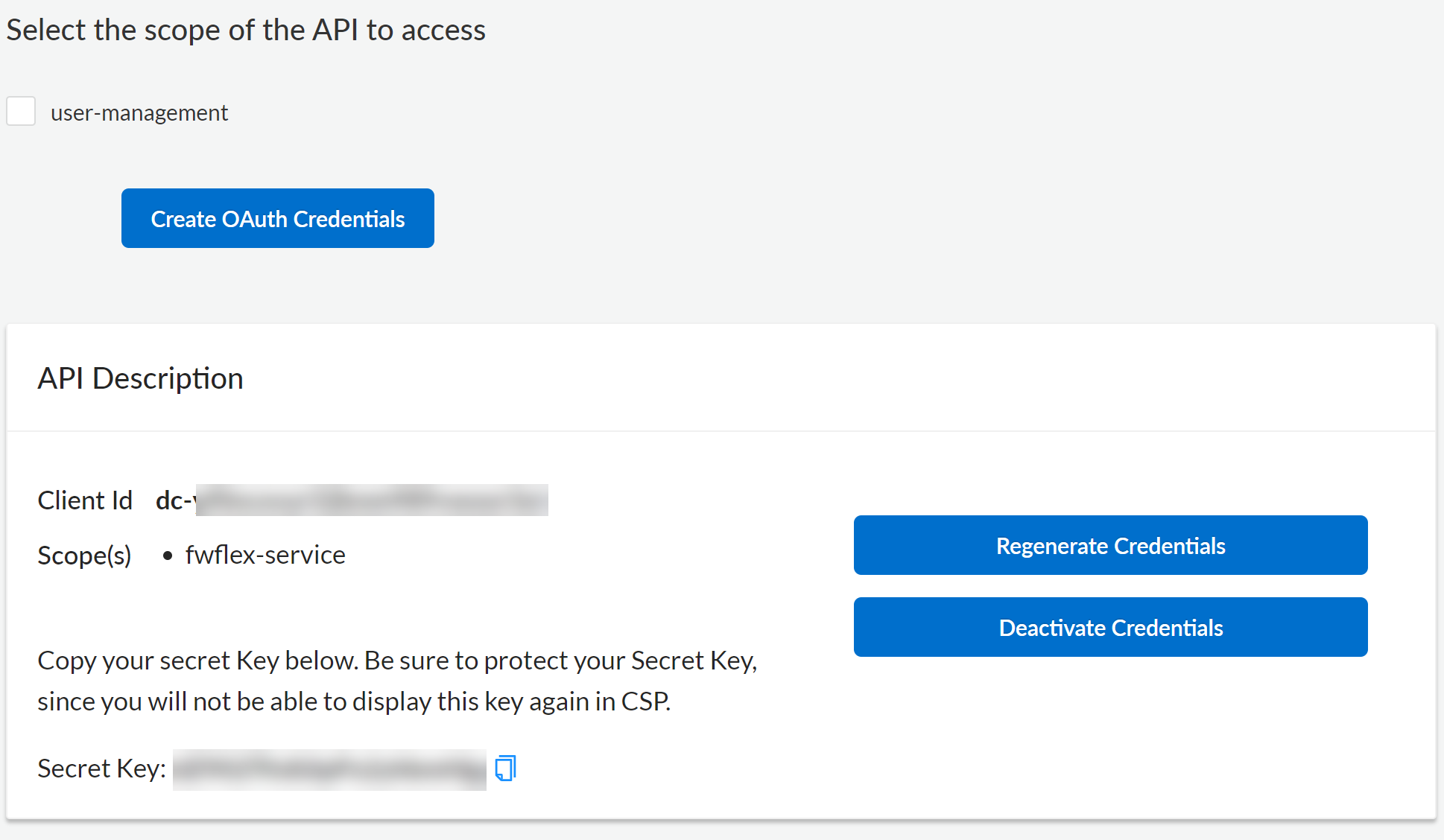

- Log in to the CSP.
- Select.Account ManagementOAuth API Management
- Select thefwflex-servicescope.
- ClickCreate OAuth Credentials.
- Copy yourClient IDandSecret Key. Save your secret key in a safe place. You will not be able to retrieve the secret key again.
Generate Your OAuth Token
After generating your OAuth credentials, you must generate a unique OAuth token
associated with your CSP account. This token acts as the bearer token in the
request header of http request. Use the
Client ID
and
Secret Key
you generated on the CSP.Header Parameters
: token
Request Body Parameters
: yourClientId
,
yourSecret
, Request Method
: POSTURL
:
https://identity.paloaltonetworks.com/as/token.oauth2
Sample API request
:curl --location 'https://identity.paloaltonetworks.com/as/token.oauth2' \ --header 'Content-Type: application/x-www-form-urlencoded' \ --data-urlencode 'client_secret=yourSecret' \ --data-urlencode 'client_id=yourClientId' \ --data-urlencode 'scope=fwflex-service' \ --data-urlencode 'grant_type=client_credentials'
Sample API response
:{ "access_token": "your-token-for-api-use", "token_type": "Bearer", "expires_in": 3599 }
