CPU Oversubscription
Learn what CPU oversubscription is on the VM-Series firewall.
| Where Can I Use This? | What Do I Need? |
|---|
|
|
- VM-Series 10.x or above
- Panorama running PAN-OS 10.1.x or above versions
- Customer Support Portal (CSP) account with one of the following
user roles:
- Super User, Standard User, Limited User, Threat
Researcher, AutoFocus Trial Role, Group Super User,
Group Standard User, Group Limited User, Group Threat
Researcher, Authorized Support Center (ASC) User, and
ASC Full Service User.
- Superuser access to the VM-Series firewall
|
The VM-Series firewall supports CPU oversubscription
on all models. CPU oversubscription allows you deploy a higher density
of VM-Series firewalls on hypervisors running on x86 architecture.
You can deploy two (2:1) to five (5:1) VM-Series firewalls per required
allocation of CPUs. When planning your deployment, use the following
formula to calculate the number of VM-Series firewalls your hardware
can support.
(Total CPUs x Oversub Ratio)/CPUs per firewall = total number
of VM-Series firewalls

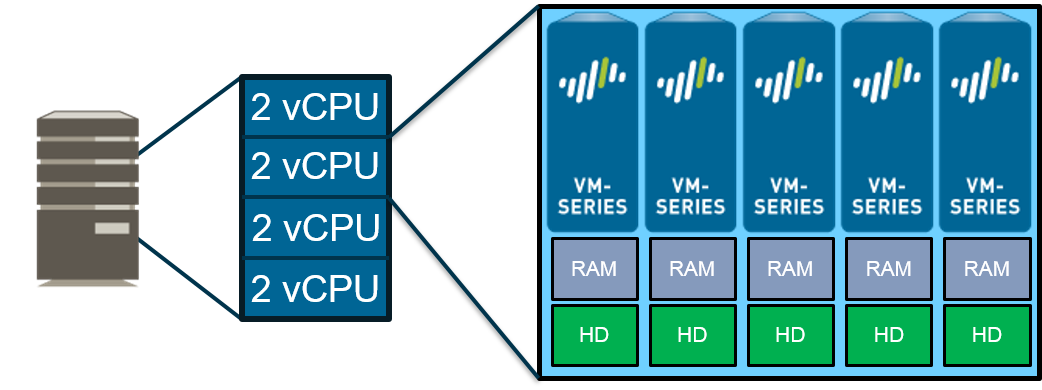

For example, at a 5:1 ratio, a host machine with 16 physical
CPU and at least 180GB of memory (40 × 4.5GB) can support up to
40 instances to the VM-50. Each VM-50 requires two vCPUs and five
VM-50s can be associated to each pair of vCPUs.
(16 CPUs x 5)/2 = 40 VM-50 firewalls
Beyond meeting the minimum
VM-Series
System Requirements, no additional configuration is required
to take advantage of oversubscription. Deploy VM-Series firewalls
normally and resource oversubscription occurs automatically. When
planning your deployment, consider other functions, such as virtual
switches, and guest machines on the host that require hardware resources
of their own.
