Use the Post Rulebase to Define NSX-T Steering Rules

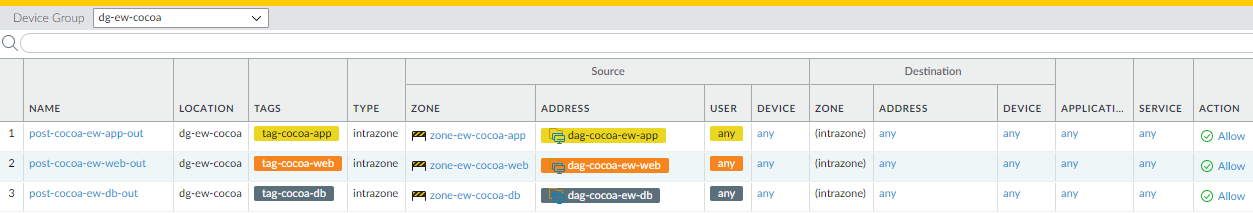

1. Create Security policy rules.

   1. In Panorama, select PoliciesSecurityPost Rules.
   2. Verify that you are configuring the Security policy rules in a device group associated with an NSX-T service definition.
   3. Click on the name of a Security policy rule to edit.
   4. Set the Rule Type to intrazone (Devices with PAN-OS 6.1 or later).
   5. In the Source tab, set the source zone to the zone from the template stack associated with the service definition. Then select a Dynamic Address Group you created previously as the Source Address. Do not add any static address groups, IP ranges, or netmasks as a Source Address.
   6. In the Destination tab, Panorama does not allow you to set a destination zone because you set the rule type to intrazone. Then select a Dynamic Address Group you created previously as the Destination Address. Do not add any static address groups, IP ranges, or netmasks as a Destination Address.
   7. Click OK.
   8. Repeat steps 1 through 7 for each steering rule you require.

2. Commit your changes to Panorama.
3. Apply Security Policy Rules to the VM-Series NSX-T EW SEC Centric Firewall.
