Direct Traffic to the VM-Series Firewall

After deploying the VM-Series, configure NSX Manager to send traffic to the VM-Series firewall.

Where Can I Use This?	What Do I Need?
VMware NSX	VM-Series Firewall License (BYOL) Panorama VM-Series plugin Panorama plugin for NSX

Complete the following procedure to direct traffic to your VM-Series firewall. For North-South traffic, redirection rules are stateless by default and can’t be changed. Additionally, NSX-T automatically creates a corresponding reflexive rule for return traffic.

When you deploy the VM-Series firewall for NSX-T North-South in HA mode, you must create a traffic redirection rule for both HA peers. Additionally, you must create the redirection rule for active peer first and the passive peer second.

The reflexive rule does not appear in the NSX-T web interface.

Log in to NSX-T Manager.
Verify that you are in Policy mode.
Select SecurityNorth South SecurityNetwork Introspection (N-S).
Click Add Policy.
Enter a descriptive Name for your policy.
Select a VM-Series firewall service instance from the Redirect To drop-down. NSX-T Manager will automatically populate the Applied To field based on the service instance you select.
Select your newly created policy.
Click Add Rule.

If your NSX-T environment has Edge Nodes in active-standby HA, you must create a redirect rule for each Edge Node. NSX-T does not automatically apply a redirect rule to the standby node in the event of a failover.
Click on the Name field and enter a descriptive name for the rule.
By default, the source is set to Any. Complete the following steps to specify a different source.

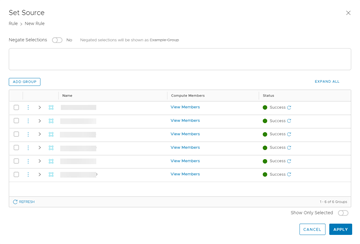

1. Click on the edit button in the Source column.
2. Select the group or groups to set as the Source or click Add Group to create a new group.
3. Click Apply.
By default, the destination is set to Any. Complete the following steps to specify a different destination.

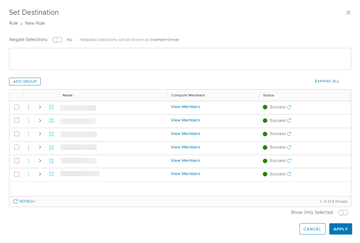

1. Click on the edit button in the Destination column.
2. Select the group or groups to set as the Destination or click Add Group to create a new group.
3. Click Apply.
By default, Any service is redirected to the firewall. Complete the following steps to specify certain services and protocols.
1. Click on the edit button in the Services column.
2. Select the group or groups to set as the Service or click Add Service to create a new service.
3. Click Apply.
Select Redirect from the Action drop-down to send traffic to your VM-Series firewall.
Enable the rule. NSX-T Manager publishes the redirection rule you created and automatically creates a reflexive rule for return traffic. The reflexive rule does not appear in the NSX-T Manager web interface.
If your VM-Series firewalls are deployed in HA, create another rule for the passive HA peer.

If return traffic is not directed to the VM-Series firewall, manually configure a traffic redirection rule for return traffic.
