Create and Configure the VM-Series Firewall

1. From the Alibaba Cloud console homepage, select Elastic Compute ServiceInstances & ImagesInstances, and click Create Instance on the upper right.
2. Select Custom Launch.
3. Click Basic Configurations.

   1. Fill in the following values. For example:

      Property	Value
      Billing Method	Subscription.
      Region	Your choice. You can also select a zone. The region you select must provide one of the required instance types.

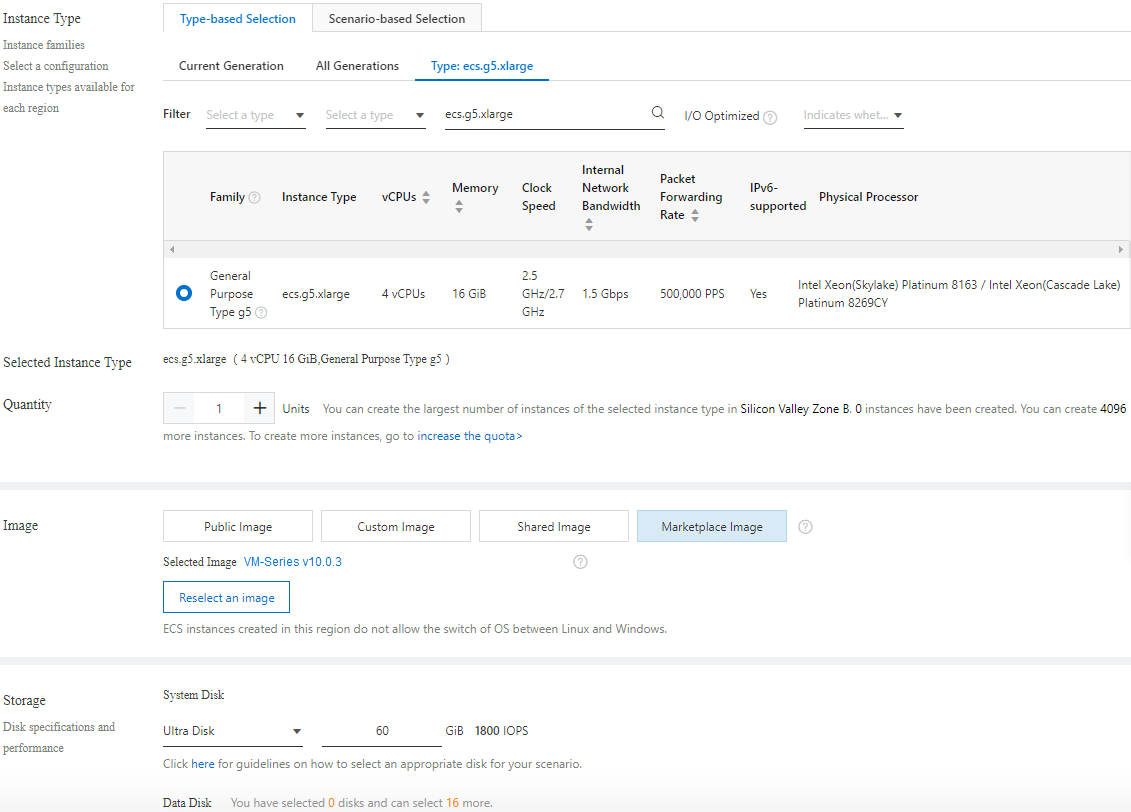

      Instance Type	One of the types in Alibaba Cloud Instance Type Recommendations for the VM-Series Firewall. You can use Type-based Selection to search for the instance type.
      Image	Select Marketplace Image and search for the Alibaba Marketplace for VM-Series. The image combines the OS and the VM-Series firewall.
      Storage	Choose a disk type and specify 60 GB.
      Snapshot	Your choice.
      Duration	Your choice.

   2. Select Next: Networking.
4. On the Networking page, supply the following values.

   1. Network (select VPC).

      • Choose the VPC you created in Create a VPC and Configure Networks.
      • Choose the Management vSwitch.
   2. Public IP address.

      If you don't have a public IP address, enable Assign Public IP address and the system will allocate one. If you must use a specific IP address, or an address in a specific range, you can request a custom IP address. Refer to the Elastic IP Address User Guide.
   3. Security Group.

      Select the Management security group.
   4. Elastic Network Interface.

      The management interface is already attached to eth0.
   5. Select Next: System Configurations.
5. On the System Configurations page, fill in the following values.

   1. Logon Credentials: Select Key Pair.

      Password authentication isn't supported.
   2. Name the VM-Series firewall instance and supply a hostname.

      Make any corrections.

      Select Preview to view your settings thus far.
   3. Following Advanced (based or instance RAM roles or cloud-init) click Show.

      • The RAM role is optional.
      • In the User Data field, enter basic bootstrap information as key-value pairs separated by newlines. See Enter a Basic Configuration as User Data. For example, enter the following in the User Data field.

        type=dhcp-client
        hostname=Ca-FW-DC1
        vm-auth-key=7550362253****
        panorama-server=10.*.*.20
        panorama-server-2=10.*.*.21
        tplname=FINANCE_TG4
        dgname=finance_dg
        op-cmd-dpdk-pkt-io=on
        dhcp-send-hostname=yes
        dhcp-send-client-id=yes
        dhcp-accept-server-hostname=yes
        dhcp-accept-server-domain=yes
        authcodes=I7115398
        vm-series-auto-registration-pin-id=abcdefgh1234****
        vm-series-auto-registration-pin-value=zyxwvut-0987****

        op-command-modes (mgmt-interface-swap and jumbo frame) are not supported for Alibaba Cloud.

        op-cmd-dpdk-pkt-io=on supports DPDK. If you want to specify PacketMMAP, specify op-cmd-dpdk-pkt-io=off
        Grouping is Optional. Select Preview to view the configuration before ordering.
6. View the terms of service, and select Create Order to create the VM-Series firewall instance.

   View the purchase order and select Subscribe.
7. From the console homepage, choose Elastic Compute ServiceNetworks and SecurityENIs and select Create ENI in the top-right corner. Create Elastic Network Interfaces for the Untrust and Trust interfaces.

   1. Create the Untrust ENI.

      In the Actions column, select Bind to Instance and select the instance you created.
   2. Create the Trust ENI and bind it to the instance.
8. Allocate Elastic IP (EIP) addresses.

   Allocate EIP addresses for the VM-Series firewall management interface and the Untrust network interface. In this example, the Trust interface isn't exposed to the internet, so you don't need a third IP address.

   If you already have two EIPs, go to the next step.

   1. Associate an EIP with the VM-Series firewall management interface .
   2. Associate an EIP with the VM-Series firewall Untrust network interface.

      The second interface you attach is assigned to network interface 1 on the VM-Series firewall.
9. Restart your instance to attach the new network interfaces.

   On the Instances list, select your instance, select Manage, and select Restart on the upper right.
10. SSH in to the VM-Series firewall with the security key and set the admin password:

    developer1$ ssh -i dev1-vpc1.pem admin@18.***.145.153
    Welcome admin.

    admin> configure
    Entering configuration mode
    [edit]
    admin# set mgt-config users admin password
    Enter password:<password>
    Confirm password:<password>
    [edit]
    admin# commit

11. Access the VM-Series firewall web interface.

    Open a web browser and enter the EIP for the management interface.
