    High Availability for VM-Series Firewall on AWS

    Learn the prerequisites and the steps to enable high availability for VM-Series firewall deployment in AWS.
    Where Can I Use This?What Do I Need?
    • AWS
    • AWS account
    • Amazon Machine Image (AMI) ID
    • VM-Series License (PAYG or BYOL)
    • VM-Series plugin
    • Panorama
    • Panorama plugin for AWS
    The VM-Series firewall on AWS supports active/passive HA only; if it is deployed with Amazon Elastic Load Balancing (ELB), it does not support HA (in this case ELB provides the failover capabilities).

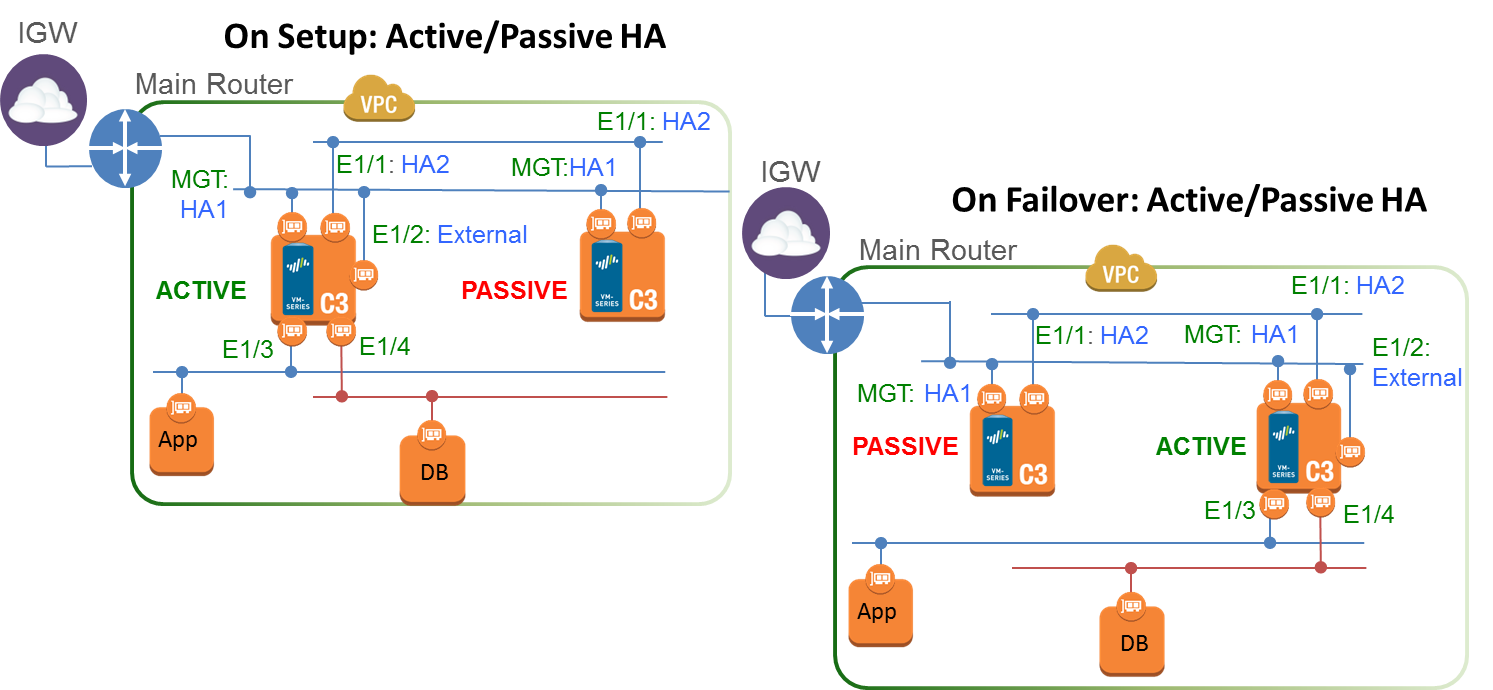

    To ensure redundancy, you can deploy the VM-Series firewalls on AWS in an active/passive high availability (HA) configuration. The active peer continuously synchronizes its configuration and session information with the identically configured passive peer. A heartbeat connection between the two devices ensures failover if the active device goes down. There are two options for deploying the VM-Series firewall on AWS in HA—Secondary IP move and Dataplane Interface (ENI) move.

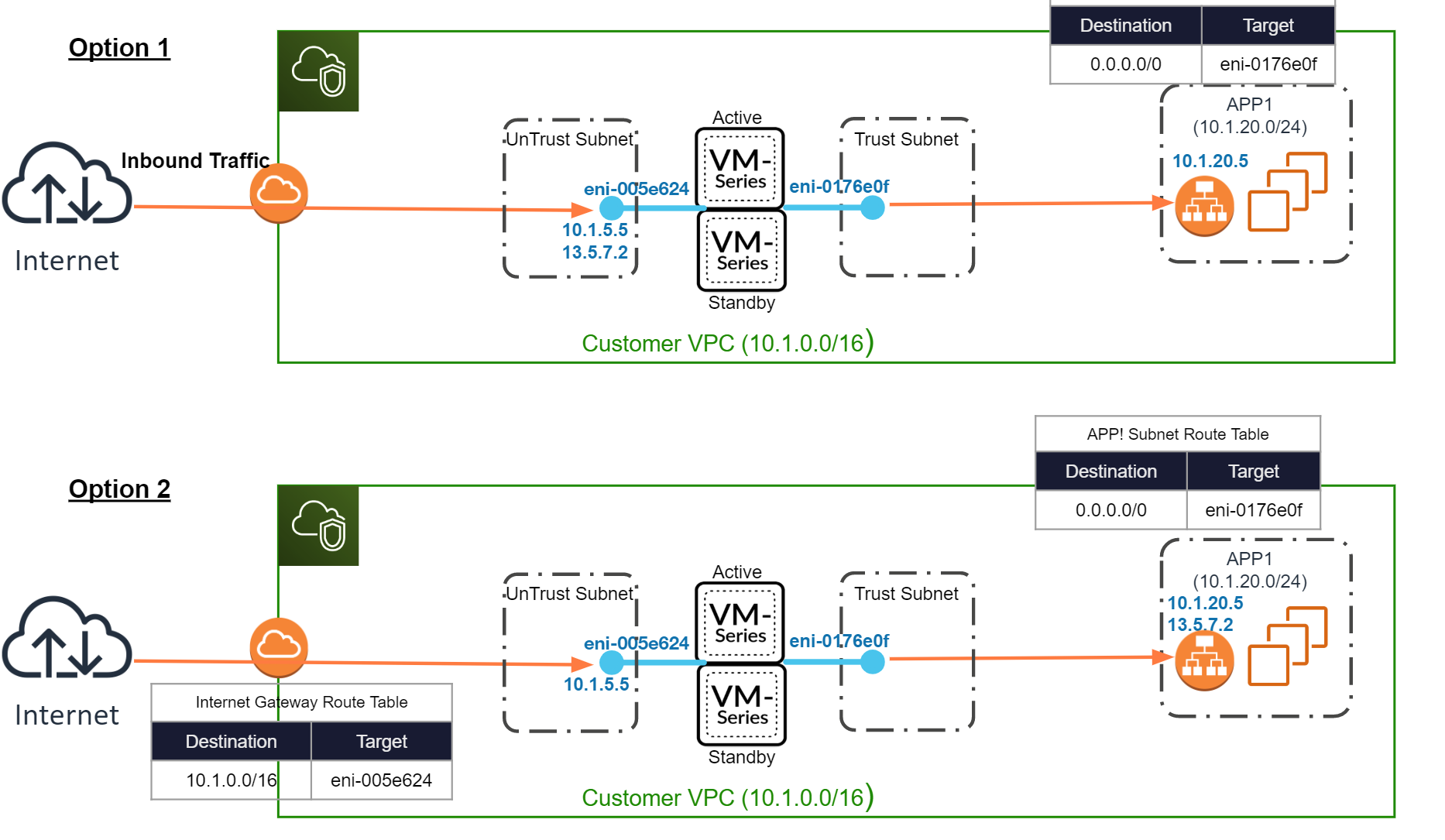

    To ensure that all traffic to your internet-facing applications passes through the firewall, you have two options. You can either configure the application’s public IP address on the Untrust interface (E1/2 in the illustration above) of the VM-Series firewall, or you can configure AWS ingress routing. The AWS ingress routing capability allows you to associate route tables with the AWS internet gateway and add route rules to redirect the application traffic through the VM-Series firewall. This redirection ensures that all internet traffic passes through the firewall without having to reconfigure the application endpoints.

    Secondary IP Move

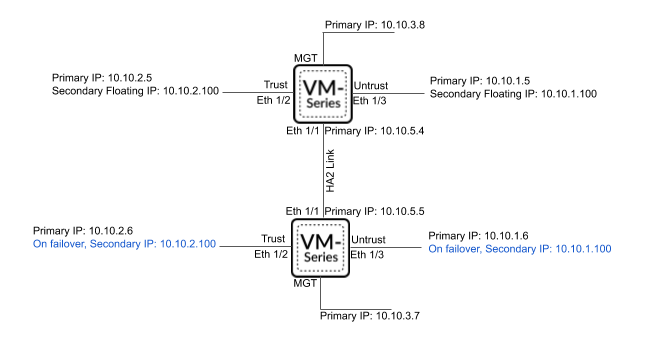

    When the active peer goes down, the passive peer detects this failure and becomes active. Additionally, it triggers API calls to the AWS infrastructure to move the configured secondary IP addresses from the dataplane interfaces of the failed peer to itself. Additionally, AWS updates the route tables to ensure that traffic is directed to the active firewall instance. These two operations ensure that inbound and outbound traffic sessions are restored after failover. This option allows you to take advantage of DPDK to improve the performance of your VM-Series firewall instances and provides better failover time than interface-move HA, while supporting all the features provided by interface-move.
    Secondary IP Move HA requires VM-Series plugin 2.0.1 or later.
    You can now configure up to four IP addresses per SD-WAN interface, to achieve HA failover in active/passive configurations of your AWS public cloud environment. You can achieve this by configuring a second floating IP address on the SD-WAN interfaces. The floating IP on the SD-WAN interface of the external zone must match with that of the internal zone. This feature is supported on PAN-OS 11.1.0 and above and on IPv4 addresses only.

    Dataplane Interface Move

    When the active peer goes down, the passive peer detects the failure and becomes active. Additionally, it triggers API calls to the AWS infrastructure to move all the dataplane interfaces (ENIs) from the failed peer to itself.

    HA Links

    The devices in an HA pair use HA links to synchronize data and maintain state information. On AWS, the VM-Series firewall uses the following ports:
    • Control Link—The HA1 link is used to exchange hellos, heartbeats, and HA state information, and management plane sync for routing and User-ID information. This link is also used to synchronize configuration changes on either the active or passive device with its peer.
      The management port is used for HA1. TCP port 28769 and 28260 for cleartext communication; port 28 for encrypted communication (SSH over TCP).
    • Data Link—The HA2 link is used to synchronize sessions, forwarding tables, IPSec security associations and ARP tables between devices in an HA pair. Data flow on the HA2 link is always unidirectional (except for the HA2 keep-alive); it flows from the active device to the passive device.
      Ethernet1/1 must be assigned as the HA2 link; this is required to deploy the VM-Series firewall on AWS in HA. The HA data link can be configured to use either IP (protocol number 99) or UDP (port 29281) as the transport.
    The VM-Series firewall on AWS does not support backup links for HA1 or HA2.

    Heartbeat Polling and Hello Messages

    The firewalls use hello message and heartbeats to verify that the peer device is responsive and operational. Hello messages are sent from one peer to the other at the configured Hello Interval to verify the state of the device. The heartbeat is an ICMP ping to the HA peer over the control link, and the peer responds to the ping to establish that the devices are connected and responsive. For details on the HA timers that trigger a failover, see HA Timers. (The HA timers for the VM-Series firewall are the same as that of the PA-5200 Series firewalls).

    Device Priority and Preemption

    The devices in an HA pair can be assigned a device priority value to indicate a preference for which device should assume the active role and manage traffic upon failover. If you need to use a specific device in the HA pair for actively securing traffic, you must enable the preemptive behavior on both the firewalls and assign a device priority value for each device. The device with the lower numerical value, and therefore higher priority, is designated as active and manages all traffic on the network. The other device is in a passive state, and synchronizes configuration and state information with the active device so that it is ready to transition to an active state should a failure occur.
    By default, preemption is disabled on the firewalls and must be enabled on both devices. When enabled, the preemptive behavior allows the firewall with the higher priority (lower numerical value) to resume as active after it recovers from a failure. When preemption occurs, the event is logged in the system logs.
    Preemption is not recommended for HA in the VM-Series firewall on AWS.

    HA Timers

    High availability (HA) timers are used to detect a firewall failure and trigger a failover. To reduce the complexity in configuring HA timers, you can select from three profiles: Recommended, Aggressive, and Advanced. These profiles auto-populate the optimum HA timer values for the specific firewall platform to enable a speedier HA deployment.
    Use the Recommended profile for typical failover timer settings and the Aggressive profile for faster failover timer settings. The Advanced profile allows you to customize the timer values to suit your network requirements.
    HA Timer on the VM-Series on AWS
    Default values for Recommended/Aggressive profiles
    Promotion hold time
    2000/500 ms
    Hello interval
    8000/8000 ms
    Heartbeat interval
    2000/1000 ms
    Max number of flaps
    3/3
    Preemption hold time
    1/1 min
    Monitor fail hold up time
    0/0 ms
    Additional master hold up time
    500/500 ms
