VM-Series Firewall on Google Cloud Platform
Deploy the VM-Series firewall on a Google Cloud Engine
instance.
| Where Can I Use This? | What Do I Need? |
|---|
- Google Cloud Platform (GCP)
|
- VM-Series License (PAYG or BYOL)
- VM-Series plugin
- Panorama
- Panorama plugin for GCP
|
VM-Series firewalls bring next-generation firewall features to the Google®
Cloud Platform™(GCP). To maximize performance, VM-Series firewalls on GCP support the
Data Plane Development Kit (DPDK) libraries, which provide fast packet processing and
improve network performance based on specific combinations of VM-Series firewall
licenses and Google Cloud Platform virtual machine (VM) sizes.
The VM-Series firewall integration with GCP allows you to deploy the
VM-Series firewall as a virtual machine (VM) running on a Google Compute Engine
instance. For a simplified process,
Deploy the VM-Series Firewall from Google Cloud
Platform Marketplace. After you deploy the VM-Series firewall,
you can configure the following optional services:
You can deploy the VM-Series firewall on a Google® Compute Engine instance in a network
in your
virtual private cloud (VPC). The deployment
types are:
Internet Gateway
The VM-Series firewall secures north-south traffic to and from the internet to
protect applications from known and unknown threats. A Google project can have up to
five VPC networks. For a typical example of an internet gateway, refer to the Google
configuration examples.

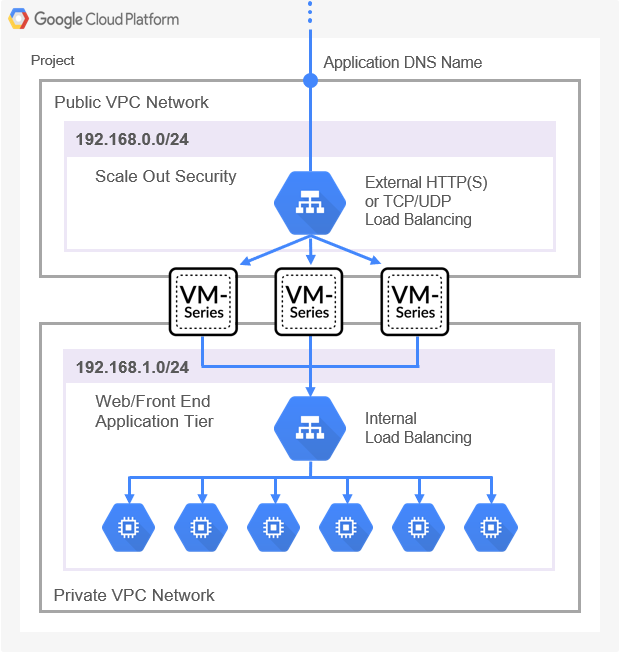

In public cloud environments, it's a common practice to use a scale-out architecture
(see the figure below) rather than larger, higher performing VMs. This architecture
(sometimes called a
sandwich deployment) avoids a single point of
failure and enables you to add or remove firewalls as needed.
Segmentation Gateway

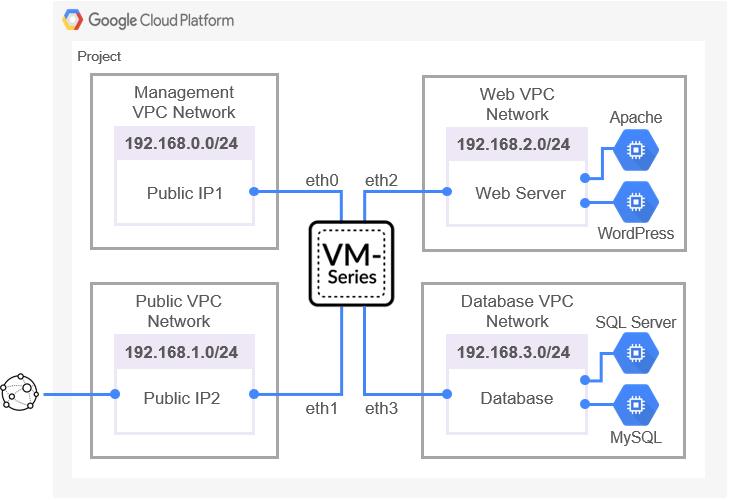

A segmentation gateway secures east-west traffic between virtual private clouds
(VPCs) to ensure data protection compliance and application access. The following
figure shows a firewall securing both north-south and east-west traffic.
Hybrid IPSec VPN
The VM-Series firewall serves as an IPSec VPN termination point, which enables secure
communications to and from applications hosted on the Google Cloud Platform
(GCP).

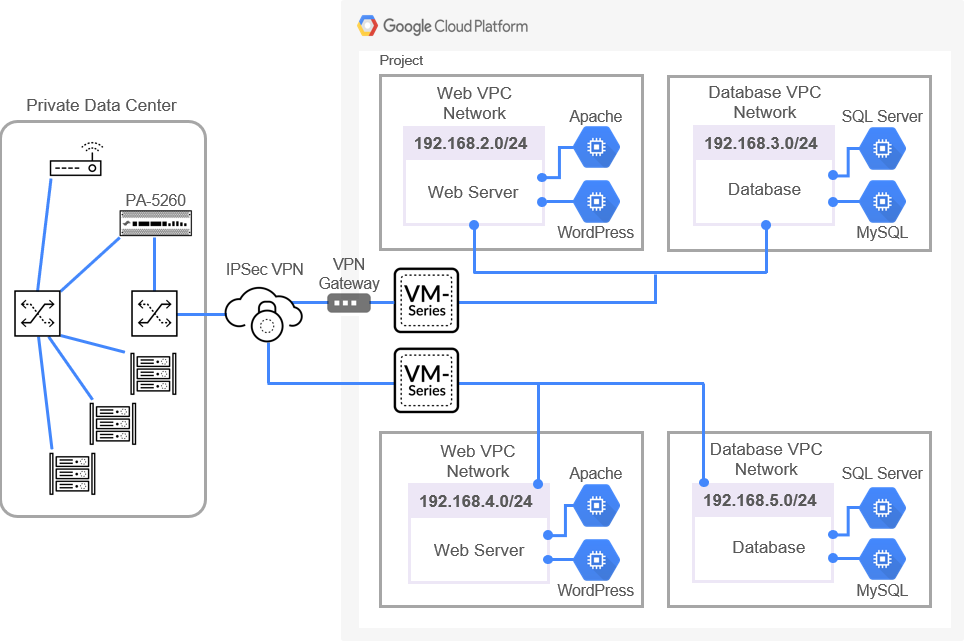

The deployment in the figure below shows a site-to-site VPN from an on-premises
network to a VM-Series firewall deployed on GCP and an IPSec connection from an
on-premises network to a Google Cloud VPN gateway.
