Enable Session Resiliency on VM-Series for GCP

Where Can I Use This?	What Do I Need?
Google Cloud Platform (GCP)	VM-Series License (PAYG or BYOL) VM-Series plugin Panorama Panorama plugin for GCP

Session resiliency allows the VM-Series firewall to maintain session continuity during a failure event. The GCP Network Load Balancer (NLB) can detect and deregister unhealthy VM-Series firewalls deployed in a horizontally scalable cluster behind it. With session resiliency enabled, the NLB rehashes existing traffic sessions flowing toward an unhealthy VM-Series and redirects the traffic to a healthy VM-Series firewall. This allows a VM-Series firewall cluster to continue inspecting long-lived application sessions, even in the case of VM-Series appliance failures.

Traffic inspection of the rehashed traffic flows is Layer 4 only. The VM-Series firewall inspects traffic in new sessions up to Layer 7.

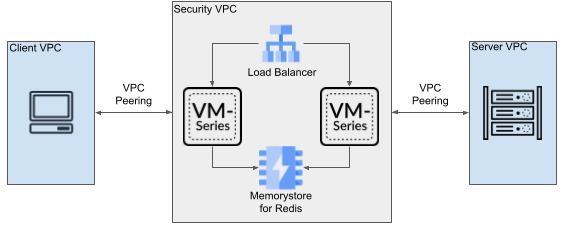

To maintain sessions failing over to healthy VM-Series firewalls, you must deploy a Standard-tier Memorystore for Redis cache accessible to your VM-Series firewalls. The Redis cache maintains session information. When your load balancer detects an unhealthy VM-Series firewall, the load balancer rebalances traffic to a healthy VM-Series firewall. The healthy VM-Series firewall accesses the Redis cache for session information and continues to inspect and forward the existing traffic.

Your load balancer must meet the following requirements to support session resiliency.

• Your load balancer must be an Internal pass-through Network Load Balancer
• Set your load balancer connection persistence on unhealthy nodes to NEVER_PERSIST.

Your Memorystore for Redis instance must meet the following requirements to support session resiliency on the VM-Series firewall.

• Standard tier
• Deploy the Redis cache in the same region and zone as your VM-Series firewall instances
• From the Network drop-down, select the VPC network associated with the VM-Series firewall management interface
• Enable AUTH to limit access to only trusted users
• Enable In-Transit Encryption to encrypt connections to the Redis cache using TLS

When sizing your Memorystore for Redis, use the following guidelines.

• Base the size of the Redis cache on the maximum number of sessions supported by your VM-Series firewall instance. See Maximum Limits Based on Tier and Memory to the maximum sessions for your firewall.
• When session resiliency is enabled, the maximum number of sessions is capped at 70% of the amount listed in the link above. For example, if your firewall supports up to 10,000,000 sessions, the maximum is 7,000,000 with session resiliency.
• Each redis entry per session uses approximately 128 bytes. Therefore, one VM-Series firewall that supports 10,000,000 sessions requires approximately 1.3 GB of storage. And a cluster of 10 VM-Series firewalls requires at least 13 GB.
• Use the following formula to calculate the redis requirements.
  (128 x <number of sessions>) x 10^-9 = require redis cache size per firewall.

Session resiliency can't be enabled on existing VM-Series firewall instances; only on newly deployed instances.

Enable session resiliency on the VM-Series firewall by passing the configuration as part of a bootstrapping init-cfg.txt file or in the user data field.

Bootstrap Parameter	Description
op-command-modes=mgmt-interface-swap	Allows you to swap the management interface (MGT) with the dataplane interface (ethernet 1/1) when deploying the firewall. For details, see Management Interface Swap for Google Cloud Platform Load Balancing.
plugin-op-commands=set-sess-ress:True	Enables session resiliency.
redis-endpoint=	Provide the IP address or FQDN and port of your Redis endpoint.
redis-auth=	Optional The auth code your VM-Series firewall uses to connect with the Redis endpoint.
redis-certificate=	OptionalThe root CA certificate string used to connect to the Redis endpoint. The certificate must be a base64-encoded string using utf-8 encoding.

1. Deploy your Redis cache.
2. Prepare your boostrap file.

   op-command-modes=mgmt-interface-swap
   plugin-op-commands=set-sess-ress:True
   redis-endpoint=<redis-IP-address:port>
   redis-auth=<redis-auth-code>
   redis-certificate=

3. Bootstrap your VM-Series firewalls.
4. Log in to the firewall.
5. Create an address object for the load balancer frontend IP address.

   1. Select Objects Address and click Add.
   2. Enter a descriptive Name.
   3. Set the Type to IP Netmask and enter the load balancer frontend IP address.
   4. Click OK.
6. Create a loopback interface to send health check packets to the load balancer.

   1. Select Networking InterfacesLoopback and click Add.
   2. Enter a descriptive Name.
   3. On the Config tab, set the Virtual Router to default and the Security Zone to your trust zone.
   4. On the IPv4 tab, add the address object you created previously.
   5. Click OK.
7. Create a Management Profile.

   1. Select Network Network Profiles Interface Mgmt and click Add.
   2. Enable Ping, SSH, HTTPS, and SNMP.

      Don't enable HTTP or Telnet because those protocols transmit in cleartext and therefore are not secure.
   3. Click OK.
8. Add your Management Profile to your loopback interface.

   1. Select NetworkInterfaces, select your loopback interface.
   2. Select AdvancedOther info and select the Interface Management Profile you just added.
   3. Click OK.
9. Commit your changes.
