Components of a HSF Cluster
The HSF cluster comprises an AI-Gateways node and an AI-DP-node. Each of these nodes
constitutes an independent AI runtime VM instance.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
|
The HSF cluster comprises an AI-Gateways node and an AI-DP-node. Each of these nodes
constitutes an independent AI runtime VM instance. Interconnectivity between the nodes
is facilitated by cluster control and data links. Traffic ingress and egress from the
cluster are exclusively routed through the external interfaces within the AI-Gateways
nodes, which subsequently distribute traffic to other nodes for processing.

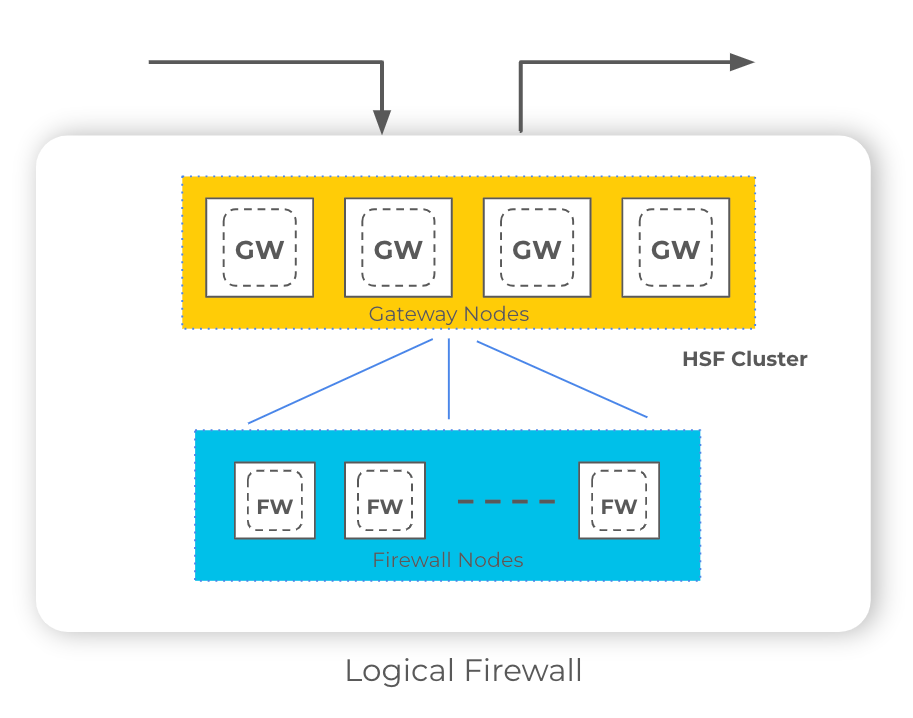

AI-Gateway
You can configure up to 1-4 AI-Gateways (minimum 2 is recommended for resiliency)
instances to meet your throughput requirements. Node IDs 1-4 are allocated to them.
Your peer router or switch distributes traffic across these instances using ECMP or
link aggregation. AI-Gateway instances offer full firewall functionality and can
load balance sessions to AI-DP firewall instances based on session load and
availability. In some scenarios, they can also forward traffic to other AI-Gateway
instances within the cluster.
AI-Gateway instances are statically provisioned and do not support
dynamic autoscaling. However, you can manually add or remove instances from the
cluster and vertically scale them by adding more CPU and memory resources to
existing instances. For optimal performance and consistency, ensure that all
AI-Gateway instances have the same resource footprint.
AI-DP
The AI-DP nodes are optional components in your network architecture that provide
elastic, scalable firewall capacity. You can deploy these instances as part of a
cluster, where they interact exclusively with AI-Gateway instances and other AI-DP
firewall instances within the same cluster. In addition to performing security
inspection, the AI-Gateway instances are responsible for load balancing incoming
sessions across the AI-DP firewall instances, distributing traffic based on load and
other criteria. You have the flexibility to dynamically scale the number of AI-DP
firewall instances in the cluster, with initial support for up to 6 instances in the
first phase. Additionally, you can manually scale up individual VM-Series instances
vertically to meet increasing demands. It's important to note that there is no fixed
mapping between AI-DP firewalls and specific AI-Gateway instances. Any gateway
instance can communicate with any firewall instance within the cluster. These AI-DP
firewall instances run the same PanOS image as the AI-Gateway instances but are
bootstrapped with different parameters to define their specific role and
functionality within the cluster. You'll find that each instance in the cluster is
equipped with separate interfaces for management, cluster control, and cluster data,
facilitating efficient communication and data exchange between cluster members. The
AI-DP firewall instances, along with other cluster components, utilize the VM-Flex
license model for obtaining CPU core-based licenses and subscriptions, ensuring
proper licensing for your deployment.
