    Sample Configuration for Post vWAN Deployment

    Table of Contents

    Sample Configuration for Post vWAN Deployment

    Sample configuration for post vWAN deployments in CNGFW for Azure.
    Where Can I Use This?What Do I Need?
    • Cloud NGFW for Azure
    • Cloud NGFW subscription
    • Palo Alto Networks Customer Support Portal (CSP) account
    • Azure Marketplace subscription

    Post deployment

    After verifying the deployment, perform the following post deployment tasks:

    Create or update a rulestack

    To update an existing rulestack:
    1. In the Azure Resource Manager (ARM) console, click Rulestacks for the Cloud NGFW resource you want to configure. The rulestack associated with the Cloud NGFW service appears, along with the resource group.
    2. Modify the rulestack to add firewall rules. These rules allow some traffic while blocking specific traffic. By default, Cloud NGFW blocks all traffic. Search for the local rulestack you created previously using the global search option provided by the Azure portal.
    3. Select the previously created local rulestack associated with your Cloud NGFW subscription, then select Rules.
    4. In the Local Rules section, click Add. In the Add Rule window, modify the rules. For example, add a rule that allows traffic; complete the mandatory fields and use the default settings for remaining fields.
    5. Enable logging for the rule. In the Add Rule window, select Logging.
    6. Click Validate, then Add to add the rule to the rulestack.
    7. Add a FQDN list that specifies a URL, then specify an action to take. For example, you can apply an action to the FQDN rule to drop traffic attempting to access the URL www.facebook.com.
      Verify that the URL you entered appears in the FQDN list.
    8. Return to the Rules setting page and add a rule that matches the newly created FQDN list. Set the action to Drop traffic.
      Both rules appear in the Local Rules page.

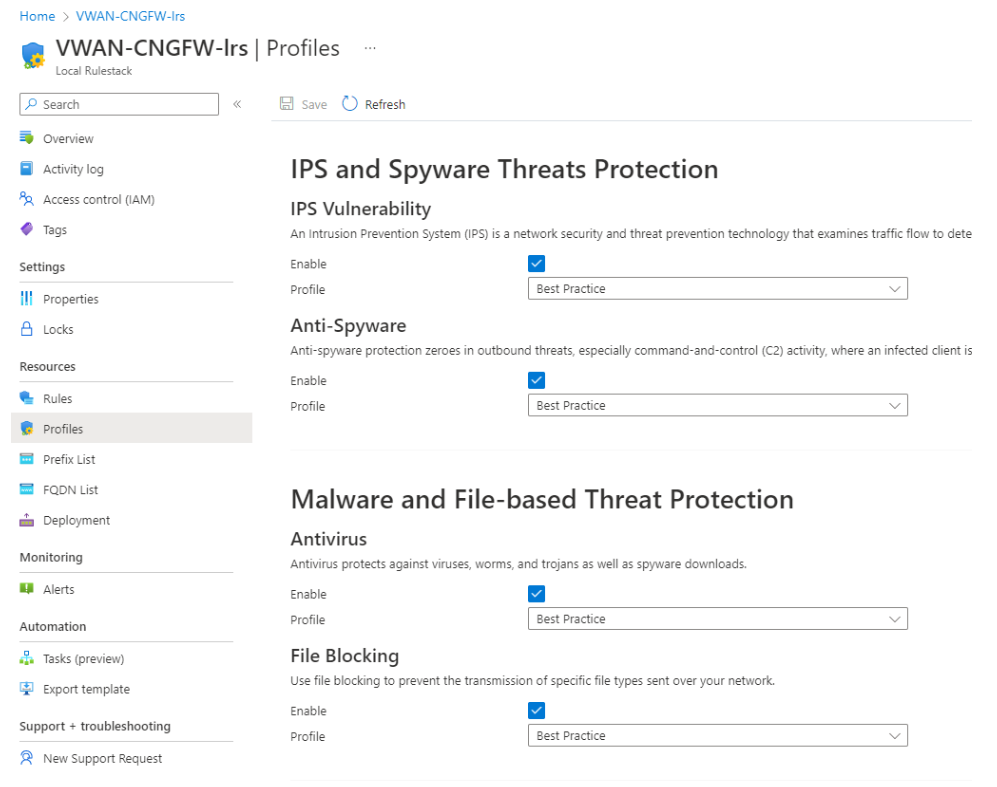

    9. As part of the Cloud NGFW service, security profiles are enabled with best practice configurations by default. Traffic is secured with the best security profiles when you start and deploy the service. Select Profiles to view these security profiles.
    10. After modifying rules, deploy them onto the local rulestack associated with the Cloud NGFW service. Click Deployment. The deployment status appears as Candidate; this means that the configuration was built but not yet deployed. Click Deploy Configuration to deploy the configuration onto the Cloud NGFW service. You must complete this step to deploy the rulestack.
    11. After clicking Deploy Configuration, a message displays the firewalls associated with the rulestack. Click Deploy to configure this rulestack on all the associated firewalls using the rulestack.
      After successfully deploying the configuration, the screen displays the deployment status as Running (the Cloud NGFW and local rulestack are successfully deployed).

    Source/destination NAT rule on the Cloud NGFW

    Configure a destination NAT rule with frontend configuration on the Cloud NGFW to direct inbound traffic towards an application on the vWAN.
    1. Access the Networking & NAT settings screen for the Cloud NGFW resource. In this screen, determine if the network type is Virtual WAN Hub and the status of the Source NAT field (enabled or disabled); if Source NAT was enabled, it appears in this screen.
    2. Click Edit to add the Destination NAT rule.
    3. Add a Destination NAT rule for the frontend configuration. The frontend IP address represents the public IP address associated with the Cloud NGFW. Use the drop-down menu to select the address.
    4. Add frontend setting information to the rule, and click Add.
      Once the destination NAT rule is added, click Save to deploy the configuration to the Cloud NGFW resource.
      After successfully saving the configuration, the Destination Network Address Translation (DNAT) field displays the updates; the address http://frontendIP:8080 is redirected to the noted application on the specified port through the Cloud NGFW; inbound traffic is now flowing through the Cloud NGFW.

    Configure Logging

    Before configuring logging on the Cloud NGFW, create the Log Analytics workspace on Azure.
    1. In the Azure portal search for the Azure Log Analytics workspace. Click Log Analytics Workspaces to add it as a service.
    2. Click Create to establish a new Log Analytics workspace.
    3. In the Create Log Analytics workspace provide Instance details. Select the Name of the workspace from the drop-down menu, and specify the Region.
    4. Configure log settings in the Cloud NGFW resource. Select Log Settings. Click Edit.
    5. In the Log Settings field, select the Log Analytics workspace previously created, then click Save.

    Add application vNETs as Virtual Networks Connections to the Virtual WAN

    Add an application vNET as Virtual Network Connections to the Virtual WAN hub.
    1. In your vWAN resource, select Virtual Network Connections.
    2. Click Add connection.
    3. Select the vNET you want to configure as the Virtual Network, then click Create.
    4. Select another vNET for the second Virtual Network, then click Create.
    5. After successfully connecting the virtual networks to the vHub, verify that the status is Connected.

    Configure vWAN Hub Routing Intent and Routing Policies

    Routing policies within the virtual WAN hub are used to route traffic through the Cloud NGFW service. To route internet bound traffic and private traffic (spoke to spoke) you need to configure the next hop as the vWAN Cloud NGFW.
    1. In your vWAN resource, select Routing Intent and Routing Policies.
    2. Select the Internet traffic and the Next Hop Resource from the drop-down menus, then click Save.
    3. After configuring routing policies, verify the routing table was updated to route traffic through Cloud NGFW. Click Route Tables and select Default in the Route Tables section.
      You can Edit the route table to provide details related to the routes associated with the Default Routing table. Traffic going out to the internet or to other vNETs is routed through the Cloud NGFW.
    4. Select another vNET for the second Virtual Network, then click Create.
    5. After successfully connecting the virtual networks to the virtual WAN hub, verify that the status is Connected.
