Install Antennas in the

ION

1200-S

The

ION

1200-S-C-NA,

ION

1200-S-C-ROW, and

ION

1200-S-C5G-WW devices support multi-band antennas which can be easily secured to the device. The

ION

1200-S-C-NA and

ION

1200-S-C-ROW have three antenna SMA (F) connectors. The

ION

1200-S-C5G-WW has four antenna SMA (F) connectors.

Feature	Description
Antennas	Multi–Band 4G / 5G Antenna 4G - 3x SMA Antenna connectors 5G - 4x SMA Antenna connectors
Frequency Range	615-960MHz / 1500-1600MHz / 1710-2690MHz / 3300-3700MHz
Peak Gain	2.3dBi in 800MHz band, 4.4dBi in 1575MHz band, 2.6dBi in 2170MHz band, 1.7dBi in 3300MHz band, 3.8dBi in 4400MHz band
VSWR	<3:1
Feed Impedance	50Ω
Power Handling	30 dBm
Interface	SMA (F) Connectors
Antenna Dimensions	229 mm x 28 mm x 14 mm (L x W x T)

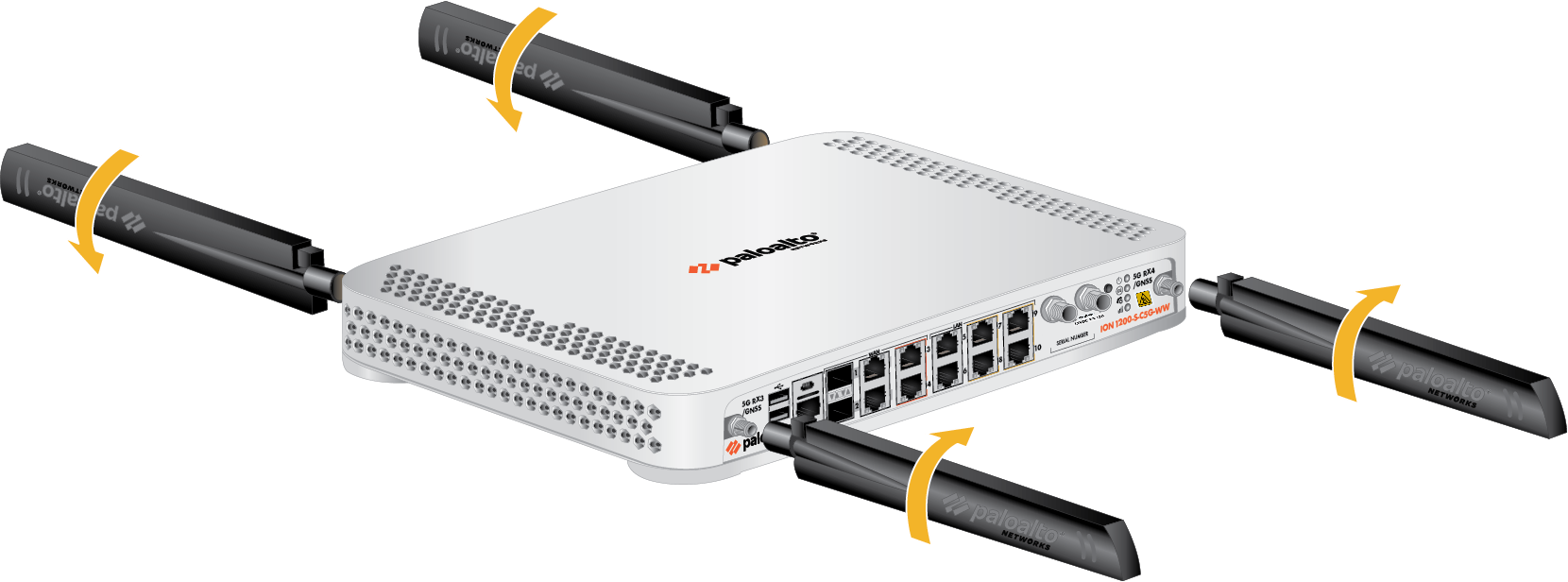

Secure the antennas to the SMA connectors located at the corners of the device.
Rotate the antennas at 180-degree movement about the SMA connectors. Tighten the antennas by hand.

Adjust the antenna orientation to receive optimal signal strength in your environment.
It is recommended to conduct a cellular location assessment of the site to receive best signal strength before installing the
ION
device.
Position the antennas to receive optimal cellular signal strength. Check the signal strength on the
ION
device by viewing the Cellular LED signal strength indicator or on the
Prisma SD-WAN
web interface.
Do not place the antennas close to, or pointing to one another, or layover one another.
Make sure the power cables do not cross over the antennas to avoid signal quality distortion and antenna performance degradation.
When installing the
ION
device on a wall or a desktop, it is recommended to orient the antennas upright and slanted slightly outwards, not exceeding 45 degrees, to improve the signal quality.
