Juniper Mist Integration for SASE Health

1. Configure Juniper Mist API Access.

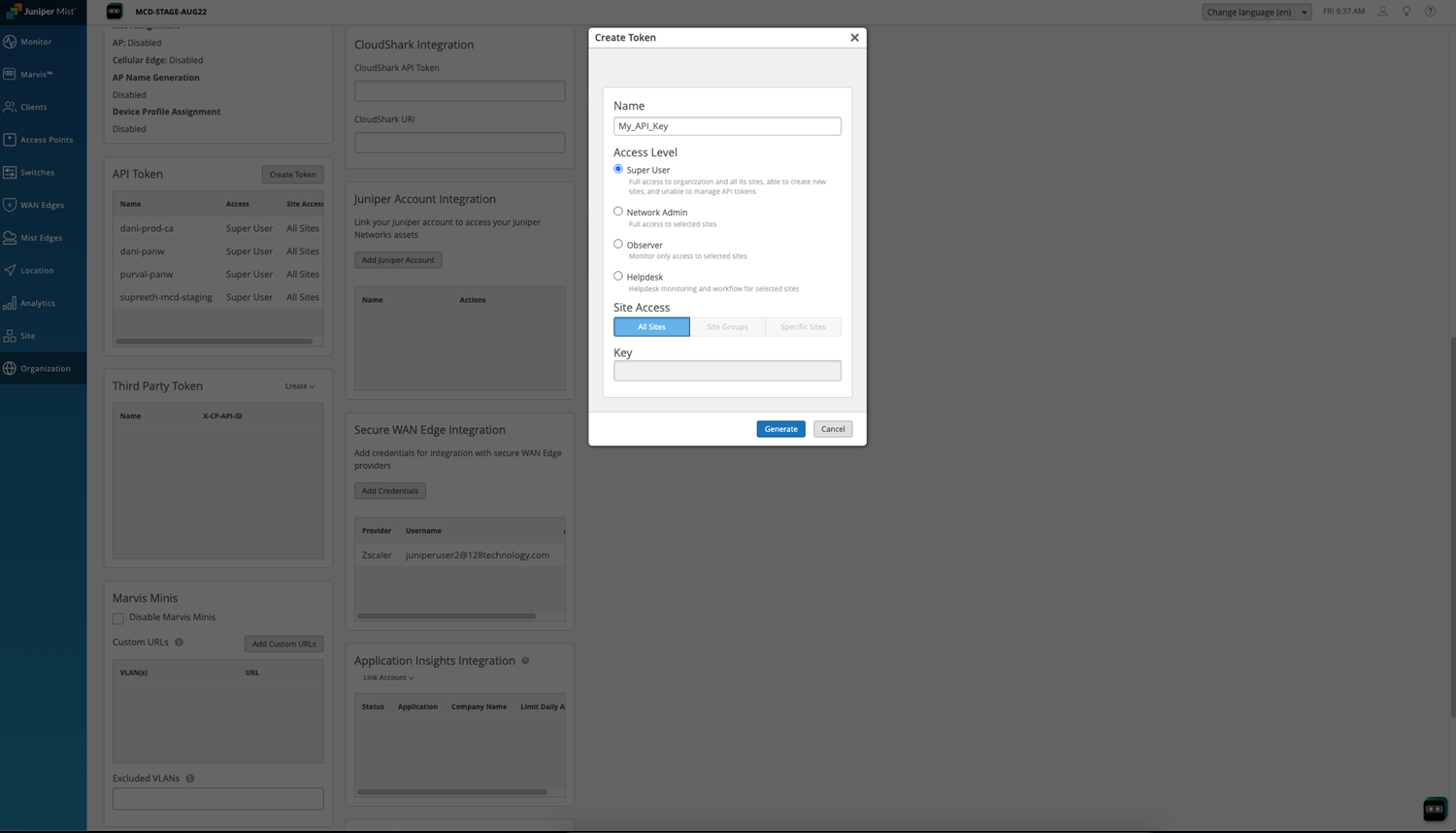

   1. Navigate to Organization SettingsAPI Access in the Juniper Mist portal.
   2. Generate an API token for authentication between Juniper Mist and Prisma Access.
   3. Ensure the API token has read access to necessary resources (APs, Switches, WAN Edge), and Alerts/Incidents.

   4. Copy and securely save this API token, as it will be required later in the Juniper Mist integration process. It will not be visible again after you leave this page.
2. Configuring visibility on Strata Cloud Manager with Juniper Mist Integration in Prisma Access.

   1. In Strata Cloud Manager, go to System SettingsIntegrationsPrisma Access.

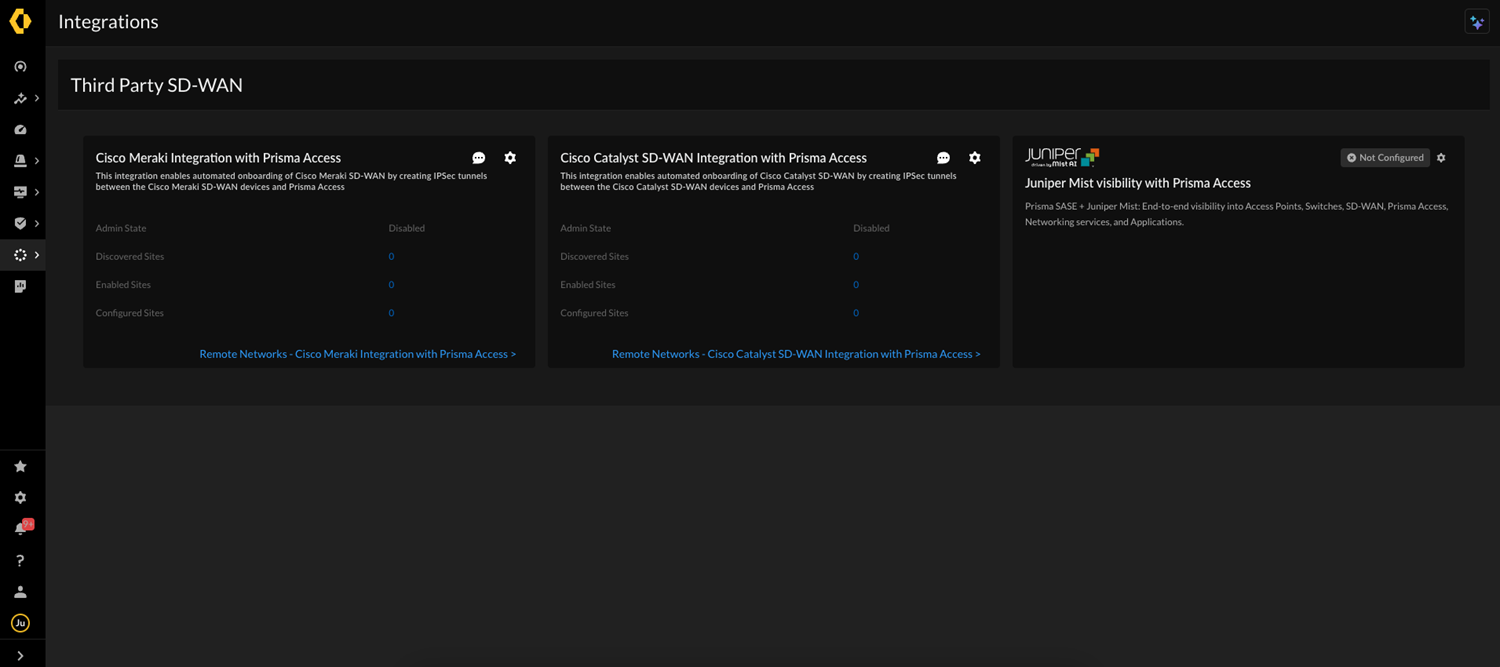

   2. Locate the Juniper Mist visibility with Prisma Access application in the Third Party SD-WAN screen.

      Contact your Palo Alto Networks account team if you don’t see this integration option.

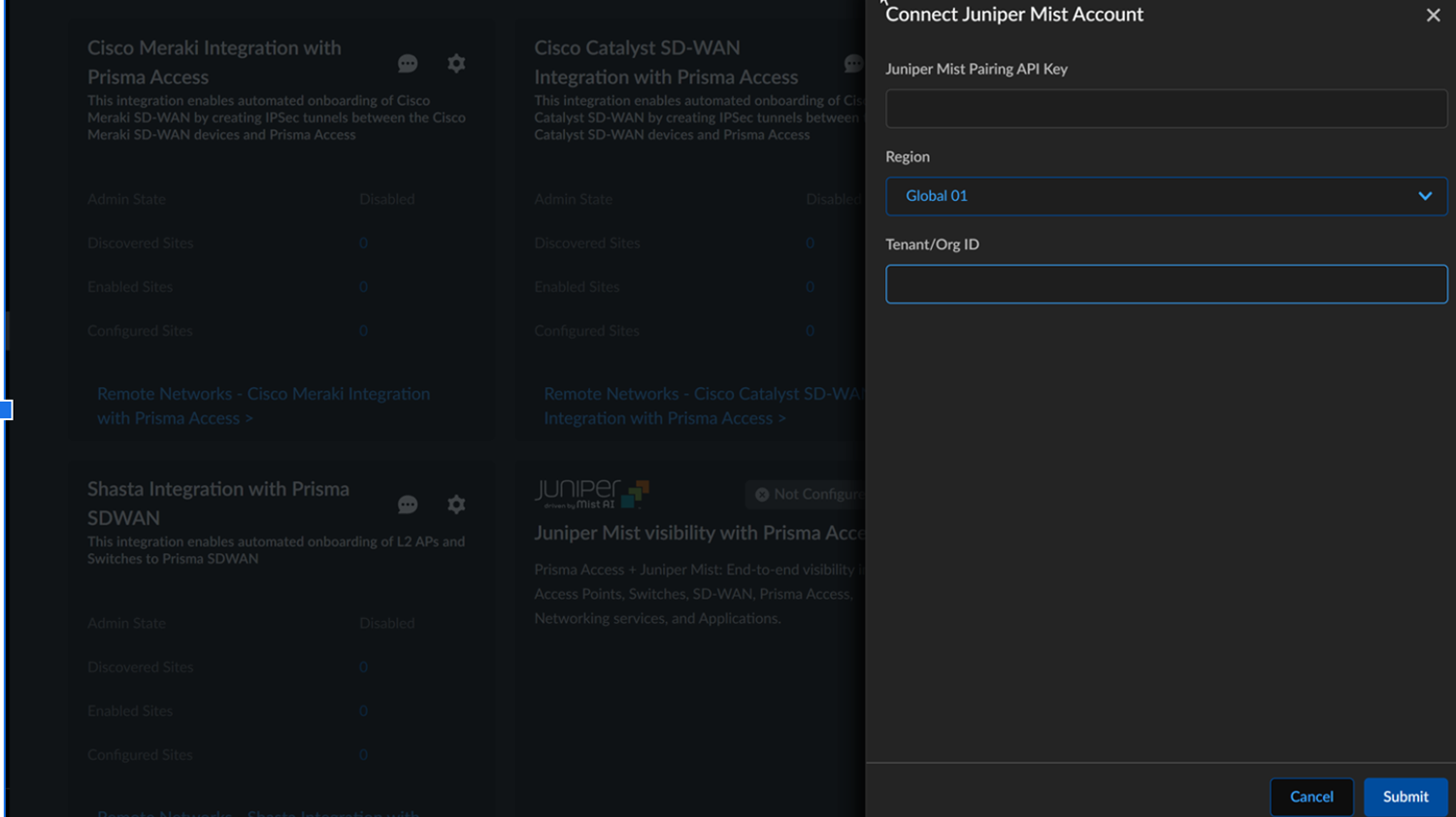

   3. Enter the information to establish a connection between Prisma Access and Juniper Mist by editing the Settings.

      1. Enter Juniper Mist Pairing API Key generated previously from the Juniper Mist dashboard, and enter the key information.
      2. Select the Region associated with the Juniper Mist organization.

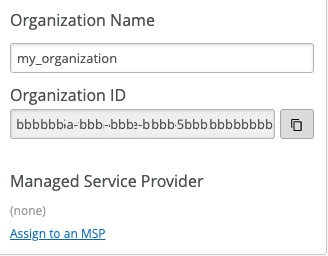

      3. Enter the Organization ID configured in the Juniper Mist web interface.

   4. Save the changes.

      Once complete, the integration maps Prisma Access for Networks branch sites based on the tunnels set up between Juniper Mist site's WAN Edge and Prisma Access (PA) locations. If the tunnels are active, the site is mapped and starts appearing as a Third Party Juniper Mist Site.
3. Monitor the Jupiter Mist Third Party Integration Sites.

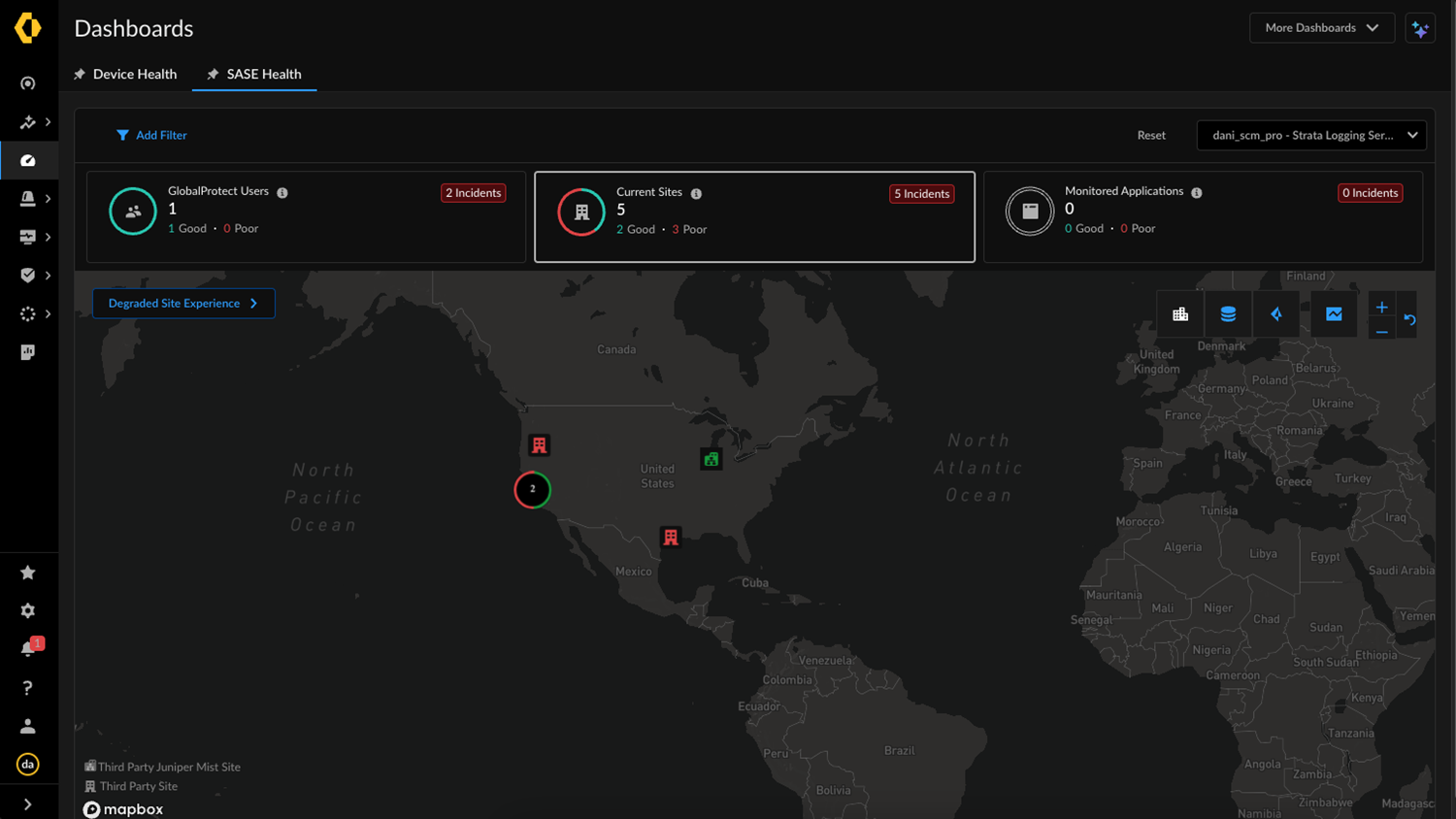

   In Strata Cloud Manager, the SASE HealthCurrent Sites dashboard provides an overview of configured third-party sites, including Juniper Mist sites. It displays the total number of connected sites, the number of sites with a Good or Poor (degraded) experience, and the total number of incidents across all sites. A site is considered to have a Poor experience if it has any open incidents. Strata Cloud Manager primarily use green and red color coding for visual indication.

   A site's experience may be considered degraded based on open incidents, which are categorized into infrastructure, network services, data centers (indicating unreachable data centers), and third-party sites. Additionally, new segments include Juniper Mist Access Points, Juniper Mist Switches, Juniper Mist WAN Edges, and Juniper Mist Network Services. Juniper Mist branch sites are marked with a Juniper Mist icon. While there can be multiple sites, at least one site must have tunnels to a Prisma Access location for a third-party site to be mapped as a Juniper Mist third-party site.

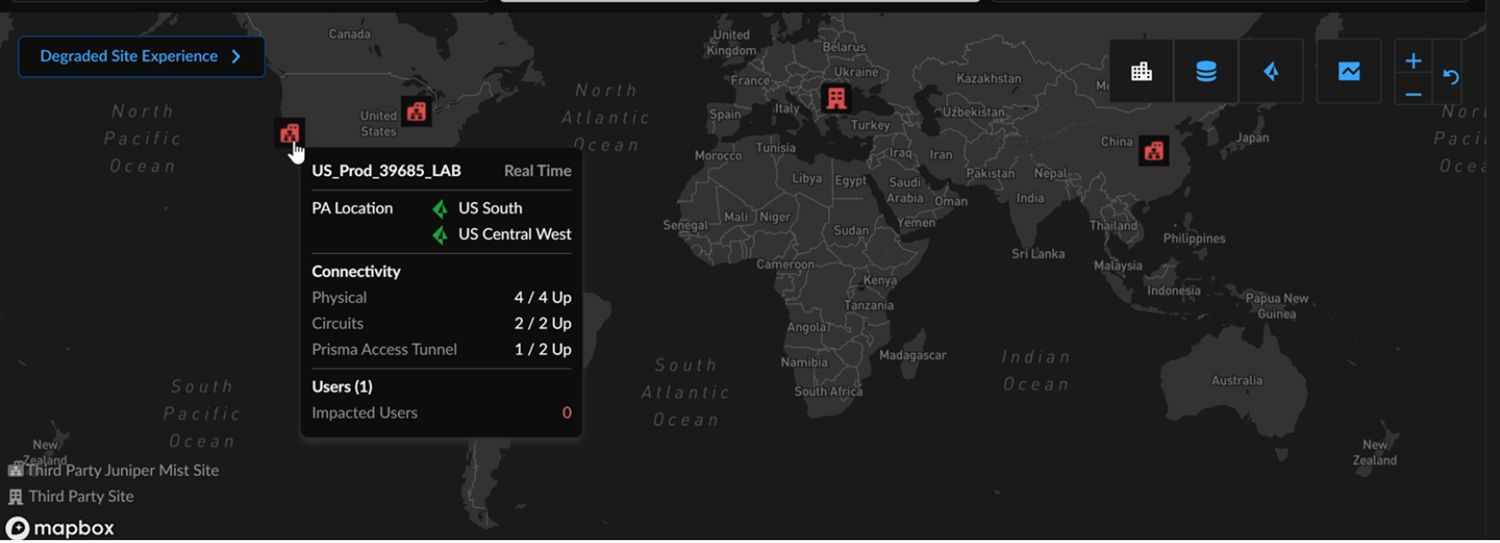

   1. Hover over a Juniper Mist branch site to view site details, including the Prisma Access locations (Primary and Secondary), connectivity information (physical/circuits and Prisma Access tunnel status), and user information.

      Polling data may have up to a 10-minute delay. An approximate count of connected and impacted users is shown for the given site. An impacted user count greater than 0 is derived from Juniper Mist Network Services type incidents.

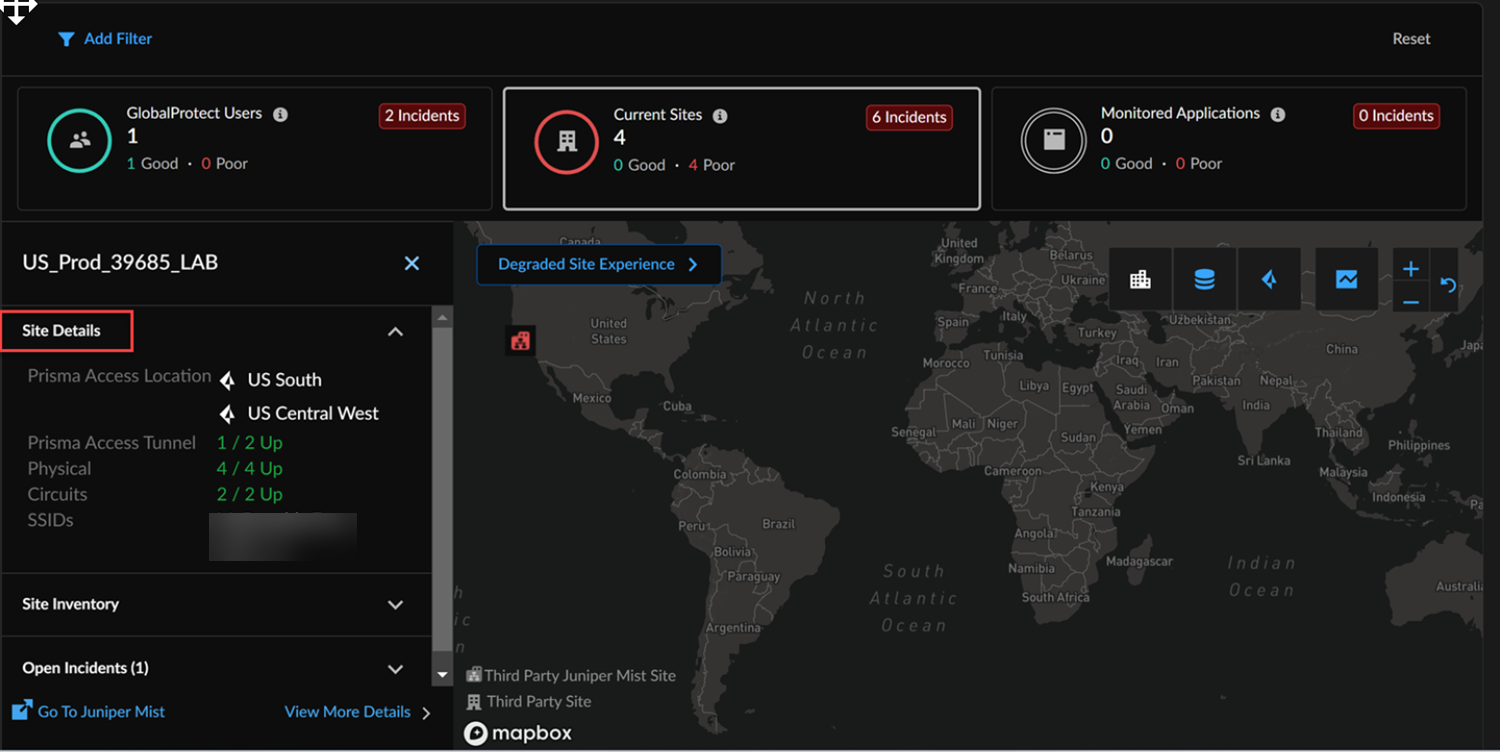

   2. Select a Branch Site to view the Site Details in the left panel, including Prisma Access locations, tunnel status, physical/circuit WAN Edge device information, and available networks by hovering over SSIDs. These details are sourced from Juniper Mist and Prisma Access.

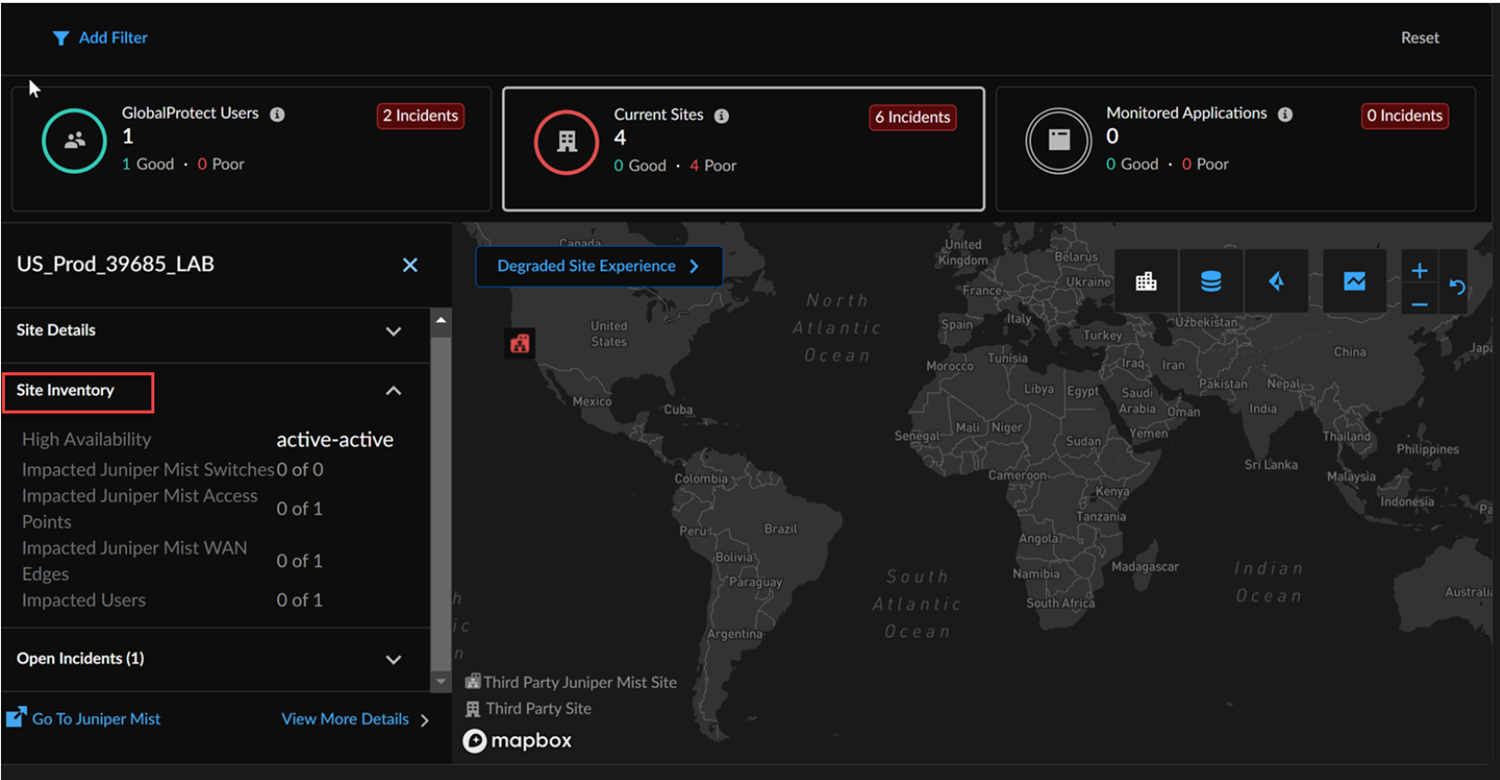

   3. Select Site Inventory to view high availability of the Juniper Mist site configuration. It also shows the number of impacted users along with the impact reason.

      The following are the alert categories in Juniper Mist:

      • Access Point (AP): Alerts related to the status and performance of wireless access points.
      • Switch: Notifications concerning switch operations and connectivity.
      • WAN Edge: Alerts pertaining to WAN edge functionality issues.
      • Connectivity: Warnings about network connectivity problems, including authentication failures, DHCP issues, ARP anomalies, and DNS resolution failures.

      This document has the complete list of all available Juniper Mist Marvis alerts.

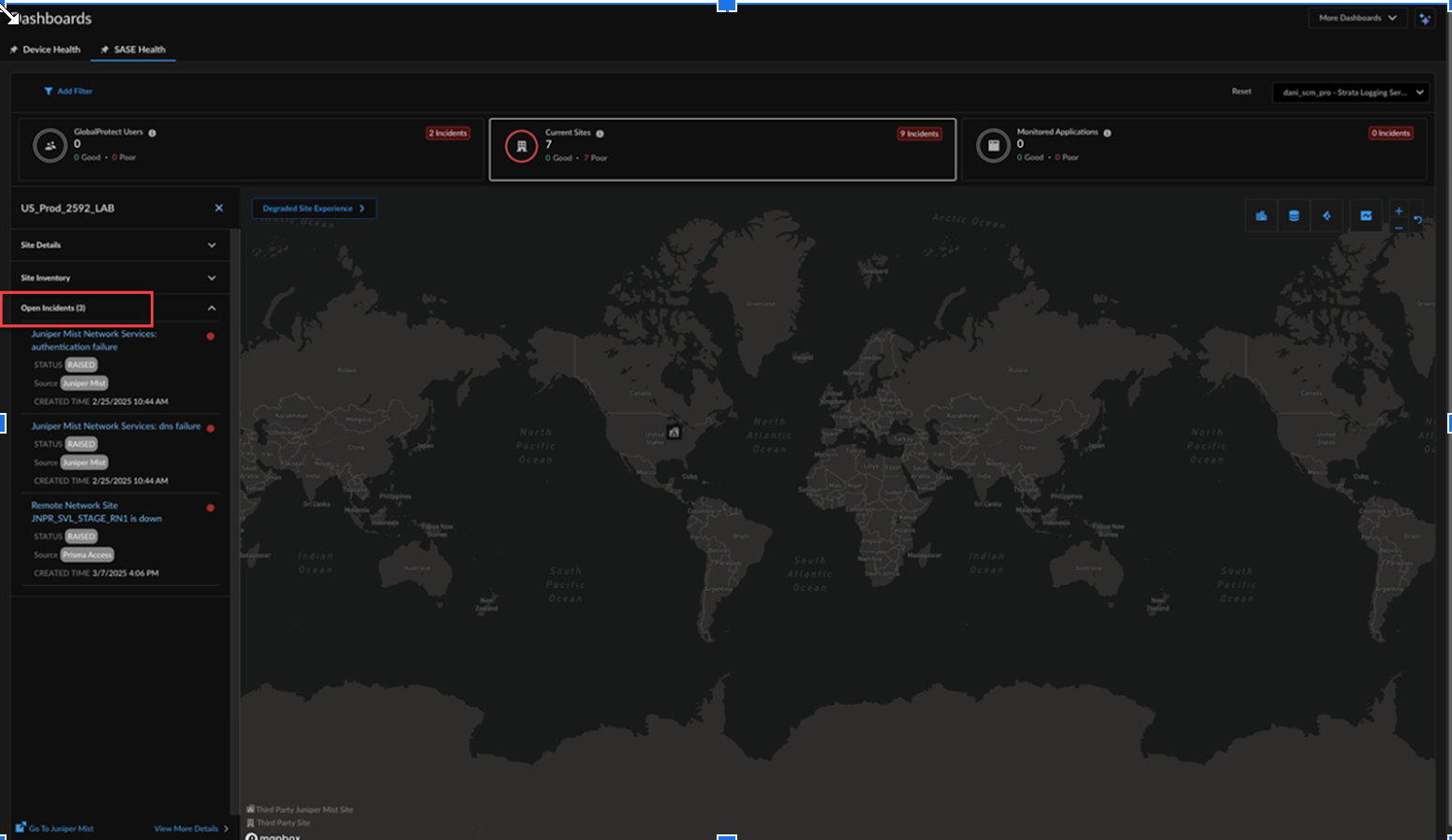

   4. Select Open Incidents to view details such as incident status, source, and time of incident creation. Clicking on a Juniper Mist source type incident opens the Juniper Mist Incident View for more information, while Prisma SASE incidents redirect to the Incidents & Alerts page on Strata Cloud Manager.

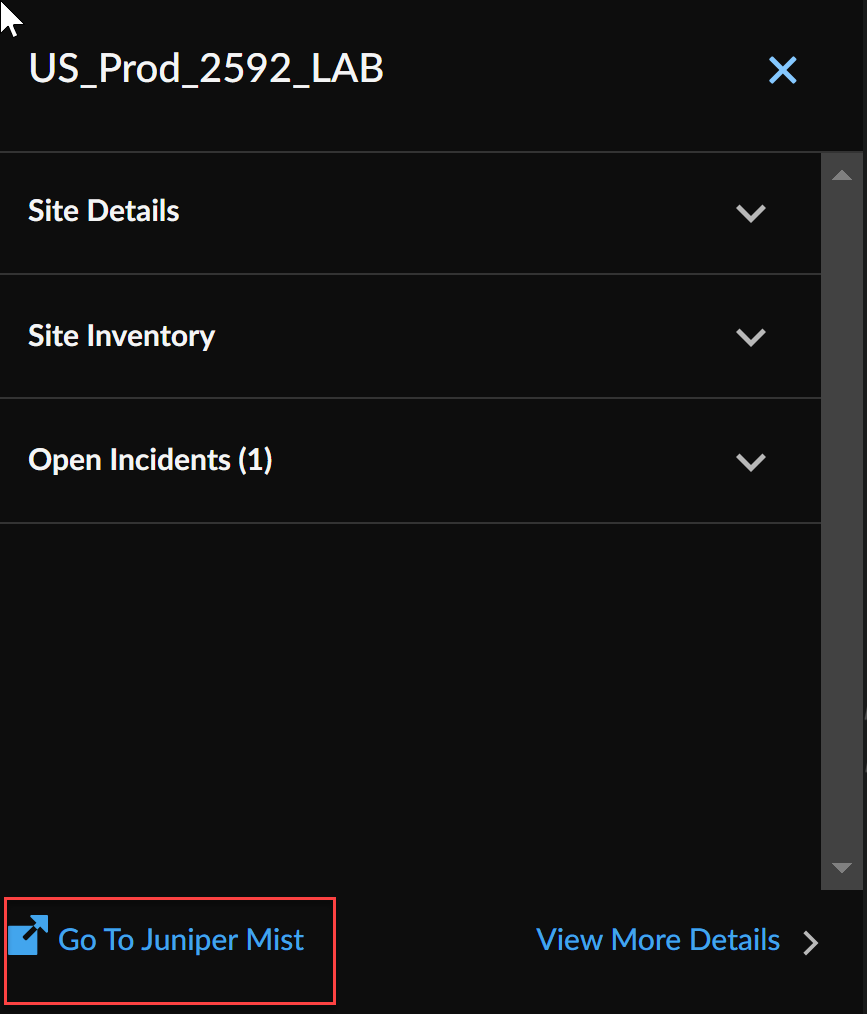

   5. Select Go to Juniper Mist to navigate to the Juniper Mist page, pre-filtered for the specific branch site.

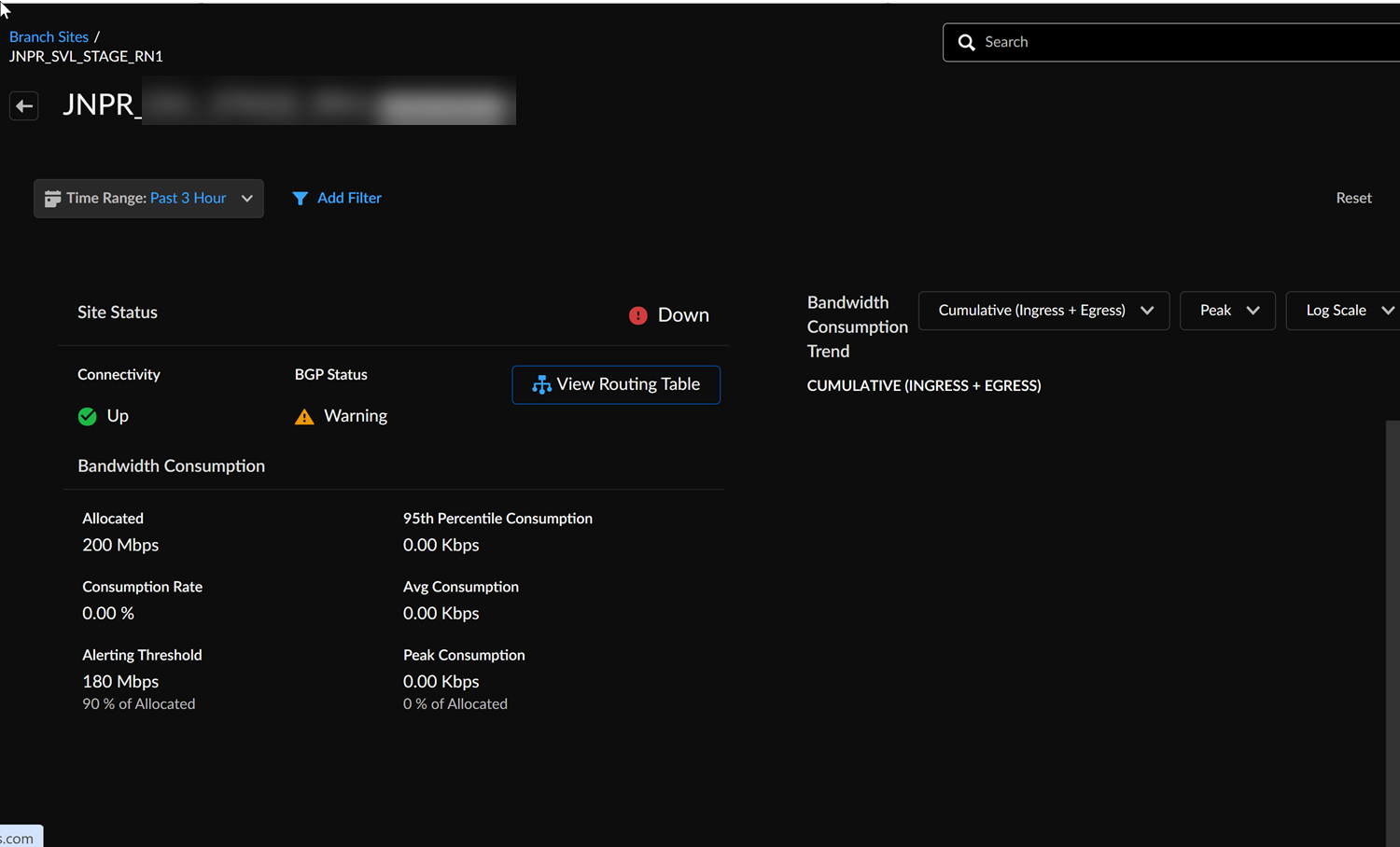

   6. Click View More Details to view the Prisma Access for Networks branch site details.

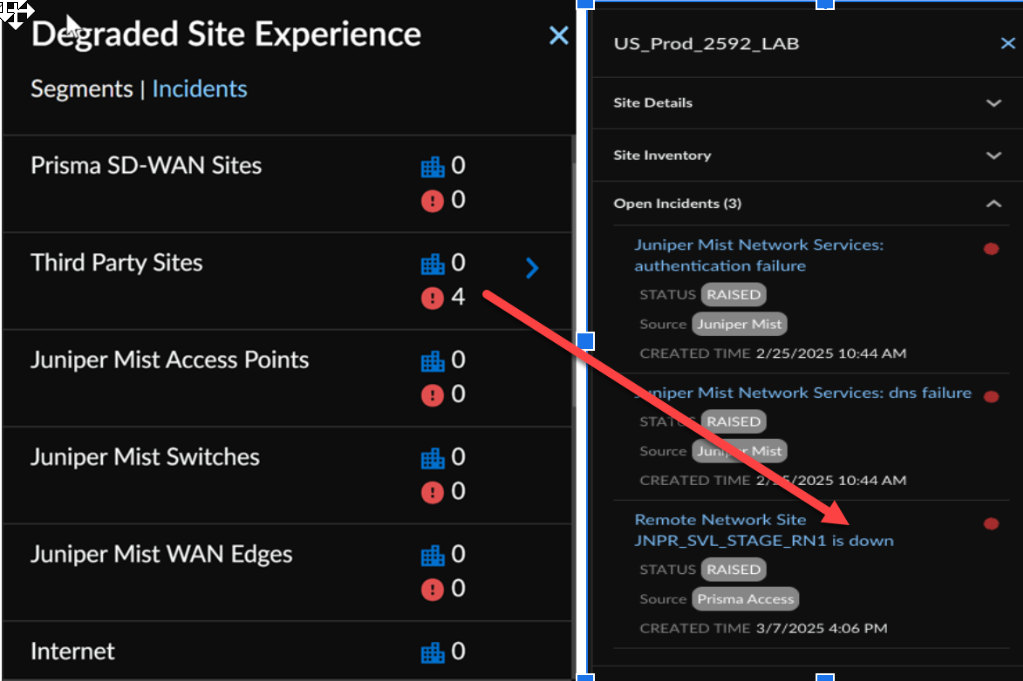

   7. Select Degraded Site Experience to view data categorized by Incidents and Segments. When navigating from SegmentsIncidents, only incidents related to that segment are displayed. Selecting Incidents directly will show a complete list of all incidents. You can further drill down into a specific incident by selecting the one you want to investigate.

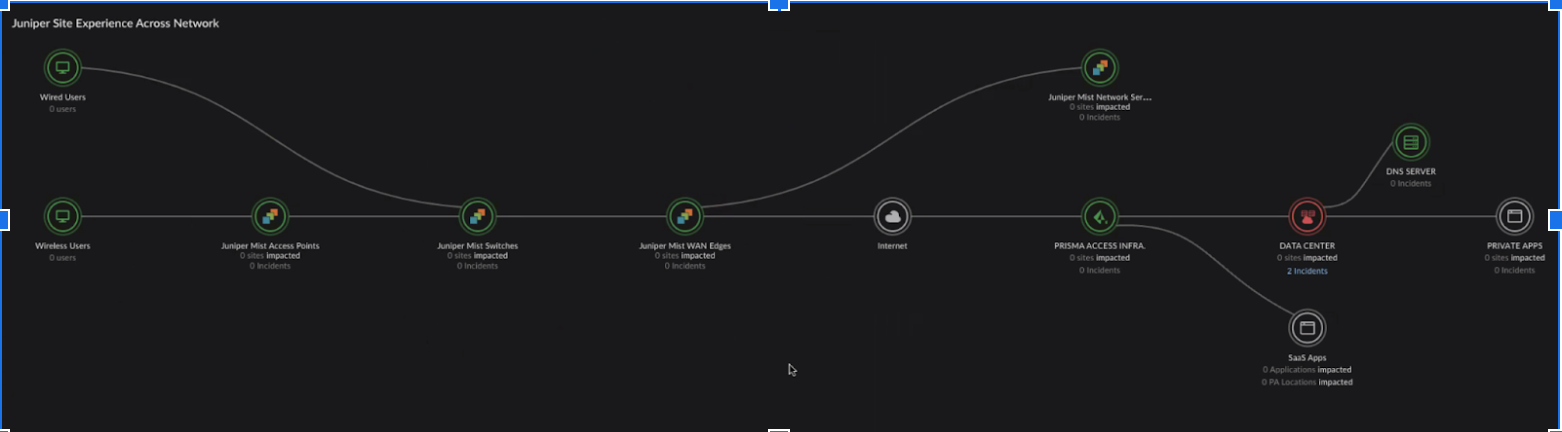

   8. Select the Experience Trends & Network Topology icon to view a time series, followed by the end-to-end topology chart for Prisma SASE and Juniper Mist.
