Prisma SD-WAN
Check Tunnel Status
Table of Contents
Check Tunnel Status
Check tunnel status on Prisma Access for both the Panorama managed and Cloud managed
CloudBlades.
| Where Can I Use This? | What Do I Need? |
|---|---|
|
Supported CloudBlades:
|
|
Check the tunnel status on Prisma Access for Panorama Managed and Cloud Managed
CloudBlades.
Check Tunnel Status (Panorama Managed CloudBlade)
Check the tunnel status of the Panorama managed CloudBlade).

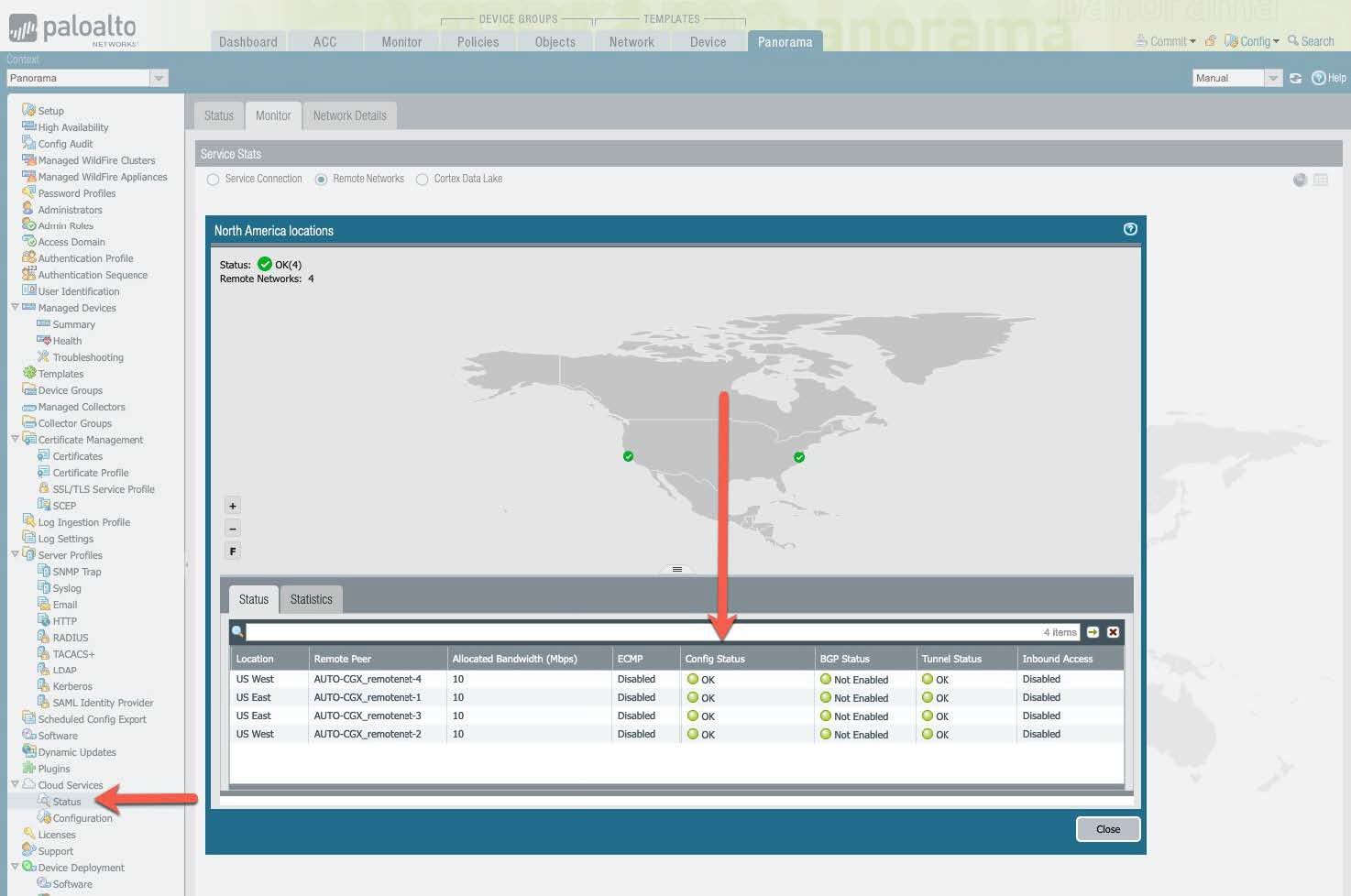

Verify the status of all tunnels via .

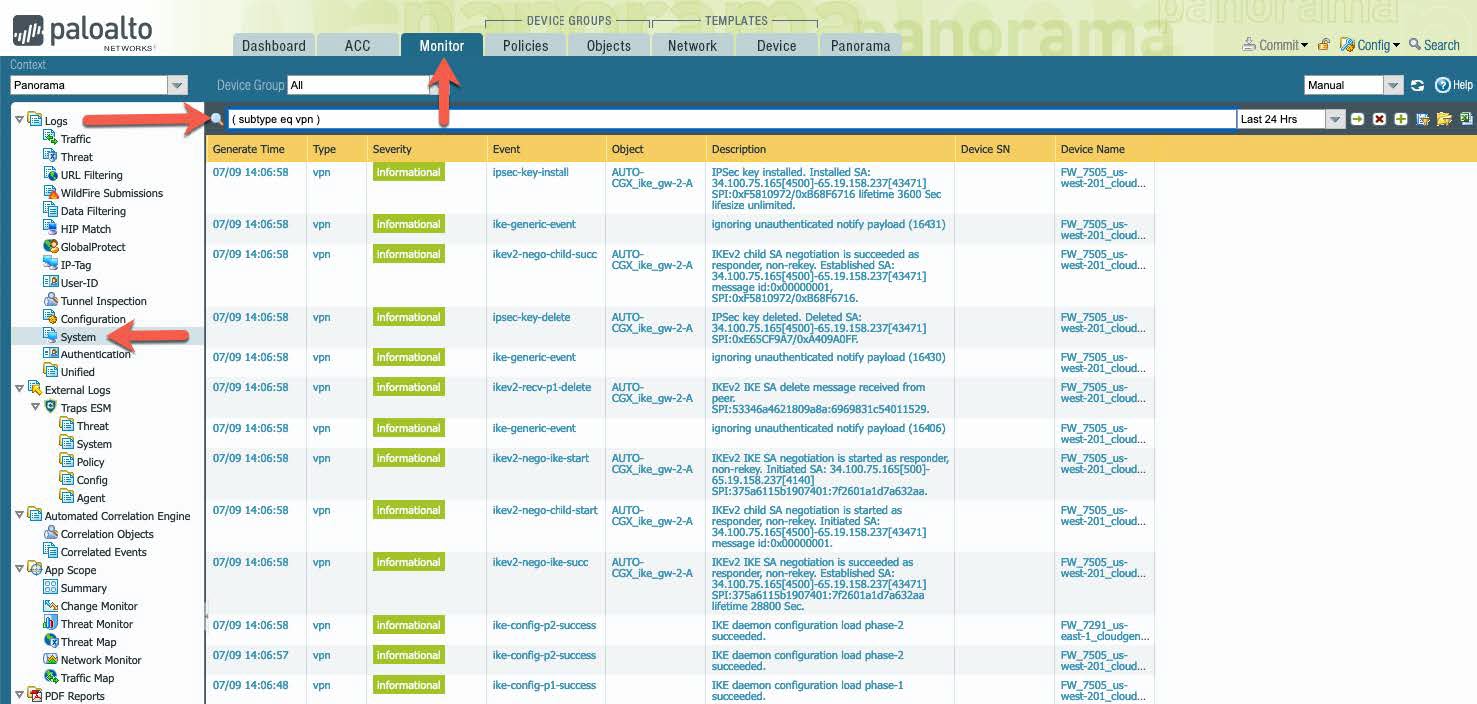

For more details check the logs for IPsec and IKE negotiation messages under with the filter (subtype eq vpn) applied.
Check Tunnel Status (Cloud Managed CloudBlade)
Check the tunnel status of the Cloud managed CloudBlade.
If you're using Strata Cloud Manager, go
to and select the Remote Networks tab.
The Tunnel status indicates the operational status of the remote
network. If the tunnel status shows OK, it indicates that the
tunnels are established and traffic is flowing. If there are errors or warnings, review
the system log in Prisma Access.
The Config indicates difference between the applied (running)
configuration and local (candidate) configuration. If you have made a change locally,
and not yet pushed the configuration, the status shows Out of
sync. Hover over the status indicator for more detailed information. To
change the config status to In sync, commit and push the
configuration to Prisma Access.
