Collect Application and Process Data From Endpoints
The Windows Registry and macOS plist can be
used to configure and store settings for Windows and macOS operating
systems, respectively. You can create a custom check that allows
you to determine whether an application is installed (has a corresponding
registry or plist key) or is running (has a corresponding running
process) on a Windows or macOS endpoint. Enabling custom checks
instructs the GlobalProtect app to collect specific registry information (Registry
Keys and Registry Key Values from Windows endpoints) or preference
list (plist) information (plist and plist keys from macOS endpoints).
The data that you define to be collected in a custom check is included
in the raw Host
Information data collected by the GlobalProtect app and then
submitted to the GlobalProtect gateway when the app connects. For
more information on defining app settings directly from the Windows
Registry or the global macOS plist, see Deploy App Settings Transparently.
To
monitor the data collected with custom checks, you can create a
HIP object. You can then add the HIP object to a HIP profile to
use the collected data to match to endpoint traffic and enforce
security rules. The gateway uses the HIP object (which matches to
the data defined in the custom check) to filter the raw host information
submitted by the app. When the gateway matches the endpoint data
to a HIP object, a HIP Match log entry is generated for the data.
The HIP profile also allows the gateway to match the collected data
to a security rule. If the HIP profile is used as criteria for a
security policy rule, the gateway enforces that security rule on
the matching traffic.
Use the following steps to enable custom
checks to collect data from Windows and macOS endpoints. This workflow
also includes optional steps to create a HIP object and HIP profile
for a custom check, which allows you to use endpoint data as matching
criteria for security policies to monitor, identify, and act on
traffic.
On Windows and macOS devices, when you configure
Custom
Checks
such as to collect registry or plist entries, GlobalProtect

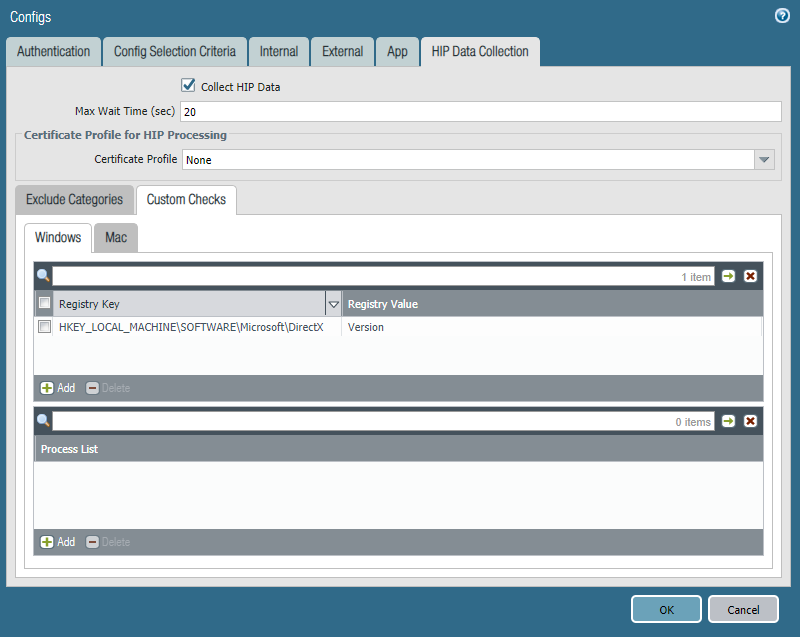

hides this information in the Host Profile summary of the GlobalProtect app.- Enable the GlobalProtect app to collect Windows Registry information from Windows endpoints or plist information from macOS endpoints. The type of information collected can include whether or not an application is installed on the endpoint, or specific attributes or properties of that application.Collect data from a Windows endpoint:
- Select.NetworkGlobalProtectPortals
- Select an existing portal configuration orAdda new one.
- On theAgenttab, select the agent configuration that you want to modify orAdda new one.
- SelectHIP Data Collection.
- Enable the GlobalProtect app toCollect HIP Data.
- Select, and thenCustom ChecksWindowsAddtheRegistry Keythat you want to collect information about. If you want to restrict data collection to a value contained within that Registry Key, add the correspondingRegistry Value.

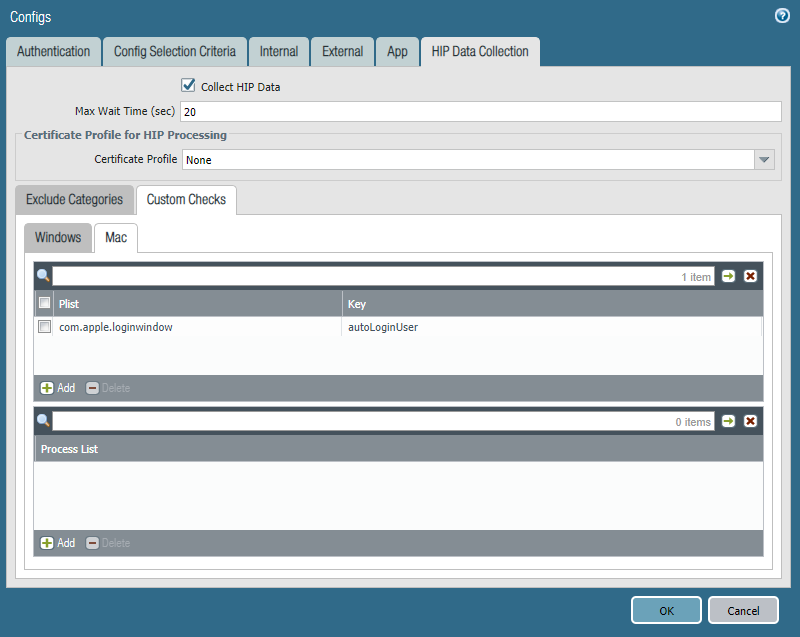

Collect data from a macOS endpoint:- Select.NetworkGlobalProtectPortals
- Select an existing portal configuration orAdda new one.
- On theAgenttab, select the agent configuration that you want to modify orAdda new one.
- SelectHIP Data Collection.
- Enable the GlobalProtect app toCollect HIP Data

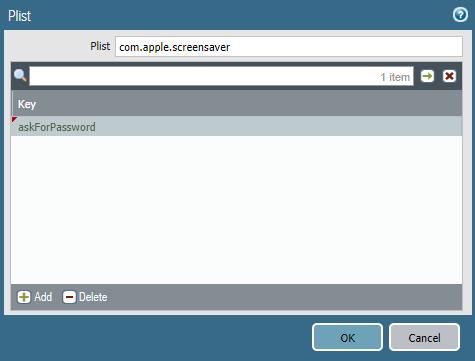

- Select, and thenCustom ChecksMacAddthePlistthat you want to collect information about and the corresponding plistKeyto determine if the application is installed.For example,AddthePlistcom.apple.screensaverand theKeyaskForPasswordto collect information on whether a password is required to wake the macOS endpoint after the screen saver begins:
- (Optional) Check if a specific process is running on the endpoint.
- Select.NetworkGlobalProtectPortals
- Select an existing portal configuration orAdda new one.
- On theAgenttab, select the agent configuration that you want to modify orAdda new one.
- SelectHIP Data Collection.
- Enable the GlobalProtect app toCollect HIP Data
- SelectorCustom ChecksWindowsMac.
- Addthe name of the process that you want to collect information about to theProcess List.
- Save the custom check.ClickOKandCommitthe changes.
- (Optional) Create a HIP Object to match to a Registry Key (Windows) or plist (macOS), which allows you to filter the raw host information collected from the GlobalProtect app to monitor the data for the custom check.With a HIP object defined for the custom check data, the gateway matches the raw data submitted from the app to the HIP object, and a HIP Match log entry is generated for the data ().MonitorHIP MatchFor Windows and macOS endpoints:
- Select.ObjectsGlobalProtectHIP Objects
- Select an existing HIP object orAdda new one.
- On theCustom Checkstab, select the check box to enableCustom Checks.

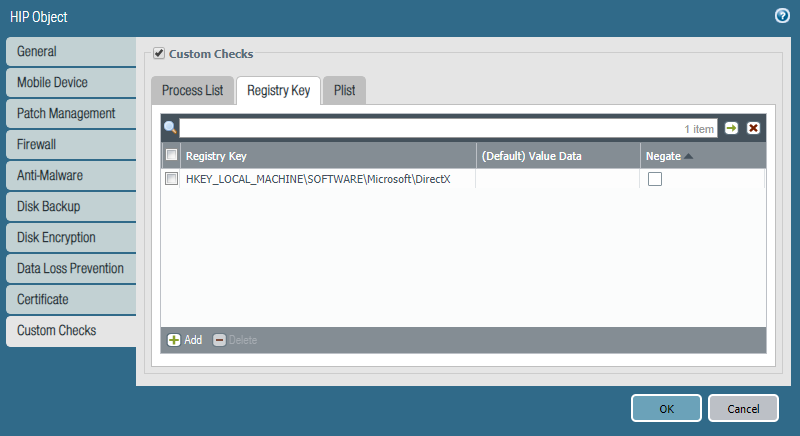

For Windows endpoints only:- To check Windows endpoints for a specific registry key, select, and thenCustom ChecksRegistry KeyAddthe registry key to match. When prompted, enter theRegistry Keyand then configure one of the following options:
- To match on the default value data for the registry key, enter the(Default) Value Data.
- To match endpoints that do not have the specified registry key, selectKey does not exist or match the specified value data.
Do not configure both the(Default) Value DataandKey does not exist or match the specified value dataoptions simultaneously. - To match on specific values within the registry key, select, and thenCustom ChecksRegistry KeyAddthe registry key to match. When prompted, enter theRegistry Key. ClickAddand then configure one of the following options:
- To match on specific values within the registry key, enter theRegistry Valueand correspondingValue Data.
- To match endpoints that do not have a specified registry value, enter theRegistry Valueand then select theNegatecheck box.To use this option, do not enter anyValue Datafor yourRegistry Key.
If you add more than one registry value to your registry key, the GlobalProtect gateway checks endpoints for all specified registry values. - ClickOKto save the HIP object. You canCommitthe changes to view the data in theHIP Matchlogs at the next device check-in or continue to step 6.

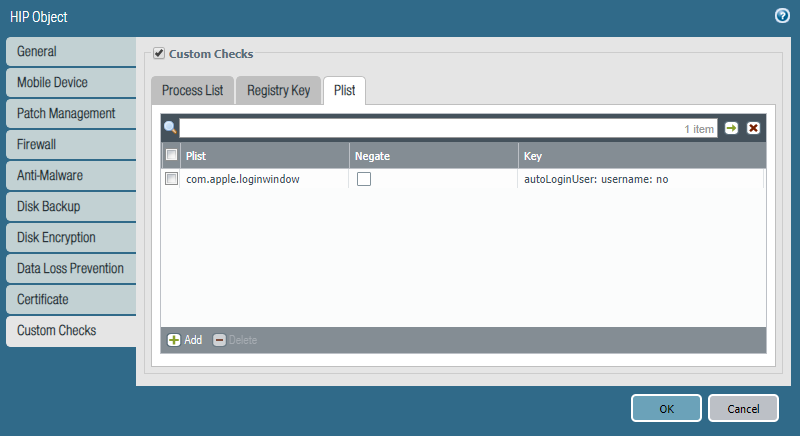

For macOS endpoints only:- To check macOS endpoints for a specific plist, selectPlist, and thenAddthe plist for which you to want to check. When prompted, enter the name of thePlist. If you want to match macOS endpoints that do not have the specified plist, enable thePlist does not existoption.
- To match on a specific key-value pair within a plist, selectPlist, and thenAddthe plist for which you to want to check. When prompted, enter the name of thePlistand thenAddaKeyand correspondingValueto match. Alternatively, if you want to identify endpoints that do not have a specific key and value, you can selectNegateafter you add theKeyandValue.
- ClickOKto save the HIP object. You canCommitthe changes to view the data in theHIP Matchlogs at the next device check-in or continue to step 6.

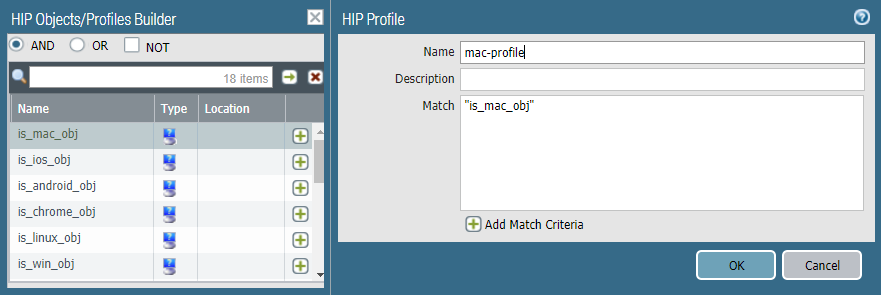

- (Optional) Create a HIP profile to allow the HIP object to be evaluated against traffic.The HIP profile can be added to a security policy as an additional check for traffic matching that policy. When the traffic is matched to the HIP profile, the security policy rule is enforced on the traffic.For more details on creating a HIP profiles, see Configure HIP-Based Policy Enforcement.
- Select.ObjectsGlobalProtectHIP Profiles
- Select an existing HIP profile orAdda new one.
- ClickAdd Match Criteriato open the HIP Objects/Profile Builder.
- Select theHIP objectthat you want to use as match criteria, and then click the add () icon to move it to theMatcharea of the HIP Profile.
- After you add the objects to the new HIP profile, clickOK, and thenCommitthe changes.
- Add the HIP profile to a security policy so the data collected with the custom check can be used to match to and act on traffic.Select, and then select an existing security policy orPoliciesSecurityAdda new one. On theUsertab,AddtheHIP Profilesto the policy. For more details on security policies components and using security policies to match to and act on traffic, see Security Policy.
