ION
1200-S Front Panel
Learn more about the
ION
1200-S Front panel.

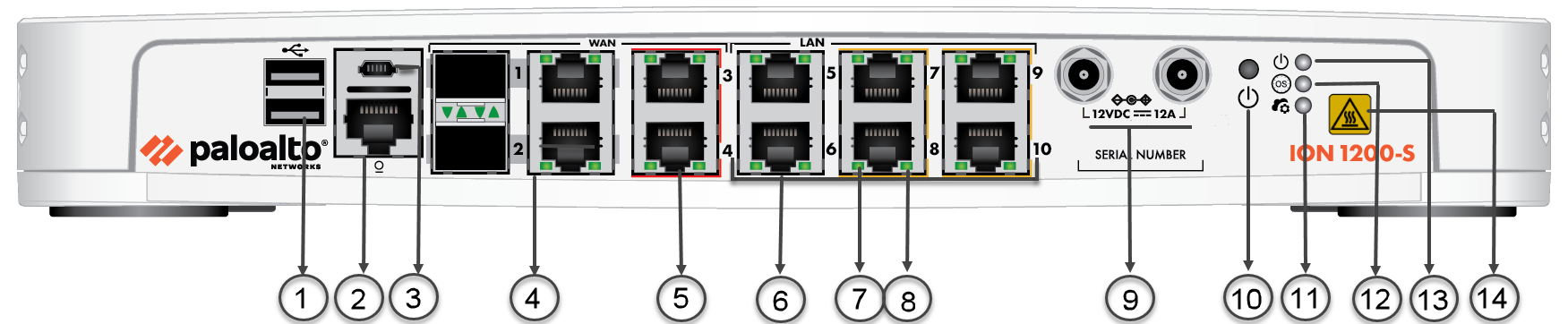

The following image shows the front panel of the
ION
1200-S and the table describes the front panel components.
Item
Component
Description
1
USB Port
USB 3.0 (reserved for future use).
2
Console Port
RJ-45 Serial console port.
3
Micro USB
Micro USB Type B Console connector.
4
SFP/RJ-45 Combo Ports
Ports 1 and 2 are 10/100/1000Mbps SFP/RJ-45 combo ports.
5
Bypass Pair
Ports 3 and 4 are bypass pairs. Bypass is indicated with a orange bar above and below the ports.
6
Ethernet Ports
Ports 5-10 are access ports.
Ports 7-10 are PoE ports indicated with a yellow bar above and below the ports.
7
Link Speed LED
On ethernet ports 1-10, the left LED indicates the link speed.
8
Activity LED
On ethernet ports 1-10, the right LED indicates the activity on the port.
9
Power
Power Input.
10
Restart button
Restart button.
11
Controller LED
Controller LED; the LED turns green on successful connection with the
Prisma SD-WAN
controller.
12
OS LED
Operating System status LED.
13
Power LED
Power LED; the LED turns green when powered on.
14
Heat Label
Heat label on the device.
