Overview ION 1200-S
Learn about the new next-gen enterprise branch device ION 1200-S.
Prisma SD-WAN ION 1200-S is a next generation software defined enterprise branch device
with integrated 4G or 5G cellular network access and Layer 2 switching ports. The
switching ports increase the number of devices directly connected on Wireless Access
Points (WAP). With the introduction of ION 1200-S, you can accelerate your SASE
deployment to branch offices by leveraging 4G or 5G connectivity without installing
additional hardware in the branch. Use the 4G or 5G network as the primary WAN
connectivity to enable rapid deployment of ATMs or kiosk systems or as a secondary
backup link to improve the resilience of the branch WAN. With the new ION 1200-S device,
you can provide secure, access layer connectivity to endpoint devices, through PoE++
capable switch ports.
The variants of the ION 1200-S series are:
- ION 1200-S
Enterprise small branch device with integrated Layer 2 switch ports.
![]()
- ION 1200-S-C-NA and ION

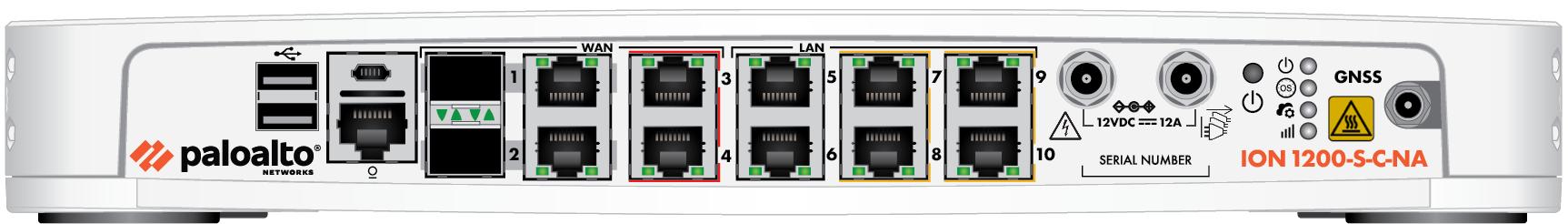

1200-S-C-ROWION 1200-S-C-NA: Enterprise small branch with integrated Layer 2 switch ports and 4G LTE for North America (NA).Do not deploy ION 1200-S-C-NA in regions outside North America.
![]()

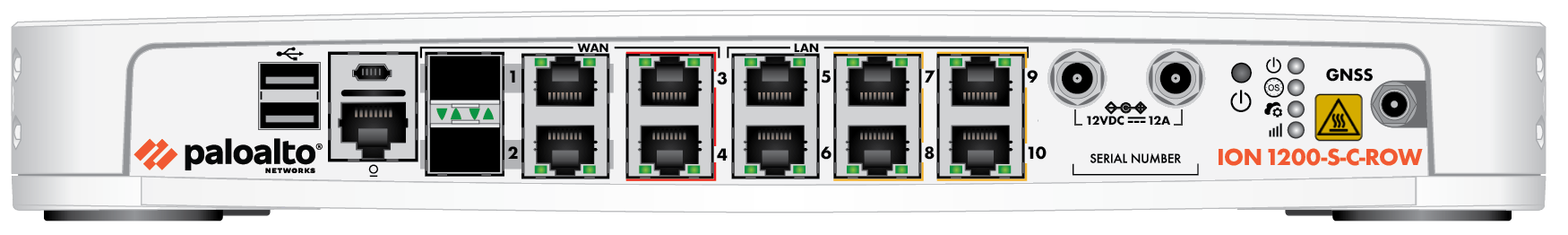

ION 1200-S-C-ROW: Enterprise small branch with integrated Layer 2 switch ports and 4G LTE for APAC and EMEA (Rest of the World).Do not deploy ION 1200-S-C-ROW in North America.![]()

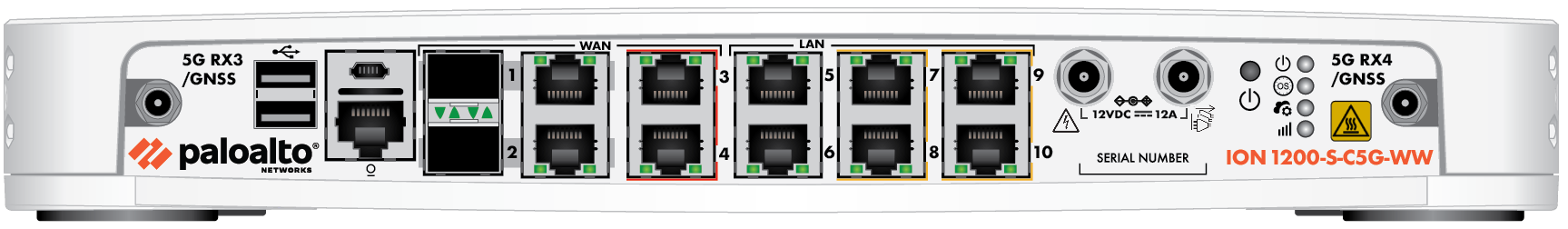

- ION 1200-S-C5G-WWEnterprise small branch with integrated Layer 2 switch ports and 5G for world wide (WW).
![]()
